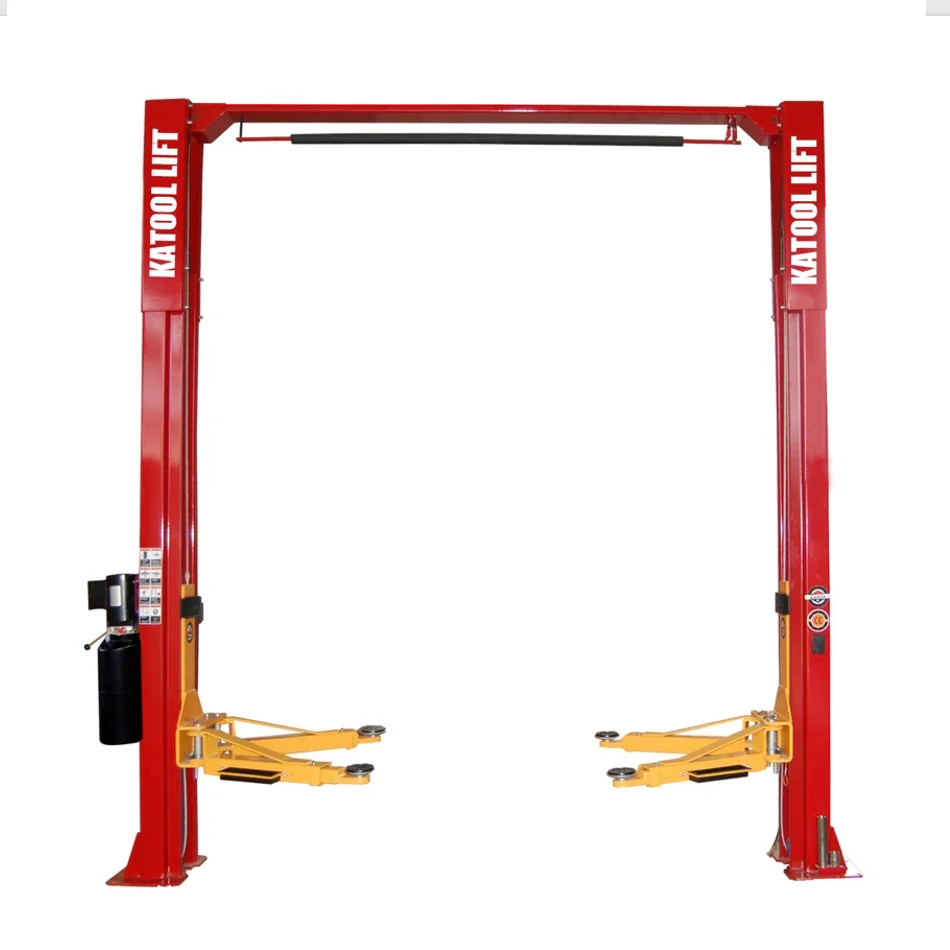

1. 11,000 lb clear-floor 2-post lift - M110 CE certified

Katool KT-M110 11,000 lb Clear-Floor 2-Post Lift

Pickup at Carrier Terminal
$2,099.00 $3,199.00
Skip to product information
1. 11,000 lb clear-floor 2-post lift - M110 CE certified
1/16

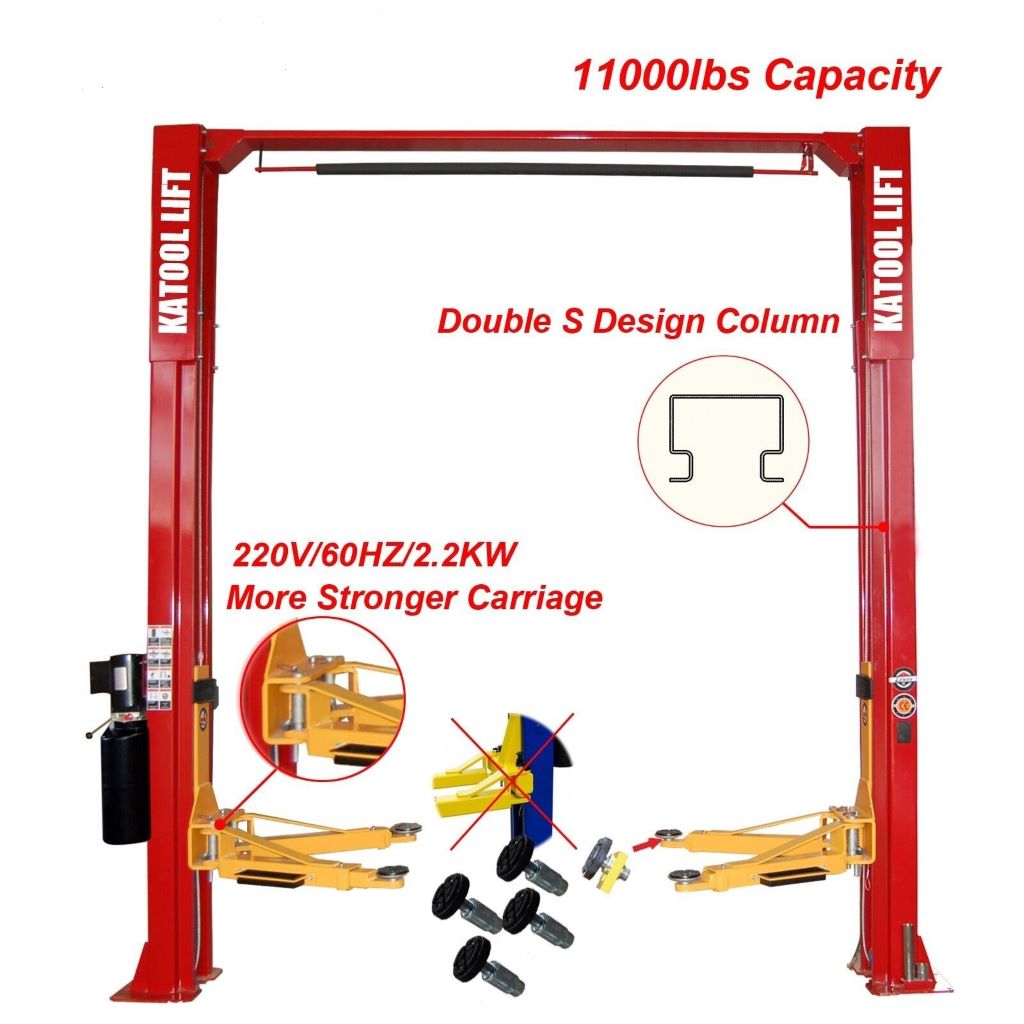

  • 1. 11,000 lb clear-floor 2-post lift - M110 CE certified

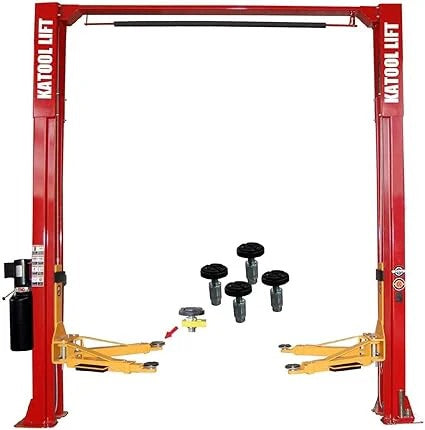

  • 2-post clear-floor vehicle lift frame with two yellow arms and four black jacking adapters
  • 2-post clear-floor vehicle lift with red posts and yellow arms, showing capacity graphics

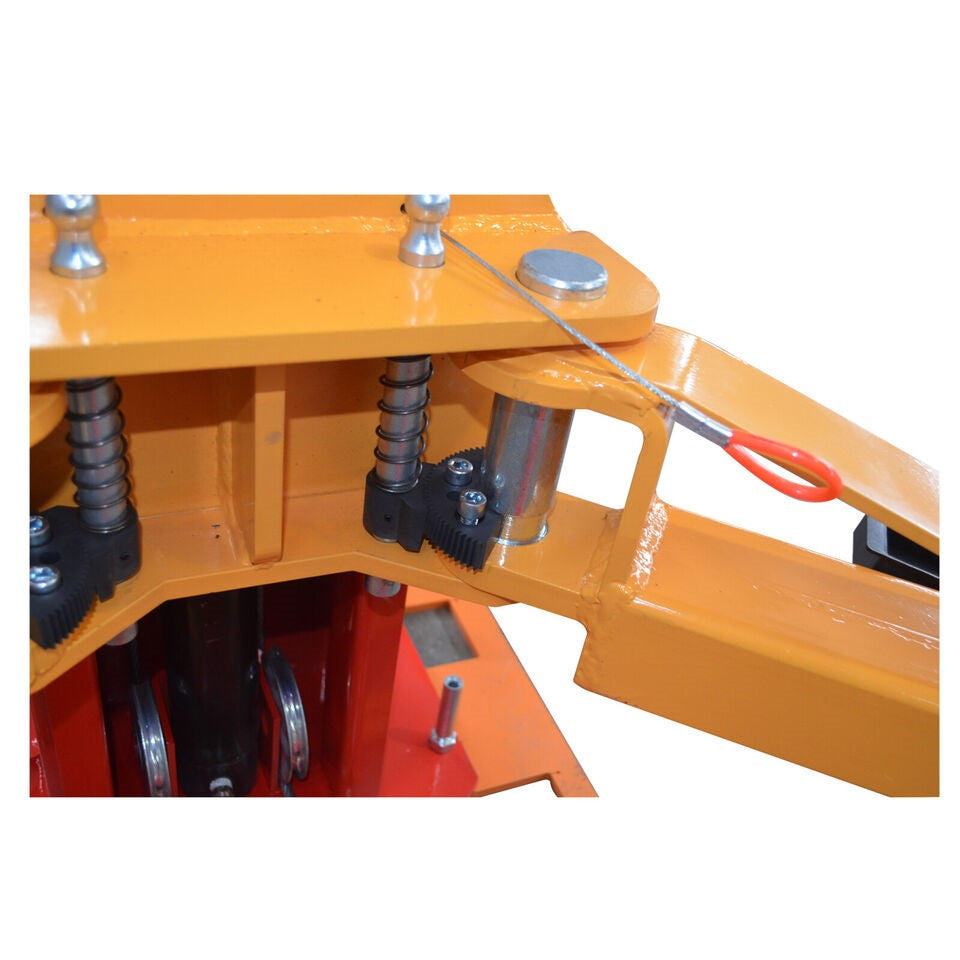

  • 2-post clear-floor vehicle lift arm with spring-loaded jack mechanism and control linkage

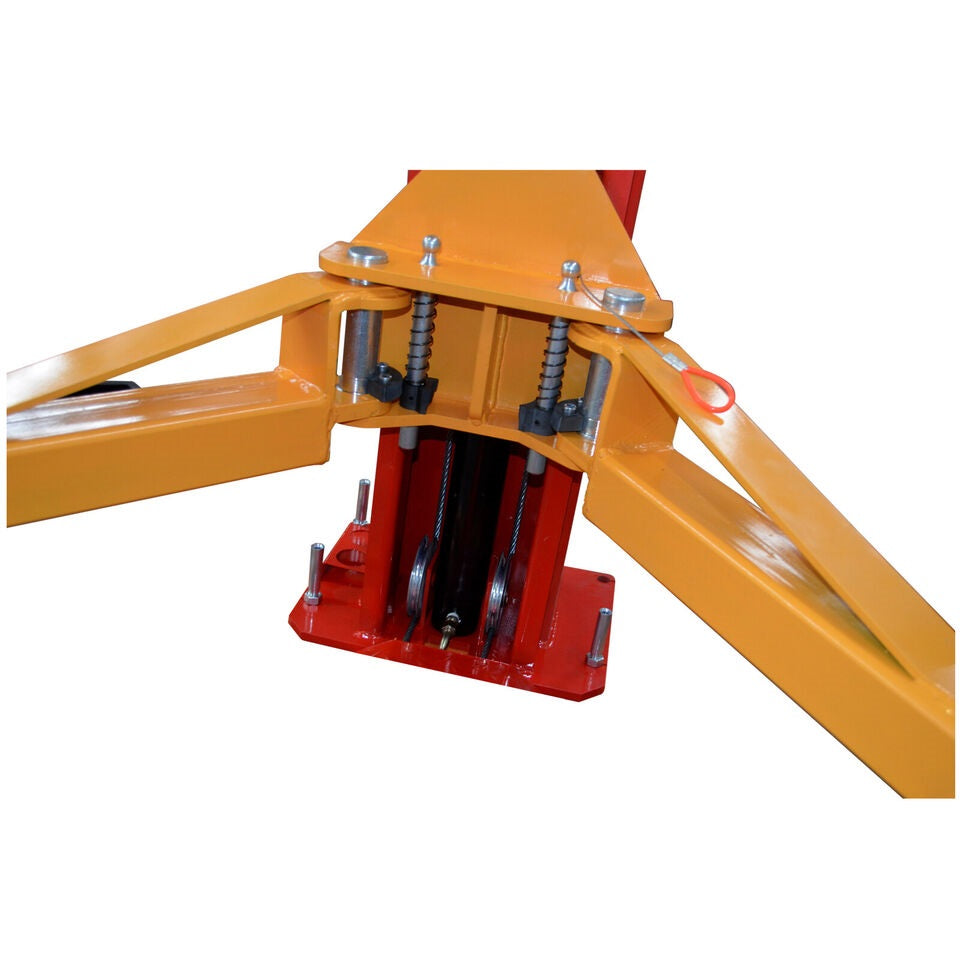

  • 5. 11,000 lb capacity clear-floor lift for auto shops

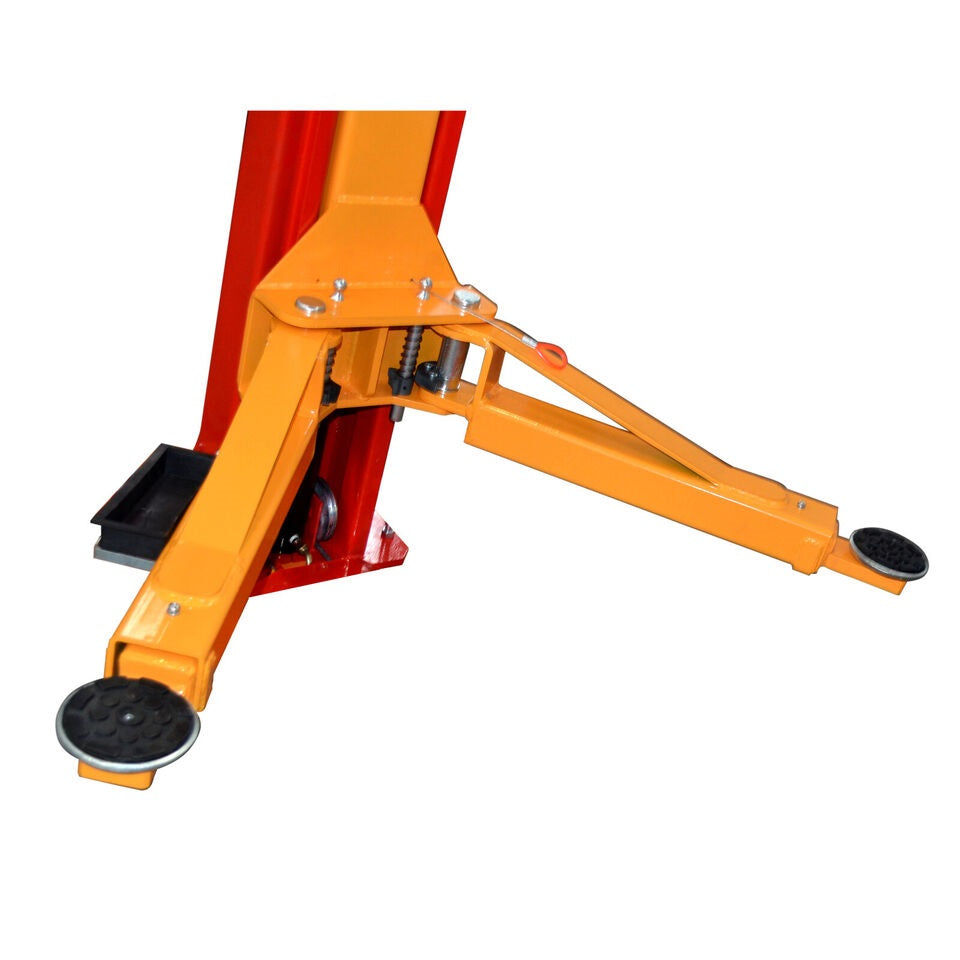

  • 2-post clear-floor vehicle lift side arm with black rubber foot pads and red base

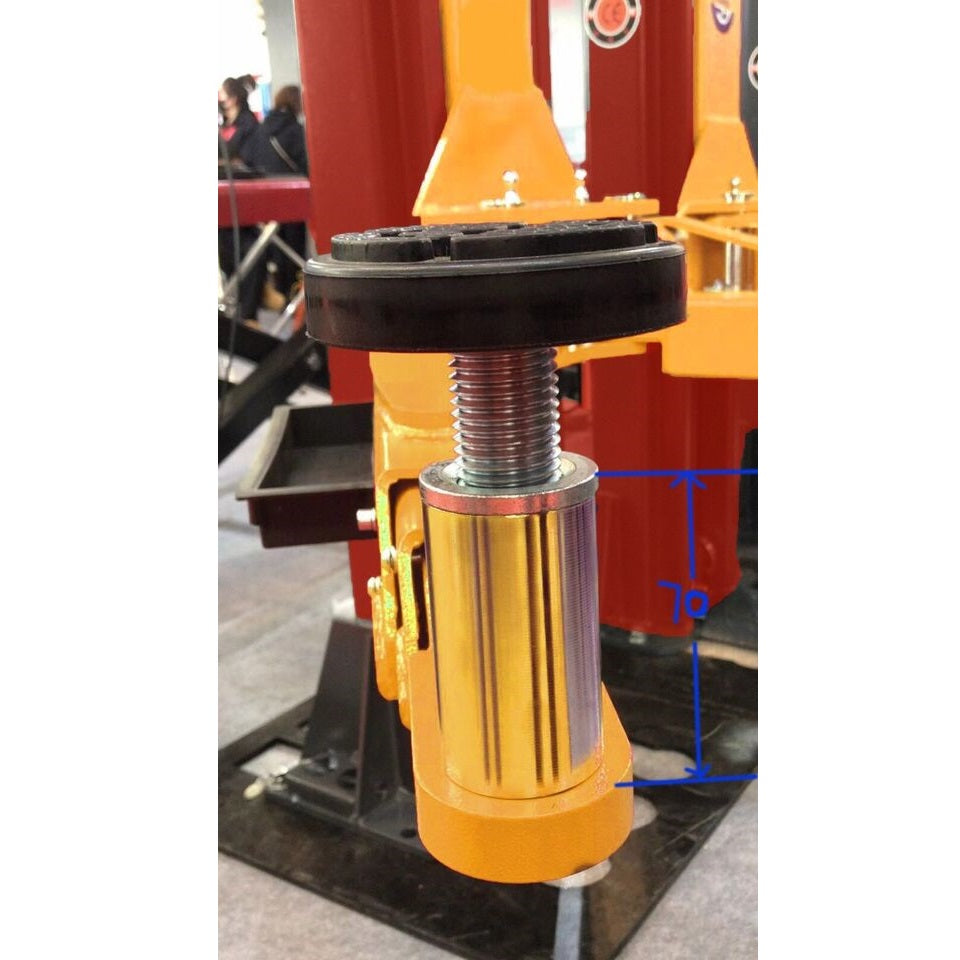

  • 2-post clear-floor vehicle lift hydraulic jack assembly with threaded actuator and base plate

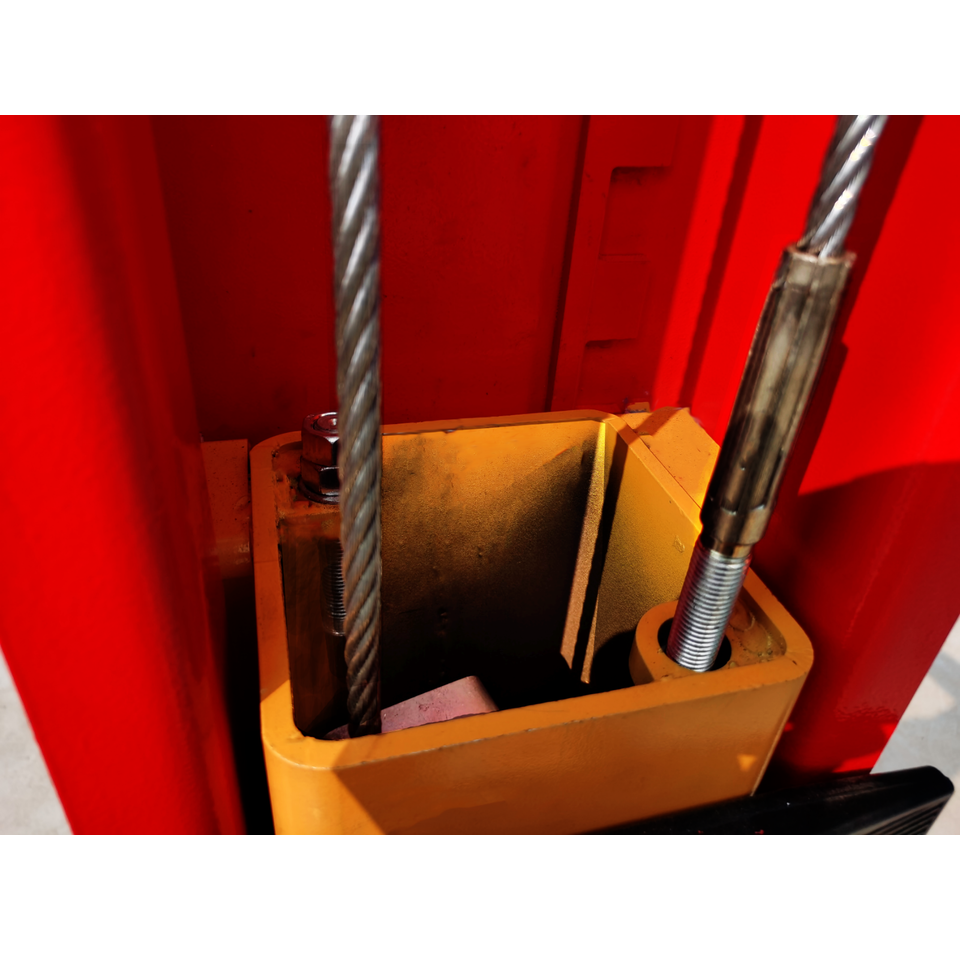

  • 2-post clear-floor vehicle lift interior guide with steel cables, pulleys, and yellow housing

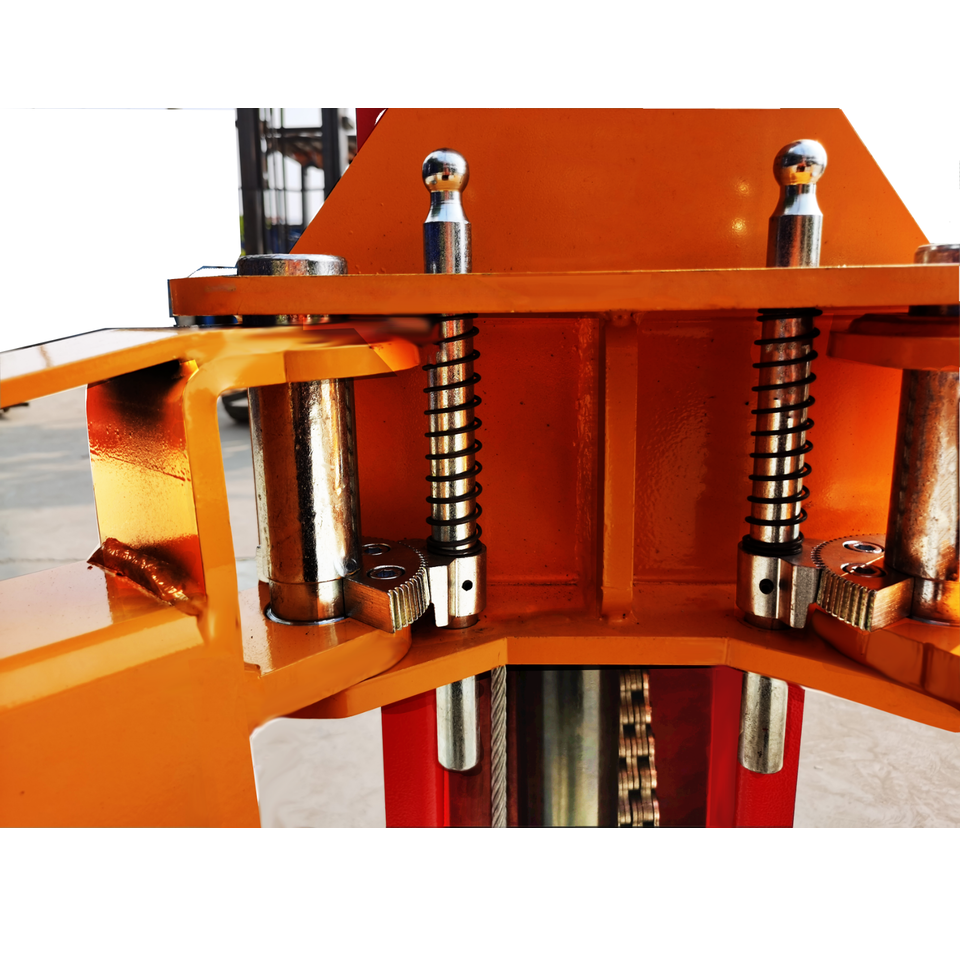

  • 2-post clear-floor vehicle lift top mechanism with two chrome columns and black coil springs

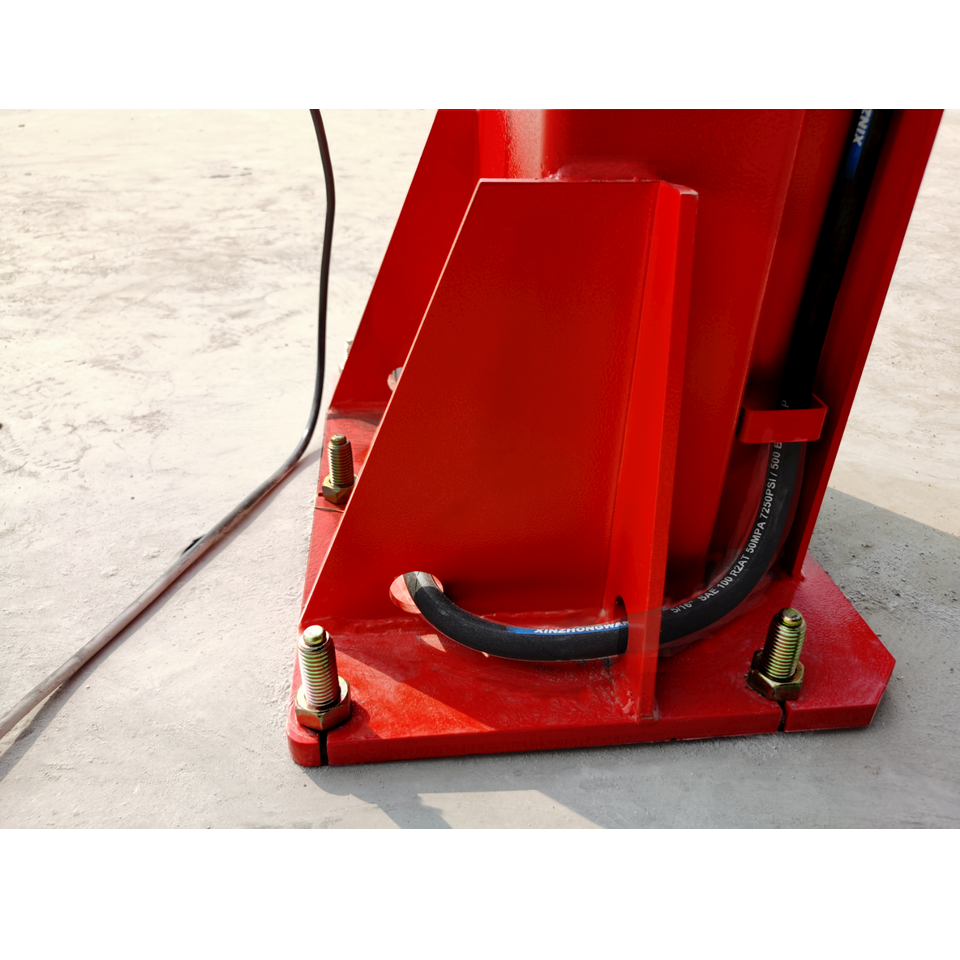

  • 2-post clear-floor vehicle lift base with red frame, rubber hose, and mounting bolts

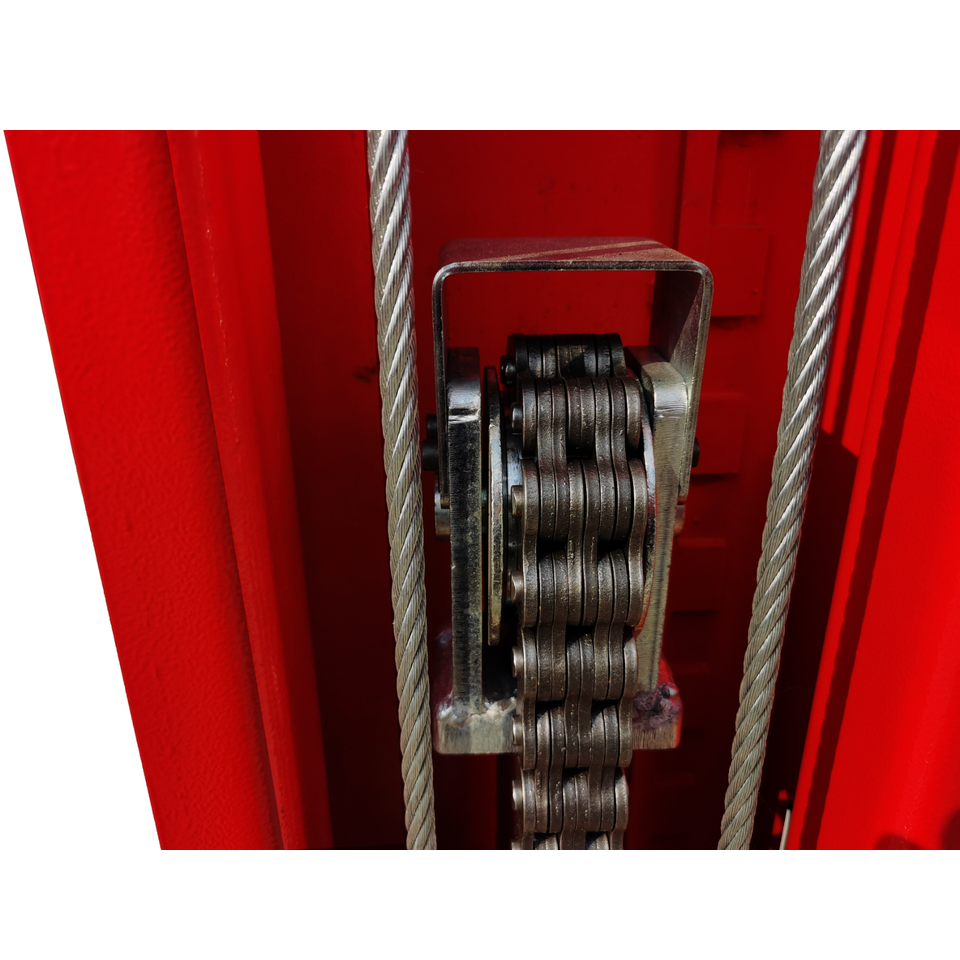

  • 2-post clear-floor vehicle lift cable pulley block with steel cable and red guide posts

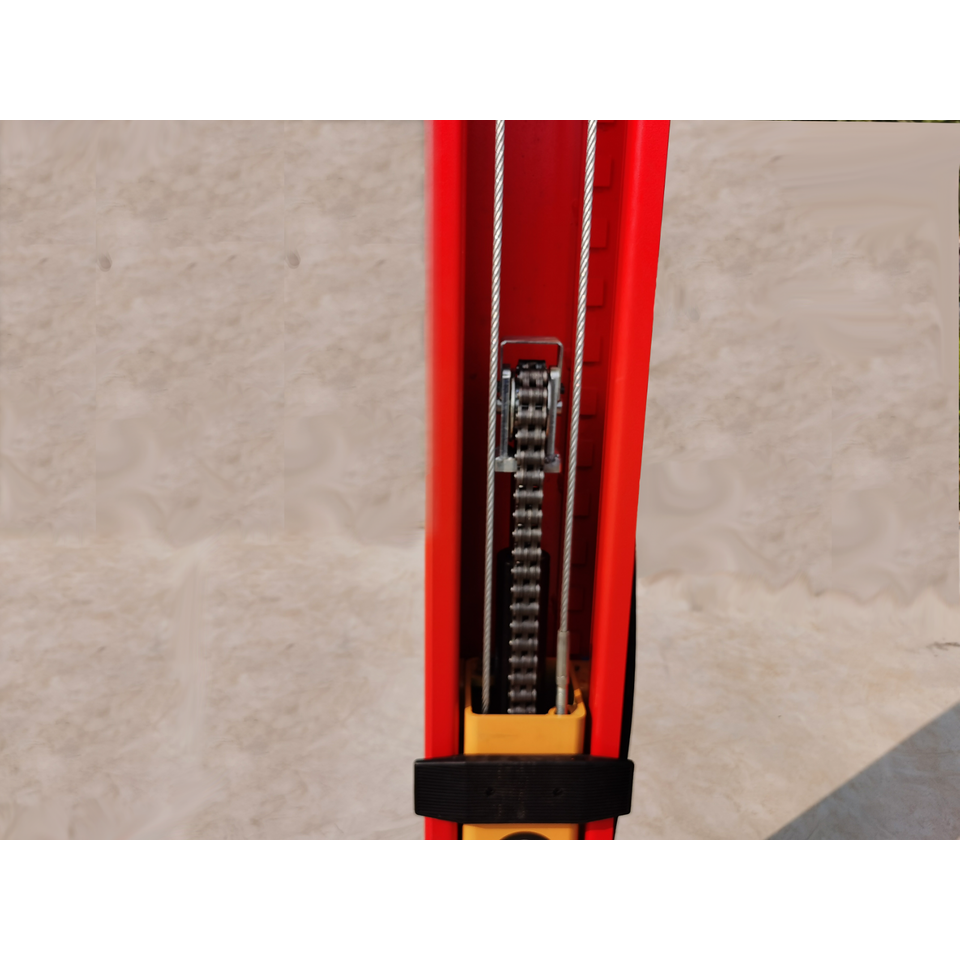

  • 2-post clear-floor vehicle lift vertical post with chain drive and black safety stop

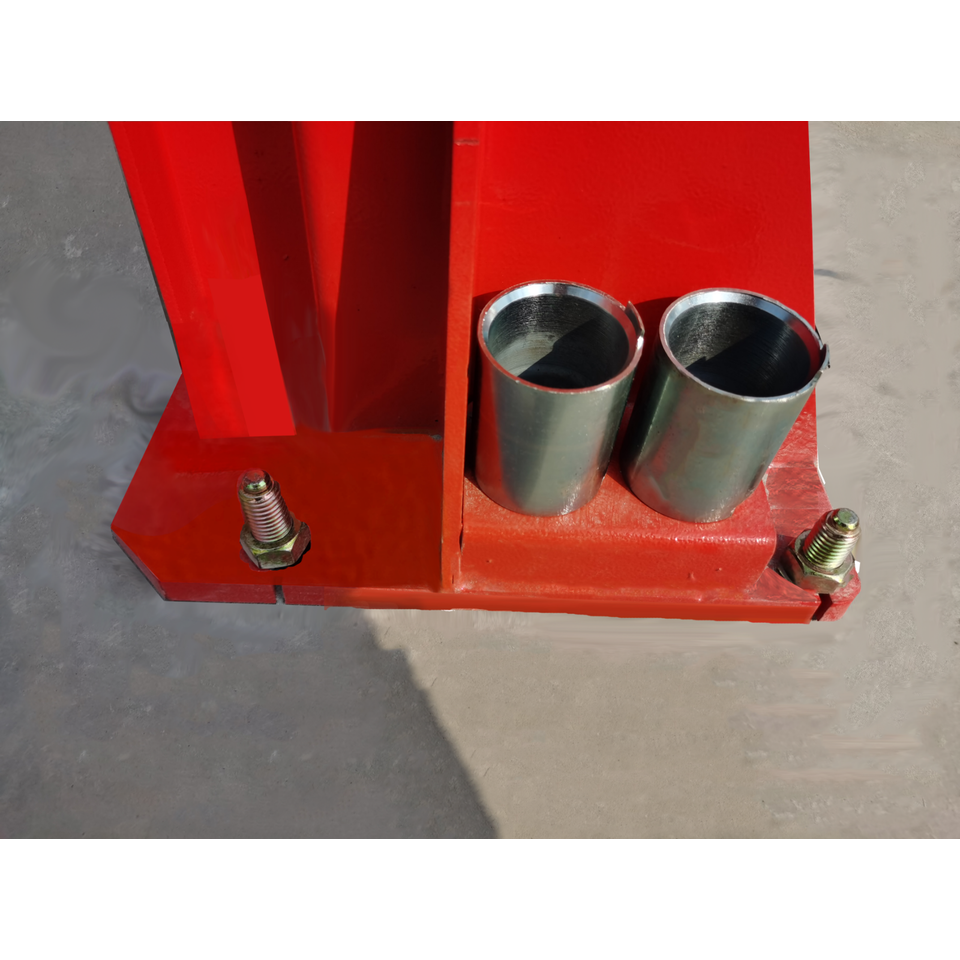

  • Two-post lift base with red steel column, twin metal guide sleeves, mounting bolts

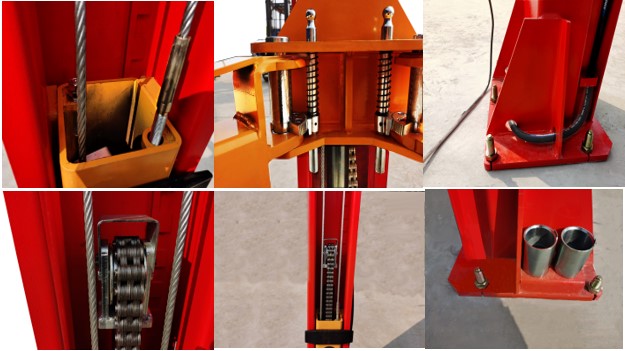

  • 14. 11,000 lb clear-floor lift for service centers

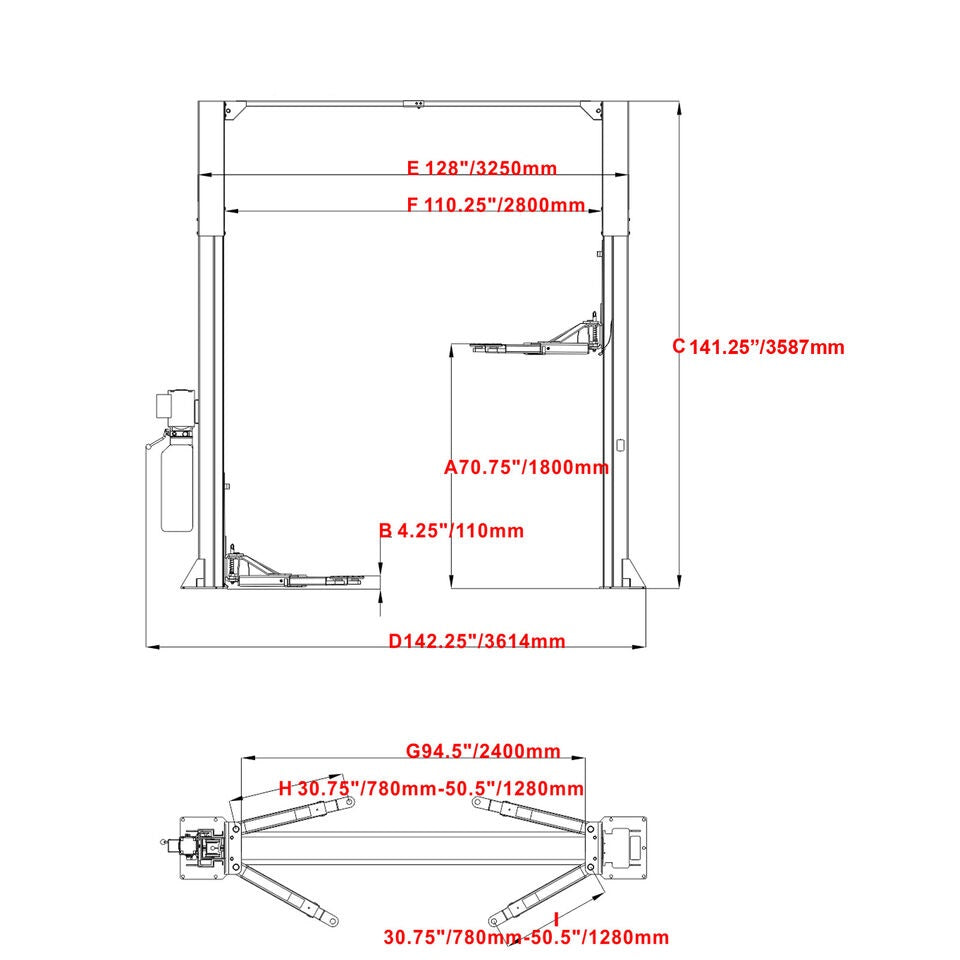

  • Two-post lift diagram with dimensional measurements and clearances

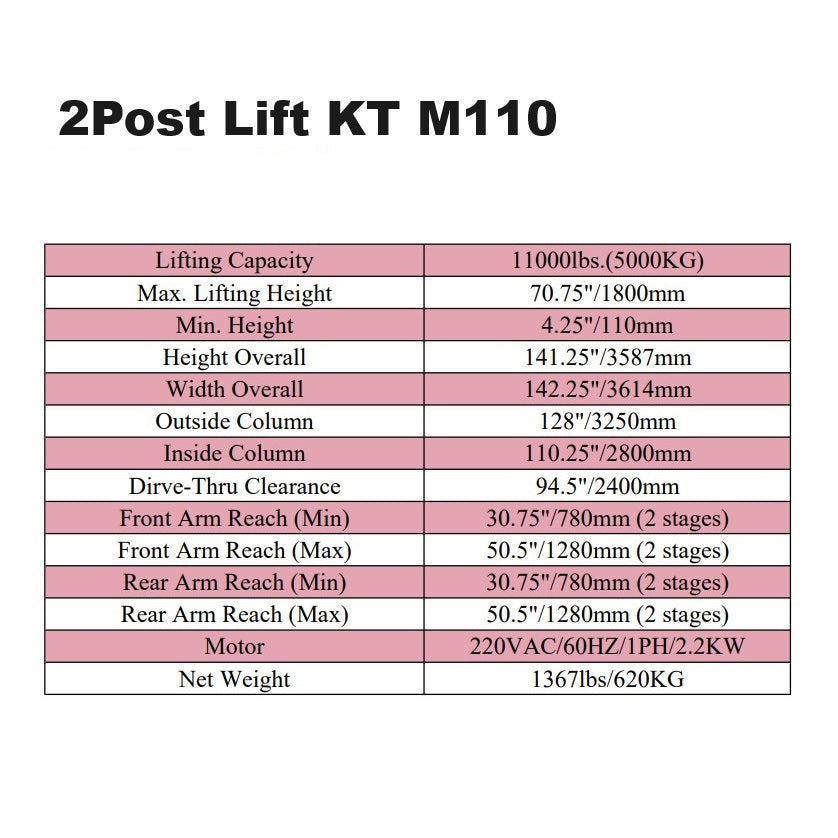

  • Two-post lift specifications table with lifting capacity, heights, and motor details
Katool KT-M110 11,000 lb Clear-Floor 2-Post Lift

Katool KT-M110 11,000 lb Clear-Floor 2-Post Lift

$2,099.00 $3,199.00

Shop Pay Installments

Eligible customers can split their purchase into payments with Shop Pay. Available plans and terms are shown at checkout.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Review the payment schedule and any down payment at checkout
  • Pay the rest over time with automatic payments

Payment options are subject to eligibility. Interest may apply. Review your rate, payment schedule, and total cost before completing your purchase.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Delivery Options
Free warehouse pickup · Confirm first Ask us to confirm stock and the supplier pickup location before ordering. No same-day pickup or handling fee. Contact us to arrange pickup →
Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

Adds 24 months after the standard parts warranty ends. Parts only; labor is not included. One plan per machine.

View coverage and terms

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
Manufacturer WarrantySee Product Terms
✅
Product SupportContact ALLIZOE
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. Optional extended parts coverage is offered only when an enabled add-on is shown for this eligible main machine. If purchased, it adds 24 months after the standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended.

Warranty Includes:

  • Cylinders, power units, motors, displays, electronics, etc.
  • Structural components: 3-year standard manufacturer warranty

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included
  • Photos and/or videos of defects may be requested
  • Do not disassemble any equipment before the issue is determined

📄 Download Manual (PDF)
Shipping

Shipping availability, charges and estimated timing vary by product, delivery option and destination. Review the selected option and confirm any unloading equipment or delivery services required before ordering. Warehouse pickup requires stock and location confirmation, an appointment and written pickup authorization; no same-day pickup. Pickup has no shipping or handling fee. View full Shipping & Delivery details →
How to Choose the Right Lift ▾

Not sure whether a 2-post or 4-post lift is right for your shop? Our guide breaks down the key differences in access, space, capacity, and use case.

View the 2-Post vs 4-Post Comparison Guide →

⚠️ Safety Warning

⚠️ IMPORTANT SAFETY WARNING: Concrete thickness must be at least 5.9 inches (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

⚠️ IMPORTANT SAFETY WARNING: Ceiling clearance must be at least 13 feet (3,962 mm). Failure to verify your garage or shop height before installation could result in serious injury or death! It is the customer's responsibility to verify ceiling height before purchase and installation.

Price & Freight — Before Tax

For one lift in its listed standard configuration within the contiguous United States:

  • Warehouse Pickup: $2,099 before tax; no freight or handling fee. Confirm supplier stock, warehouse and a pickup appointment with ALLIZOE before ordering.
  • Pickup at Carrier Terminal: $2,099 product + $300 freight = $2,399 before tax.
  • Commercial Delivery (Forklift Required): $2,099 product + $300 freight = $2,399 before tax.
  • Residential Delivery (Forklift Required): $2,099 product + $400 freight = $2,499 before tax.

Tax, optional accessories or upgrades, and the optional $349 extended parts warranty are additional. Address delivery requires suitable forklift or loading-dock arrangements; standard liftgate service is not offered for this lift. For terminal pickup, bring a suitable vehicle or trailer and arrange unloading at your final destination. Confirm address eligibility and review the final total at checkout; orders containing other products may have different combined shipping charges.

The M110 Clear-Floor 2-Post Lift eliminates cables and chains on the floor, creating a safer, cleaner workspace with unobstructed vehicle positioning. With 11,000 lb lifting capacity, dual hydraulic chain-drive cylinders, and top-level hydraulic system. Available in 220V or optional 110V — the professional choice for shops that prioritize safety and efficiency.

  • Clear-Floor Design: No cables or chains on floor — eliminates trip hazards
  • 11,000 lbs lifting capacity
  • Dual Hydraulic Chain-Drive Cylinders
  • Overhead crossbar with safety shutoff bar; verify overhead and raised-vehicle clearance before ordering
  • Manual safety release from two sides
  • Symmetric arm design
  • Rubber pad door opening protection
  • Easy, unobstructed vehicle positioning
  • 220V/60HZ/1PH standard — 110V/60HZ/1PH optional
M110 AS110D ME-M115S
Capacity 11,000 lb 11,000 lb 11,000 lb
Price (from) $2,099 $2,599 $2,047
Max Lift Height 70.75 in 70.75 in 74.8 in
Overall Width 142.25 in 134.65 in 134.65 in
Drive-Thru Clearance 94.5 in 99.61 in 94.5 in
Motor 220V listed; confirm 110V availability and quote 220V standard; optional 110V — confirm configuration and quote 110V or 220V — select voltage
Net Weight 1,367 lbs 1,323 lbs Confirm net weight
Arm Type Symmetrical Asymmetrical Symmetrical

Lifting Capacity: 11,000 lbs (5,000 kg)

Motor: 220V/60HZ/1PH (110V/60HZ/1PH Optional)

Floor Design: Clear-Floor — no cables or chains on floor

Package Size: 112 x 18 x 35.4 in

Package Weight: 1,367 lbs

Height Overall: 141.25 in / 3,587 mm

Max. Lifting Height: 70.75 in / 1,800 mm

Min. Height: 4.25 in / 110 mm

Drive-Thru Clearance: 94.5 in / 2,400 mm

Width Overall: 142.25 in / 3,614 mm

Minimum Ceiling Height Required: 13 ft / 3,962 mm

The Katool M110 Clear-Floor 2-Post Lift sets the standard for safe, efficient automotive service with a clear-floor layout that keeps the floor between the posts free of a base plate or cable cover. An overhead crossbar with a safety shutoff bar remains above the vehicle; verify the required clearance before ordering. With 11,000 lb lifting capacity, this lift combines a clear-floor layout with dual hydraulic chain-drive cylinders. The clear-floor configuration provides easy, unobstructed vehicle positioning while dual hydraulic chain-drive cylinders ensure smooth, balanced lifting. Features include manual safety releases from both sides, symmetric arm design, rubber pad door protection, and a standard 220V configuration with an optional 110V configuration that must be confirmed with ALLIZOE before ordering.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. Optional extended parts coverage is offered only when an enabled add-on is shown for this eligible main machine. If purchased, it adds 24 months after the standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended.

Warranty Includes:

  • Cylinders, power units, motors, displays, electronics, etc.
  • Structural components: 3-year standard manufacturer warranty

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included
  • Photos and/or videos of defects may be requested
  • Do not disassemble any equipment before the issue is determined

📄 Download Manual (PDF)

  • Safety-Focused Shops: Clear-floor design eliminates trip hazards and cable obstructions
  • High-Volume Auto Repair: 11,000 lb capacity with unobstructed vehicle positioning
  • Professional Shops: 11,000 lb capacity with a clear-floor design
  • Home Garages: Clean, professional-grade lift with clear floor workspace
  • 110V Shops: Optional 110V/60HZ/1PH available

All Katool equipment is manufactured to international quality standards.

  • Quality Control — Each unit undergoes pre-shipment inspection
  • US-Based Support — Technical support provided from the United States
  • Warranty — 1-year limited manufacturer warranty included

Price & Freight — Before Tax

For one lift in its listed standard configuration within the contiguous United States:

  • Warehouse Pickup: $2,099 before tax; no freight or handling fee. Confirm supplier stock, warehouse and a pickup appointment with ALLIZOE before ordering.
  • Pickup at Carrier Terminal: $2,099 product + $300 freight = $2,399 before tax.
  • Commercial Delivery (Forklift Required): $2,099 product + $300 freight = $2,399 before tax.
  • Residential Delivery (Forklift Required): $2,099 product + $400 freight = $2,499 before tax.

Tax, optional accessories or upgrades, and the optional $349 extended parts warranty are additional. Address delivery requires suitable forklift or loading-dock arrangements; standard liftgate service is not offered for this lift. For terminal pickup, bring a suitable vehicle or trailer and arrange unloading at your final destination. Confirm address eligibility and review the final total at checkout; orders containing other products may have different combined shipping charges.

Product price and freight charges are separate. Delivery charges vary by destination and selected service.

  • Supplier warehouse pickup: No freight or handling fee. Allizoe confirms stock and the pickup warehouse before payment; warehouse address can be shared before payment.
  • Scheduling: No same-day pickup. After confirmation, the supplier provides a pickup release form. Blind pickup may be arranged.
  • Carrier terminal pickup: Freight to a carrier terminal is separate from free supplier warehouse pickup. Bring a suitable vehicle or trailer and arrange unloading at your final destination.
  • Commercial or residential delivery: Select the service matching your address and unloading equipment.

Two-post lift delivery requires a suitable forklift or loading dock at the destination. Standard liftgate service is not available. Confirm unloading arrangements before ordering.

Package Size

L x W x H (in) 112 x 18 x 36
Weight (lbs) 1367

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Explore equipment for your shop
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • Options may include supplier Warehouse Pickup, Pickup at Carrier Terminal, Commercial Delivery, and Residential Delivery. Product price and freight charges are shown separately. Supplier warehouse pickup is free of freight and handling fees, requires stock and location confirmation before payment and an appointment, and is not available the same day. Carrier terminal pickup includes freight to the terminal; terminal staff load your suitable vehicle or trailer, and you handle final unloading. Two-post lifts require a suitable forklift or loading dock for delivery. Standard liftgate service is not available; confirm unloading arrangements before ordering.
  • A clear-floor lift keeps the floor between the posts free of a base plate or cable cover. The KT-M110 uses an overhead crossbar with a safety shutoff bar, so overhead clearance still needs to be verified. Check the model-specific manual, the raised vehicle's height, and your installation space before ordering.
  • The KT-M110 is listed with standard 220V/60Hz/single-phase power and an optional 110V configuration. The Delivery Options on this page select fulfillment, not voltage. If you need 110V, contact ALLIZOE before ordering so we can confirm the available configuration, lead time, and any price difference.
  • Professional installation by a qualified installer is strongly recommended. Allizoe lists a level concrete floor at least 5.9 inches (150 mm) thick with a 3,000 PSI rating. Have the installer verify the slab, ceiling clearance, electrical supply, anchoring, and model-specific installation instructions before installation.
  • If Shop Pay Installments is offered for your order at checkout, the available payment plans and terms will be shown there. Availability is subject to eligibility and approval. Review the terms before completing your purchase.
  • We provide US-based technical support via email and phone. Our team assists with installation questions, troubleshooting, and parts replacement throughout your warranty period.
  • Contact Allizoe within 30 days of pickup or delivery to request return authorization. Eligible equipment must be unused, uninstalled, and in its original packaging with all accessories. Returns for reasons other than defect or warranty are subject to a 30% restocking fee and round-trip freight costs under our Refund Policy. Review the full policy at /policies/refund-policy before ordering.
  • Check the vehicle's actual loaded weight and load distribution against the lift's rated capacity and any manufacturer-specified per-arm limits. Confirm that the arms and pads can reach the vehicle manufacturer's approved lifting points, and check minimum pad height, wheelbase, vehicle width, and actual drive-through clearance. Allow space for the raised vehicle, overhead beam, and ceiling using the supplied model-specific installation drawing and manual. Contact ALLIZOE with the vehicle year, make, model, modifications, and loaded weight if you need help checking compatibility before ordering.
