What is the maximum weight capacity of the KT-MOTO150LT?

The KT-MOTO150LT has a maximum lifting capacity of 1,500 lbs, making it suitable for heavyweight cruisers, touring motorcycles, choppers, and ATVs.

What is the maximum lift height?

The lift raises to a maximum height of 33.5 inches (850 mm), providing a comfortable working position to reduce technician fatigue during repairs and maintenance.

How low is the platform when fully lowered?

The minimum loading height is 7.5 inches (190 mm), allowing most motorcycles to be rolled directly onto the platform via the integrated loading ramp with minimal effort.

Does it come with side extensions?

Yes. The KT-MOTO150LT includes removable side extensions that expand the platform width, making it ideal for servicing wider motorcycles and ATV applications.

What are the shipping options and cost?

The KT-MOTO150LT ships via freight with a flat-rate shipping fee of $150. Residential and liftgate delivery options are available.

What warranty is included?

The KT-MOTO150LT comes with a 12-month all-parts warranty covering manufacturing defects under normal use conditions.

What type of surface is required for safe operation?

The lift must be placed on a flat, level, and stable concrete or solid surface. Do not operate on uneven, soft, or sloped ground.

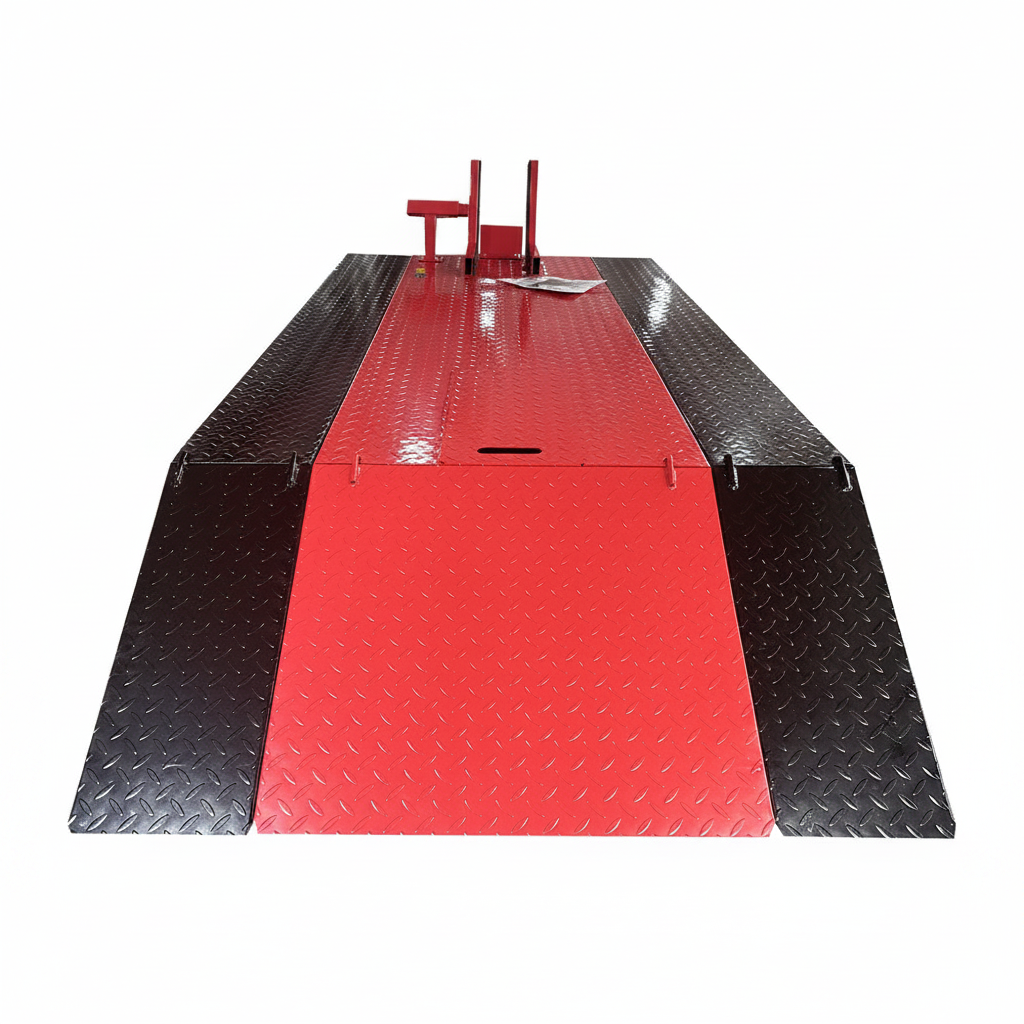

Katool KT-MOTO150LT Hydraulic Motorcycle Lift - 1500lbs

$1,449.00

1/12

Katool KT-MOTO150LT Hydraulic Motorcycle Lift - 1500lbs

Name: Katool KT-MOTO150LT Hydraulic Motorcycle Lift - 1500lbs
Brand: Katool
SKU: KT-MOTO150LT
Price: 1449.00 USD
Availability: OutOfStock

$1,449.00

🚚 Delivery option includes free freight to the lower 48 states.

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

Choose Shop Pay at checkout
Select your preferred payment plan
Make your first payment today
Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰

Tax-Free Outside IL

🚚

Free Freight Lower 48 States

🛡️

1-Yr Warranty Full Parts Support

🔬

Safety Tested Load & Function Tested

📍

Local Pickup Nationwide Save up to $1,400 in freight costs

Learn More >

12-Month All-Parts Warranty

The Katool KT-MOTO150LT is covered by a 12-month warranty on all parts. This warranty covers manufacturing defects under normal use conditions. For warranty claims or support, please contact our customer service team with your order information.

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

Do not exceed the 1,500 lb maximum lifting capacity.
Always use safety locks before performing any work under or around the lifted vehicle.
Ensure the lift is placed on a flat, level, and stable surface before use.
Keep bystanders clear of the lift area during raising and lowering operations.
Inspect hydraulic fluid levels and all components regularly before use.
Do not modify or alter the lift in any way. Unauthorized modifications void the warranty and may cause serious injury.

Professional-Grade Capacity — 1,500 lb rating handles the heaviest motorcycles and ATVs on the market.
Ergonomic Working Height — Raises bikes up to 33.5 in to reduce back strain during extended service sessions.
Versatile Platform Design — Removable side extensions adapt the lift for wider bikes and ATV applications.
Smooth Hydraulic Operation — 4,640 PSI hydraulic system delivers controlled, precise lifting every time.
Built to Last — Heavy-duty reinforced steel frame withstands daily professional use.
Easy Roll-On Loading — Low 7.5 in minimum height and integrated ramp make loading effortless.

1,500 lb Weight Capacity - Built to support larger motorcycles and ATVs while maintaining excellent stability during maintenance and repair work.
Low-Profile Loading Height - The 190 mm minimum height makes loading and unloading safer and more convenient, especially for heavier bikes.
Comfortable Working Height - Lifts motorcycles up to 850 mm, providing easier access for repairs, inspections, cleaning, and detailing.
Large Steel Work Surface - The spacious 2000 × 710 mm platform offers a secure and stable working area.
Removable Side Extensions - Expand the platform width when servicing wider motorcycles or ATV applications.
Hydraulic Lift System - Provides controlled, smooth lifting performance with consistent hydraulic pressure at 4,640 PSI.
Integrated Loading Ramp - Allows motorcycles to be rolled directly onto the lift for efficient setup.
Heavy-Duty Steel Frame - Manufactured from reinforced steel to withstand daily use in professional workshop settings.

Model: KT-MOTO150LT
Lift Type: Hydraulic Motorcycle Lift
Lifting Capacity: 1,500 lbs
Minimum Lift Height: 7.5 in (190 mm)
Maximum Lift Height: 33.5 in (850 mm)
Table Size: 78.7 in × 28.0 in (2000 × 710 mm)
Ramp Size: 28.0 in × 21.7 in
Side Extensions: Removable
Hydraulic Working Pressure: 4,640 PSI
Hydraulic Oil Capacity: 0.42 gal (1.6 L)
Net Weight: 463 lbs
Gross Weight: 562 lbs
Overall Dimensions: 81 in × 34 in × 16 in
Construction Material: Heavy-Duty Steel

The Katool KT-MOTO150LT is engineered for motorcycle repair facilities, dealerships, and enthusiasts who need a dependable lifting solution for larger bikes and ATVs. With an impressive 1,500 lb lifting capacity, this platform is built to handle heavyweight cruisers, touring motorcycles, choppers, and utility vehicles with confidence.

Featuring a spacious steel work table, removable side extensions, and a reliable hydraulic lifting system, the KT-MOTO150LT provides a stable and secure workspace for maintenance, repairs, detailing, and inspections. Its low-profile loading height allows motorcycles to be rolled onto the platform with minimal effort, while the elevated working height helps reduce technician fatigue and improve productivity.

Constructed from heavy-duty steel and designed for frequent use, this motorcycle lift delivers the strength, stability, and durability required in demanding workshop environments.

12-Month All-Parts Warranty

The Katool KT-MOTO150LT is covered by a 12-month warranty on all parts. This warranty covers manufacturing defects under normal use conditions. For warranty claims or support, please contact our customer service team with your order information.

Motorcycle repair shops and dealerships
Professional technicians servicing heavyweight cruisers and touring bikes
ATV and utility vehicle maintenance
Home garage enthusiasts with larger bikes
Detailing, inspections, and routine maintenance work

Package Size

L x W x H (in)	81 in × 34 in × 16 in
Weight (lbs)	562
