Red brake center lathe with black base, front spindle and mounting workrest.

Katool KT-C9370C Brake Lathe

Commercial Delivery (Forklift Available)
$4,899.00 $5,879.00
Skip to product information
Red brake center lathe with black base, front spindle and mounting workrest.
1/7

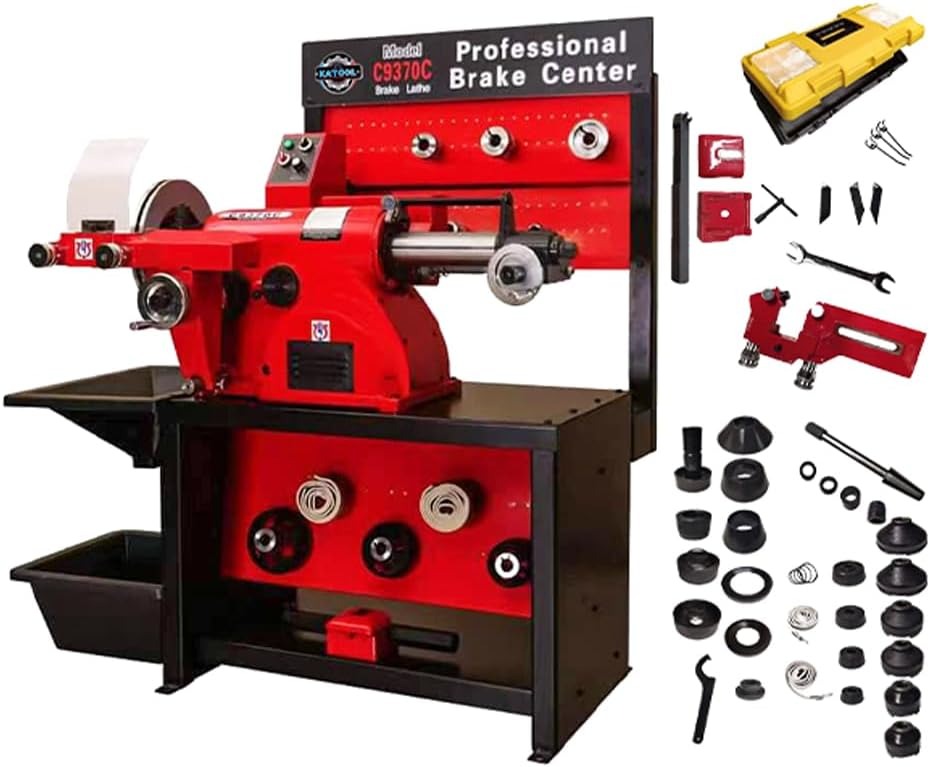

  • Red brake center lathe with black base, front spindle and mounting workrest.

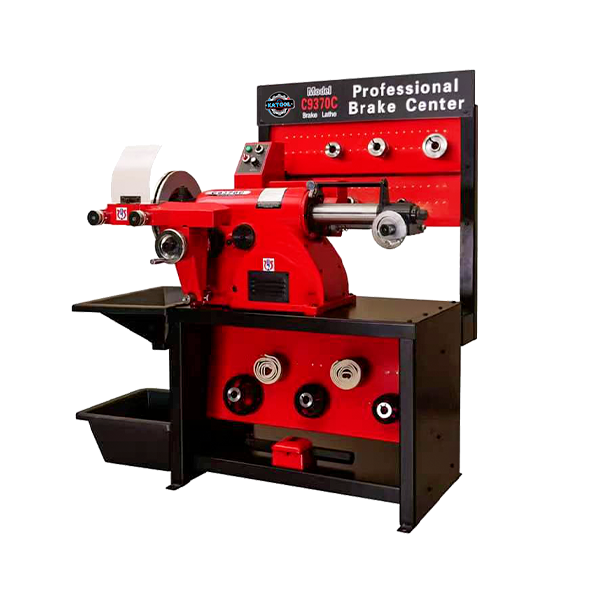

  • Red brake lathe center with black base, side spindle and tool mounts.

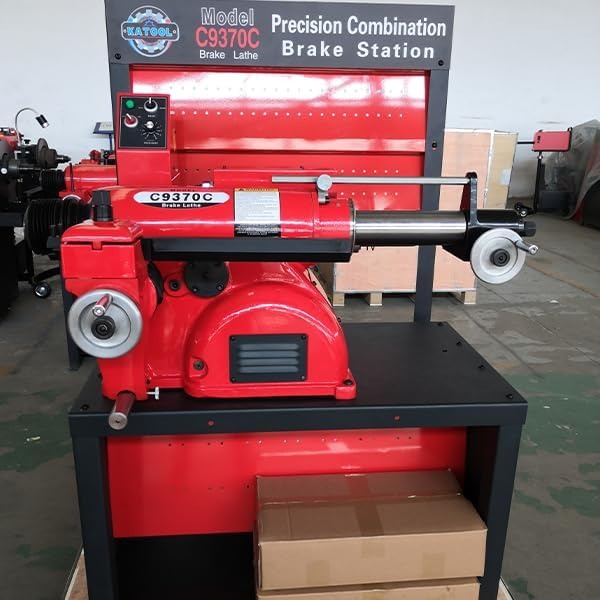

  • Red brake lathe station with long cylindrical shaft and front work table.

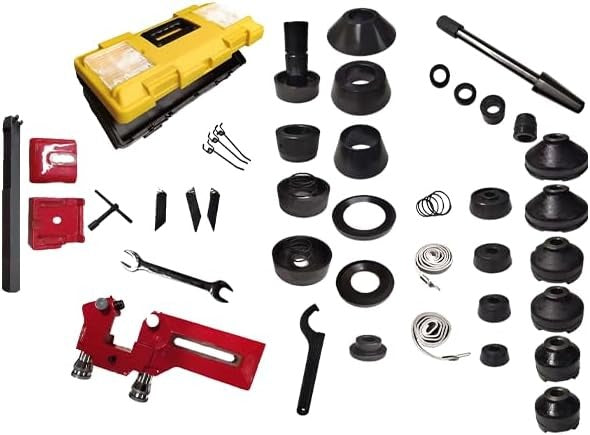

  • Brake lathe parts assortment with black components and a yellow storage case.

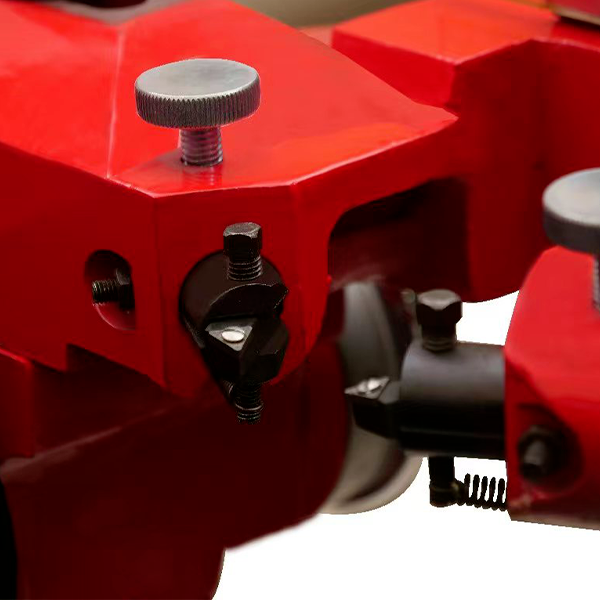

  • Red brake lathe adjustment knob with threaded fasteners and metal clamp arm.

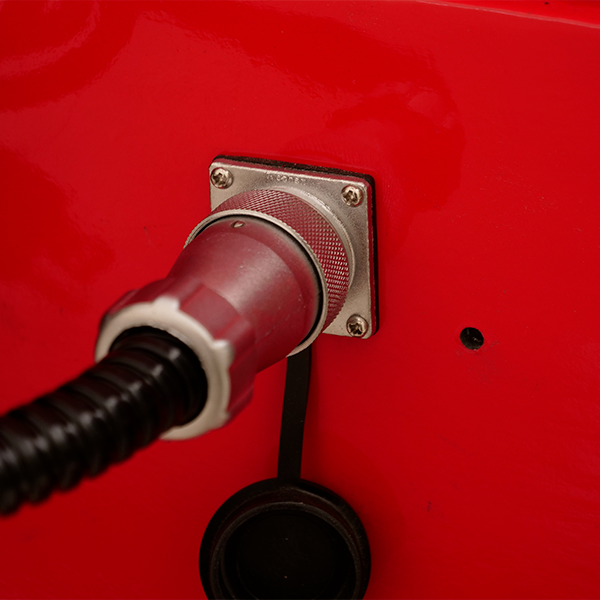

  • Red brake lathe coupling with textured sleeve and black hose connection.

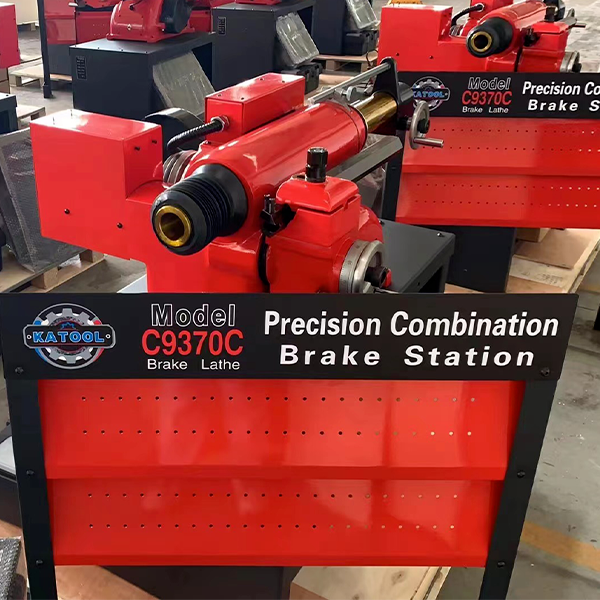

  • Red brake lathe station on black stand with cylindrical spindle and control panel.
Katool KT-C9370C Brake Lathe

Katool KT-C9370C Brake Lathe

$4,899.00 $5,879.00

Shop Pay Installments

Eligible customers can split their purchase into payments with Shop Pay. Available plans and terms are shown at checkout.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Review the payment schedule and any down payment at checkout
  • Pay the rest over time with automatic payments

Payment options are subject to eligibility. Interest may apply. Review your rate, payment schedule, and total cost before completing your purchase.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Delivery Option
Free warehouse pickup · Confirm first Ask us to confirm stock and the supplier pickup location before ordering. No same-day pickup or handling fee. Contact us to arrange pickup →
Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
Manufacturer WarrantySee Product Terms
🔬
Product SupportContact ALLIZOE
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

Warranty Conditions:
• Non-transferable — requires original order number
• Replacement parts at no cost including free shipping
• Labor not included
• Do not disassemble before issue is determined
Shipping

Shipping availability, charges and estimated timing vary by product, delivery option and destination. Review the selected option and confirm any unloading equipment or delivery services required before ordering. Warehouse pickup requires stock and location confirmation, an appointment and written pickup authorization; no same-day pickup. Pickup has no shipping or handling fee. View full Shipping & Delivery details →

⚠️ Safety Warning

WARNING: Machine must be secured to a stable, level work surface before operation. Always wear safety glasses and appropriate PPE when operating. Disconnect power before changing adapters or performing maintenance. Do not exceed rated spindle capacity. Machine weight approximately 728 lbs — forklift required for unloading.

Price & Freight — Before Tax

For one item in its listed standard configuration within the contiguous United States:

  • Warehouse Pickup: $4899.00 before tax; no freight or handling fee. Confirm supplier stock, warehouse and pickup appointment before ordering; no same-day pickup.
  • Commercial Delivery (Forklift Available): $4899.00 product + $400.00 shipping = $5299.00 before tax.
  • Commercial Delivery (Liftgate Required): $4899.00 product + $500.00 shipping = $5399.00 before tax.
  • Residential Delivery (Forklift Available): $4899.00 product + $500.00 shipping = $5399.00 before tax.
  • Residential Delivery (Liftgate Required): $4899.00 product + $600.00 shipping = $5499.00 before tax.

Tax and optional accessories are extra. Select an available delivery service matching your site and unloading equipment. Where liftgate is offered, confirm actual packed size and weight, carrier limits, and site access before ordering. Final charges appear at checkout; mixed orders may combine shipping differently.

The Katool KT-C9370C delivers professional-grade brake resurfacing for automotive service shops with its wide machining range and three selectable spindle speeds. Engineered to handle rotors (up to 17"), drums (up to 19.5"), and flywheels (up to 24") in one machine, it eliminates the need for multiple tools. The 1HP motor runs on standard 110VAC — no special electrical work required. Self-aligning spacers and automatic cross feed ensure consistent, accurate results. Ships from US warehouse for fast delivery.

• Combination disc and drum brake lathe — resurfaces rotors, drums, and flywheels
• Three selectable spindle speeds: 70, 88, and 120 RPM
• Rotor diameter range: up to 17" (431mm)
• Drum diameter range: up to 19.5"
• Flywheel diameter range: up to 24"
• Spindle capacity: 100 lbs (1" arbor) / 200 lbs (2" arbor)
• 1HP motor, 110VAC 60Hz — standard outlet compatible
• Automatic cross feed for rotor machining
• Self-aligning spacers for precise adapter positioning
• Heavy-duty shop-grade construction
• Ships from US warehouse

KT-C9370C KT-C9372 KT-RL8500
Rotor Diameter Up to 17 in 4-20 in Up to 17 in
Drum Diameter Up to 19.5 in 6-19.5 in 6-28 in
Flywheel Diameter Up to 24 in 6-24 in —
Spindle Speed 70/88/120 RPM 70-320 RPM 150 & 200 RPM
Power Supply 110V/220V 110V/220V 115V 1-Phase
Weight 728 lbs 728 lbs 838 lbs
Price $4,899 $5,859 $6,799

• Spindle Speed: 70 / 88 / 120 RPM
• Rotor Diameter: Up to 17" (431mm)
• Drum Diameter: Up to 19.5"
• Flywheel Diameter: Up to 24"
• Spindle Capacity: 100 lbs (1" arbor) / 200 lbs (2" arbor)
• Motor: 1HP (0.75kW), 110VAC, 60Hz, Single-Phase
• Machine Height: 58" (1550mm)
• Package Weight: 728 lbs (330kg)
• Package Dimensions: 47" L × 40" W × 44" H
• Warranty: 1 Year

The Katool KT-C9370C is a professional combination disc and drum brake lathe built for precision resurfacing in automotive service shops, brake repair facilities, and commercial garages. Engineered as a complete Precision Combination Brake Station, it resurfaces rotors, drums, and flywheels with consistent accuracy. Three selectable spindle speeds and a standard 110VAC motor make it easy to install and operate in any shop environment. Ships from US warehouse.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

Warranty Conditions:
• Non-transferable — requires original order number
• Replacement parts at no cost including free shipping
• Labor not included
• Do not disassemble before issue is determined

• Professional Auto Shops: High-volume brake resurfacing for rotors, drums, and flywheels
• Brake & Rotor Service Centers: Three selectable spindle speeds for optimal cutting performance
• Fleet Maintenance Facilities: Wide machining range handles cars, trucks, and commercial vehicles
• Full-Service Tire & Wheel Centers: Combination machine replaces multiple single-purpose tools
• High-Volume Repair Shops: 200 lb spindle capacity for demanding daily use

All Katool equipment is manufactured to international quality standards.
• Quality Control — Each unit undergoes pre-shipment inspection
• US-Based Support — Technical support provided from the United States
• Warranty — 1-year limited manufacturer warranty included

Price & Freight — Before Tax

For one item in its listed standard configuration within the contiguous United States:

  • Warehouse Pickup: $4899.00 before tax; no freight or handling fee. Confirm supplier stock, warehouse and pickup appointment before ordering; no same-day pickup.
  • Commercial Delivery (Forklift Available): $4899.00 product + $400.00 shipping = $5299.00 before tax.
  • Commercial Delivery (Liftgate Required): $4899.00 product + $500.00 shipping = $5399.00 before tax.
  • Residential Delivery (Forklift Available): $4899.00 product + $500.00 shipping = $5399.00 before tax.
  • Residential Delivery (Liftgate Required): $4899.00 product + $600.00 shipping = $5499.00 before tax.

Tax and optional accessories are extra. Select an available delivery service matching your site and unloading equipment. Where liftgate is offered, confirm actual packed size and weight, carrier limits, and site access before ordering. Final charges appear at checkout; mixed orders may combine shipping differently.

Product price and delivery charges are separate. Available services and charges depend on destination and are shown at checkout.

Supplier warehouse pickup has no freight or handling fee after Allizoe confirms stock and the pickup warehouse before payment. The warehouse address can be shared before payment. No same-day pickup; the supplier provides a pickup release form after confirmation, and blind pickup may be arranged.

Where offered, carrier terminal pickup and address delivery are freight services separate from free supplier warehouse pickup. Confirm unloading equipment and service before ordering.

Package Size

L x W x H (in) 47 x 40 x 44
Weight (lbs) 728

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Explore equipment for your shop
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • The KT-C9370C resurfaces brake rotors (up to 17"/431mm diameter), brake drums (up to 19.5" diameter), and flywheels (up to 24" diameter) — all in one machine.
  • The KT-C9370C offers three selectable spindle speeds: 70, 88, and 120 RPM, allowing you to optimize cutting performance for different rotor and drum materials.
  • The KT-C9370C requires a standard 110VAC, 60Hz, single-phase power supply. No special electrical work required — plugs into a standard outlet.
  • Please contact us to confirm adapter compatibility for your specific application before ordering.
  • Ships via LTL freight carrier to the lower 48 states. Delivery options include Warehouse Pickup, Commercial Delivery (Forklift Available or No Forklift), and Residential Delivery (Forklift Available or No Forklift). Contact us to confirm your preferred option before ordering.
  • If Shop Pay Installments is offered for your order at checkout, the available payment plans, interest rates, and payment schedule will be shown there. Availability is subject to eligibility and approval. Interest may apply; review the terms and total cost before completing your purchase.
  • We provide US-based technical support via email and phone for installation, troubleshooting, and parts replacement throughout your warranty period.
  • Contact ALLIZOE within 30 days of pickup or delivery to request return authorization before sending anything back. Eligible items must be unused, uninstalled, and in original packaging with all manuals and accessories. Returns for reasons other than defect or warranty are subject to a 30% restocking fee. Customers are responsible for round-trip shipping costs, which may be deducted from the refund. Consumables, wear items, and custom or special orders are excluded under our Refund Policy. Review the full policy at /policies/refund-policy before ordering.
