KATOOL KT-90EPRO Portable Spot Dent Puller PRO – 3500A Auto Body Repair Machine

$289.00 $349.00
Skip to product information
Red KATOOL spot welder body dent puller with control panel and cables
1/5
  • Red KATOOL spot welder body dent puller with control panel and cables
  • Red spot welder kit with electrodes, cables, and included accessories
  • KATOOL spot welder size and height diagram with 8 in and 12.5 in callouts
  • Carbon rod chuck and welding rings with diameter measurements for spot welder

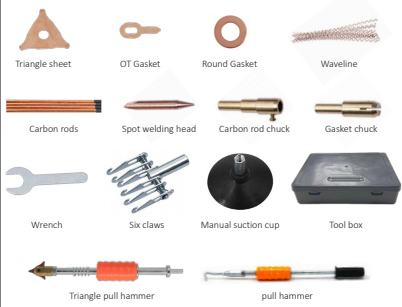

  • Spot dent puller tool kit with welding heads, rods, gaskets, hammers, wrench, suction cup
KATOOL KT-90EPRO Portable Spot Dent Puller PRO – 3500A Auto Body Repair Machine

KATOOL KT-90EPRO Portable Spot Dent Puller PRO – 3500A Auto Body Repair Machine

$289.00 $349.00

Shop Pay Installments

Eligible customers can split their purchase into payments with Shop Pay. Available plans and terms are shown at checkout.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Review the payment schedule and any down payment at checkout
  • Pay the rest over time with automatic payments

Payment options are subject to eligibility. Interest may apply. Review your rate, payment schedule, and total cost before completing your purchase.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

Adds 24 months after the standard parts warranty ends. Parts only; labor is not included. One plan per machine.

View coverage and terms

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
Manufacturer WarrantySee Product Terms
🔬
Product SupportContact ALLIZOE
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

Warranty

KATOOL KT-90EPRO comes with a 1-year manufacturer warranty covering defects in materials and workmanship. Contact KATOOL support for warranty claims.

Optional extended parts coverage: when an enabled warranty add-on is shown on this eligible equipment page, one $349 plan covers one purchased machine. If purchased, it adds 24 months after that machine's applicable standard parts warranty ends. Parts only; labor is not included, and any structural warranty is not extended. Select the add-on on the equipment page before adding the machine to your cart.
Shipping

Shipping availability, charges and estimated timing vary by product, delivery option and destination. Review the selected option and confirm any unloading equipment or delivery services required before ordering. Warehouse pickup requires stock and location confirmation, an appointment and written pickup authorization; no same-day pickup. Pickup has no shipping or handling fee. View full Shipping & Delivery details →

⚠️ Safety Warning

Safety Warning

  • Confirm the correct nominal voltage before connecting to your power supply
  • Test on scrap workpieces before operating on the vehicle to avoid surface damage
  • Wear appropriate PPE including gloves and eye protection during operation
  • Turn off power and cut main switch when not in use; store accessories properly
  • Read the full operator manual before use

Price & Freight — Before Tax

For one item in its listed standard configuration within the contiguous United States:

  • Standard Delivery: $289.00 product + $0.00 shipping = $289.00 before tax.

Tax and optional accessories are extra. Select an available delivery service matching your site and unloading equipment. Where liftgate is offered, confirm actual packed size and weight, carrier limits, and site access before ordering. Final charges appear at checkout; mixed orders may combine shipping differently.

Why Choose KATOOL KT-90EPRO

  • 3500A output — professional-grade power in a compact portable package
  • 0–99S manual timer — full technician control over every weld
  • 9 repair functions must be matched to the actual panel and approved repair process
  • Stepless gear — precise power adjustment within approved panel material and thickness limits
  • Compact and portable — easy to position according to the supplied instructions
  • Confirm included accessories, electrical requirements, setup and operating instructions

Key Features

  • 3500A maximum output current for powerful, consistent welding performance
  • Adjustable welding time 0–99S for precise manual control over every weld
  • Stepless gear adjustment for fine-tuned power within approved panel material and thickness limits
  • Published input configurations: 110/220/380V, 50/60Hz; confirm the supplied rating, phase and circuit
  • 9 repair functions: shrinkage, meson, straight pull, spot welding, flattening, wave line, stud, OT gasket, triangular piece
  • Compact 48×31×64 cm design — easy to maneuver and position as permitted by the supplied instructions
  • Supplier-listed accessories; confirm the actual included components

Specifications

  • Model: KT-90EPRO
  • Published input configurations: 110/220/380V, 50/60Hz; confirm the actual supplied unit
  • Input Power: 21KVA
  • Input Current: 54/32/16A
  • Max Output Current: 3500A
  • Output Voltage: 1–7V
  • Operation: Electronic Timer Continuous
  • Welding Time: 0–99S (adjustable)
  • Gear: Stepless
  • Size: 48 × 31 × 64 cm (19" × 12" × 25")
  • Weight: 25 kg (55 lbs)
  • Origin: China

The KATOOL KT-90EPRO is a professional portable spot dent puller with 3500A maximum output, designed for auto body repair shops and collision centers. Its adjustable 0–99S welding timer and stepless gear control give technicians precise command over every repair. With 9 versatile repair functions and a compact 48×31×64 cm footprint, the KT-90EPRO handles hoods, doors, roof panels, and other low-thickness body parts with ease. Confirm the actual accessory list, setup and operating requirements before use.

Warranty

KATOOL KT-90EPRO comes with a 1-year manufacturer warranty covering defects in materials and workmanship. Contact KATOOL support for warranty claims.

Optional extended parts coverage: when an enabled warranty add-on is shown on this eligible equipment page, one $349 plan covers one purchased machine. If purchased, it adds 24 months after that machine's applicable standard parts warranty ends. Parts only; labor is not included, and any structural warranty is not extended. Select the add-on on the equipment page before adding the machine to your cart.

Perfect For

  • Auto body repair shops and collision centers
  • Hood, door, and roof panel dent repair
  • Low-thickness body panel straightening
  • Dealership body shop departments
  • Trained body repair technicians; welding-based pulling does not establish paintless repair capability

Price & Freight — Before Tax

For one item in its listed standard configuration within the contiguous United States:

  • Standard Delivery: $289.00 product + $0.00 shipping = $289.00 before tax.

Tax and optional accessories are extra. Select an available delivery service matching your site and unloading equipment. Where liftgate is offered, confirm actual packed size and weight, carrier limits, and site access before ordering. Final charges appear at checkout; mixed orders may combine shipping differently.

Package Size

L x W x H (in) 20 x 14 x 13 in
Weight (lbs) 56

Complete Your Shop Setup

Explore equipment for your shop
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • Published configurations list 110/220/380V at 50/60Hz. Confirm the actual supplied rating plate, phase, circuit and connection before ordering. Do not assume one unit accepts every voltage.
  • No. Confirm the specific material, thickness range and vehicle-approved repair procedure against the supplied instructions.
  • Confirm the supplied packing list and required tools before ordering. A kit does not remove the need for setup, training and application checks.
  • Listed packaging is 56 lbs and 20 x 14 x 13 in. Machine dimensions and packaging dimensions are different measurements; confirm shipment details before arranging delivery.
