KATOOL KT-4M110PA 4-Post Alignment Lift — 11,000 lb with 7,000 lb Rolling Jack

Pickup at Carrier Terminal
$3,999.00 $6,899.00
Skip to product information
Four-post alignment lift with a RAM pickup on red textured side ramps
1/12
  • Four-post alignment lift with a RAM pickup on red textured side ramps
  • Four-post alignment lift with a brown pickup on red ramps and platforms
  • Four-post alignment lift holding a white BMW on red textured vehicle ramps
  • Four-post vehicle alignment lift with red runways and black posts
  • Four-post vehicle alignment lift with red accessories and black steel frames
  • Four-post vehicle alignment lift with red ramps and black posts under a car
  • Four-post vehicle alignment lift with red runways and side ramp platform
  • Hydraulic scissor lift mechanism with black frame and yellow jack
  • Pneumatic lock release control on lift beam with hoses, valves, and gauge
  • Dimensional diagram of four-post vehicle alignment lift with inch measurements
  • Engineering diagram of four-post vehicle lift showing platform lift arms
  • Four-post vehicle alignment lift with red ramps and KATOOL lift posts
KATOOL KT-4M110PA 4-Post Alignment Lift — 11,000 lb with 7,000 lb Rolling Jack

KATOOL KT-4M110PA 4-Post Alignment Lift — 11,000 lb with 7,000 lb Rolling Jack

$3,999.00 $6,899.00

Shop Pay Installments

Eligible customers can split their purchase into payments with Shop Pay. Available plans and terms are shown at checkout.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Review the payment schedule and any down payment at checkout
  • Pay the rest over time with automatic payments

Payment options are subject to eligibility. Interest may apply. Review your rate, payment schedule, and total cost before completing your purchase.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Delivery Options
Free warehouse pickup · Confirm first Ask us to confirm stock and the supplier pickup location before ordering. No same-day pickup or handling fee. Contact us to arrange pickup →
Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

One plan covers the lift and rolling jack(s) supplied as part of this original package: KT-4M110PA + included rolling jack. Adds 24 months after each covered item's standard parts warranty ends. Parts only; labor is not included, and structural coverage is not extended. One plan per purchased package. Separately purchased equipment is not included.

View coverage and terms

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
Manufacturer WarrantySee Product Terms
🔬
Product SupportContact ALLIZOE
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

Standard manufacturer warranty: 3 years on structural components and 1 year on parts. An optional 2-year extended parts warranty is available for $349 per purchased four-post lift set. One plan covers the lift and the rolling jack(s) supplied with this set. It adds 24 months after each covered item's standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended. One purchased set requires one plan; two purchased sets require two plans.

Warranty Includes:

  • Cylinders, power units, motors, displays, electronics, etc.
  • Structural components: 3-year standard manufacturer warranty

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included
  • Photos and/or videos of defects may be requested
  • Do not disassemble any equipment before the issue is determined
Shipping

Shipping availability, charges and estimated timing vary by product, delivery option and destination. Review the selected option and confirm any unloading equipment or delivery services required before ordering. Warehouse pickup requires stock and location confirmation, an appointment and written pickup authorization; no same-day pickup. Pickup has no shipping or handling fee. View full Shipping & Delivery details →
How to Choose the Right Lift ▾

Not sure whether a 2-post or 4-post lift is right for your shop? Our guide breaks down the key differences in access, space, capacity, and use case.

View the 2-Post vs 4-Post Comparison Guide →

⚠️ Safety Warning

⚠️ IMPORTANT SAFETY WARNING: Concrete thickness must be at least 5.9" (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

⚠️ IMPORTANT SAFETY WARNING: Have a qualified installer verify sufficient ceiling clearance for the intended vehicle and lift position. Check overhead beams, doors, tracks, lighting, pipes, and other obstructions. Follow the model-specific installation manual; do not operate where overhead clearance is insufficient.

Availability & lead time: Contact ALLIZOE before ordering to confirm supplier stock and estimated dispatch timing. If a backorder is needed, confirm the estimated lead time before placing your order.

Price & Freight — Before Tax

For one lift package in its listed standard configuration within the contiguous United States:

  • Warehouse Pickup: $3,999 before tax; no freight or handling fee. Confirm supplier stock, warehouse, and a pickup appointment with ALLIZOE before ordering.
  • Pickup at Carrier Terminal: $3,999 product + $1,200 freight = $5,199 before tax.
  • Commercial Delivery (Forklift Required): $3,999 product + $1,200 freight = $5,199 before tax.
  • Residential Delivery (Forklift Required): $3,999 product + $1,300 freight = $5,299 before tax.

Tax, optional accessories or upgrades, and the optional $349 extended parts warranty are additional. Confirm address eligibility and suitable unloading equipment before ordering. Standard liftgate service is not available for this lift. Review the final total at checkout; orders containing other products may have different combined shipping charges.

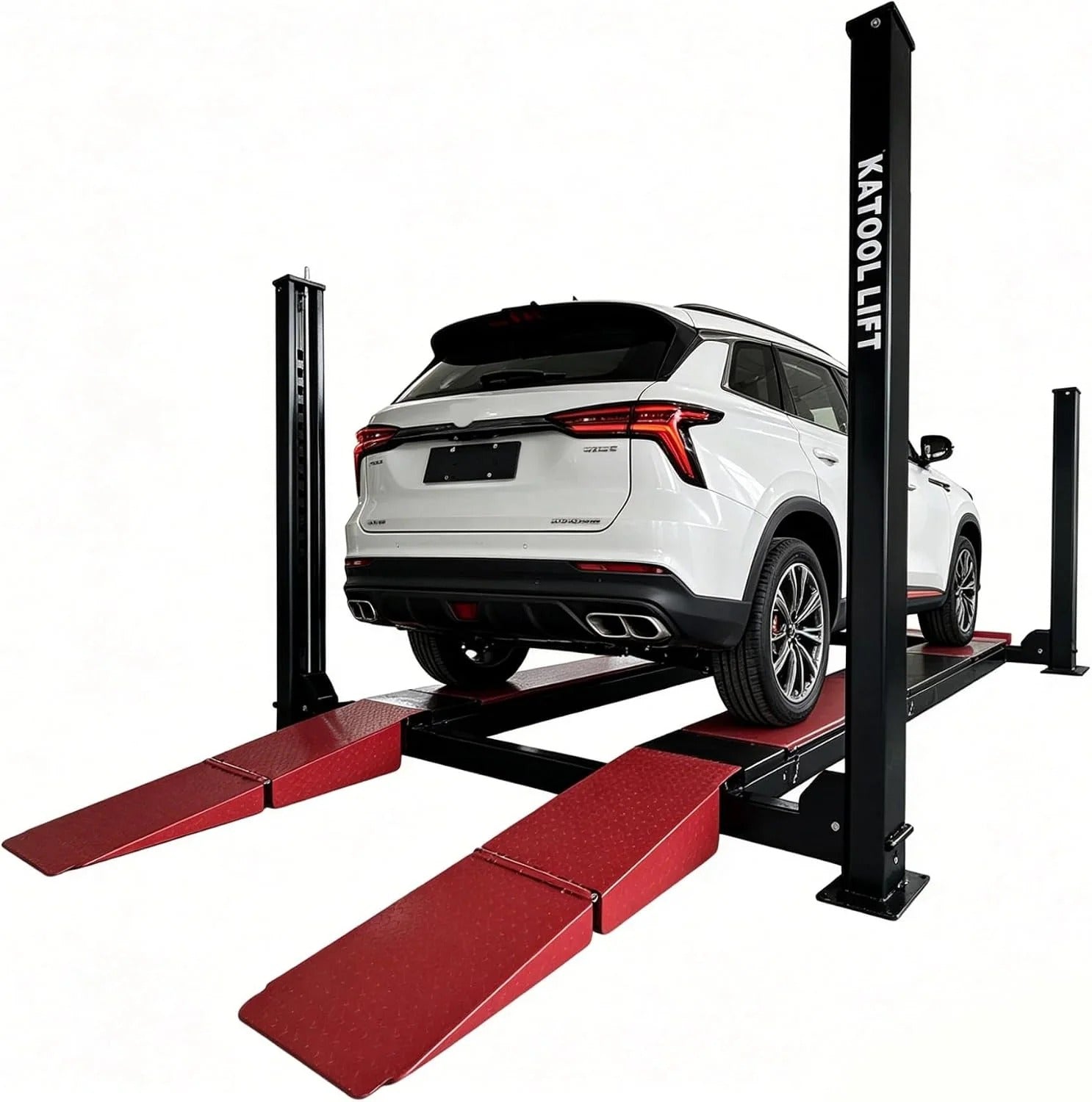

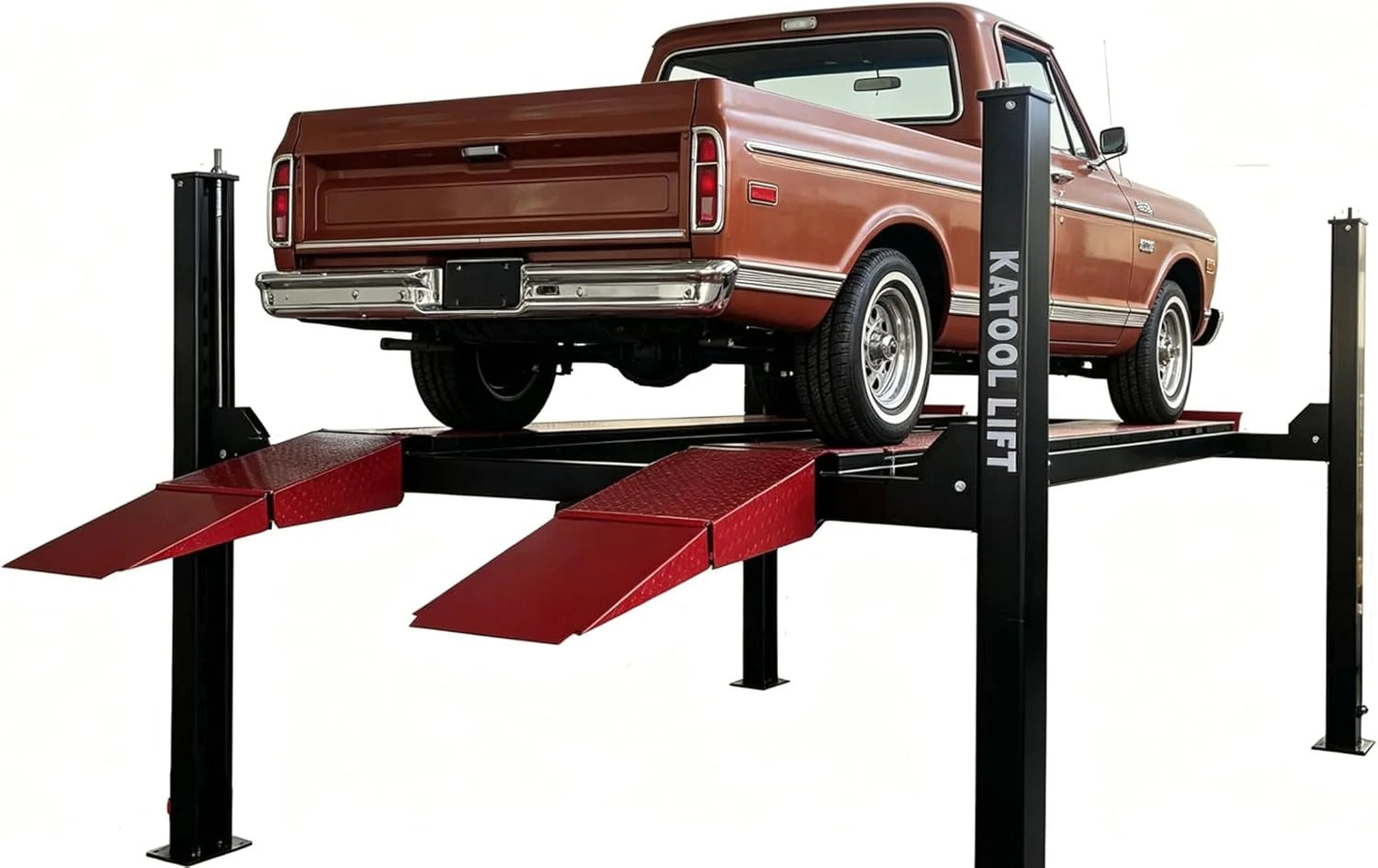

The KATOOL KT-4M110PA is a professional-grade 4-post alignment lift with 11,000 lbs of capacity for alignment and general service applications. It includes a 7,000 lb rolling jack, 4 mechanical locking devices with secondary slack-cable safety system, and single point pneumatic safety lock release. Non-skid diamond platforms and adjustable safety lock ladders ensure maximum operator safety. Reaches full height in approximately 50 seconds — a professional alignment lift for shops that handle cars, trucks, SUVs, and demanding alignment work.

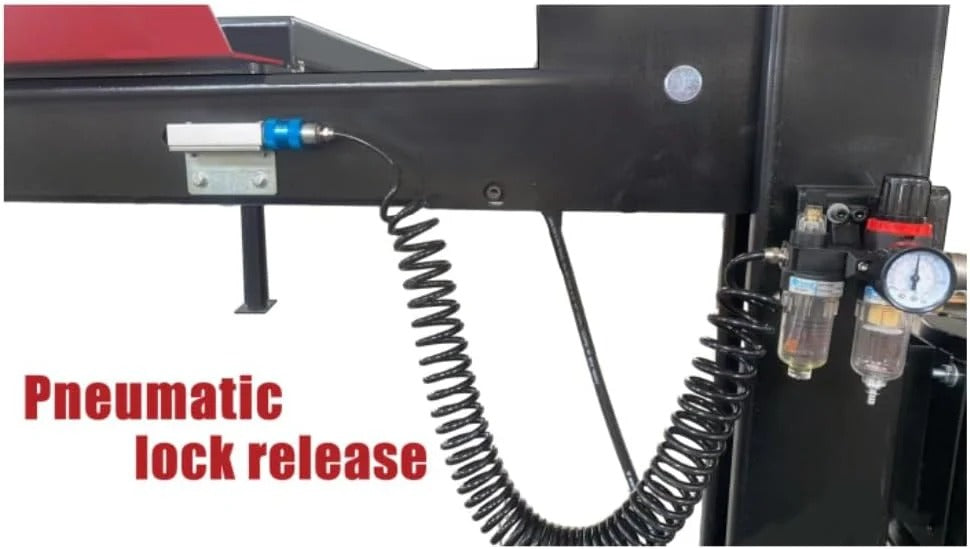

Compressed air is required for the pneumatic safety-lock release. The manufacturer manual connects an external compressed-air line to the filter-regulator inlet and the safety-release valve. Confirm the required air pressure, flow, fittings, and air-line setup with ALLIZOE for the supplied unit before ordering; the electrical power-unit specification does not replace this air-supply requirement.

  • 11,000 lbs lifting capacity
  • 84.5" maximum lift height for comfortable under-vehicle access
  • Single Point Pneumatic Safety Lock Release
  • Four mechanical locking devices with secondary slack-cable safety lock system
  • Powerside column can be installed at both sides, front or rear
  • Non-skid diamond platforms with adjustable safety lock ladders

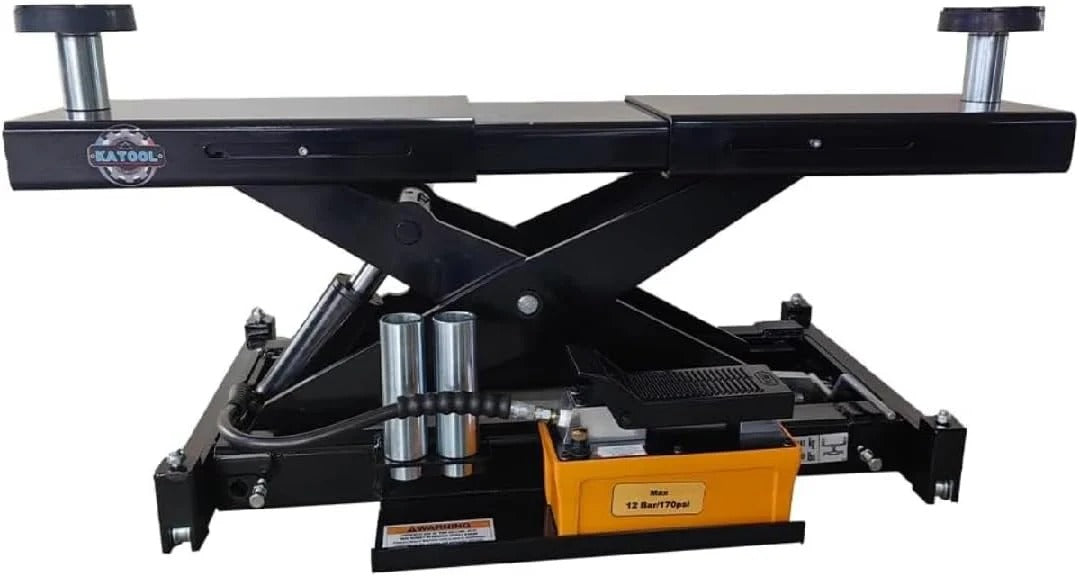

  • 7,000 lb rolling jack included

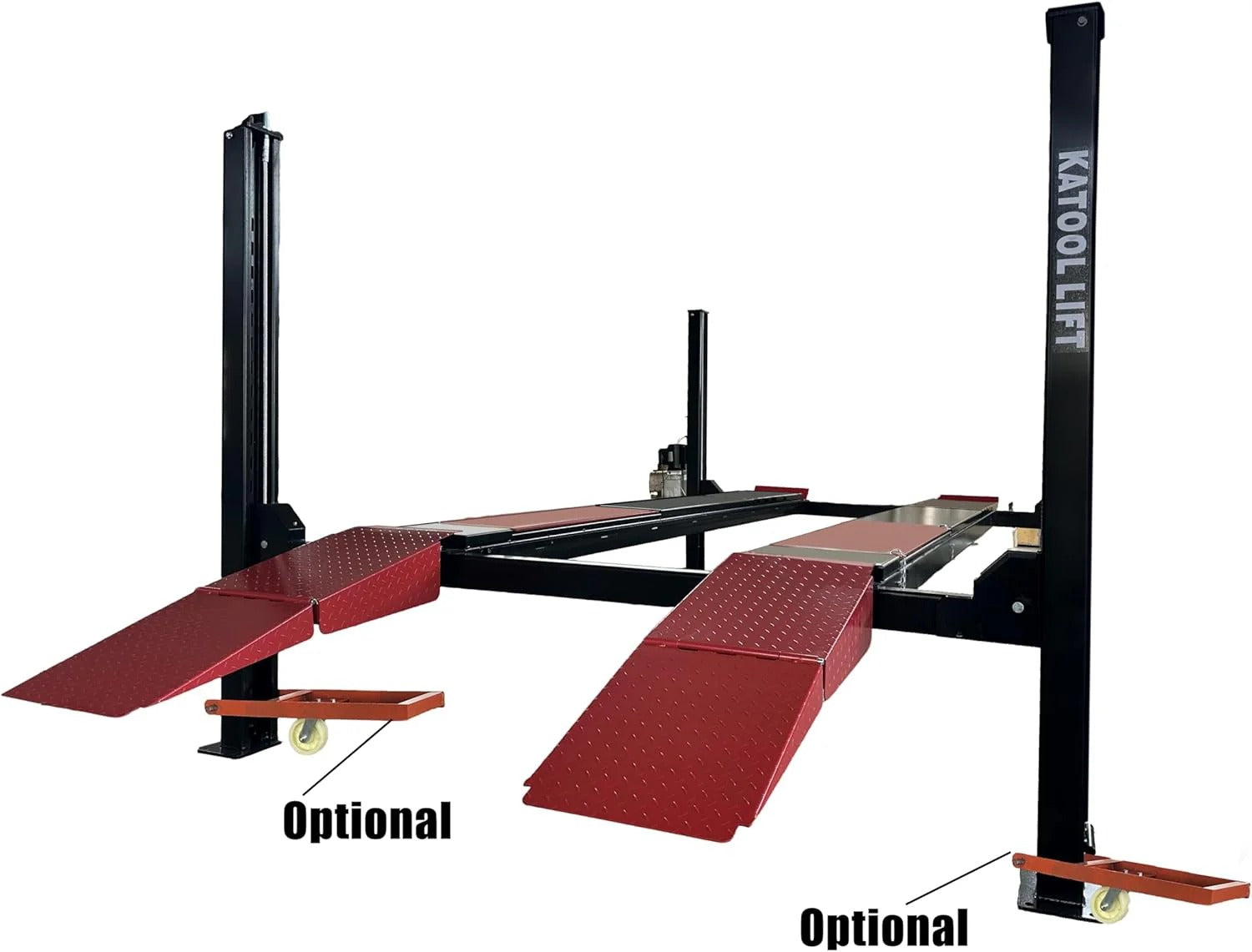

  • Includes 3 drip trays, 1 lift tray, and 4 casters
  • 110V power unit included
  • 110V is the standard configuration. If you require a different voltage, contact ALLIZOE before ordering to confirm availability and pricing.
  • External compressed-air supply required for pneumatic lock release; confirm air pressure, flow, fittings, and installation requirements before ordering
KT-4H850 KT-4H950 KT-4H110 KT-4M110PA KT-4H120PX KT-4H150
Capacity 8,500 lb 9,500 lb 11,000 lb 11,000 lb 12,000 lb 15,000 lb
Max Lift Height 70.87" ~84.5" 84.25" 84.5" 86.9" 76"
Width Between Columns 94.72" 99.5" 112.81" 112.81" 112.81" 118"
Motor 110V std.; 220V extra 110V std.; 220V extra 110V std.; 220V extra 110V standard 220V included 220V included
Lifting Time 75 sec 50 sec 83 sec ~50 sec 83 sec 60 sec
Rolling Jack Included No — sold separately No — sold separately No — sold separately Yes — 7,000 lb Yes — 7,000 lb Yes — 6,000 lb
Net Weight 1,820 lbs 2,095 lbs 2,116 lbs 2,116 lbs 3,373 lbs Approx. 4,850 lbs

Lifting Capacity: 11,000 lbs (4,990 kg)

Max. Lifting Height: 84.5" (supplier listing)

Lifting Time: Approximately 50 seconds to full height

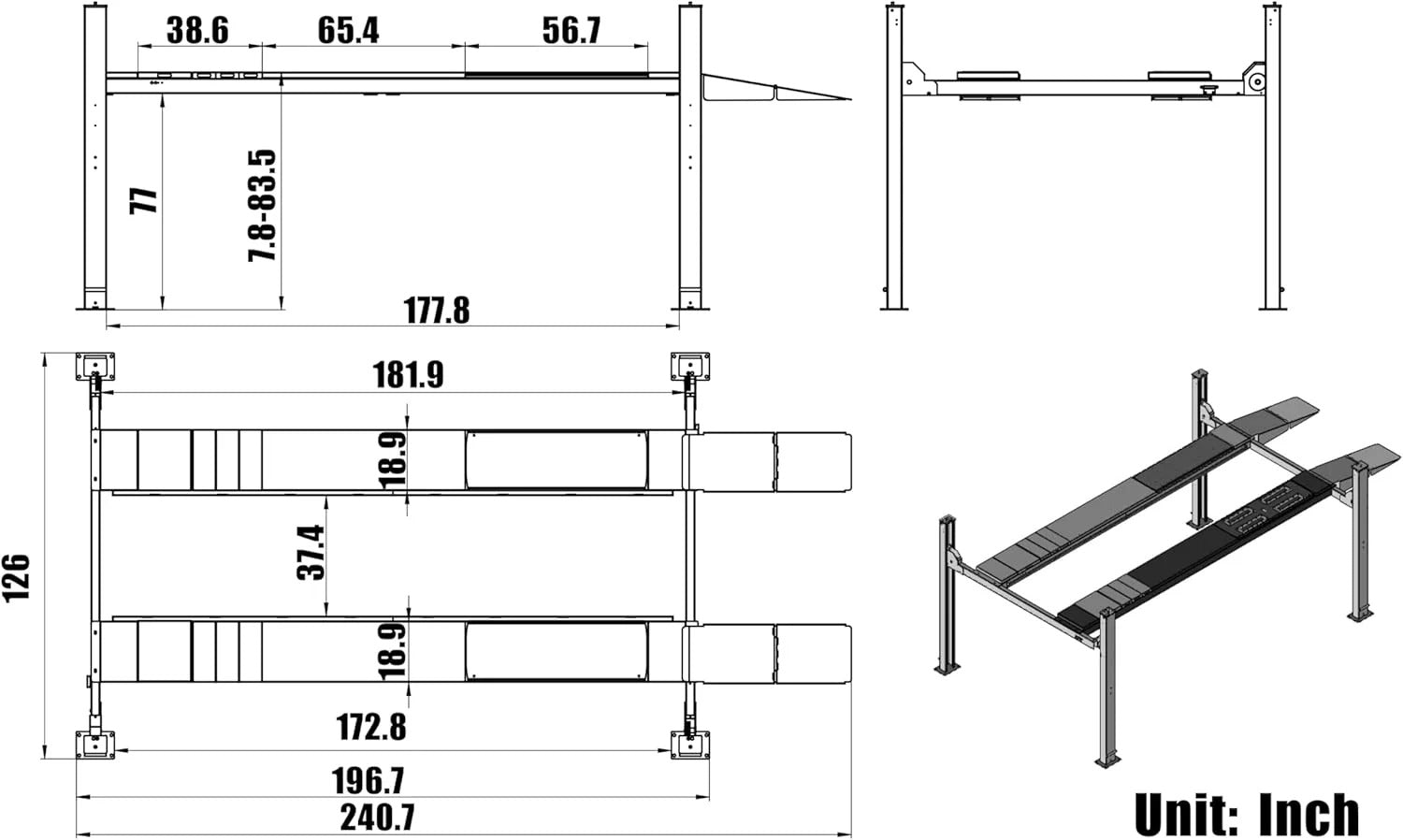

Height of Posts: 94.88" / 2,410 mm

Width Overall: 126" / 3,200 mm

Length Overall (with ramps): 229.73" / 5,835 mm

Inside Columns: 112.81" / 2,865 mm

Min. Runway Height: 6.2" / 157 mm

Power: 110V standard. Confirm the supplied motor and electrical requirements with ALLIZOE before installation.

Lock Release: Pneumatic

Net Weight: 2,116 lbs (960 kg)

Ceiling clearance: Have a qualified installer verify sufficient clearance for the intended vehicle and lift position, including all overhead obstructions, before purchase and installation.

Compressed air is required for the pneumatic safety-lock release. The manufacturer manual connects an external compressed-air line to the filter-regulator inlet and the safety-release valve. Confirm the required air pressure, flow, fittings, and air-line setup with ALLIZOE for the supplied unit before ordering; the electrical power-unit specification does not replace this air-supply requirement.

Shipping Packages: Two packages; see Package Information for each package's dimensions (L x W x H).

Packaged Weight: Pack 1: 2,646 lb; Pack 2: 643 lb; total: 3,289 lb.

Availability & lead time: Contact ALLIZOE before ordering to confirm supplier stock and estimated dispatch timing. If a backorder is needed, confirm the estimated lead time before placing your order.

The KATOOL KT-4M110PA Professional 4-Post Alignment Lift delivers 11,000 lbs of lifting capacity for alignment and general service applications. This lift includes a 7,000 lb rolling jack, 4 mechanical locking devices with secondary slack-cable safety system, and single point pneumatic safety lock release for comprehensive professional service. Non-skid diamond platforms and adjustable safety lock ladders ensure maximum operator safety. Powered by a 2.2kW motor reaching full height in approximately 50 seconds, with an 84.5-inch maximum lift height and 112.81-inch width between columns. A 110V power unit is supplied as standard. Contact ALLIZOE before ordering if you require a different voltage.

110V is the standard configuration. If you require a different voltage, contact ALLIZOE before ordering to confirm availability and pricing.

Compressed air is required for the pneumatic safety-lock release. The manufacturer manual connects an external compressed-air line to the filter-regulator inlet and the safety-release valve. Confirm the required air pressure, flow, fittings, and air-line setup with ALLIZOE for the supplied unit before ordering; the electrical power-unit specification does not replace this air-supply requirement.

Standard manufacturer warranty: 3 years on structural components and 1 year on parts. An optional 2-year extended parts warranty is available for $349 per purchased four-post lift set. One plan covers the lift and the rolling jack(s) supplied with this set. It adds 24 months after each covered item's standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended. One purchased set requires one plan; two purchased sets require two plans.

Warranty Includes:

  • Cylinders, power units, motors, displays, electronics, etc.
  • Structural components: 3-year standard manufacturer warranty

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included
  • Photos and/or videos of defects may be requested
  • Do not disassemble any equipment before the issue is determined
  • Alignment Shops: Dedicated alignment lift design for precise wheel alignment work
  • Full-Service Auto Repair Shops: 11,000 lb capacity handles cars, trucks, and SUVs for all service needs
  • Tire & Wheel Centers: Rolling jack included for fast wheel and suspension service
  • Fleet Maintenance Facilities: Heavy-duty construction built for daily commercial use
  • Serious Automotive Enthusiasts: Professional-grade lift for dedicated home shops

Quality Control — Each unit undergoes pre-shipment inspection. US-Based Support — Technical support provided from the United States. Warranty — Standard manufacturer warranty: 3 years on structural components and 1 year on parts; labor is not included. See this product's Warranty section for terms.

Price & Freight — Before Tax

For one lift package in its listed standard configuration within the contiguous United States:

  • Warehouse Pickup: $3,999 before tax; no freight or handling fee. Confirm supplier stock, warehouse, and a pickup appointment with ALLIZOE before ordering.
  • Pickup at Carrier Terminal: $3,999 product + $1,200 freight = $5,199 before tax.
  • Commercial Delivery (Forklift Required): $3,999 product + $1,200 freight = $5,199 before tax.
  • Residential Delivery (Forklift Required): $3,999 product + $1,300 freight = $5,299 before tax.

Tax, optional accessories or upgrades, and the optional $349 extended parts warranty are additional. Confirm address eligibility and suitable unloading equipment before ordering. Standard liftgate service is not available for this lift. Review the final total at checkout; orders containing other products may have different combined shipping charges.

Supplier warehouse pickup has no freight or handling fee after Allizoe confirms stock and the pickup warehouse before payment. The warehouse address can be shared before payment. No same-day pickup; the supplier provides a pickup release form after confirmation, and blind pickup may be arranged.

Where offered, carrier terminal pickup and address delivery are freight services separate from free supplier warehouse pickup. Confirm unloading equipment and service before ordering.

Package Size

L x W x H (in) Pack 1: 185 x 26 x 35 in (2,646 lbs) / Pack 2: 77 x 46 x 25 in (643 lbs)
Weight (lbs) 3289

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Explore equipment for your shop
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • The KT-4M110PA includes the 4-post alignment lift, a 7,000 lb rolling jack, 3 drip trays, 1 lift tray, 4 casters, and aluminum approach ramps.
  • 110V is standard for the KT-4M110PA. If you require a different voltage, contact ALLIZOE before ordering to confirm availability and pricing. Follow the supplied unit's electrical requirements for installation. The Delivery Options on this page select fulfillment, not voltage. The pneumatic lock release also needs an external compressed-air supply; confirm the air requirements separately.
  • Supplier warehouse pickup requires stock and warehouse confirmation before payment and an appointment; it is free and not available the same day. Freight services may include carrier terminal pickup, commercial delivery, or residential delivery where offered. Delivery requires suitable forklift or loading-dock arrangements; standard liftgate service is not available for this lift. Product price and freight are shown separately. Confirm the service, unloading equipment, and final total before ordering. For carrier terminal pickup, terminal staff load the shipment onto your suitable vehicle or trailer; you arrange unloading at the final destination.
  • The KT-4M110PA lift has an 11,000 lb rated capacity, and the supplied rolling jack has its own 7,000 lb rating. Verify loaded vehicle weight, axle loads, wheelbase, runway fit, lifting points, and clearances before use. The rolling jack's rating does not add to the lift's rated capacity.
  • The KT-4M110PA reaches its maximum lift height of 84.5" in approximately 50 seconds.
  • Yes. The KT-4M110PA must be installed by a qualified technician on a level concrete floor meeting minimum thickness requirements. Follow all local safety codes and manufacturer guidelines.
  • The standard manufacturer warranty covers the lift's structural components for 3 years and parts for 1 year, subject to the manufacturer's warranty terms and claim approval. Labor is not included. Optional extended parts coverage does not extend the structural warranty.
  • Yes. One $349 plan covers one purchased KT-4M110PA set, including its supplied rolling jack(s). It adds 24 months after each covered item's standard parts warranty ends. Parts only; labor is not included, and structural coverage is not extended. Select one plan per purchased set.
  • Compare the vehicle's actual loaded weight and axle-load distribution with the lift's rated capacity and the supplied manual. Check wheelbase, tire track, tire width, usable runway length and width, ramp approach angle, and clearance at the columns. Check the raised vehicle against the ceiling, garage-door tracks, opener, lights, and other overhead obstructions. For a permitted stacked-parking setup, also check the lower vehicle's height against clear space beneath the runways at an approved locked parking position. Maximum lifting height is not the same as usable clearance beneath the lift. Contact ALLIZOE with vehicle and garage measurements if you need help checking fit.
  • The four-post lift and a rolling jack have separate rated capacities. The lift's capacity applies to the supported vehicle on the runways; a rolling jack must also be within its own rating for the load being raised. A rolling jack does not increase the lift's rated capacity, and the two ratings must not be added together. Confirm the supported axle load, approved lifting points, and jack-to-lift compatibility before wheel-free service. A jack tray is a different accessory from a rolling jack.
  • Yes. Its pneumatic safety-lock release requires compressed air. The manufacturer manual instructs connecting a compressed-air line to the filter-regulator inlet and the safety-release valve. Confirm the supplied unit's air pressure, flow, fittings, and installation requirements with ALLIZOE before ordering. The lift's 110V electrical supply and its compressed-air connection are separate utility requirements.
