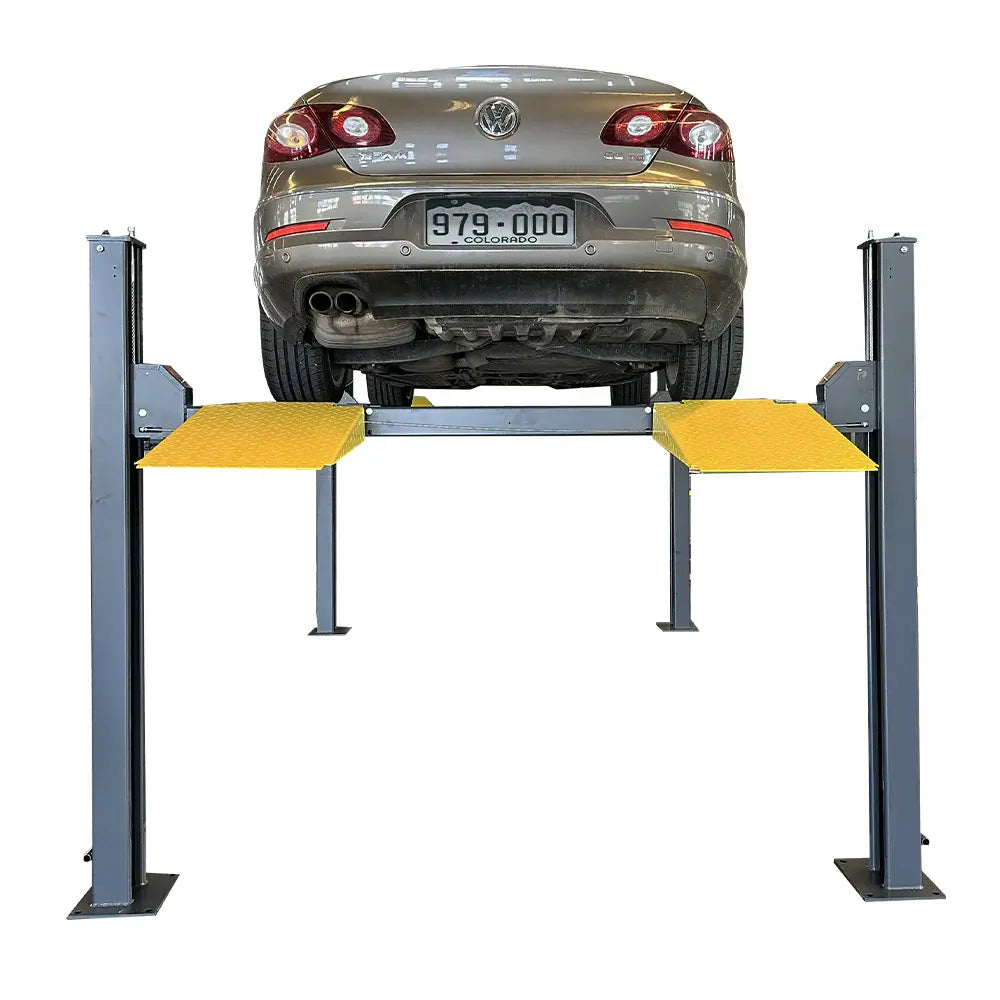

4-post vehicle parking lift with yellow runway arms and raised platform, car on top

Katool KT-4H850 8,500 lb 4-Post Parking Lift - With Casters

Pickup at Carrier Terminal
$2,699.00 $4,499.00
Skip to product information
4-post vehicle parking lift with yellow runway arms and raised platform, car on top
1/13
  • 4-post vehicle parking lift with yellow runway arms and raised platform, car on top

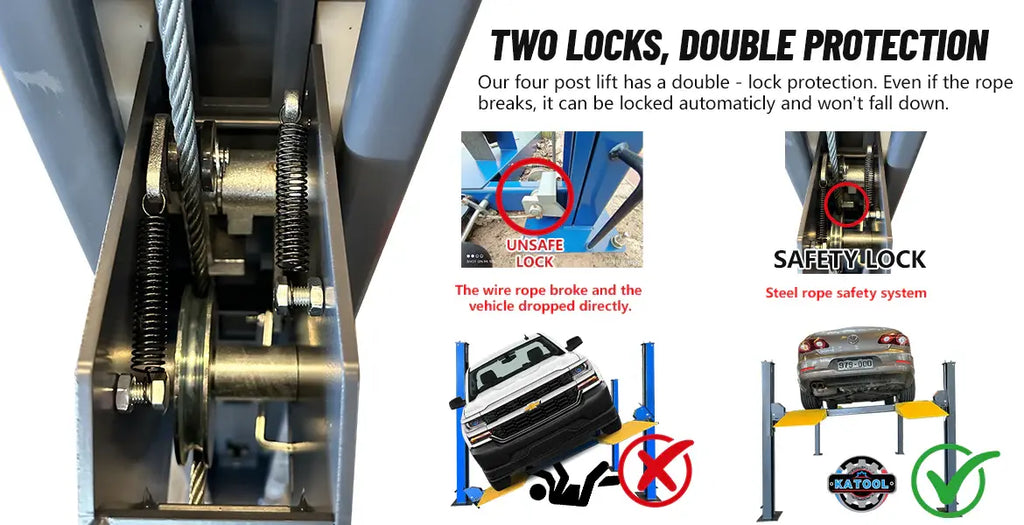

  • Four-post parking lift rope and safety lock mechanism, close-up of steel components

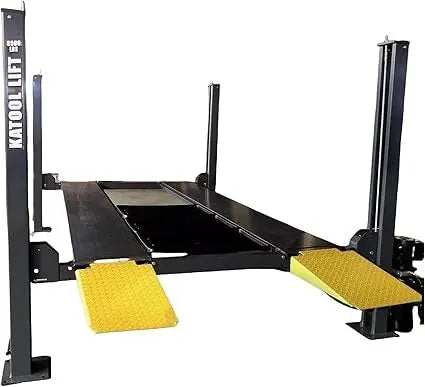

  • Four-post parking lift platform with black steel deck and yellow diamond traction pads

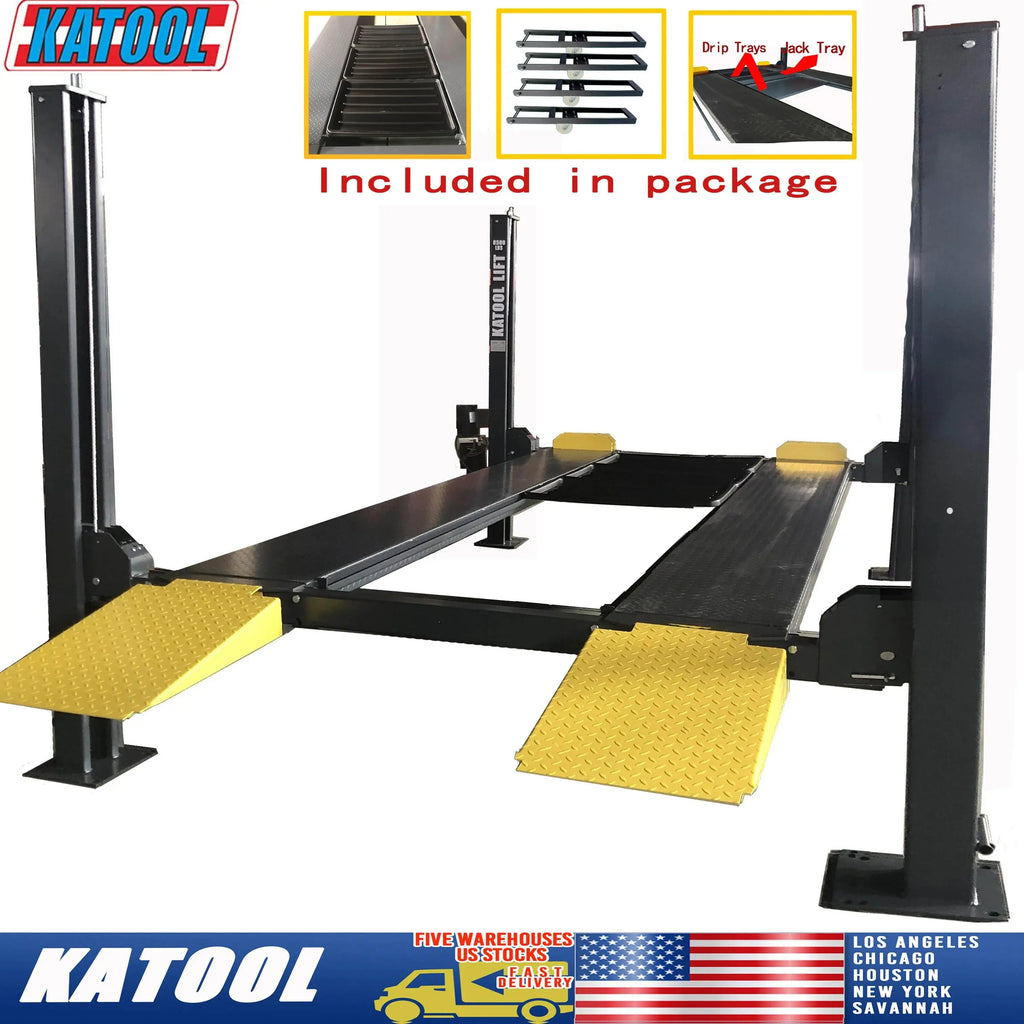

  • 4. 8,500 lb capacity lift with non-skid diamond platform surface

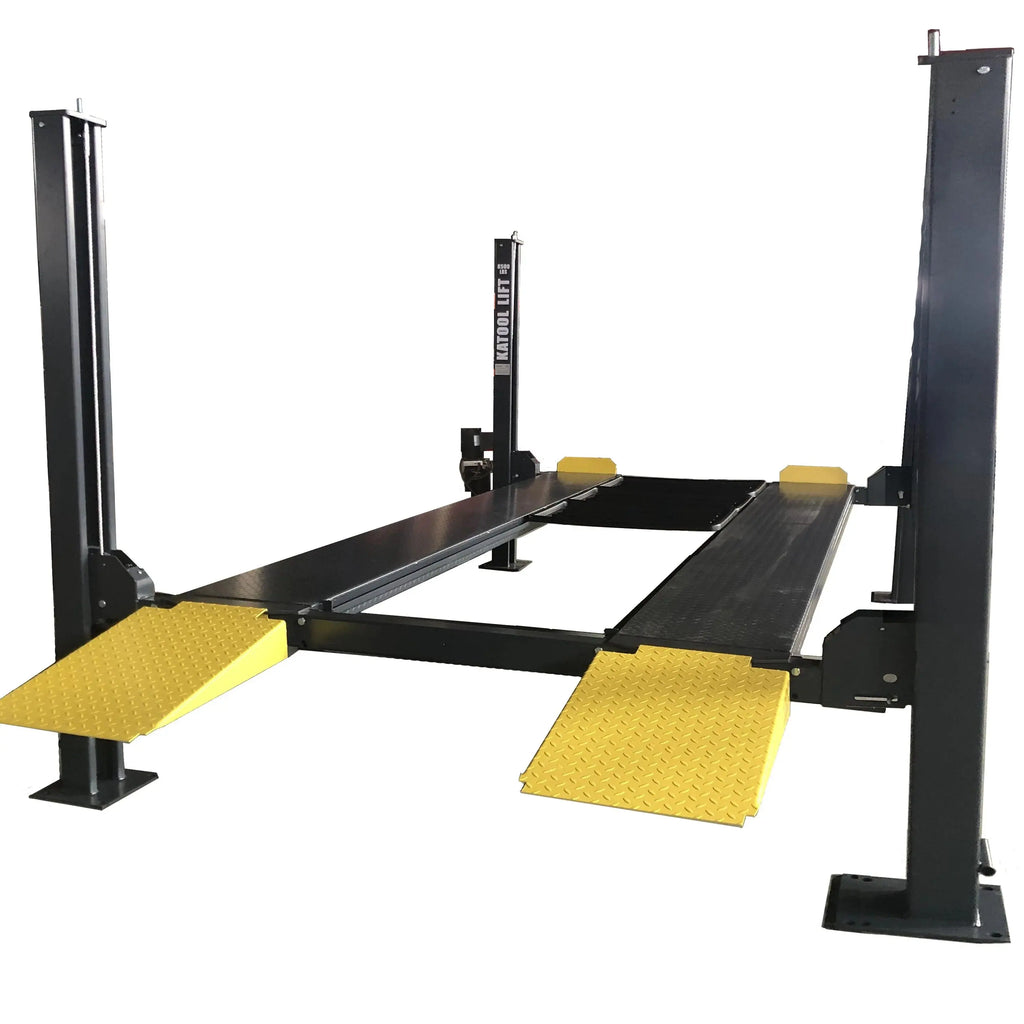

  • Four-post parking lift runway deck with multiple yellow diamond traction pads

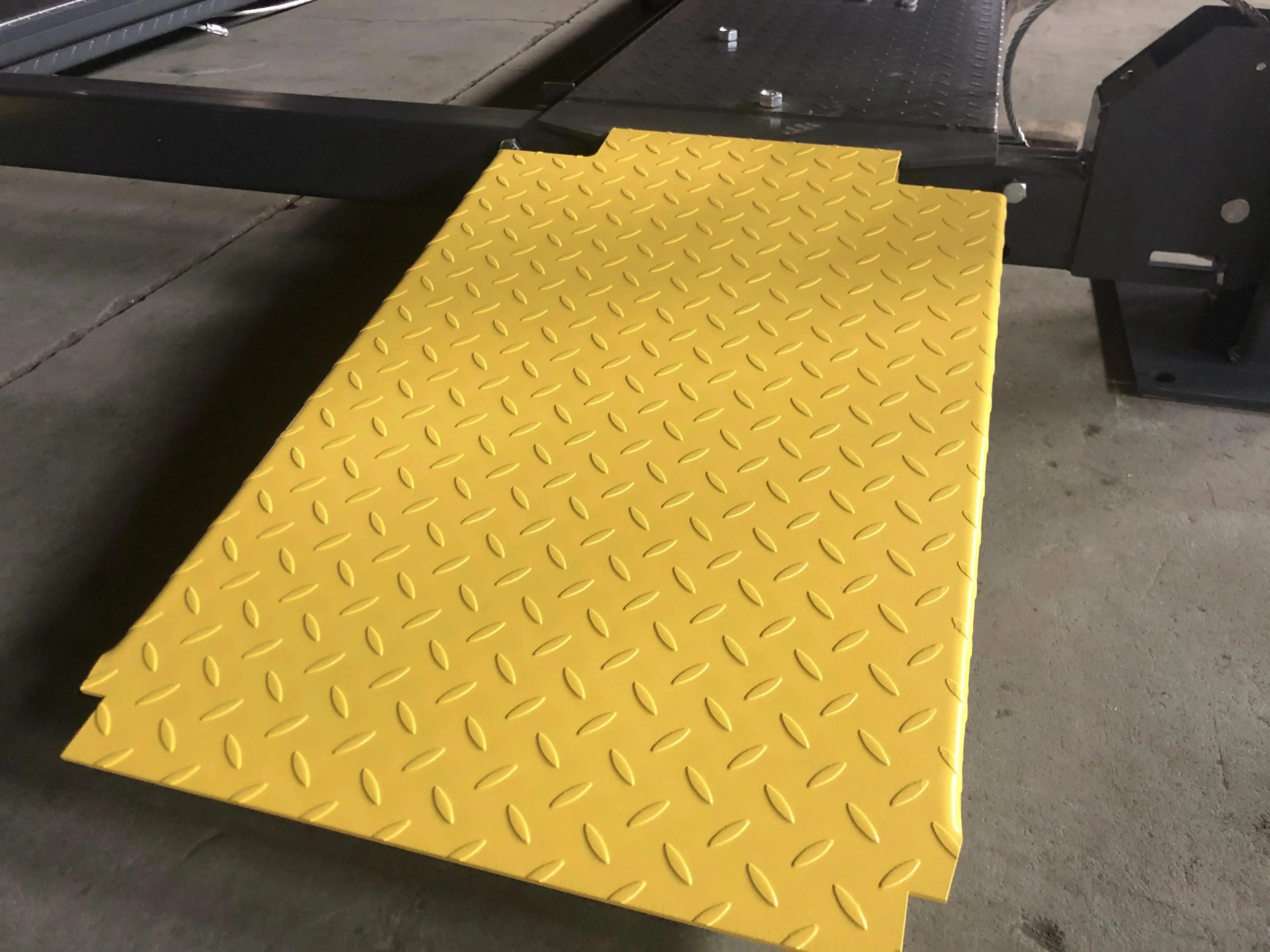

  • Yellow diamond-plate traction pad on the four-post parking lift platform

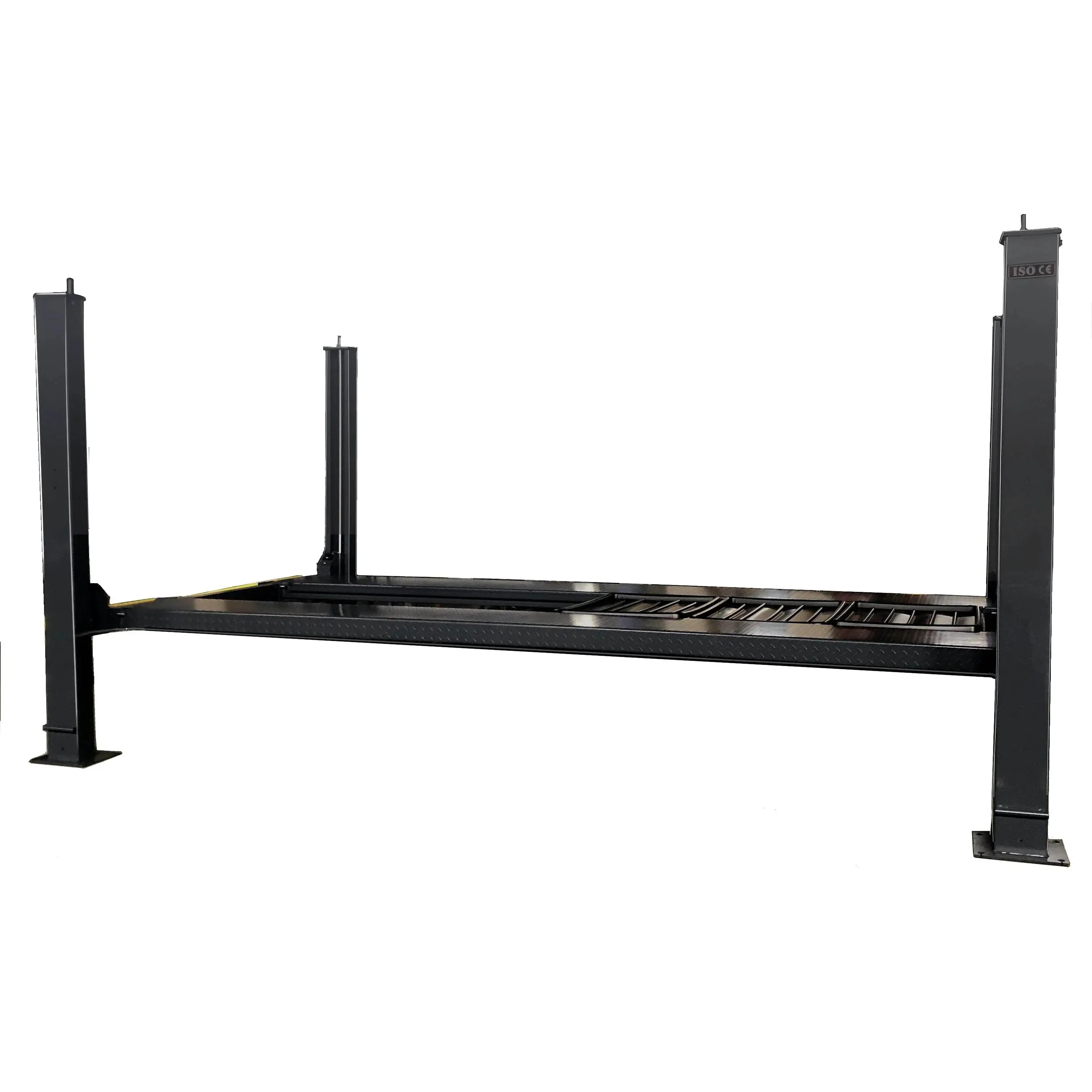

  • Four-post parking lift overhead runway platform with black steel beams and uprights

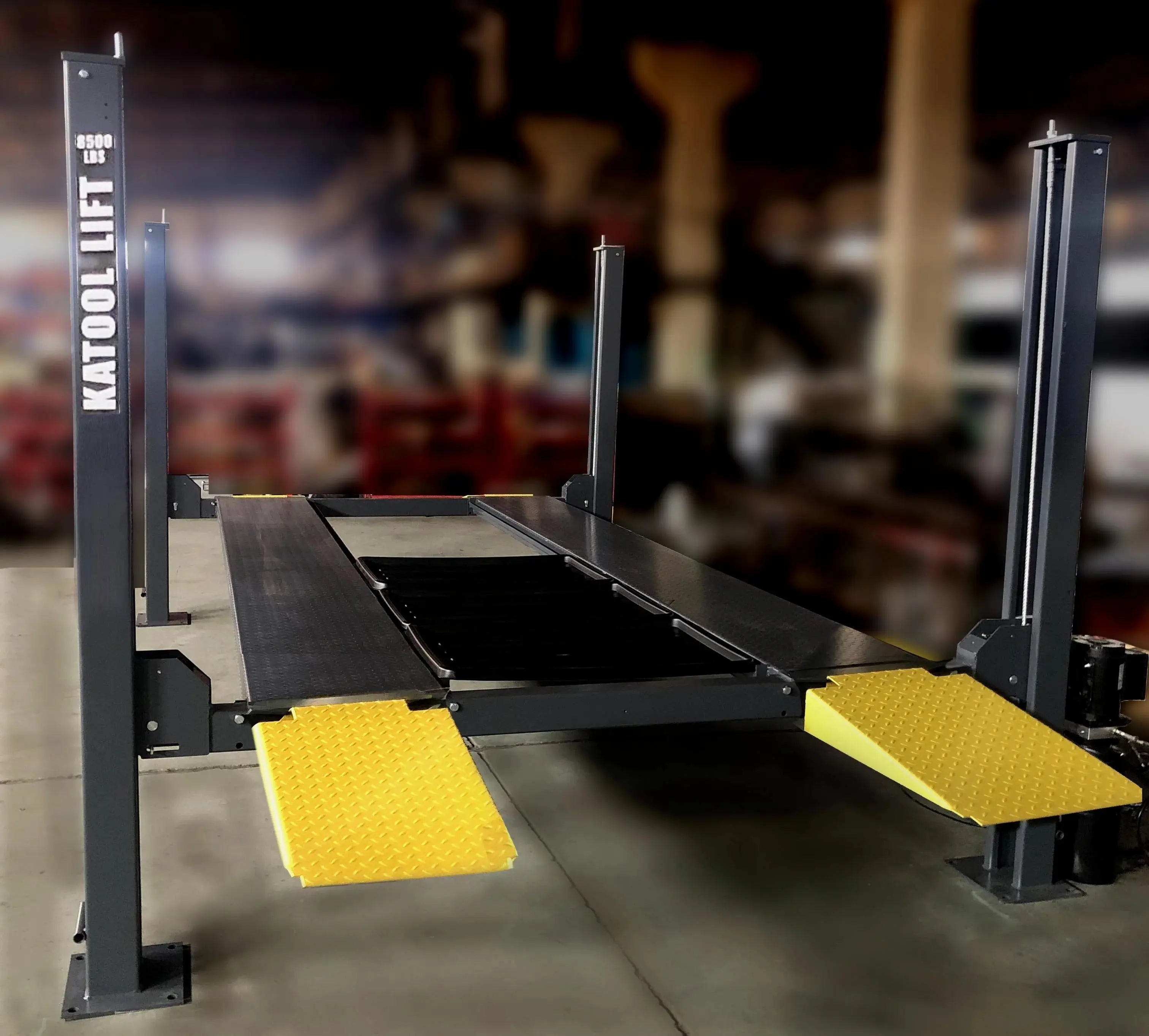

  • Four-post parking lift with black platforms and two yellow diamond traction pads

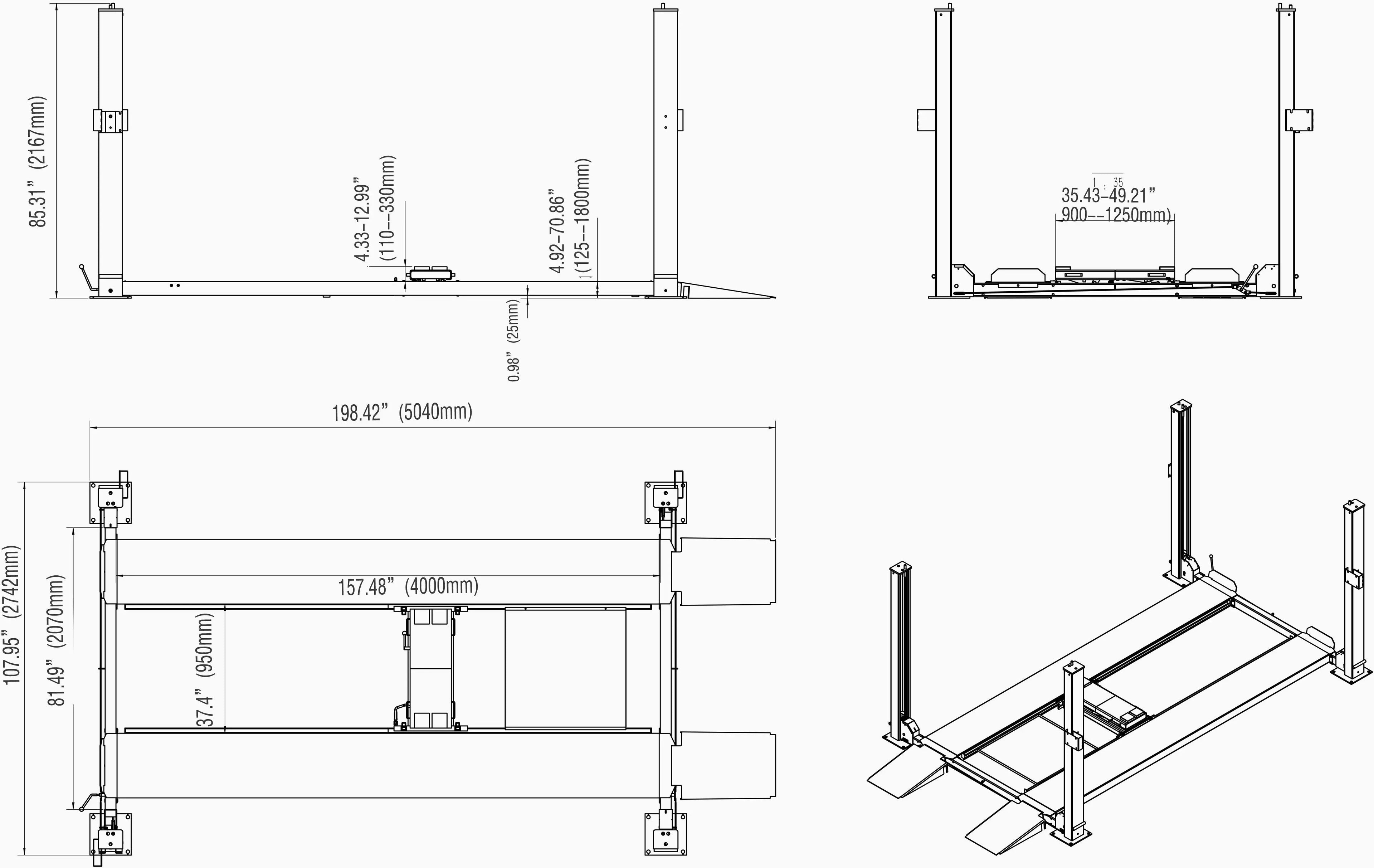

  • Four-post parking lift technical dimension diagram with side and front views

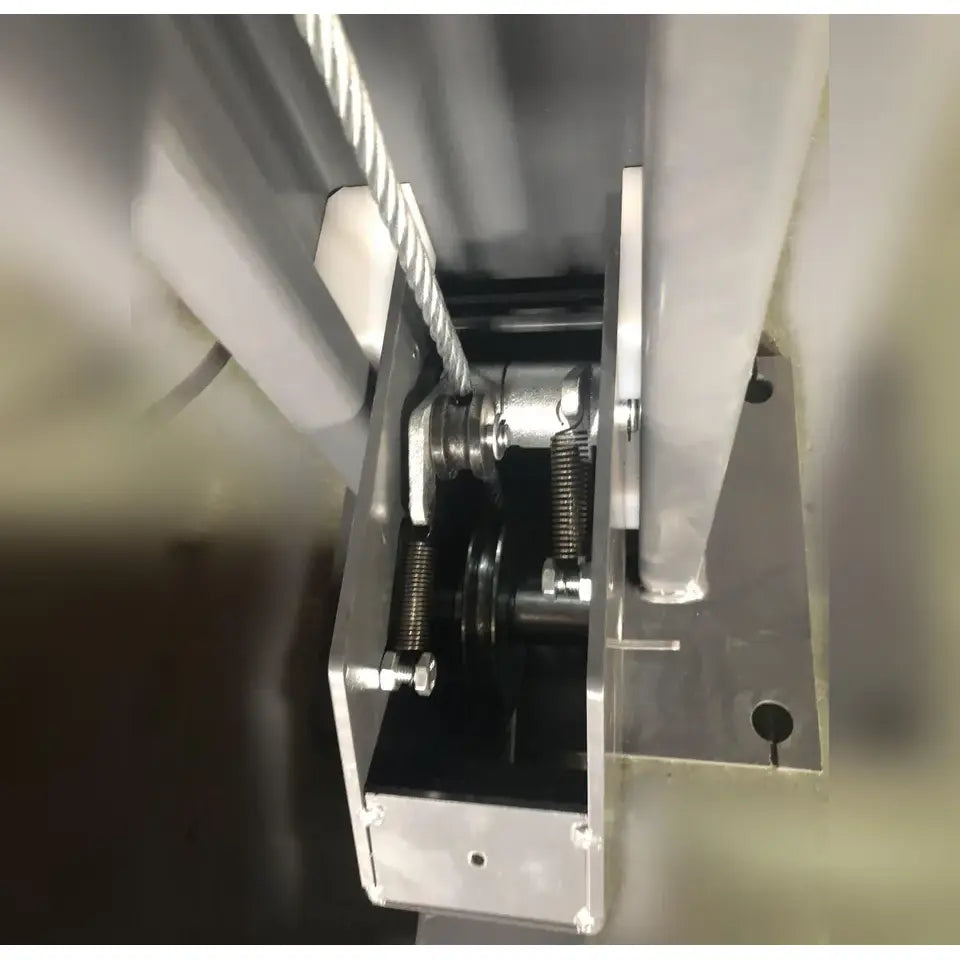

  • Four-post parking lift cable and pulley assembly with stacked steel safety components

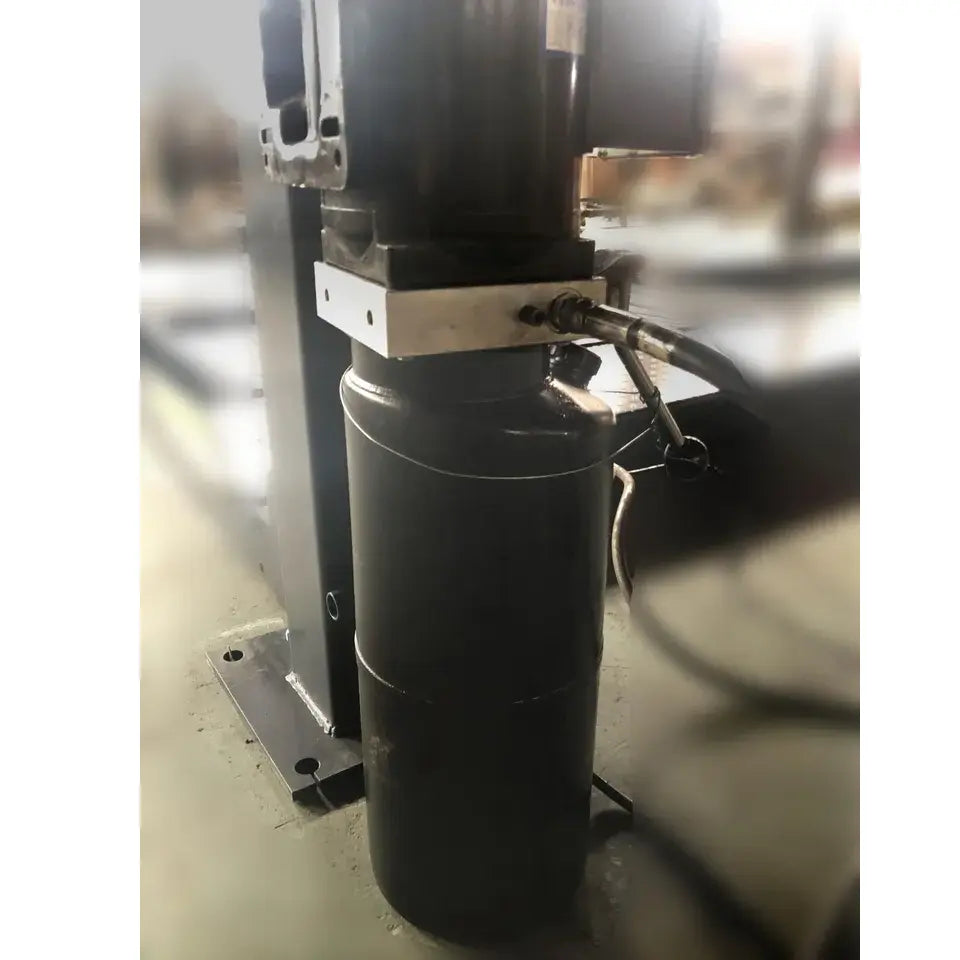

  • Four-post parking lift hydraulic cylinder and linkage assembly, side view
  • 13. 8,500 lb 4-post lift with casters for easy repositioning

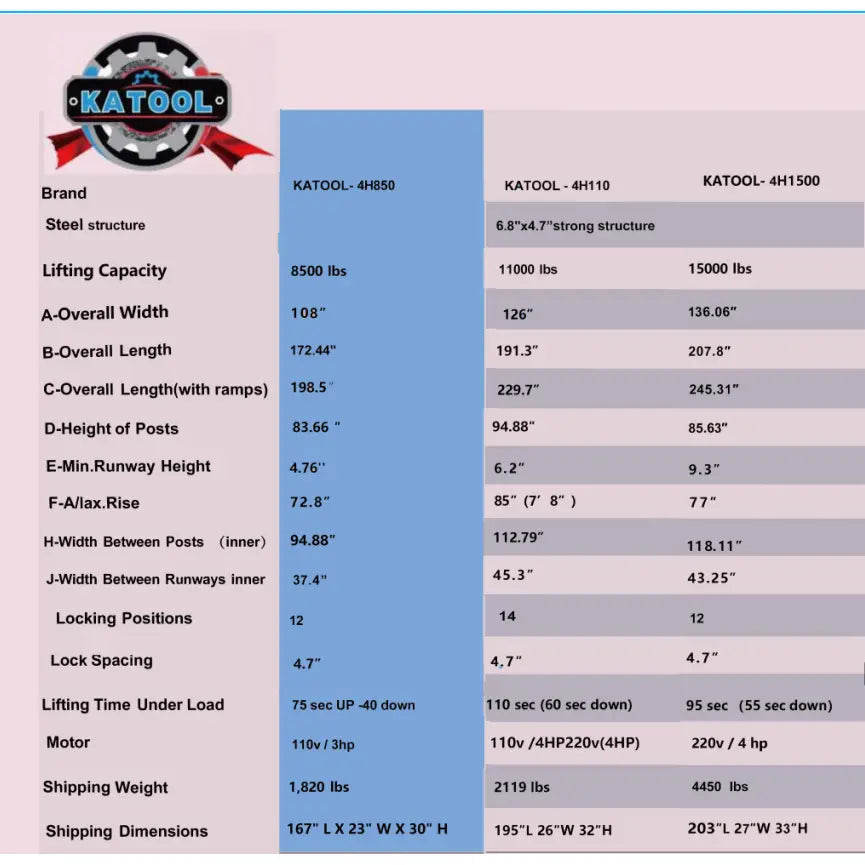

  • Four-post parking lift specifications chart for Katool 4H850 model
Katool KT-4H850 8,500 lb 4-Post Parking Lift - With Casters

Katool KT-4H850 8,500 lb 4-Post Parking Lift - With Casters

$2,699.00 $4,499.00

Shop Pay Installments

Eligible customers can split their purchase into payments with Shop Pay. Available plans and terms are shown at checkout.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Review the payment schedule and any down payment at checkout
  • Pay the rest over time with automatic payments

Payment options are subject to eligibility. Interest may apply. Review your rate, payment schedule, and total cost before completing your purchase.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Delivery Options
Free warehouse pickup · Confirm first Ask us to confirm stock and the supplier pickup location before ordering. No same-day pickup or handling fee. Contact us to arrange pickup →
Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

Frequently Bundled With

Black Katool KT-RJ50 5,000 lb rolling bridge jack with adjustable pads and air-hydraulic foot pump

Katool KT-RJ50 5,000 lb Rolling Jack — Fits KT-4H110, KT-4H950 & KT-4H850

$999.00
1. 7,000 lb rolling jack KT-RJ70 for 4-post lifts

Katool KT-RJ70 7,000 lb Rolling Jack for 4-Post Lifts - Fits KT-4H110, 4H950 & 4H850

$1,199.00
Total with add-ons: $2,699.00

Equipment subtotal for 1 main unit and 1 of each selected accessory. Shipping, tax and optional extended warranty are additional. Review quantities and the final total in your cart and at checkout.

One plan covers this lift only: KT-4H850. Adds 24 months after its standard parts warranty ends. Parts only; labor is not included, and structural coverage is not extended. One plan per purchased lift.

View coverage and terms

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
Manufacturer WarrantySee Product Terms
✅
Product SupportContact ALLIZOE
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
💡 Pro Tip:
This lift is optimized for vehicle storage. To perform wheel or brake service, please add the Rolling Jack shown below to your order.
Warranty

Standard manufacturer warranty: 3 years on structural components and 1 year on parts. An optional 2-year extended parts warranty is available for $349 per purchased lift. One plan covers the lift. It adds 24 months after the lift's standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended. One purchased lift requires one plan; two purchased lifts require two plans.

Warranty Conditions:

  • Non-transferable — requires original order number
  • Replacement parts at no cost including free shipping
  • Labor not included
  • Do not disassemble before issue is determined
Shipping

Shipping availability, charges and estimated timing vary by product, delivery option and destination. Review the selected option and confirm any unloading equipment or delivery services required before ordering. Warehouse pickup requires stock and location confirmation, an appointment and written pickup authorization; no same-day pickup. Pickup has no shipping or handling fee. View full Shipping & Delivery details →
How to Choose the Right Lift ▾

Not sure whether a 2-post or 4-post lift is right for your shop? Our guide breaks down the key differences in access, space, capacity, and use case.

View the 2-Post vs 4-Post Comparison Guide →

⚠️ Safety Warning

⚠️ IMPORTANT SAFETY WARNING: Concrete thickness must be at least 5.9 inches (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

⚠️ IMPORTANT SAFETY WARNING: Ceiling clearance must be at least 9 feet (2,743 mm). Failure to verify your garage or shop height before installation could result in serious injury or death! It is the customer's responsibility to verify ceiling height before purchase and installation.

Price & Freight — Before Tax

For one lift package in its listed standard configuration within the contiguous United States:

  • Warehouse Pickup: $2,699 before tax; no freight or handling fee. Confirm supplier stock, warehouse, and a pickup appointment with ALLIZOE before ordering.
  • Pickup at Carrier Terminal: $2,699 product + $700 freight = $3,399 before tax.
  • Commercial Delivery (Forklift Required): $2,699 product + $700 freight = $3,399 before tax.
  • Residential Delivery (Forklift Required): $2,699 product + $800 freight = $3,499 before tax.

Tax, optional accessories or upgrades, and the optional $349 extended parts warranty are additional. Confirm address eligibility and suitable unloading equipment before ordering. Standard liftgate service is not available for this lift. Review the final total at checkout; orders containing other products may have different combined shipping charges.

The Katool KT-4H850 delivers professional-grade 4-post lift performance at an entry-level price point. It has four independent mechanical locking devices, each equipped with primary and secondary safety locks. The single-point manual safety lock release ensures intuitive operation, while the flexible powerside column installation accommodates various garage layouts. Non-skid diamond platforms, adjustable safety lock ladders, dual drip trays, and a jack tray complete the package. The included caster kit adds mobility for home garages where flexibility matters, and the choice of 110V or 220V single-phase hydraulic systems ensures compatibility with your facility's electrical infrastructure.

Jack tray included with this lift; no separate tray purchase is needed. Rolling jack sold separately.

  • 8,500 lb lifting capacity
  • Four independent mechanical locking devices with dual primary and secondary safety locks
  • Single-point manual safety lock release for intuitive operation
  • Powerside column can be installed at front or rear to suit your garage layout
  • Non-skid diamond platforms and adjustable safety lock ladders
  • Included caster kit for easy repositioning and mobility

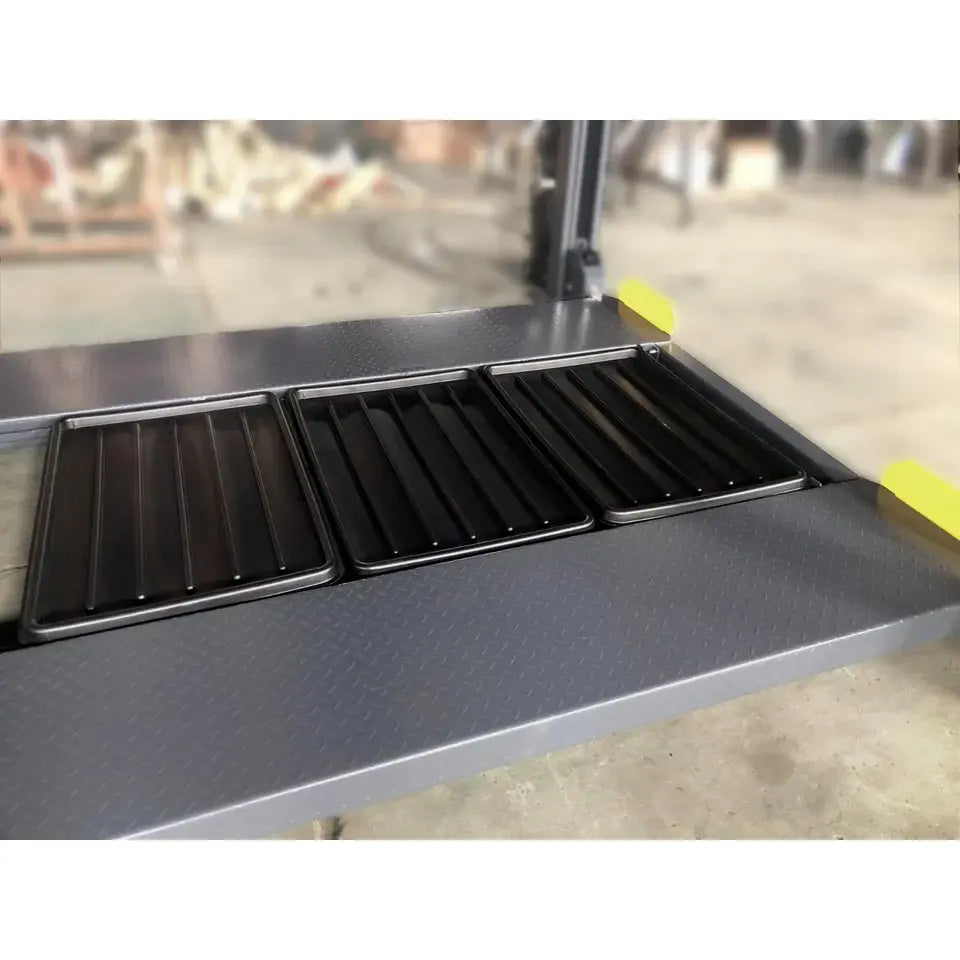

  • Dual drip trays and jack tray for a clean workspace
  • Compatible with 110V or 220V single-phase hydraulic systems
  • 70.87 inch max lifting height with 94.72 inch inside column width
  • 110V is the standard configuration. A 220V configuration is available at an additional price; confirm the selected voltage and total price with Allizoe before payment.
KT-4H850 KT-4H950 KT-4H110 KT-4M110PA KT-4H120PX KT-4H150
Capacity 8,500 lb 9,500 lb 11,000 lb 11,000 lb 12,000 lb 15,000 lb
Max Lift Height 70.87" ~84.5" 84.25" 84.5" 86.9" 76"
Width Between Columns 94.72" 99.5" 112.81" 112.81" 112.81" 118"
Motor 110V std.; 220V extra 110V std.; 220V extra 110V std.; 220V extra 110V standard 220V included 220V included
Lifting Time 75 sec 50 sec 83 sec ~50 sec 83 sec 60 sec
Rolling Jack Included No — sold separately No — sold separately No — sold separately Yes — 7,000 lb Yes — 7,000 lb Yes — 6,000 lb
Net Weight 1,820 lbs 2,095 lbs 2,116 lbs 2,116 lbs 3,373 lbs Approx. 4,850 lbs

Lifting Capacity: 8,500 lbs (3,850 kg)

Max. Lifting Height: 70.87 in / 1,800 mm

Lifting Time: 75s Up / 40s Down

Height of Posts: 83.66 in / 2,125 mm

Width Overall: 107.95 in / 2,742 mm

Length Overall (with ramps): 198.43 in / 5,040 mm

Inside Columns: 94.72 in / 2,406 mm

Min. Runway Height: 4.76 in / 121 mm

Power: 110V standard; 220V option at additional price. Confirm the supplied motor and electrical requirements with Allizoe.

Net Weight: 1,820 lbs / 826 kg

Minimum Ceiling Height Required: 9 ft / 2,743 mm

A jack tray is included with the KT-4H850. You do not need to buy a separate jack tray with this new lift. The jack tray is different from a rolling jack; a rolling jack is not included with the base lift.

The Katool KT-4H850 is a 4-post parking lift delivering professional-grade performance at an entry-level price. With 8,500 lbs of lifting capacity, it handles most cars, SUVs, and light trucks with confidence. Four independent mechanical locking devices — each with primary and secondary safety locks — and a single-point manual safety lock release ensure safe, intuitive operation. Non-skid diamond platforms, adjustable safety lock ladders, dual drip trays, and a jack tray provide a complete, clean working environment. The included caster kit adds mobility for flexible garage layouts, and the powerside column can be installed at either end to suit your space. Available in 110V or 220V single-phase hydraulic configurations.

110V is the standard configuration. A 220V configuration is available at an additional price; confirm the selected voltage and total price with Allizoe before payment.

Standard manufacturer warranty: 3 years on structural components and 1 year on parts. An optional 2-year extended parts warranty is available for $349 per purchased lift. One plan covers the lift. It adds 24 months after the lift's standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended. One purchased lift requires one plan; two purchased lifts require two plans.

Warranty Conditions:

  • Non-transferable — requires original order number
  • Replacement parts at no cost including free shipping
  • Labor not included
  • Do not disassemble before issue is determined
  • Home Garage Enthusiasts: 8,500 lb capacity for most cars and SUVs
  • Car Collectors: Stacked parking where vehicle heights, runway clearance, and garage space meet the supplied manual's requirements
  • Small Auto Shops: Entry-level 4-post lift with mechanical safety locks
  • Vehicle Storage: Plan vertical storage using both vehicle heights, runway clearance at the locked position, and ceiling clearance
  • DIY Mechanics: Included caster kit allows easy repositioning and flexibility in your workspace

All Katool equipment is manufactured to international quality standards.

  • Quality Control — Each unit undergoes pre-shipment inspection
  • US-Based Support — Technical support provided from the United States
  • Warranty — Standard manufacturer warranty: 3 years on structural components and 1 year on parts; labor is not included. See this product's Warranty section for terms

Price & Freight — Before Tax

For one lift package in its listed standard configuration within the contiguous United States:

  • Warehouse Pickup: $2,699 before tax; no freight or handling fee. Confirm supplier stock, warehouse, and a pickup appointment with ALLIZOE before ordering.
  • Pickup at Carrier Terminal: $2,699 product + $700 freight = $3,399 before tax.
  • Commercial Delivery (Forklift Required): $2,699 product + $700 freight = $3,399 before tax.
  • Residential Delivery (Forklift Required): $2,699 product + $800 freight = $3,499 before tax.

Tax, optional accessories or upgrades, and the optional $349 extended parts warranty are additional. Confirm address eligibility and suitable unloading equipment before ordering. Standard liftgate service is not available for this lift. Review the final total at checkout; orders containing other products may have different combined shipping charges.

  • Supplier warehouse pickup: No freight or handling fee. Allizoe confirms stock and the pickup warehouse before payment; warehouse address can be shared before payment.
  • Scheduling: No same-day pickup. After confirmation, the supplier provides a pickup release form. Blind pickup may be arranged.
  • Carrier terminal pickup: Freight to a carrier terminal is separate from free supplier warehouse pickup. Bring a suitable vehicle or trailer and arrange unloading at your final destination.
  • Commercial or residential delivery: Select the service matching your address and unloading equipment.

For these heavy lifts, confirm unloading arrangements before delivery.

Package Size

L x W x H (in) 167 x 23 x 30
Weight (lbs) 1820

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Explore equipment for your shop
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • A jack tray is included with the KT-4H850. You do not need to buy a separate jack tray with this new lift. The jack tray is different from a rolling jack; a rolling jack is not included with the base lift.
  • Options may include supplier Warehouse Pickup, Pickup at Carrier Terminal, Commercial Delivery, and Residential Delivery. Product price and freight charges are shown separately. Supplier warehouse pickup is free, requires stock confirmation and an appointment, and is not available the same day. For terminal pickup, the carrier loads your suitable vehicle or trailer; you handle final unloading. Four-post lifts require suitable forklift or loading-dock arrangements for delivery; standard liftgate service is not available.
  • 110V is the standard configuration. A 220V configuration is available at an additional price; confirm the supplied power unit, voltage, circuit requirements, availability, and total price with ALLIZOE before payment. The Delivery Options on this page select fulfillment, not voltage. Do not assume one supplied power unit automatically works on both voltages.
  • Professional installation by a qualified installer is strongly recommended. Allizoe lists a level concrete floor at least 5.9 inches (150 mm) thick with a 3,000 PSI rating. Have the installer verify the slab, clearance, electrical supply, and unloading requirements, and follow the model-specific installation manual.
  • If Shop Pay Installments is offered for your order at checkout, the available payment plans and terms will be shown there. Availability is subject to eligibility and approval. Review the terms before completing your purchase.
  • We provide US-based technical support via email and phone. Our team assists with installation questions, troubleshooting, and parts replacement throughout your warranty period.
  • Contact Allizoe within 30 days of pickup or delivery to request return authorization. Eligible equipment must be unused, uninstalled, and in its original packaging with all accessories. Returns for reasons other than defect or warranty are subject to a 30% restocking fee and round-trip freight costs under our Refund Policy. Review the full policy at /policies/refund-policy before ordering.
  • The standard manufacturer warranty covers the lift's structural components for 3 years and parts for 1 year, subject to the manufacturer's warranty terms and claim approval. Labor is not included. Optional extended parts coverage does not extend the structural warranty.
  • Yes. One $349 plan covers this purchased lift only. It adds 24 months after the lift's standard parts warranty ends. Parts only; labor is not included, and structural coverage is not extended. Select one plan per purchased lift.
  • Compare the vehicle's actual loaded weight and axle-load distribution with the lift's rated capacity and the supplied manual. Check wheelbase, tire track, tire width, usable runway length and width, ramp approach angle, and clearance at the columns. Check the raised vehicle against the ceiling, garage-door tracks, opener, lights, and other overhead obstructions. For a permitted stacked-parking setup, also check the lower vehicle's height against clear space beneath the runways at an approved locked parking position. Maximum lifting height is not the same as usable clearance beneath the lift. Contact ALLIZOE with vehicle and garage measurements if you need help checking fit.
  • The four-post lift and a rolling jack have separate rated capacities. The lift's capacity applies to the supported vehicle on the runways; a rolling jack must also be within its own rating for the load being raised. A rolling jack does not increase the lift's rated capacity, and the two ratings must not be added together. Confirm the supported axle load, approved lifting points, and jack-to-lift compatibility before wheel-free service. A jack tray is a different accessory from a rolling jack.
