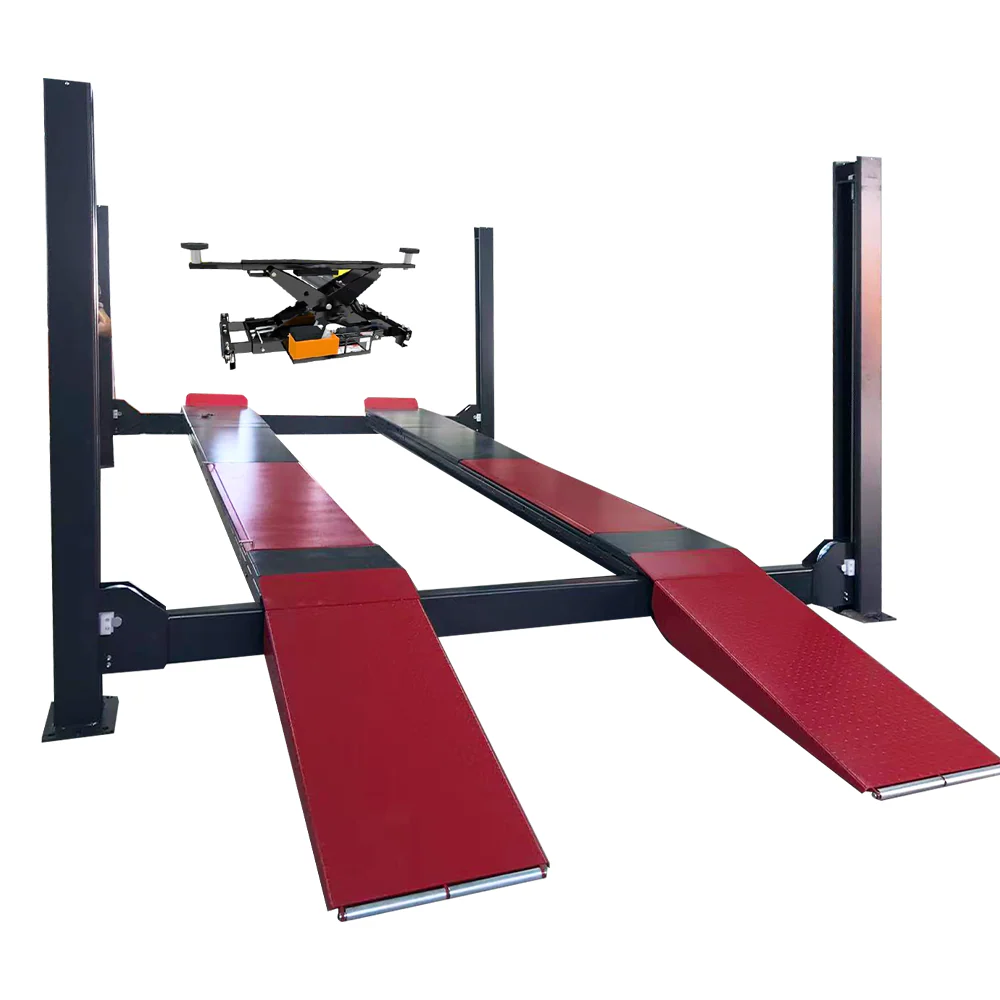

12,000 lb 4-post car lift with extra height design - KT-4H120X front view

Katool KT-4H120X 12,000 lb 4-Post Car Lift - Extra Height & Wide - Single Point Release

Warehouse Pickup
$4,597.00 $5,744.00
Skip to product information
12,000 lb 4-post car lift with extra height design - KT-4H120X front view
1/11
  • 12,000 lb 4-post car lift with extra height design - KT-4H120X front view

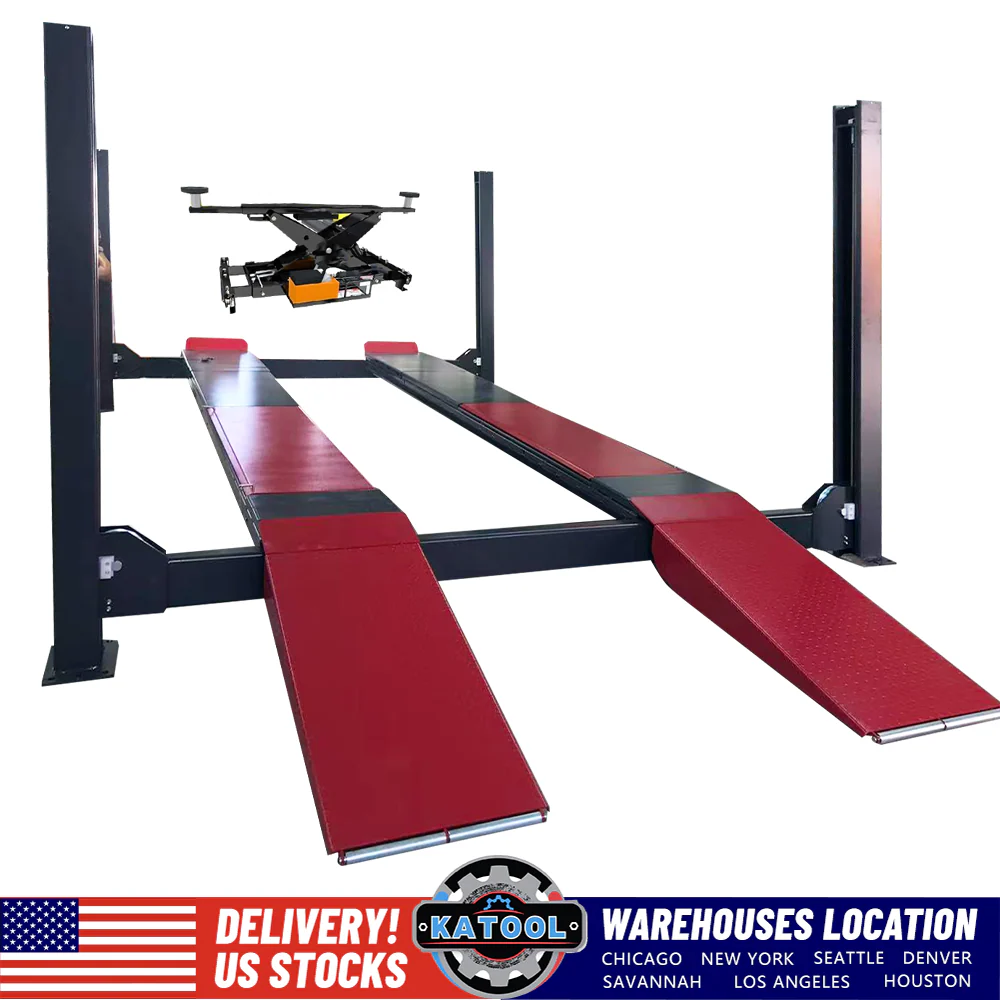

  • 4-post car lift with red ramps and black platforms, extra-height

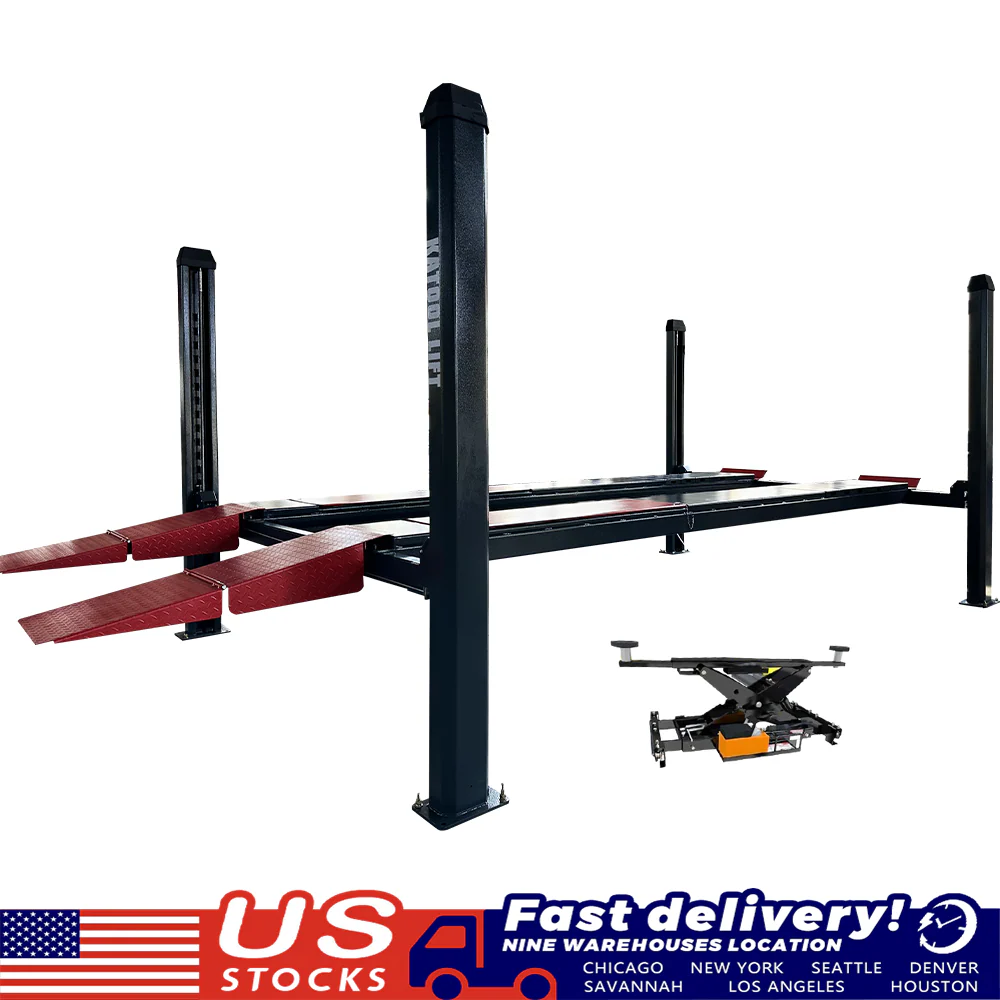

  • Single point lock release mechanism on 12,000 lb car lift

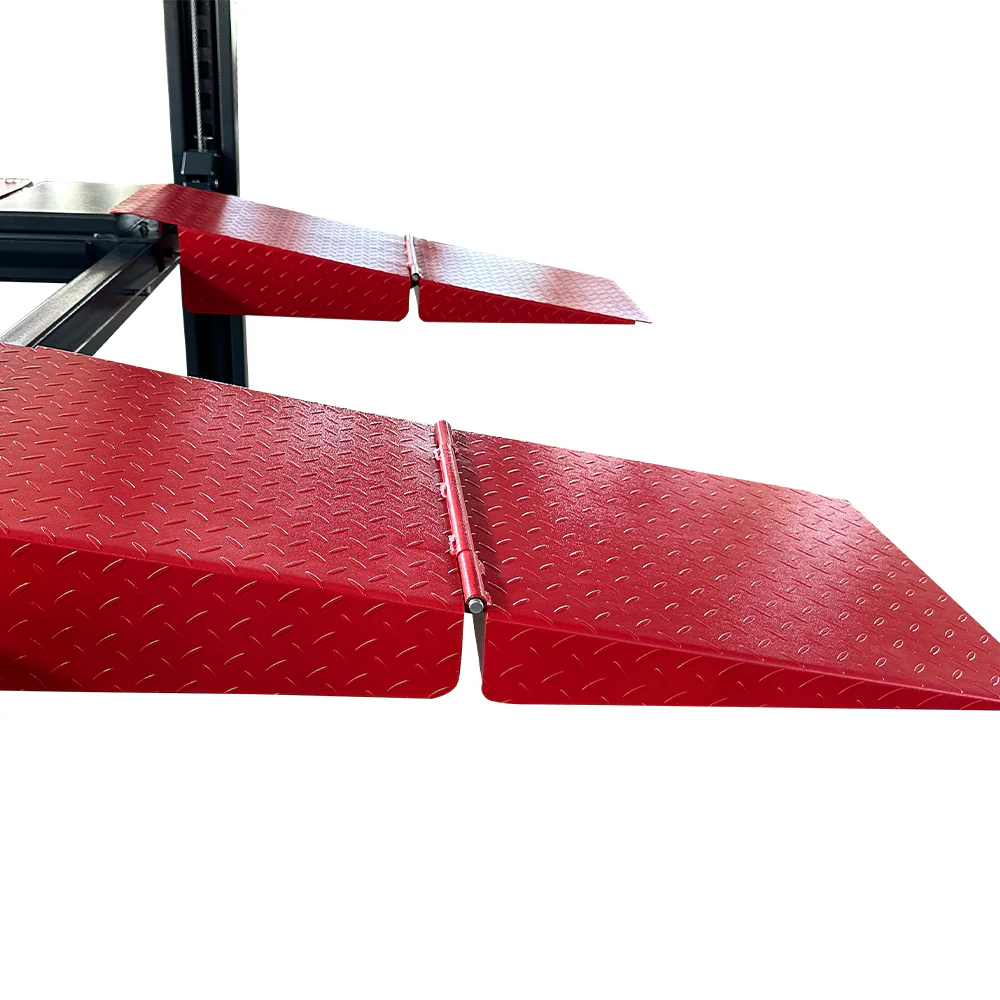

  • Red textured car lift ramp pad with anti-slip diamond pattern

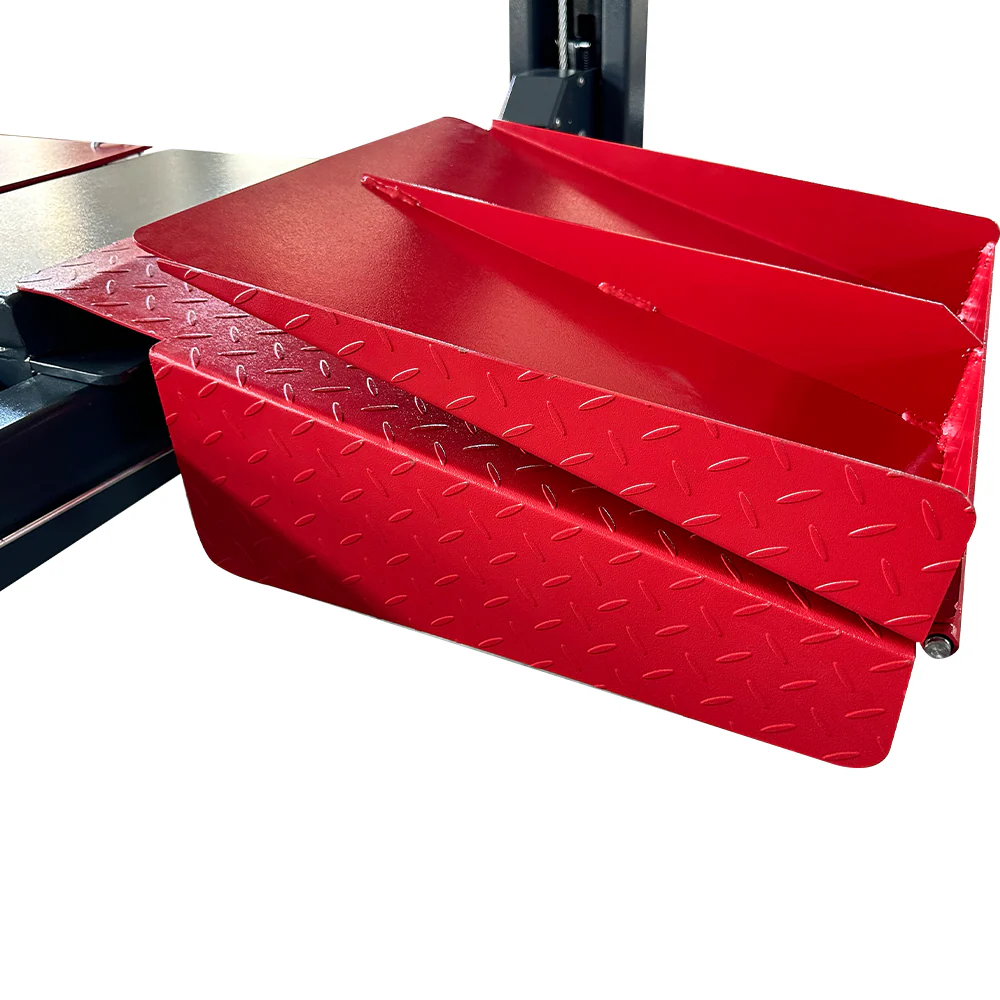

  • Red anti-slip ramp accessory with hinged edge and diamond plate surface
  • Hydraulic power unit on 12,000 lb capacity automotive lift

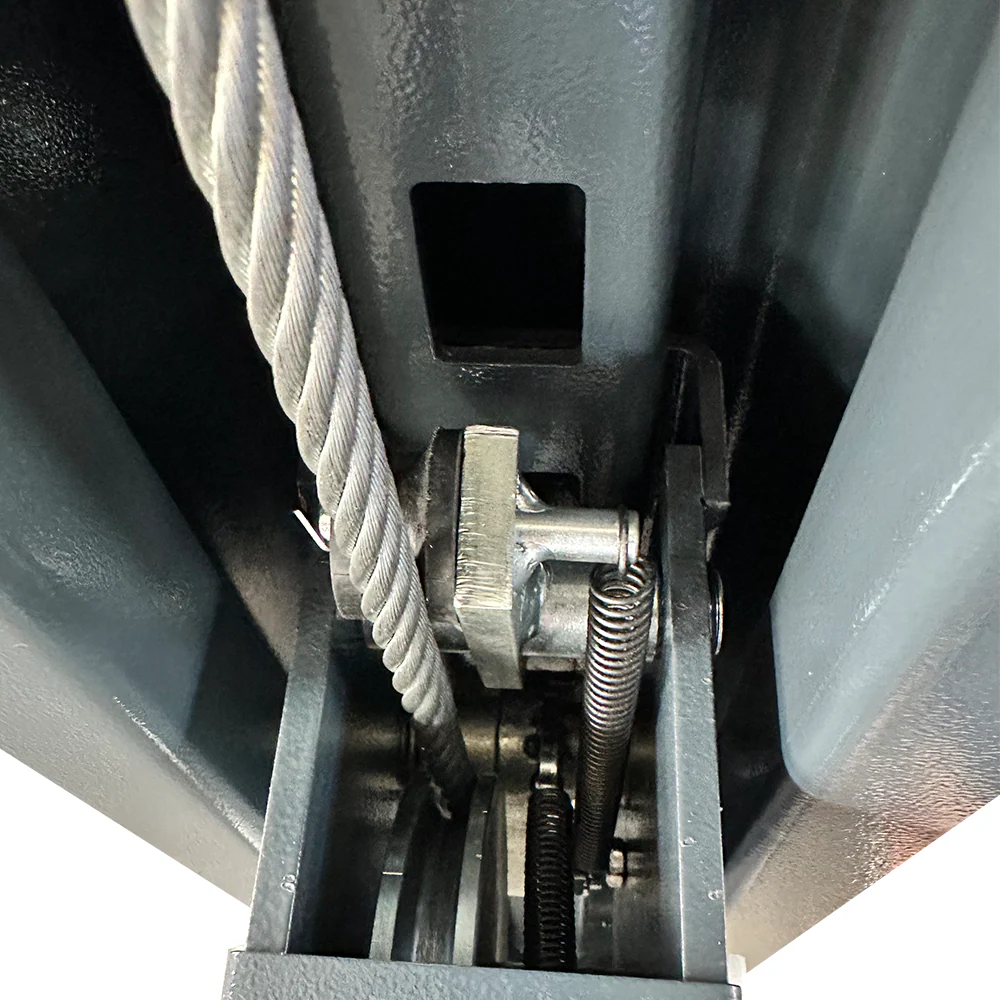

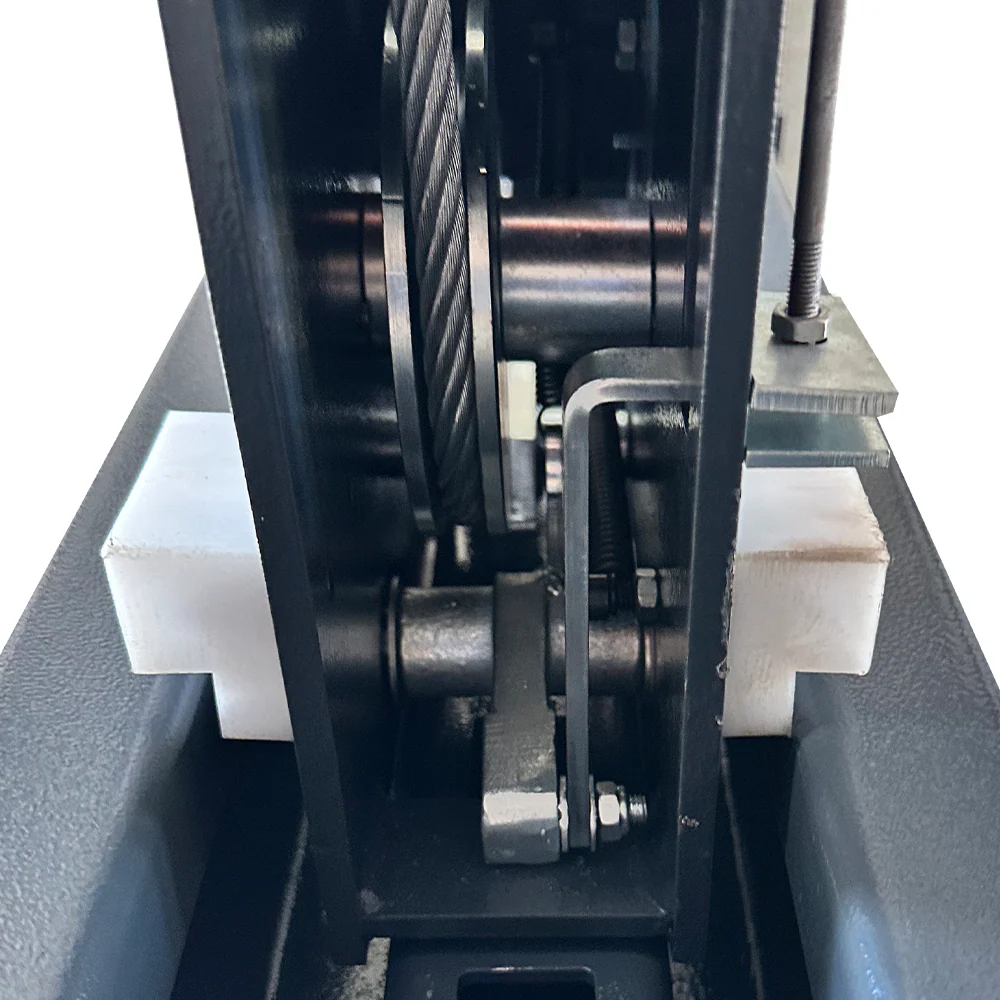

  • 4-post car lift inner mechanism and hydraulic linkage under post

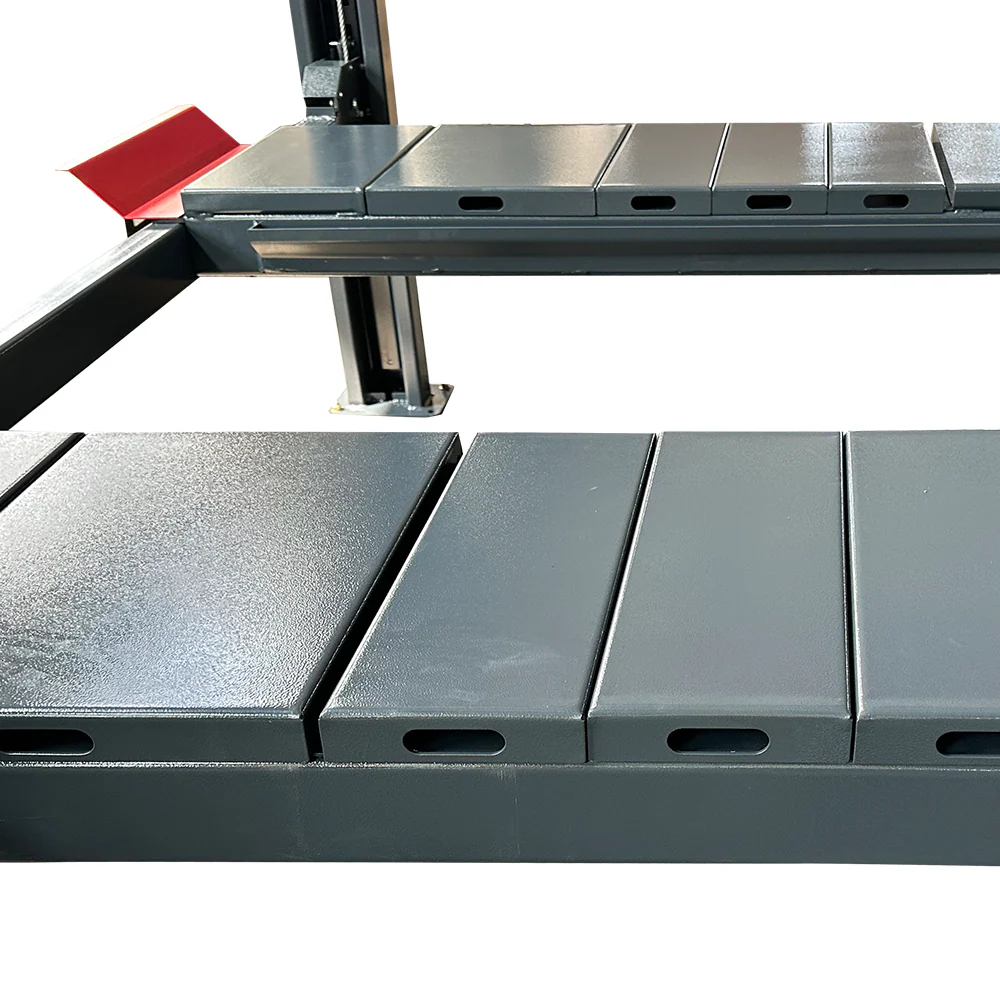

  • Black steel runways with slots and red release plate on 4-post lift
  • Included caster mobility kit for 12,000 lb 4-post lift

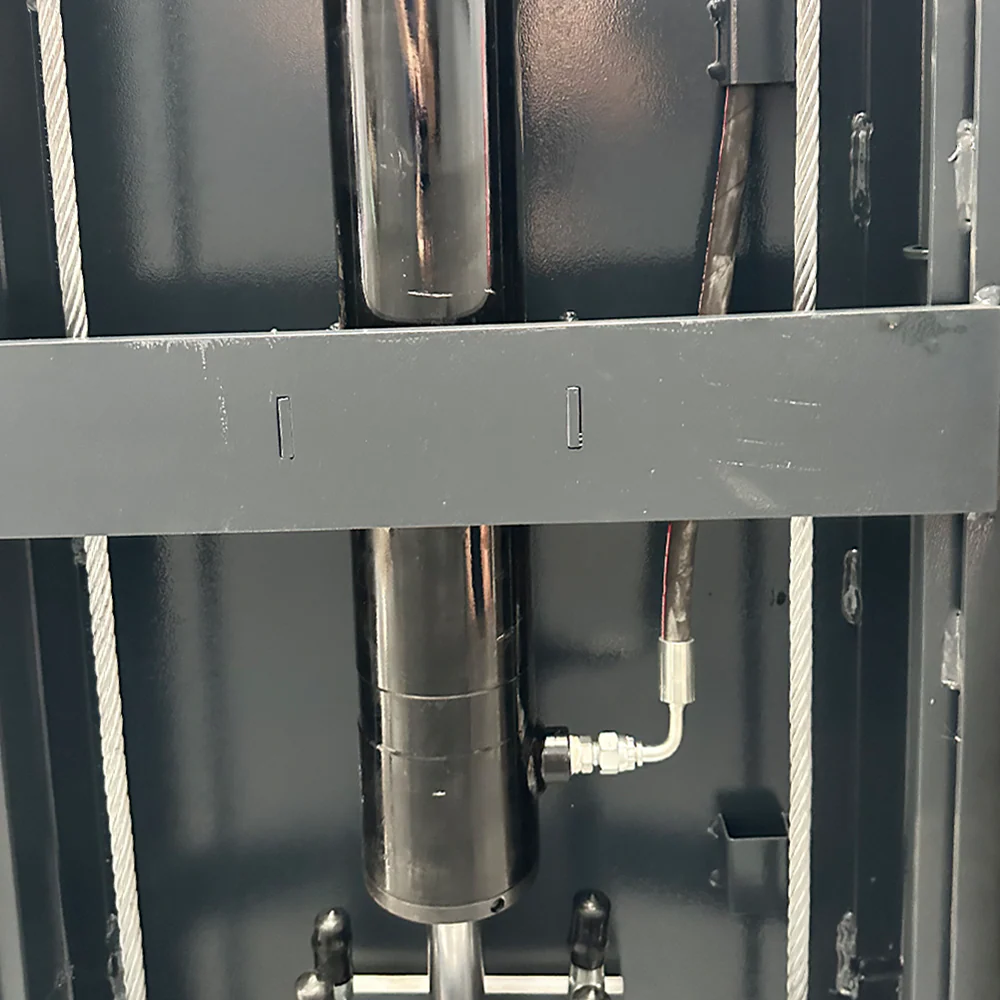

  • 4-post car lift center column with hydraulic lines and cables
  • 12,000 lb 4-post lift raising dually truck in professional garage
Katool KT-4H120X 12,000 lb 4-Post Car Lift - Extra Height & Wide - Single Point Release

Katool KT-4H120X 12,000 lb 4-Post Car Lift - Extra Height & Wide - Single Point Release

$4,597.00 $5,744.00

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Options

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰
Tax-Free Outside IL
🚚
Free Freight Lower 48 States
🛡️
1-Yr Warranty Full Parts Support
✅
CE Approved International Quality
📍
Local Pickup Nationwide Save up to $1,400 in freight costs
Learn More >
✅ All-In-One Value:
This premium alignment lift INCLUDES Rolling Jacks ($1,400+ value) at no extra cost. Ready for full brake and suspension service out of the box!
Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:

  • Cylinders, power units, motors, displays, electronics, etc.
  • Vehicle lifts: additional 36-month warranty on structural components

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included
  • Photos and/or videos of defects may be requested
  • Do not disassemble any equipment before the issue is determined

📄 Download Manual (PDF)
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →
How to Choose the Right Lift ▾

Not sure whether a 2-post or 4-post lift is right for your shop? Our guide breaks down the key differences in access, space, capacity, and use case.

View the 2-Post vs 4-Post Comparison Guide →

⚠️ Safety Warning

⚠️ IMPORTANT SAFETY WARNING: Concrete thickness must be at least 3.93 inches (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

⚠️ IMPORTANT SAFETY WARNING: Ceiling clearance must be at least 10 feet (3,048 mm). Failure to verify your garage or shop height before installation could result in serious injury or death! It is the customer's responsibility to verify ceiling height before purchase and installation.

The Katool KT-4H120X is the extra height and wide 4-post lift engineered for vehicles that exceed standard lift limits. With an 86.9-inch lifting height and 112.81-inch width between columns, you can service lifted trucks, store vehicles with roof-mounted equipment, and accommodate wide-body vehicles that other lifts can't handle. it features single point manual safety lock release, intelligent slack-cable secondary system, non-skid diamond platforms, and adjustable safety lock ladders. Comes with a caster kit, three drip trays, and a jack tray — the complete solution for demanding commercial use.

  • 12,000 lbs lifting capacity
  • Extra-tall 86.9-inch lifting height for lifted trucks and tall vehicles
  • Extra-wide 112.81-inch column spacing for wide-body vehicles
  • Single Point Manual Safety Lock Release
  • 4 mechanical locking devices with intelligent slack-cable secondary system
  • Non-skid diamond platforms with adjustable safety lock ladders
  • Includes caster kit, three drip trays, and jack tray
  • 220V/60HZ/1PH hydraulic system
KT-4H850 KT-4H950 KT-4H110 KT-4H120X KT-4H150
Capacity 8,500 lb 9,500 lb 11,000 lb 12,000 lb 15,000 lb
Max Lift Height 70.87" 88.5" 75" 86.9" 75.15"
Overall Width 107.95" — 112.01" — 148.81"
Width Between Columns 94.72" 111.02" 105.05" 112.91" 192.52"
Runway Length 198.43" 179.13" 177.95" 180" —
Motor 110V/220V 120V 110V/220V 220V 220V/110V
Lifting Time — 50 sec 60 sec — 55 sec
Casters Included ✓ — — — —
Rolling Jack — — — — ✓ 7,000 lb
Net Weight 1,820 lbs 1,300 lbs 2,120 lbs 3,440 lbs 4,600 lbs

Lifting Capacity: 12,000 lbs (5,443 kg)

Max. Lifting Height: 86.9 in / 2,208 mm

Lifting Time: up to 83s Up / 40s Down

Height of Posts: 94.88 in / 2,410 mm

Width Overall: 135.2 in / 3,435 mm

Width Between Columns: 112.81 in / 2,865 mm

Motor: 220V

Net Weight: 3,373 lbs / 1,530 kg

Shipping Dimensions: 209 x 36 x 26 inches

Shipping Weight: 3,440 lbs

Minimum Ceiling Height Required: 10 ft / 3,048 mm

The Katool KT-4H120X Extra Height & Wide 4-Post Car Lift is engineered for vehicles that exceed standard lift limits, delivering 12,000 lbs of lifting capacity with an 86.9-inch lifting height and 112.81-inch width between columns. Service lifted trucks, store vehicles with roof-mounted equipment, and accommodate wide-body vehicles that other lifts can't handle. it features single point manual safety lock release, 4 mechanical locking devices with intelligent slack-cable secondary system, non-skid diamond platforms, and adjustable safety lock ladders. Comes complete with a caster kit, three drip trays, and a jack tray for demanding commercial use. Powered by 220V/60HZ/1PH hydraulic system.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:

  • Cylinders, power units, motors, displays, electronics, etc.
  • Vehicle lifts: additional 36-month warranty on structural components

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included
  • Photos and/or videos of defects may be requested
  • Do not disassemble any equipment before the issue is determined

📄 Download Manual (PDF)

  • Auto Shops with Tall Vehicles: 86.9-inch extra-tall lift height handles lifted trucks, vans, and vehicles with roof racks
  • Wide Vehicle Service: 112.81-inch extra-wide column spacing accommodates wide-body vehicles
  • Vehicle Collectors: Stack and store multiple vehicles — double your garage space
  • High-Ceiling Garages: Maximize vertical space with 86.9-inch lifting height
  • Commercial Use: Heavy-duty construction for commercial service

All Katool equipment is manufactured to international quality standards.
• Quality Control — Each unit undergoes pre-shipment inspection
• US-Based Support — Technical support provided from the United States
• Warranty — 1-year limited manufacturer warranty included

Freight shipping included to the lower 48 states. Four delivery options available:

  • Warehouse Pickup — No shipping cost, pickup at our warehouse
  • Terminal Pickup — Ship to nearest freight terminal, no forklift needed
  • Commercial Delivery — Delivery to business address, forklift required
  • Residential Delivery — Delivery to home address, forklift required

Due to the size and weight of this lift, please confirm your unloading capability before ordering.

Package Size

L x W x H (in) Pack 1: 209 x 26 x 28 / Pack 2: 77 x 46 x 25
Weight (lbs) 4083

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • Due to the size and weight of this lift, a forklift is required for unloading. We offer four options: Warehouse Pickup (no shipping cost), Terminal Pickup at a nearby freight terminal (no forklift needed, shipping included), Commercial Delivery with forklift required (shipping included), and Residential Delivery with forklift required (shipping included).
  • Professional installation by a certified technician is strongly recommended. A concrete floor with minimum 4-inch (100mm) thickness is required. Anchor bolts and installation hardware are included. A detailed installation manual is provided with every lift.
  • The KT-4H120X is not ALI certified. For customers requiring ALI-certified lifts, we recommend verifying your specific facility requirements before purchase.
  • Yes. We offer Shop Pay Installments, allowing you to split your purchase into 4 interest-free payments on orders from $5,000 and up.
  • We provide US-based technical support via email and phone. Our team assists with installation questions, troubleshooting, and parts replacement throughout your warranty period.
  • Returns are accepted within 30 days for unused equipment in original packaging. Please contact us before returning any equipment. Return freight costs are the responsibility of the buyer.
