Katool KT-4H110 11,000 lb 4-Post Vehicle Lift

Pickup at Carrier Terminal
$3,299.00 $4,799.00
Skip to product information
4-post vehicle lift with black posts, orange arms, and lifting platform with drip tray
1/13
  • 4-post vehicle lift with black posts, orange arms, and lifting platform with drip tray

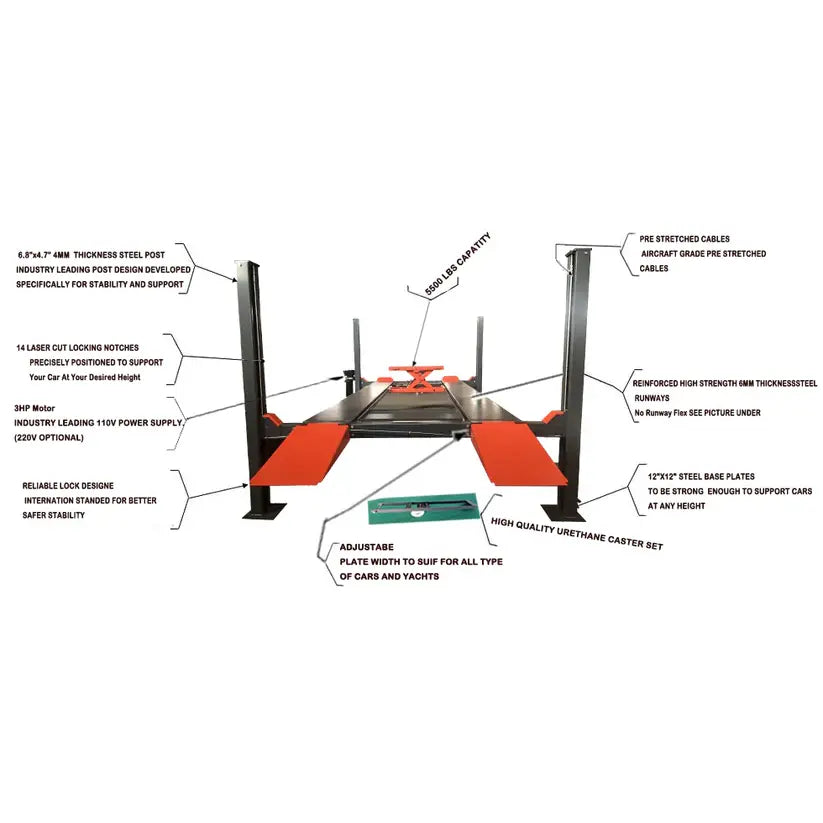

  • 2. Heavy-duty 4-post lift with 11,000 lb capacity for professional shops
  • 4-post vehicle lift with steel columns and raised platform deck, orange lift arms

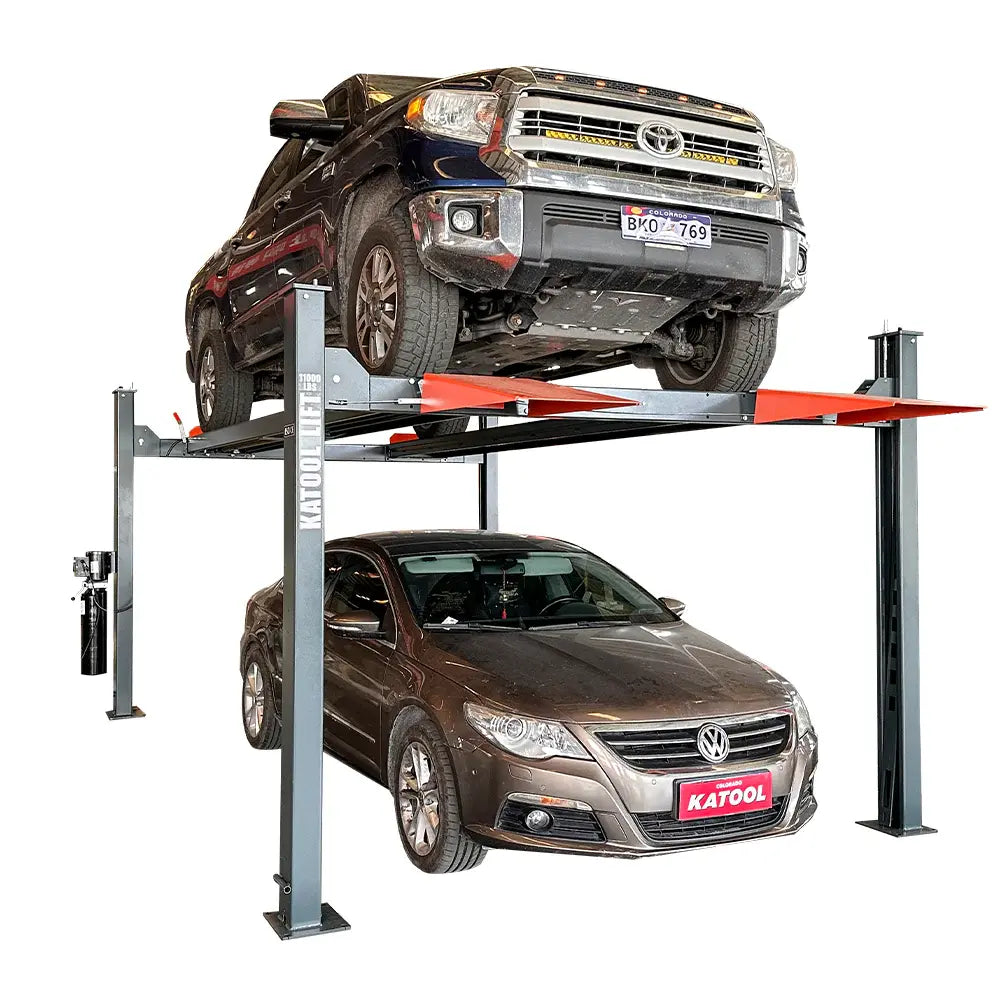

  • 4-post vehicle lift supporting two cars on upper and lower platforms with orange ramps

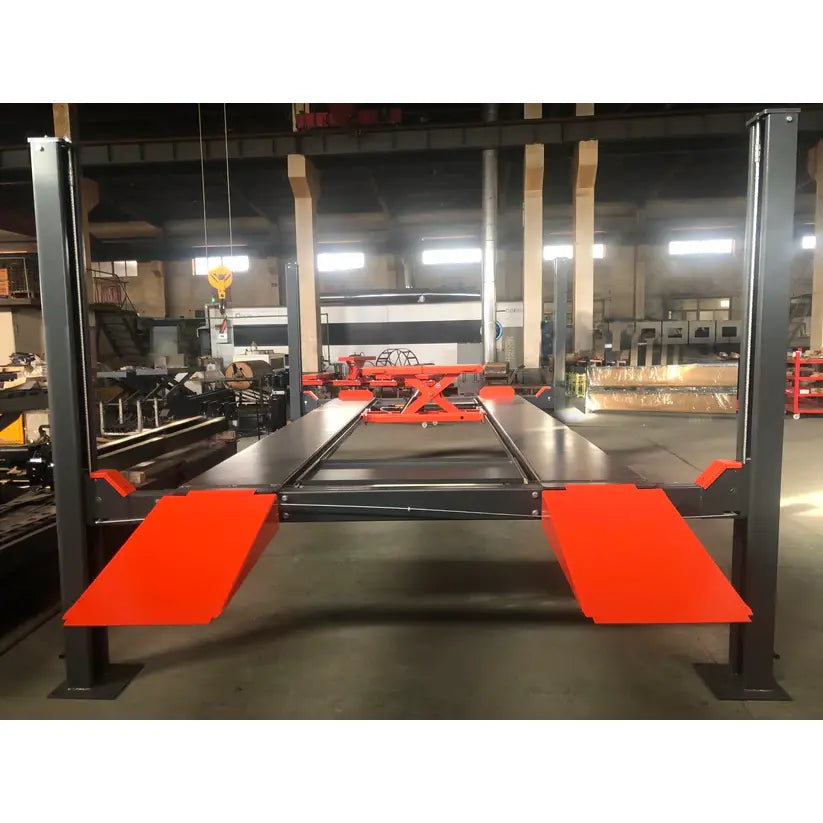

  • 5. 11,000 lb lift reaching 84.25-inch maximum height

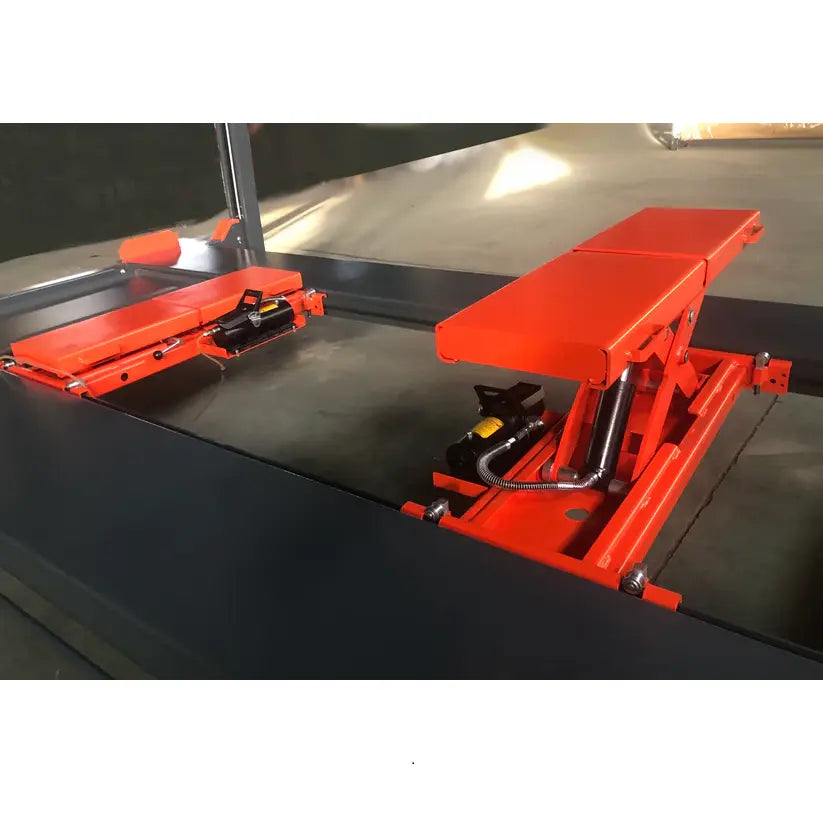

  • 4-post vehicle lift lifting carriage with orange crossbeams and steel support arms

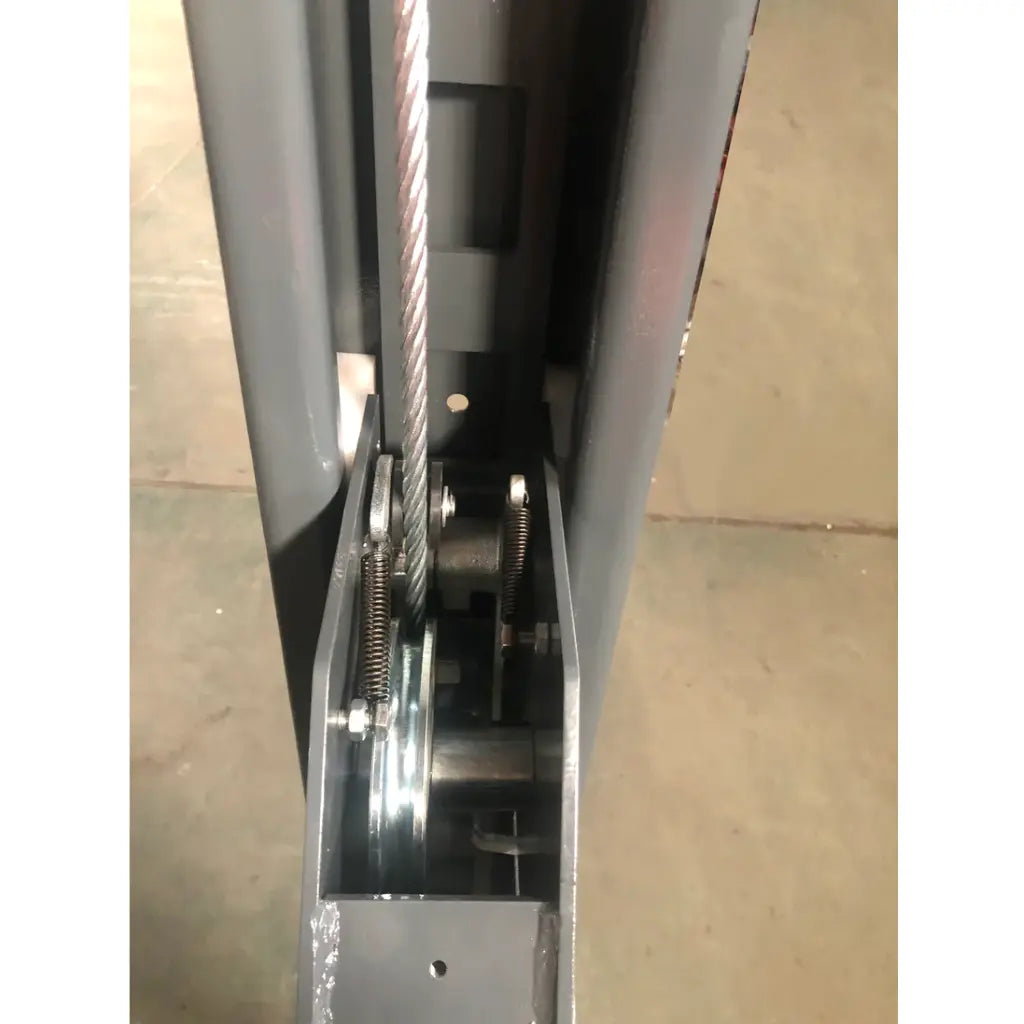

  • 4-post vehicle lift post interior with steel pulleys, springs, and locking components

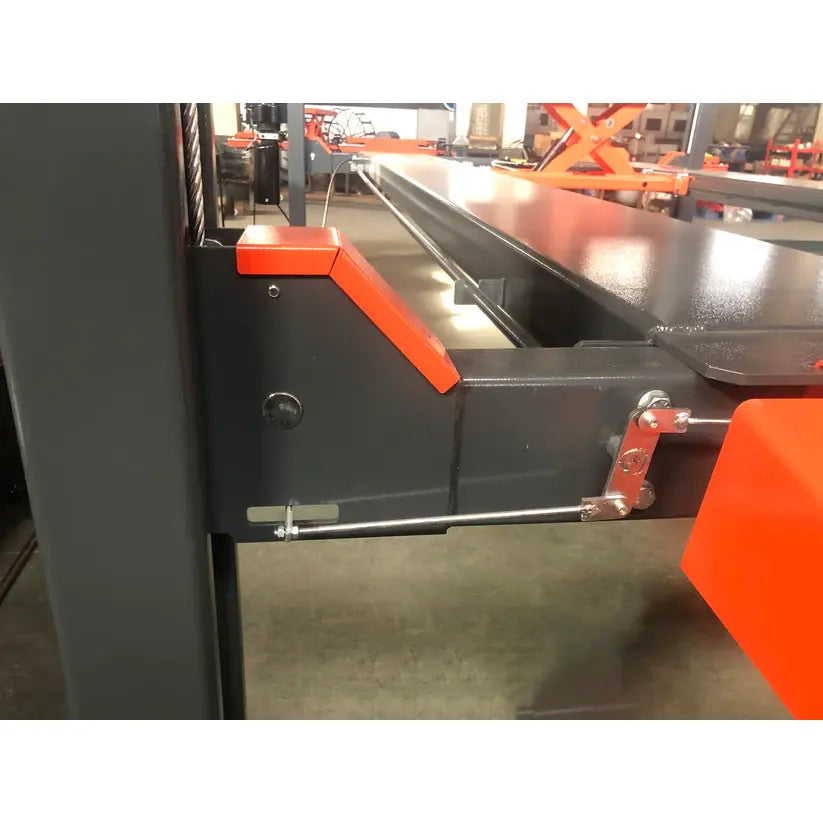

  • 4-post vehicle lift frame with orange control panel and steel safety bar near platform

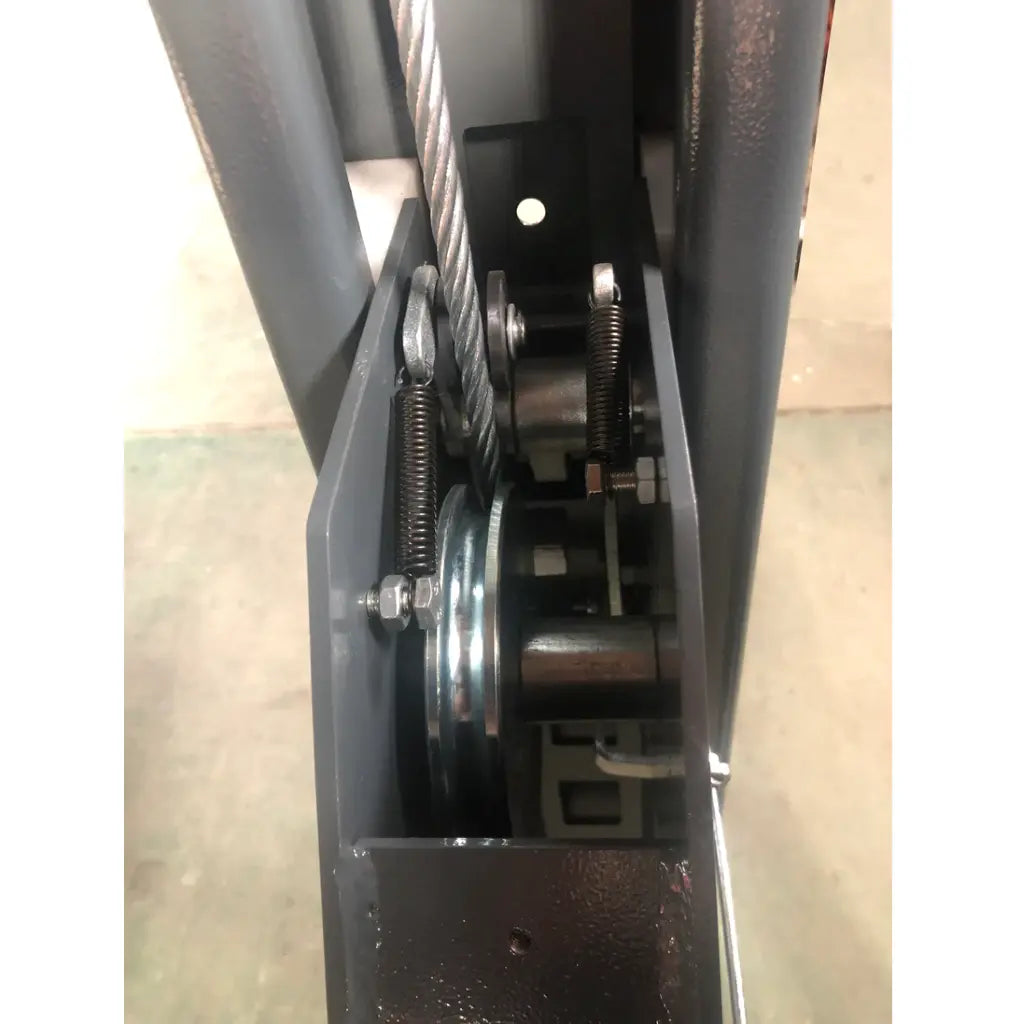

  • 4-post vehicle lift post interior showing cables, springs, and metal pulley assembly

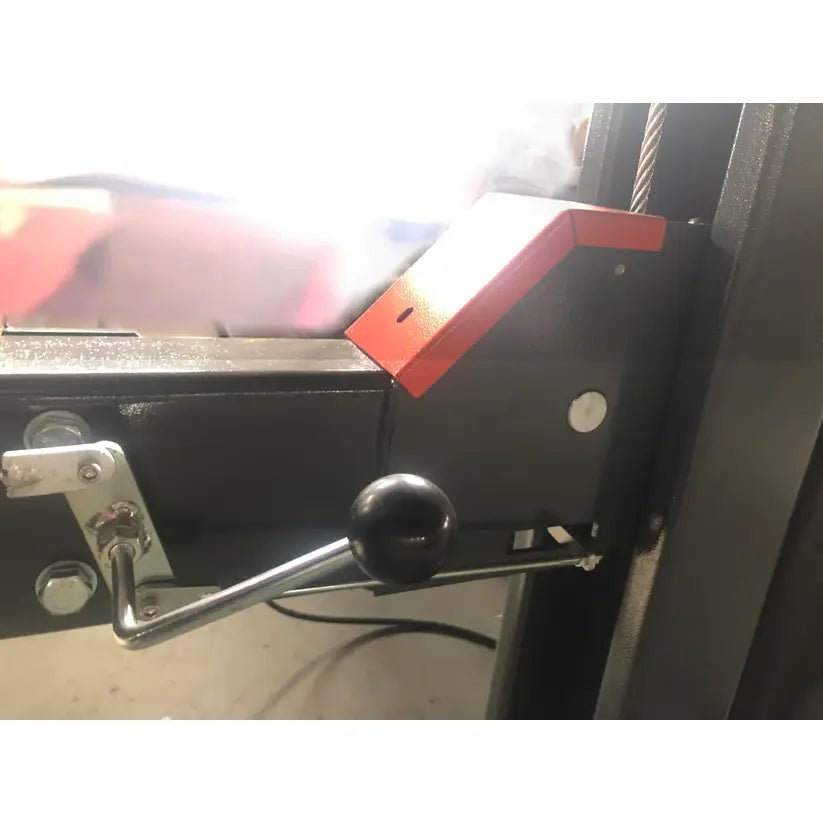

  • 4-post vehicle lift control mechanism with black spherical handle and metal lever

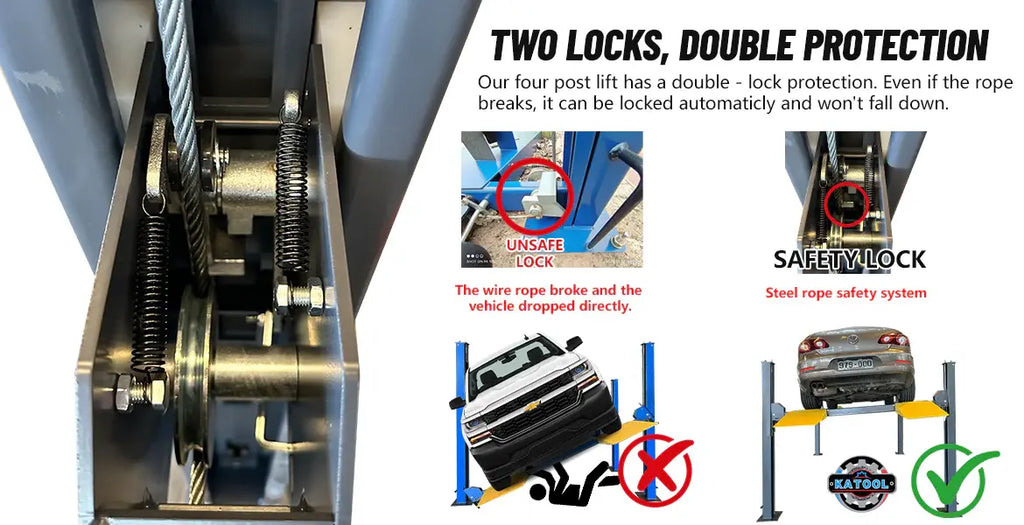

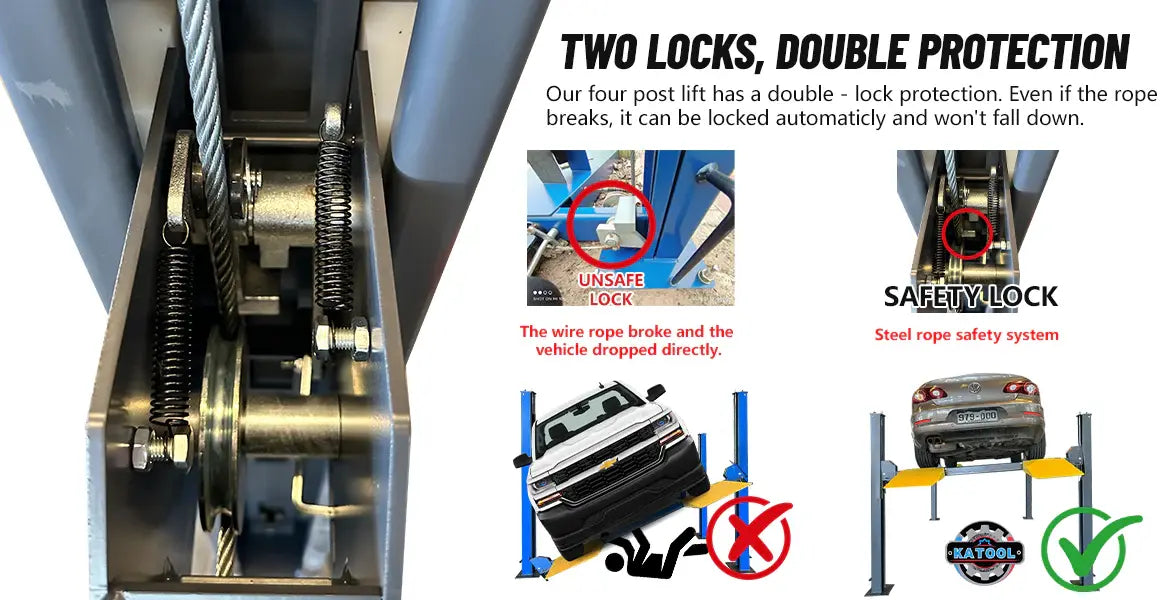

  • 4-post vehicle lift safety lock area with cable and dual locking components in post

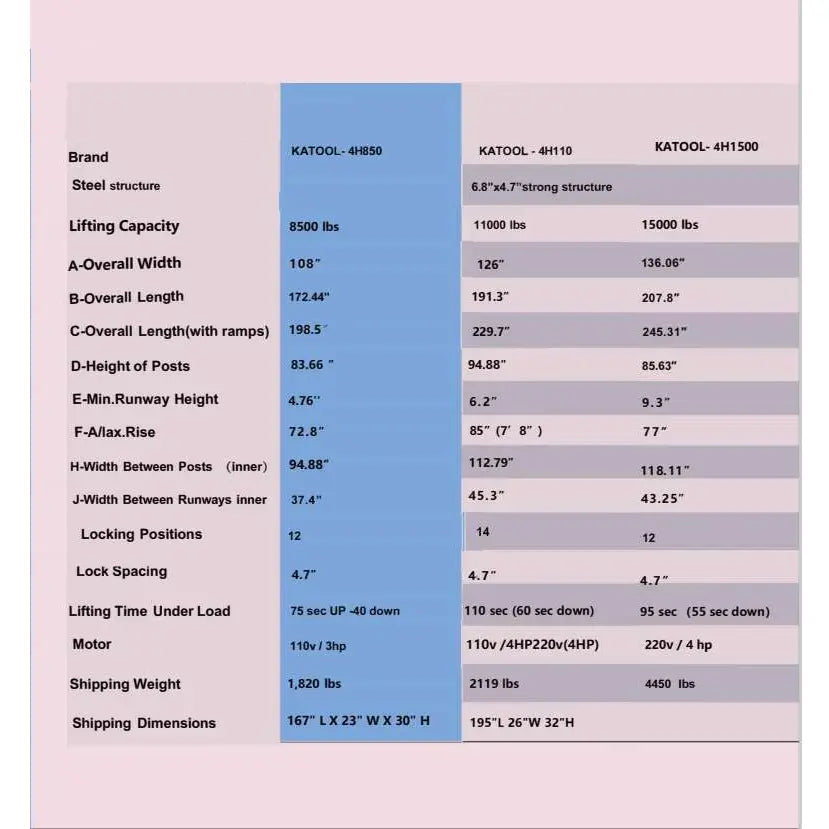

  • 4-post vehicle lift specifications chart with model capacities and dimensions
  • 13. 11,000 lb 4-post lift raising vehicle in professional garage
Katool KT-4H110 11,000 lb 4-Post Vehicle Lift

Katool KT-4H110 11,000 lb 4-Post Vehicle Lift

$3,299.00 $4,799.00

Shop Pay Installments

Eligible customers can split their purchase into payments with Shop Pay. Available plans and terms are shown at checkout.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Review the payment schedule and any down payment at checkout
  • Pay the rest over time with automatic payments

Payment options are subject to eligibility. Interest may apply. Review your rate, payment schedule, and total cost before completing your purchase.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Delivery Options
Free warehouse pickup · Confirm first Ask us to confirm stock and the supplier pickup location before ordering. No same-day pickup or handling fee. Contact us to arrange pickup →
Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

Frequently Bundled With

Black Katool KT-RJ50 5,000 lb rolling bridge jack with adjustable pads and air-hydraulic foot pump

Katool KT-RJ50 5,000 lb Rolling Jack — Fits KT-4H110, KT-4H950 & KT-4H850

$999.00
1. 7,000 lb rolling jack KT-RJ70 for 4-post lifts

Katool KT-RJ70 7,000 lb Rolling Jack for 4-Post Lifts - Fits KT-4H110, 4H950 & 4H850

$1,199.00
Total with add-ons: $3,299.00

Equipment subtotal for 1 main unit and 1 of each selected accessory. Shipping, tax and optional extended warranty are additional. Review quantities and the final total in your cart and at checkout.

One plan covers this lift only: KT-4H110. Adds 24 months after its standard parts warranty ends. Parts only; labor is not included, and structural coverage is not extended. One plan per purchased lift.

View coverage and terms

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
Manufacturer WarrantySee Product Terms
✅
Product SupportContact ALLIZOE
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
💡 Pro Tip:
This lift is optimized for vehicle storage. To perform wheel or brake service, please add the Rolling Jack shown below to your order.
Warranty

Standard manufacturer warranty: 3 years on structural components and 1 year on parts. An optional 2-year extended parts warranty is available for $349 per purchased lift. One plan covers the lift. It adds 24 months after the lift's standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended. One purchased lift requires one plan; two purchased lifts require two plans.

Warranty Includes:

  • Cylinders, power units, motors, displays, electronics, etc.
  • Structural components: 3-year standard manufacturer warranty

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included
  • Photos and/or videos of defects may be requested
  • Do not disassemble any equipment before the issue is determined
Shipping

Shipping availability, charges and estimated timing vary by product, delivery option and destination. Review the selected option and confirm any unloading equipment or delivery services required before ordering. Warehouse pickup requires stock and location confirmation, an appointment and written pickup authorization; no same-day pickup. Pickup has no shipping or handling fee. View full Shipping & Delivery details →
How to Choose the Right Lift ▾

Not sure whether a 2-post or 4-post lift is right for your shop? Our guide breaks down the key differences in access, space, capacity, and use case.

View the 2-Post vs 4-Post Comparison Guide →

⚠️ Safety Warning

⚠️ IMPORTANT SAFETY WARNING: Concrete thickness must be at least 5.9 inches (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

⚠️ IMPORTANT SAFETY WARNING: Ceiling clearance must be at least 10 feet (3,048 mm). Failure to verify your garage or shop height before installation could result in serious injury or death! It is the customer's responsibility to verify ceiling height before purchase and installation.

Price & Freight — Before Tax

For one standard 110V lift delivered within the contiguous United States:

  • Carrier terminal pickup: $3,299 lift + $900 freight = $4,199 before tax.
  • Commercial delivery: $3,299 lift + $900 freight = $4,199 before tax. Forklift required.
  • Residential delivery: $3,299 lift + $1,000 freight = $4,299 before tax. Forklift required.
  • Supplier warehouse pickup: $3,299 before tax; no freight charge. Confirm stock and an appointment with ALLIZOE before ordering.

Tax, optional accessories, 220V upgrades, and the optional $349 extended parts warranty are additional. Confirm address eligibility and review the final total at checkout. Standard liftgate service is not available for this lift.

For orders containing other products, review the combined shipping charge at checkout. The single-product freight totals above do not determine the shipping charge for a mixed order.

The Katool KT-4H110 offers 11,000 lb lifting capacity, single-point manual safety lock release, primary and secondary safety mechanisms, and non-skid diamond platforms with adjustable safety locks. The single-point release supports straightforward operation. Available in 110V or 220V configurations with an optional rolling jack for undercarriage work.

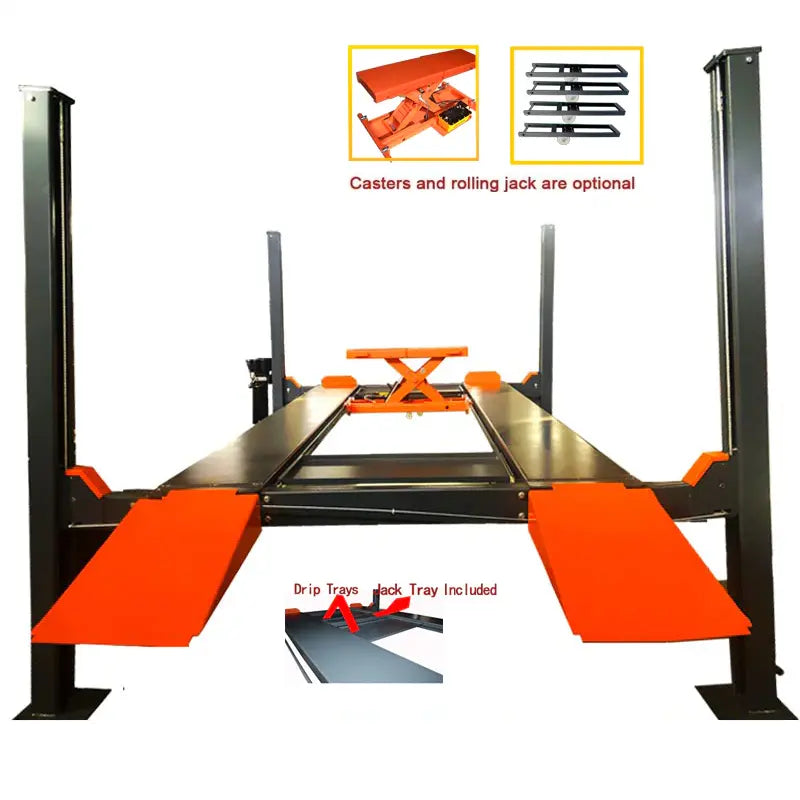

Jack tray included with this lift; no separate tray purchase is needed. Rolling jack sold separately.

11,000 lbs lifting capacity
Single Point Manual Safety Lock Release
Dual primary and secondary safety mechanisms
Non-skid diamond platforms with adjustable safety locks
84.25 inch maximum lift height
Reaches full height in 83 seconds
Optional rolling jack available for complete undercarriage access
Available in 110V or 220V configurations

  • 110V is the standard configuration. A 220V configuration is available at an additional price; confirm the selected voltage and total price with Allizoe before payment.
KT-4H850 KT-4H950 KT-4H110 KT-4M110PA KT-4H120PX KT-4H150
Capacity 8,500 lb 9,500 lb 11,000 lb 11,000 lb 12,000 lb 15,000 lb
Max Lift Height 70.87" ~84.5" 84.25" 84.5" 86.9" 76"
Width Between Columns 94.72" 99.5" 112.81" 112.81" 112.81" 118"
Motor 110V std.; 220V extra 110V std.; 220V extra 110V std.; 220V extra 110V standard 220V included 220V included
Lifting Time 75 sec 50 sec 83 sec ~50 sec 83 sec 60 sec
Rolling Jack Included No — sold separately No — sold separately No — sold separately Yes — 7,000 lb Yes — 7,000 lb Yes — 6,000 lb
Net Weight 1,820 lbs 2,095 lbs 2,116 lbs 2,116 lbs 3,373 lbs Approx. 4,850 lbs

Lifting Capacity: 11,000 lbs (4,990 kg)

Max. Lifting Height: 84.25 in / 2,140 mm

Lifting Time: 83s Up / 40s Down

Height of Posts: 94.88 in / 2,410 mm

Width Overall: 126 in / 3,200 mm

Width Between Columns: 112.81 in / 2,865 mm

Length Overall (with ramps): 229.73 in / 5,835 mm

Power: 110V standard; 220V option at additional price. Confirm the supplied motor and electrical requirements with Allizoe.

Net Weight: 2,116 lbs (960 kg)

Minimum Ceiling Height Required: 10 ft / 3,048 mm

A jack tray is included with the KT-4H110. You do not need to buy a separate jack tray with this new lift. The jack tray is different from a rolling jack; a rolling jack is not included with the base lift.

The Katool KT-4H110 4-Post Vehicle Lift has an 11,000 lb lifting capacity for professional auto shops and commercial facilities. It features a single-point manual safety lock release, primary and secondary safety mechanisms, and non-skid diamond platforms with adjustable safety locks. Available in 110V or 220V configurations with an optional rolling jack for undercarriage access.

110V is the standard configuration. A 220V configuration is available at an additional price; confirm the selected voltage and total price with Allizoe before payment.

Standard manufacturer warranty: 3 years on structural components and 1 year on parts. An optional 2-year extended parts warranty is available for $349 per purchased lift. One plan covers the lift. It adds 24 months after the lift's standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended. One purchased lift requires one plan; two purchased lifts require two plans.

Warranty Includes:

  • Cylinders, power units, motors, displays, electronics, etc.
  • Structural components: 3-year standard manufacturer warranty

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included
  • Photos and/or videos of defects may be requested
  • Do not disassemble any equipment before the issue is determined

  • Professional Auto Shops: 11,000 lb capacity and mechanical safety locks for commercial shop use
  • Trucks & SUVs: 11,000 lb capacity handles trucks, SUVs, and light commercial vehicles
  • Daily Service Use: Dual primary and secondary safety mechanisms for demanding daily use
  • Alignment & Service: 84.25-inch max lift height with optional rolling jack for complete undercarriage access
  • Flexible Power: Available in 110V or 220V configurations

Quality Control — Each unit undergoes pre-shipment inspection.
US-Based Support — Technical support provided from the United States.
Warranty — Standard manufacturer warranty: 3 years on structural components and 1 year on parts; labor is not included. See this product's Warranty section for terms.

Price & Freight — Before Tax

For one standard 110V lift delivered within the contiguous United States:

  • Carrier terminal pickup: $3,299 lift + $900 freight = $4,199 before tax.
  • Commercial delivery: $3,299 lift + $900 freight = $4,199 before tax. Forklift required.
  • Residential delivery: $3,299 lift + $1,000 freight = $4,299 before tax. Forklift required.
  • Supplier warehouse pickup: $3,299 before tax; no freight charge. Confirm stock and an appointment with ALLIZOE before ordering.

Tax, optional accessories, 220V upgrades, and the optional $349 extended parts warranty are additional. Confirm address eligibility and review the final total at checkout. Standard liftgate service is not available for this lift.

For orders containing other products, review the combined shipping charge at checkout. The single-product freight totals above do not determine the shipping charge for a mixed order.

  • Supplier warehouse pickup: No freight or handling fee. Allizoe confirms stock and the pickup warehouse before payment; warehouse address can be shared before payment.
  • Scheduling: No same-day pickup. After confirmation, the supplier provides a pickup release form. Blind pickup may be arranged.
  • Carrier terminal pickup: Freight to a carrier terminal is separate from free supplier warehouse pickup. Bring a suitable vehicle or trailer and arrange unloading at your final destination.
  • Commercial or residential delivery: Select the service matching your address and unloading equipment.

For these heavy lifts, confirm unloading arrangements before delivery.

Package Size

L x W x H (in) 195 x 26 x 32
Weight (lbs) 2119

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Explore equipment for your shop
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • A jack tray is included with the KT-4H110. You do not need to buy a separate jack tray with this new lift. The jack tray is different from a rolling jack; a rolling jack is not included with the base lift.
  • Choose supplier Warehouse Pickup, Pickup at Carrier Terminal, Commercial Delivery (Forklift Required), or Residential Delivery (Forklift Required). See the Price & Freight section for the current single-lift, before-tax totals within the contiguous United States. Tax and optional items are additional; mixed orders may have different combined shipping charges. Supplier warehouse pickup has no freight or handling fee, requires stock and location confirmation before payment and an appointment, and is not available the same day. Terminal staff load your suitable vehicle or trailer; you handle final unloading. Confirm suitable unloading equipment before ordering. Standard liftgate service is not available for this lift.
  • 110V is the standard configuration. A 220V configuration is available at an additional price; confirm the supplied power unit, voltage, circuit requirements, availability, and total price with ALLIZOE before payment. The Delivery Options on this page select fulfillment, not voltage. Do not assume one supplied power unit automatically works on both voltages.
  • Professional installation by a qualified installer is strongly recommended. Allizoe lists a level concrete floor at least 5.9 inches (150 mm) thick with a 3,000 PSI rating. Have the installer verify the slab, clearance, electrical supply, and unloading requirements, and follow the model-specific installation manual.
  • If Shop Pay Installments is offered for your order at checkout, the available payment plans and terms will be shown there. Availability is subject to eligibility and approval. Review the terms before completing your purchase.
  • We provide US-based technical support via email and phone. Our team assists with installation questions, troubleshooting, and parts replacement throughout your warranty period.
  • Contact Allizoe within 30 days of pickup or delivery to request return authorization. Eligible equipment must be unused, uninstalled, and in its original packaging with all accessories. Returns for reasons other than defect or warranty are subject to a 30% restocking fee and round-trip freight costs under our Refund Policy. Review the full policy at /policies/refund-policy before ordering.
  • The standard manufacturer warranty covers the lift's structural components for 3 years and parts for 1 year, subject to the manufacturer's warranty terms and claim approval. Labor is not included. Optional extended parts coverage does not extend the structural warranty.
  • Yes. One $349 plan covers this purchased lift only. It adds 24 months after the lift's standard parts warranty ends. Parts only; labor is not included, and structural coverage is not extended. Select one plan per purchased lift.
  • Compare the vehicle's actual loaded weight and axle-load distribution with the lift's rated capacity and the supplied manual. Check wheelbase, tire track, tire width, usable runway length and width, ramp approach angle, and clearance at the columns. Check the raised vehicle against the ceiling, garage-door tracks, opener, lights, and other overhead obstructions. For a permitted stacked-parking setup, also check the lower vehicle's height against clear space beneath the runways at an approved locked parking position. Maximum lifting height is not the same as usable clearance beneath the lift. Contact ALLIZOE with vehicle and garage measurements if you need help checking fit.
  • The four-post lift and a rolling jack have separate rated capacities. The lift's capacity applies to the supported vehicle on the runways; a rolling jack must also be within its own rating for the load being raised. A rolling jack does not increase the lift's rated capacity, and the two ratings must not be added together. Confirm the supported axle load, approved lifting points, and jack-to-lift compatibility before wheel-free service. A jack tray is a different accessory from a rolling jack.
