Auto body frame machine with 4 towers, chains, and clamp base plate

Katool KT-299U 22 Ft 4-Tower Auto Body Frame Machine — Clamps, Hooks & Tools Included

Warehouse Pickup
$10,990.00 $13,188.00
Skip to product information
Auto body frame machine with 4 towers, chains, and clamp base plate
1/13

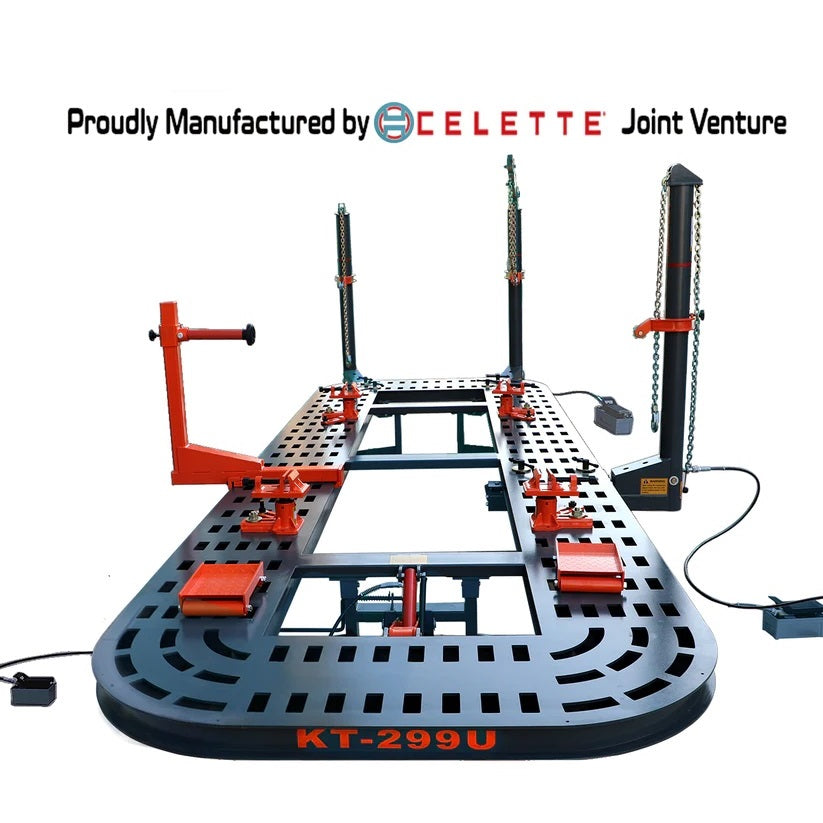

  • Auto body frame machine with 4 towers, chains, and clamp base plate

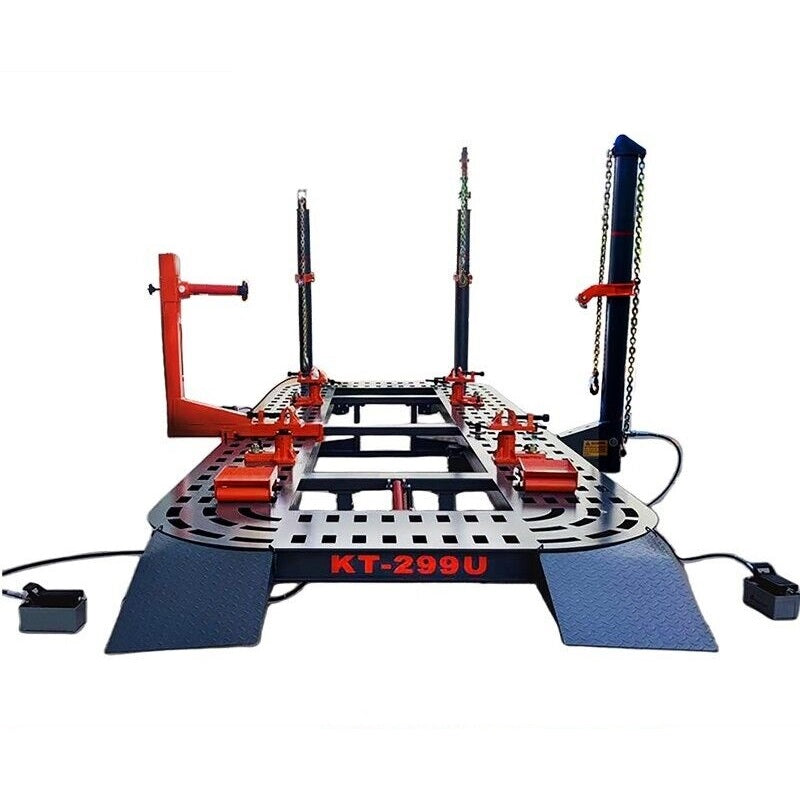

  • Auto body frame machine in side view with 4 upright towers and chain pulls

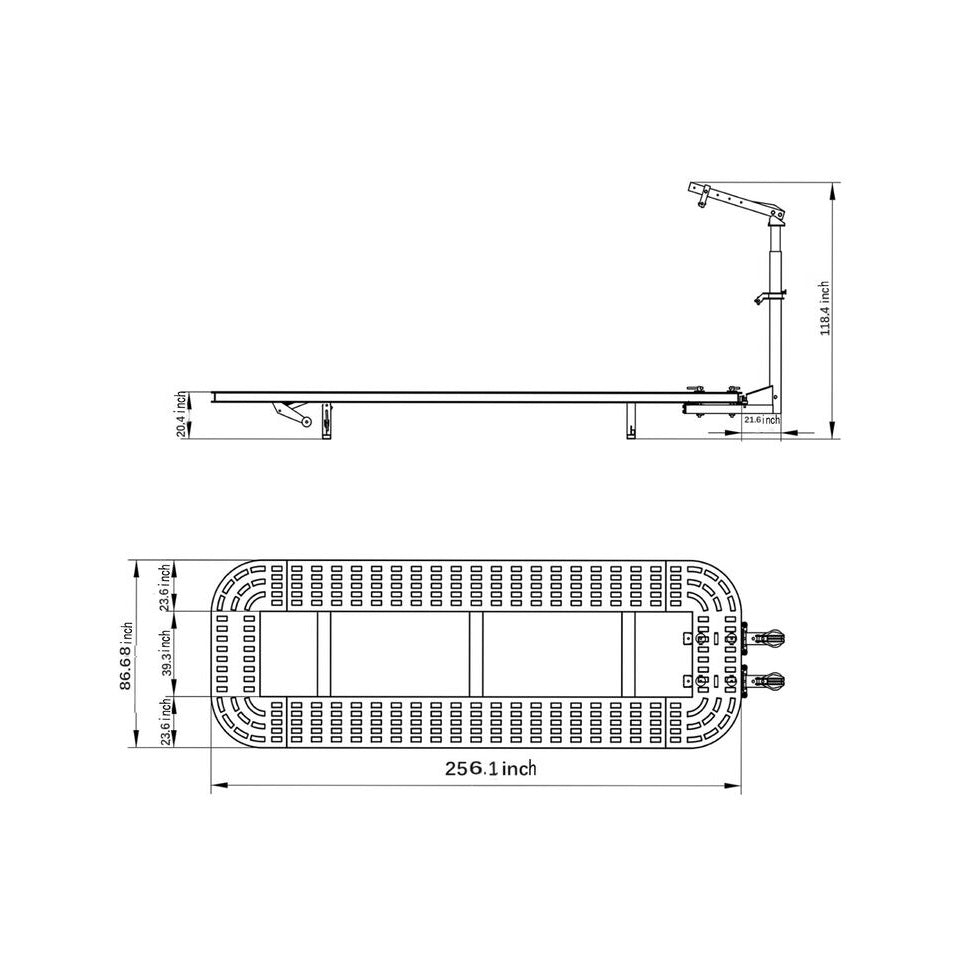

  • Auto body frame machine alignment diagram with measurement lines and grid base

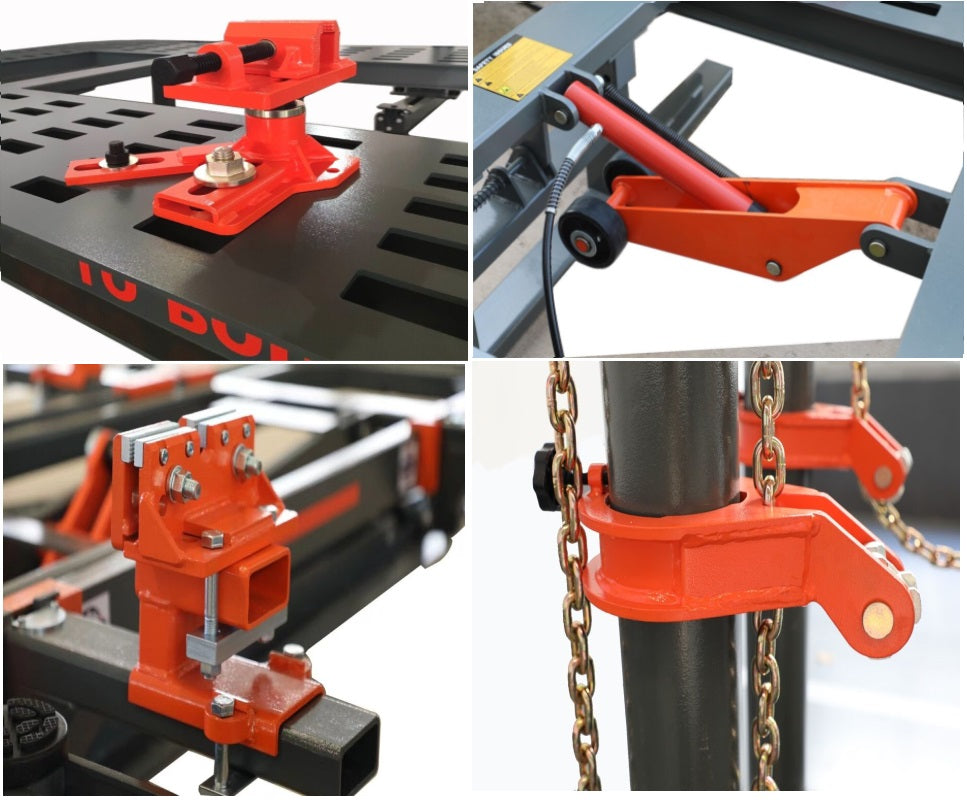

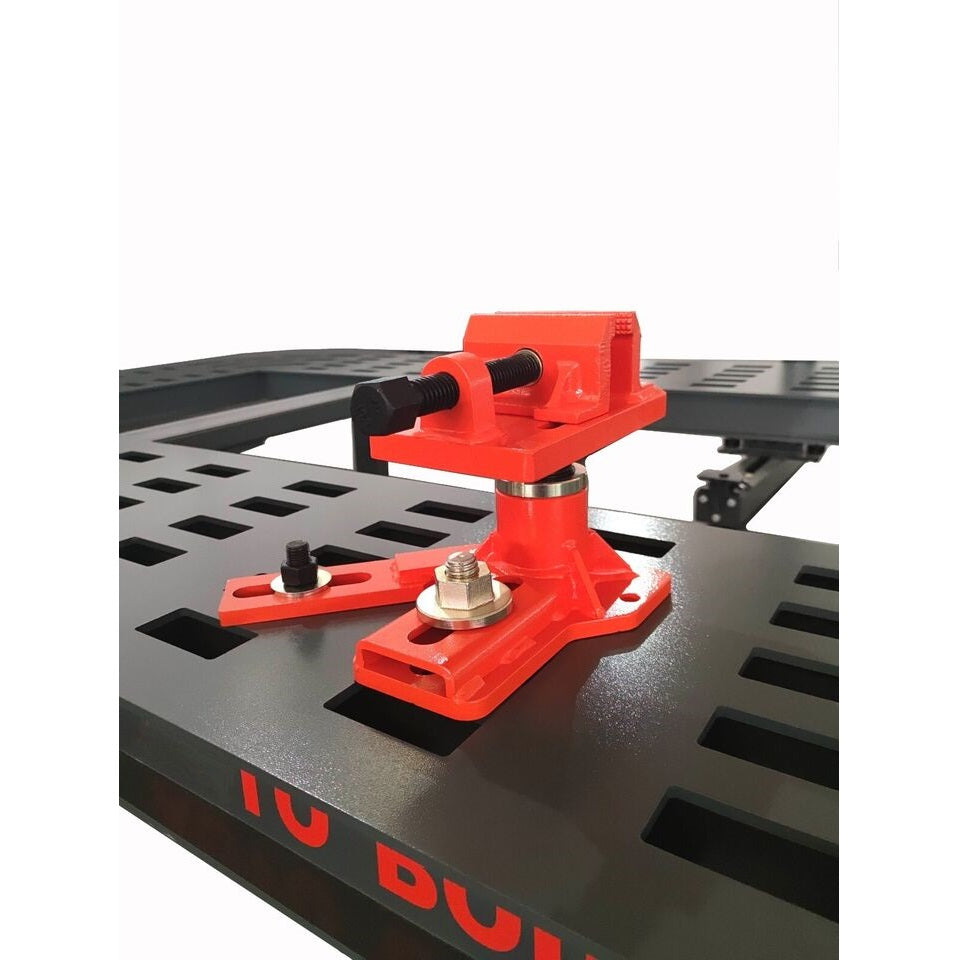

  • Auto body frame machine clamp assembly with red pressing plate and threaded post

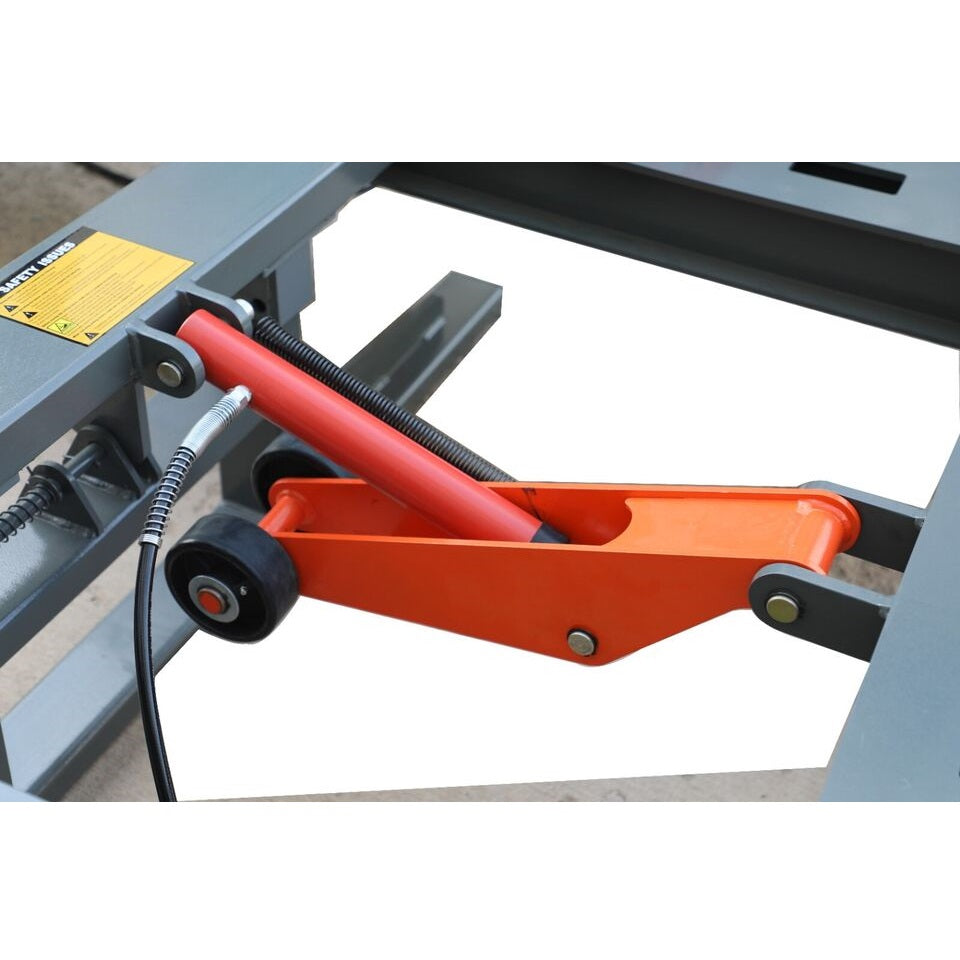

  • Auto body frame machine puller arm with orange linkage, rollers, and screw rod

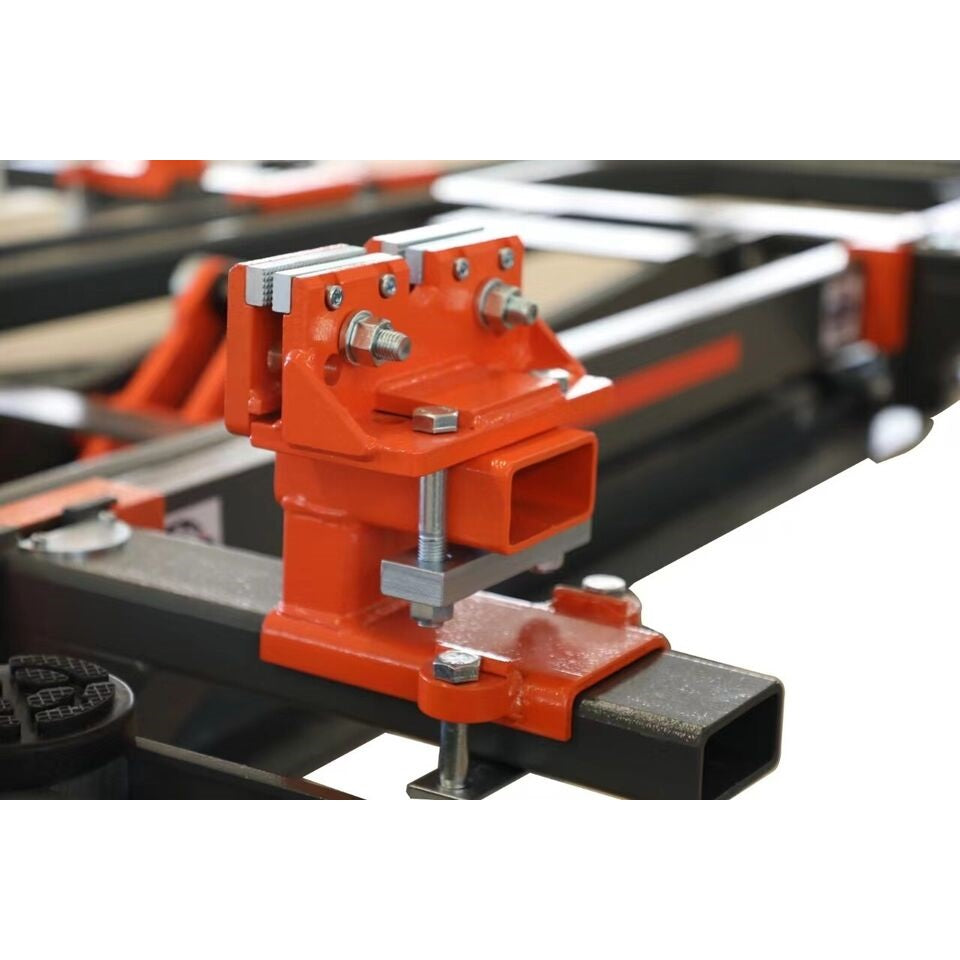

  • Auto body frame machine hold-down bracket with orange linkage and adjustment bolts

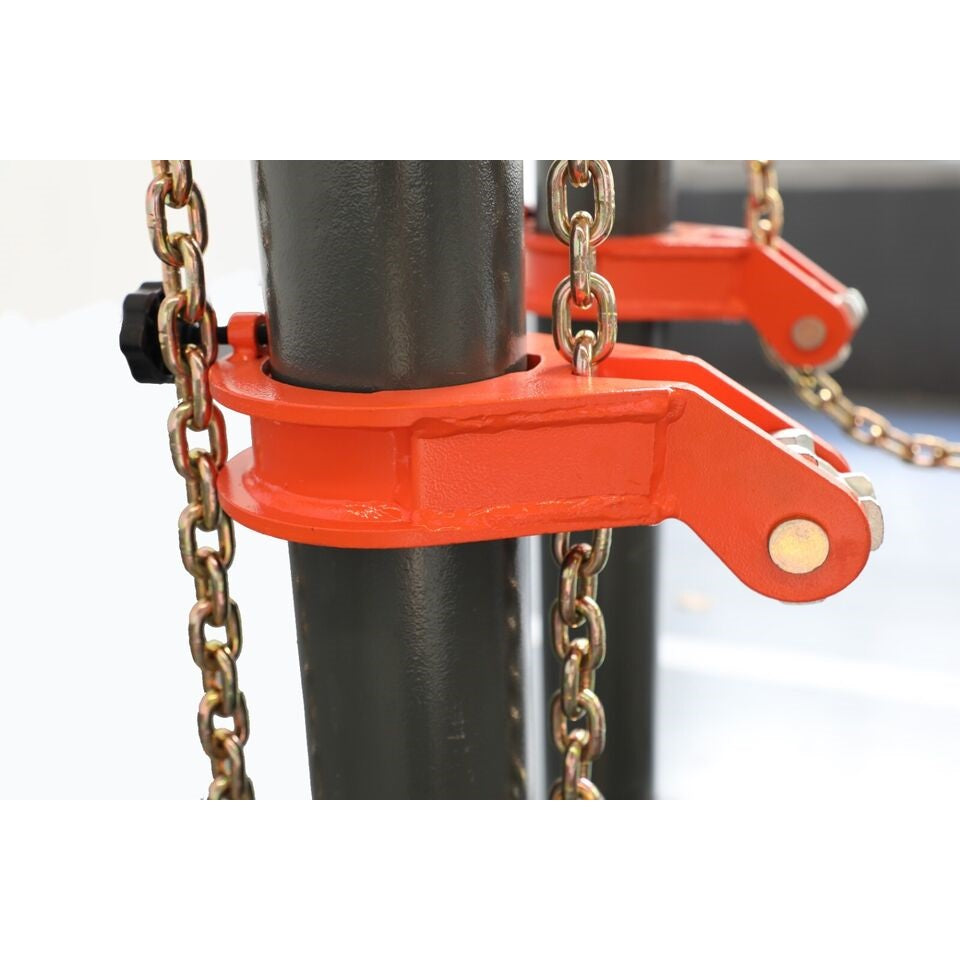

  • Auto body frame machine chain hook and orange chain clamp on vertical post

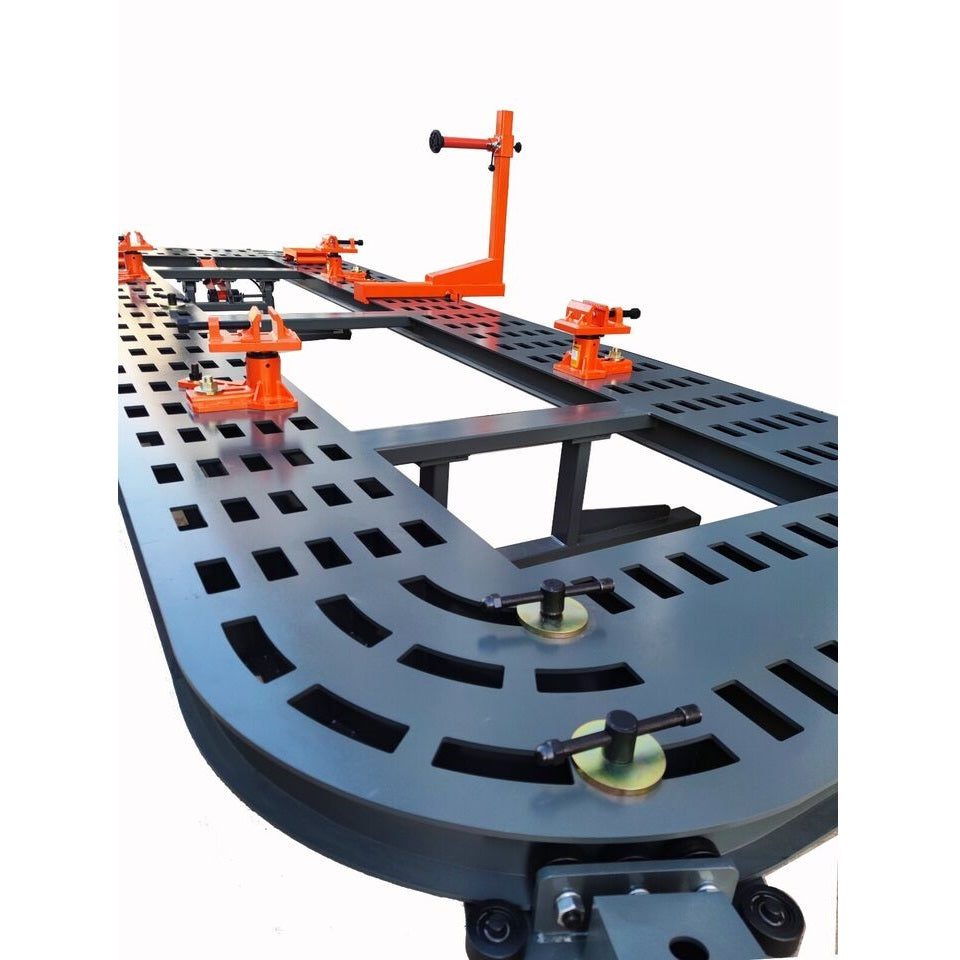

  • Auto body frame machine round base with floor grid and curved measuring track

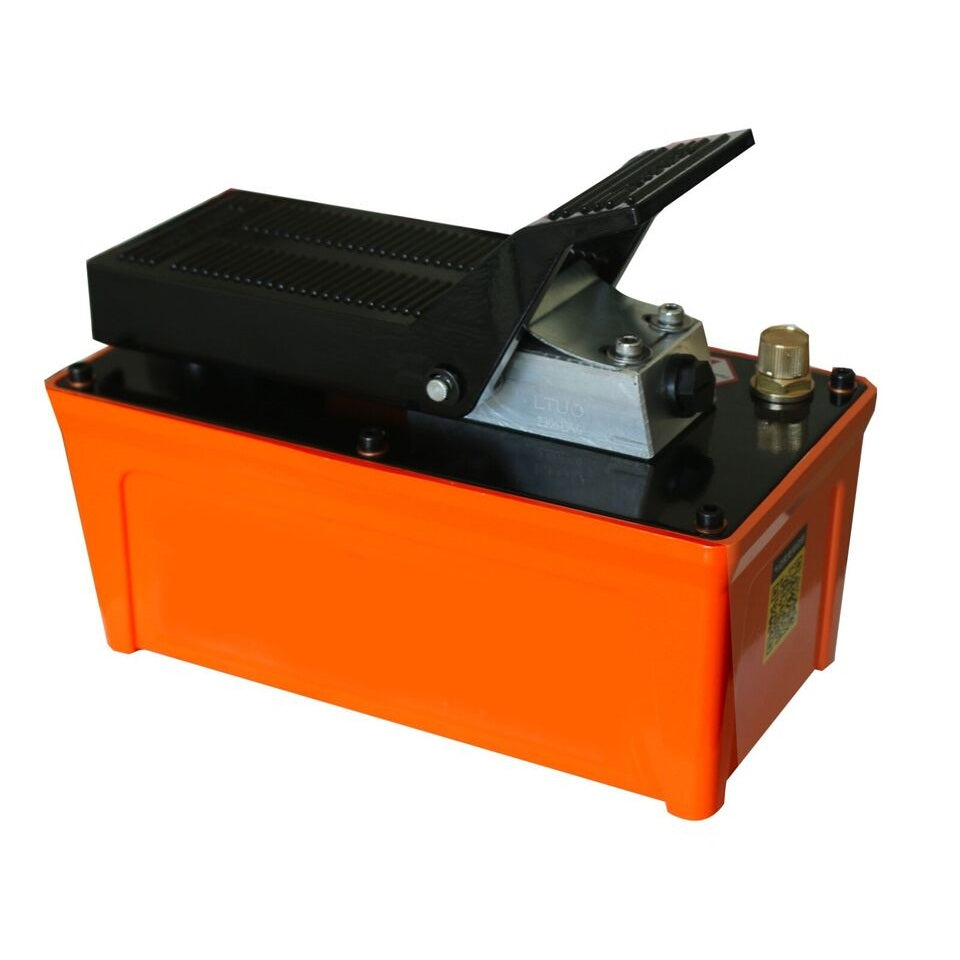

  • Auto body frame machine power unit with black control plate and orange housing

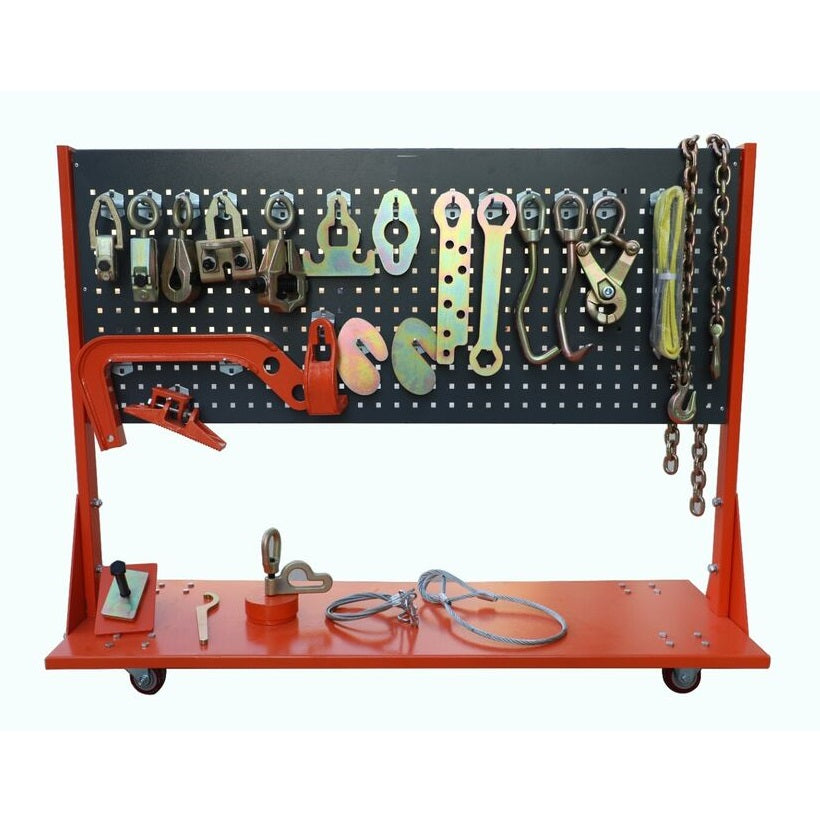

  • Auto body frame machine tool rack with chains, straps, hooks, and hanging tools

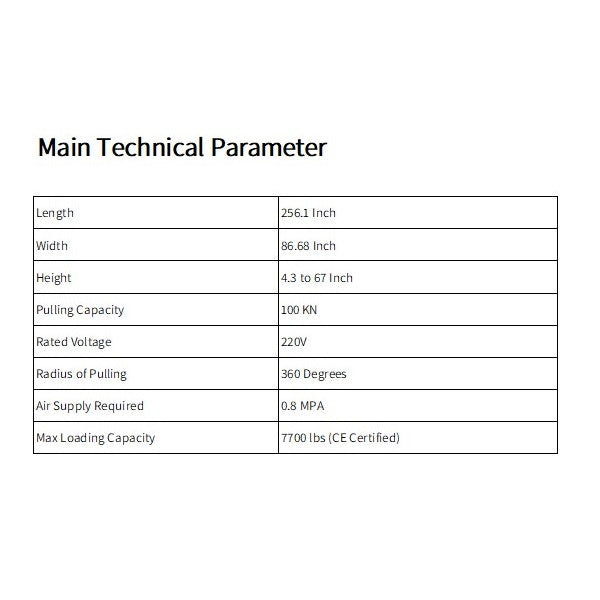

  • Auto body frame machine technical parameter table with length, width, height specs
  • Auto body frame machine clamp and hook set on black-and-orange base

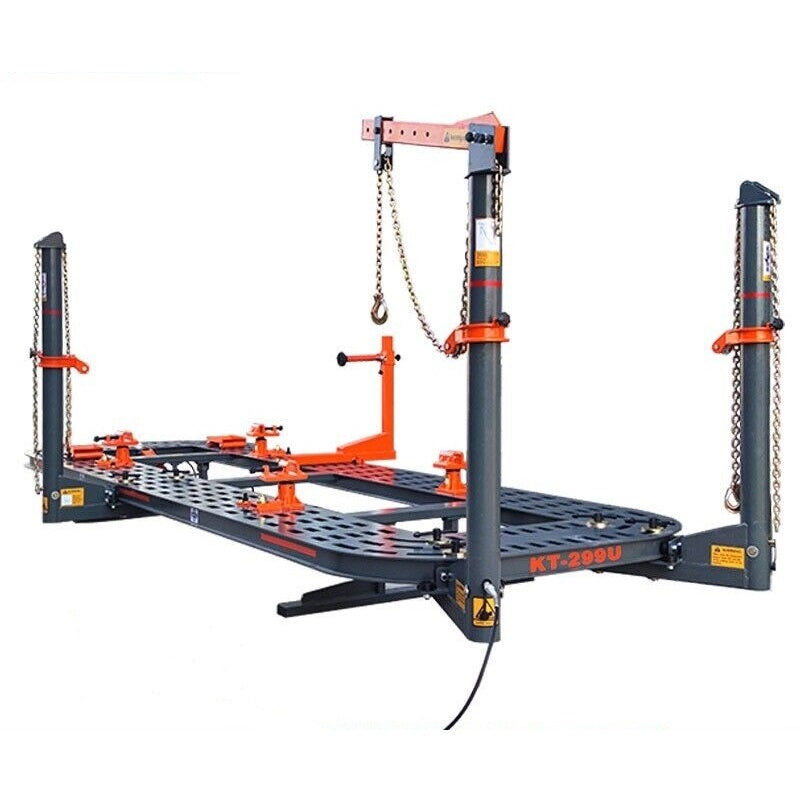

  • Auto body frame machine with four towers, chain pulls, and orange fixtures
Katool KT-299U 22 Ft 4-Tower Auto Body Frame Machine — Clamps, Hooks & Tools Included

Katool KT-299U 22 Ft 4-Tower Auto Body Frame Machine — Clamps, Hooks & Tools Included

$10,990.00 $13,188.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Option
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰
Tax-Free Outside IL
🚚
Free Freight Lower 48 States
🛡️
1-Yr Warranty Full Parts Support
🔬
Safety Tested Load & Function Tested
📍
Local Pickup Nationwide Save up to $1,400 in freight costs
Learn More >
Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available for $349.

Warranty Includes:

  • All parts and product defects within the warranty period
  • Replacement parts provided at no cost, including free shipping

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Photos and/or videos of defects may be requested
  • Labor is not included in the warranty
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

This machine requires a minimum concrete thickness of 4 inches with 3,000 PSI rating. A forklift is required for unloading. Professional installation is strongly recommended. Do not operate without proper air supply (0.8 MPA minimum). Keep bystanders clear during operation.

The Katool KT-299U combines a 22-foot manganese steel platform with 4 fully rotating towers and 10-ton pulling capacity for complete collision repair capability. CNC plasma cutting and Panasonic CO2 welding ensure exceptional platform flatness and anti-torsion strength. The tilt hydraulic platform eliminates the need for a crane — vehicles drive on directly. With 360° tower rotation and spiral movement clamps, technicians can access every chassis point without repositioning the vehicle, making repairs faster and more precise.

  • 22 ft / 6,500 mm manganese steel platform — CNC plasma cut, CO2 welded (Panasonic)
  • 10-ton pulling capacity, 360° pulling radius
  • 4 towers rotate 360° on 10mm seamless steel pipe
  • Tilt hydraulic lifting platform — drive vehicles on directly
  • No-blind working range for full chassis access
  • Spiral movement main clamps for precise height adjustment
  • American Eagle Pro hydraulic foot pumps
  • High-precision retractable alloy 2D/3D measurement system
  • Heat-treated accessories — HRC28 conditioning, HRC40 tooth quenching
  • Mitchell data compatibility (optional)
KT-310 KT-198L KT-299U
Pull Force 60KN — —
Design Space-saving Standard 22 Ft 4-Tower
Delivery Warehouse / Commercial Warehouse / Commercial Warehouse / Commercial
Warranty 1 year 1 year 1 year
Price $7,700 $9,990 $10,980

Frame Length: 22 ft / 6,500 mm

Width: 7.2 ft / 2,200 mm

Height: 1.7 ft / 520 mm

Pulling Capacity: 10 tons

Air Supply Required: 0.8 MPA

Radius of Pulling: 360°

Max. Load: 7,700 lbs / 3,500 kg

Single Platform Width: 600 mm

Middle Distance: 1,000 mm

Platform Steel Thickness: 10 mm

Tower Pipe: 10 mm seamless steel

The Katool KT-299U is a professional 22-foot, 4-tower auto body frame machine engineered for precision collision repair. Built with high-quality manganese steel using CNC plasma cutting and CO2 welding (Panasonic), the platform delivers exceptional flatness, anti-torsion strength, and long-term durability. The no-blind working range aligns with natural technician habits for faster, more accurate repairs. Four towers rotate 360° for multi-direction pulling, and the tilt hydraulic platform allows vehicles to drive on directly — no crane required.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available for $349.

Warranty Includes:

  • All parts and product defects within the warranty period
  • Replacement parts provided at no cost, including free shipping

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Photos and/or videos of defects may be requested
  • Labor is not included in the warranty
  • Auto Body Collision Repair Shops: Professional-grade frame straightening for all vehicle types
  • Small Cars, MPVs & SUVs: No-blind working range for precise access to all chassis points
  • Pickup Trucks & Commercial Vehicles: 10-ton pulling capacity handles heavy-duty frames
  • High-Volume Body Shops: 360° pulling radius for multi-direction repair without repositioning
  • Professional Technicians: Tilt hydraulic platform for easy drive-on vehicle loading

Package Size

L x W x H (in) 264 x 86 x 20
Weight (lbs) 7700

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • Yes. The KT-299U requires a minimum air supply of 0.8 MPA (approximately 116 PSI). A standard industrial air compressor is required for operation.
  • Yes. Due to its size and weight (7,700 lbs / 3,500 kg), a forklift is required for unloading at delivery.
  • The KT-299U supports small cars, MPVs, SUVs, pickup trucks, and commercial vehicles.
  • Yes. Professional installation is recommended. Please refer to the included installation manual.
  • Yes. Clamps, hooks, and tools are included with the machine.
  • A 12-month warranty on all parts is included. An optional 2-year extended warranty is available for $349.
