1. 12,000 lb 2-post lift - H120D with single lock release

Katool H120D 12,000 lb Symmetrical 2-Post Lift - Single Point Lock Release

Warehouse Pickup
$2,697.00 $3,699.00
Skip to product information
1. 12,000 lb 2-post lift - H120D with single lock release
1/11

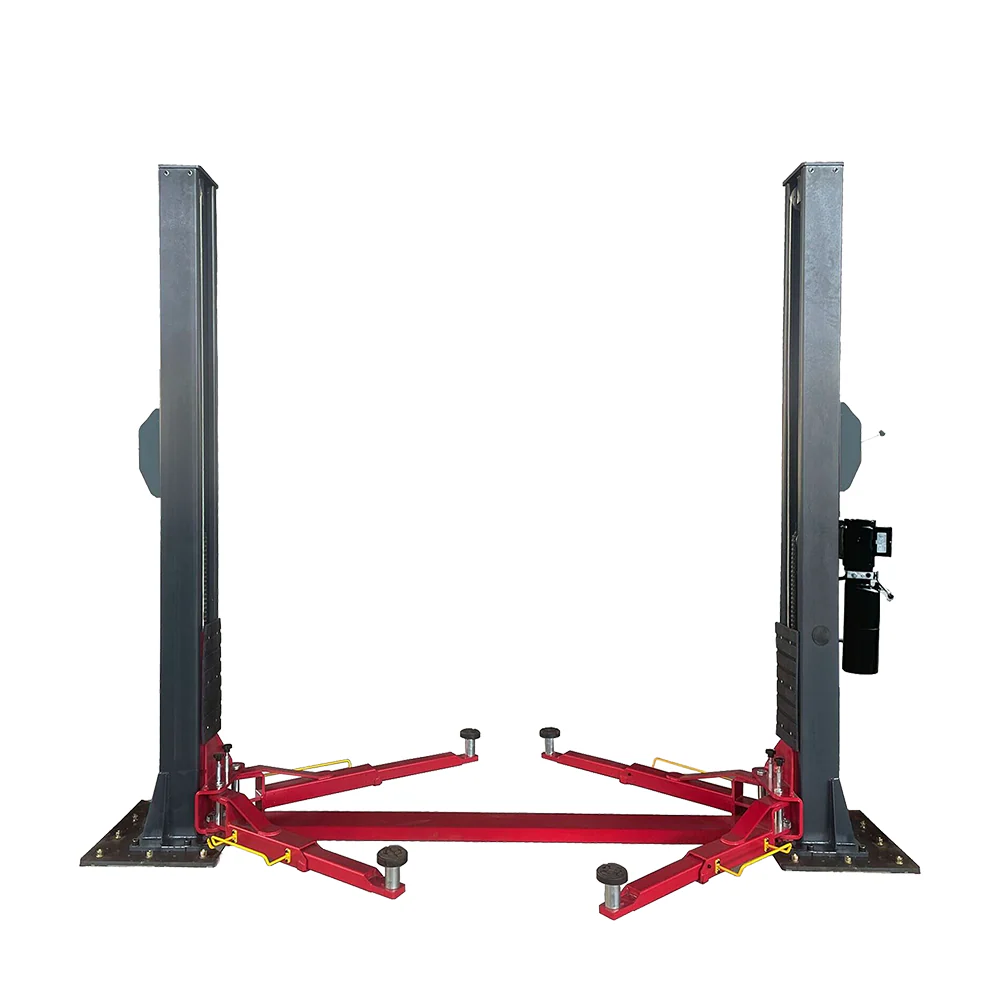

  • 1. 12,000 lb 2-post lift - H120D with single lock release

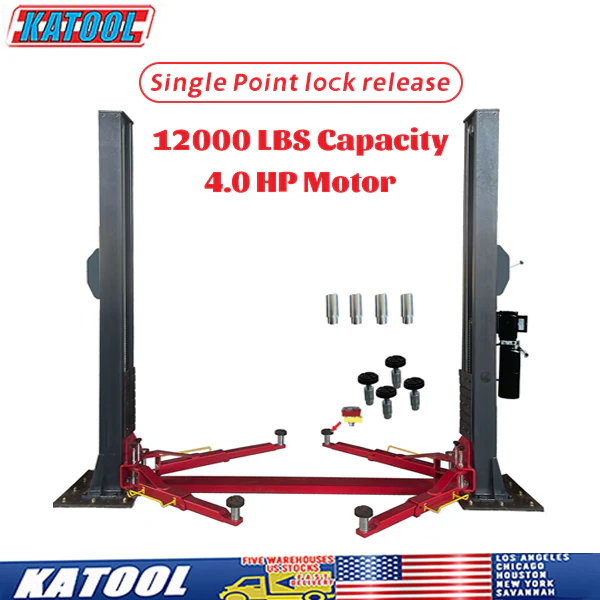

  • 2. Symmetrical 2-post auto lift with 12,000 lb capacity

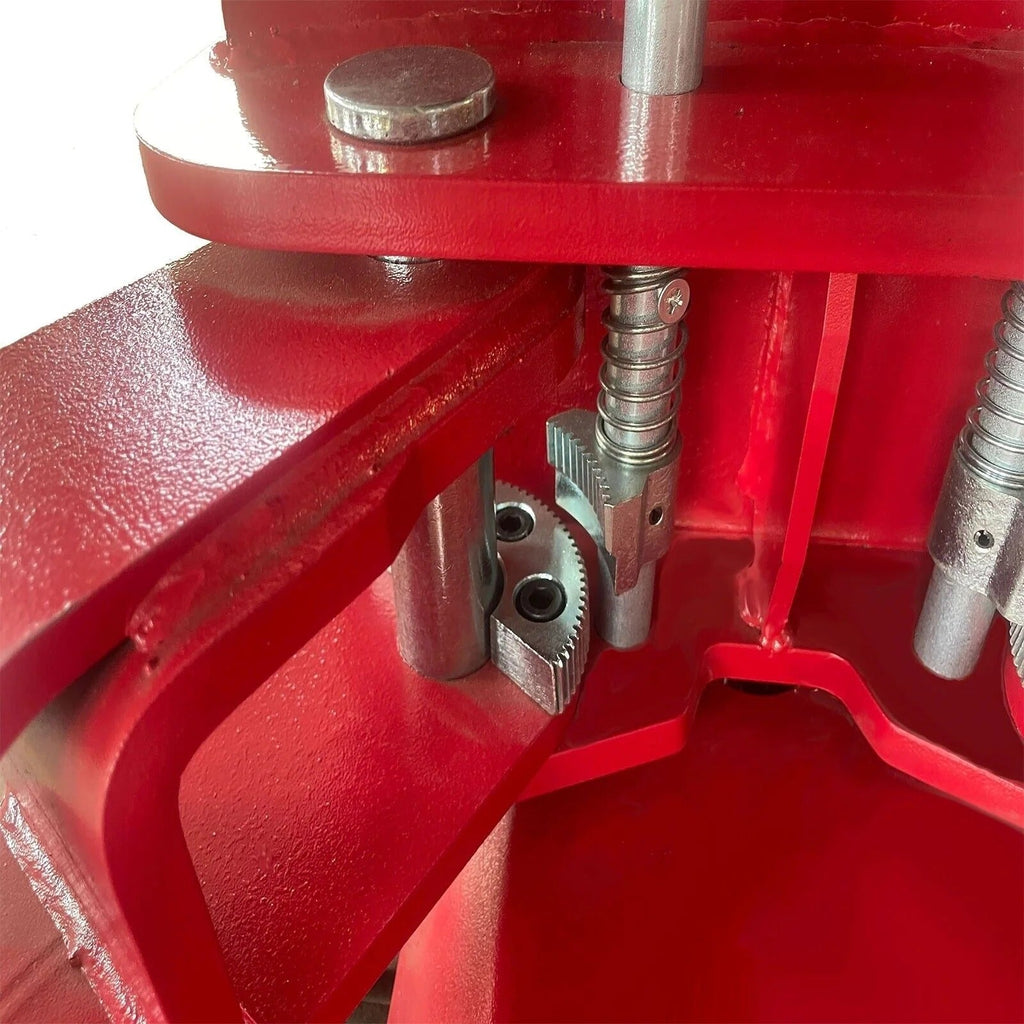

  • Red two-post lift lock mechanism with springs and gear components

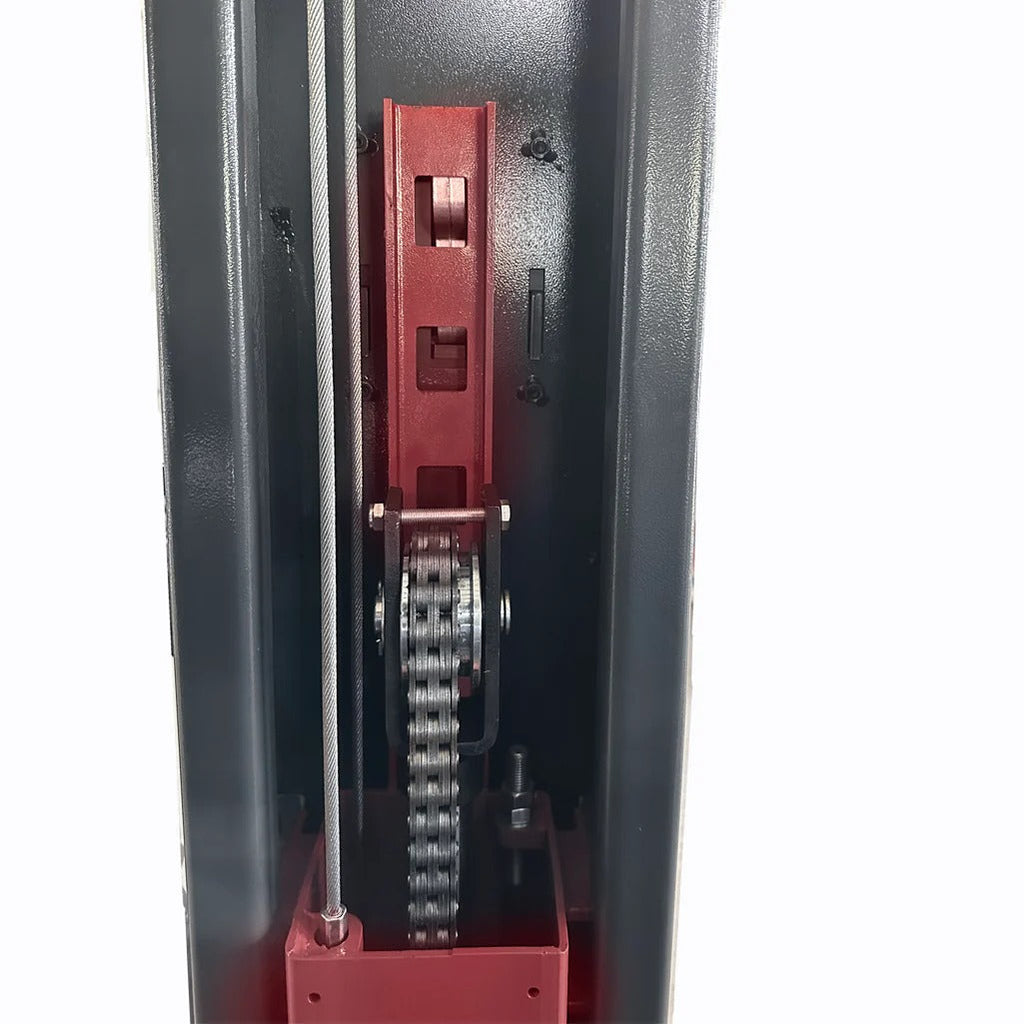

  • Two-post lift inner lock release assembly with chain drive and sprocket

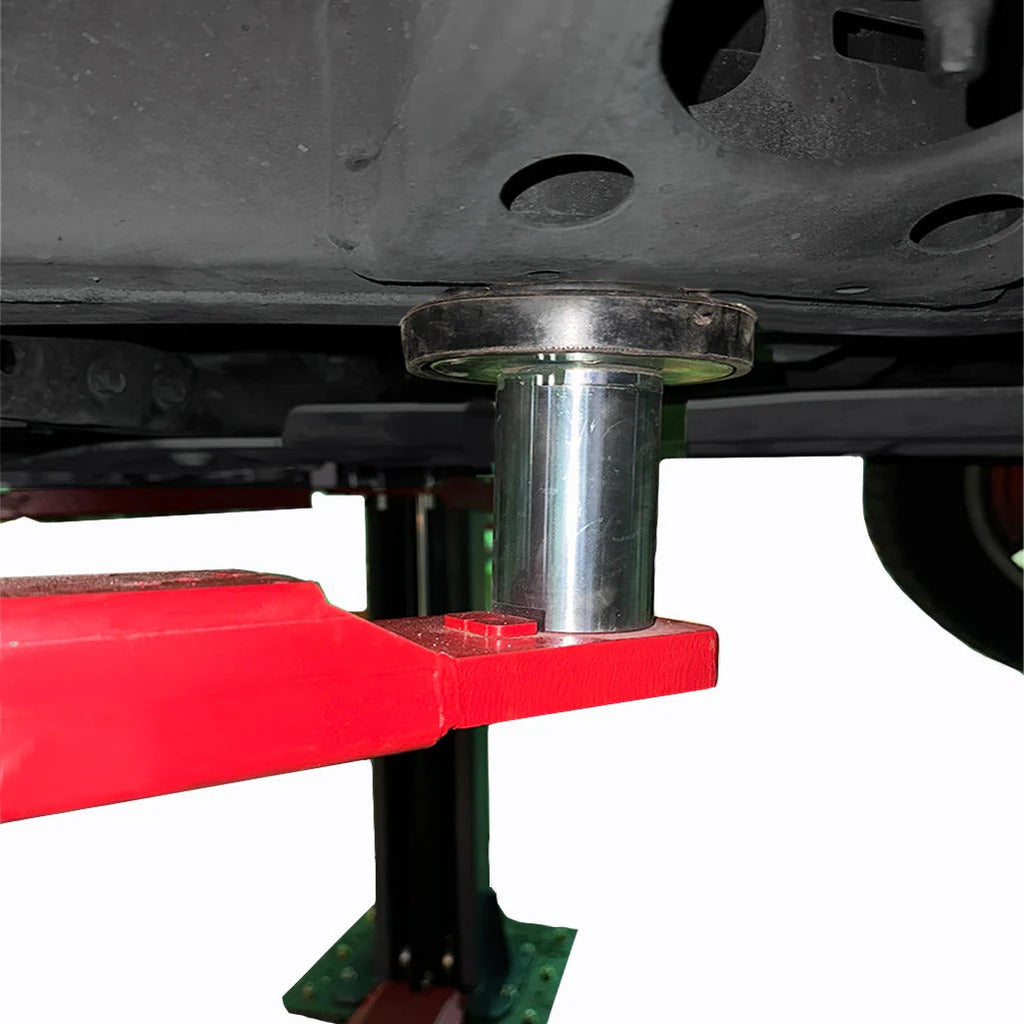

  • 5. 12,000 lb capacity symmetrical lift for auto shops

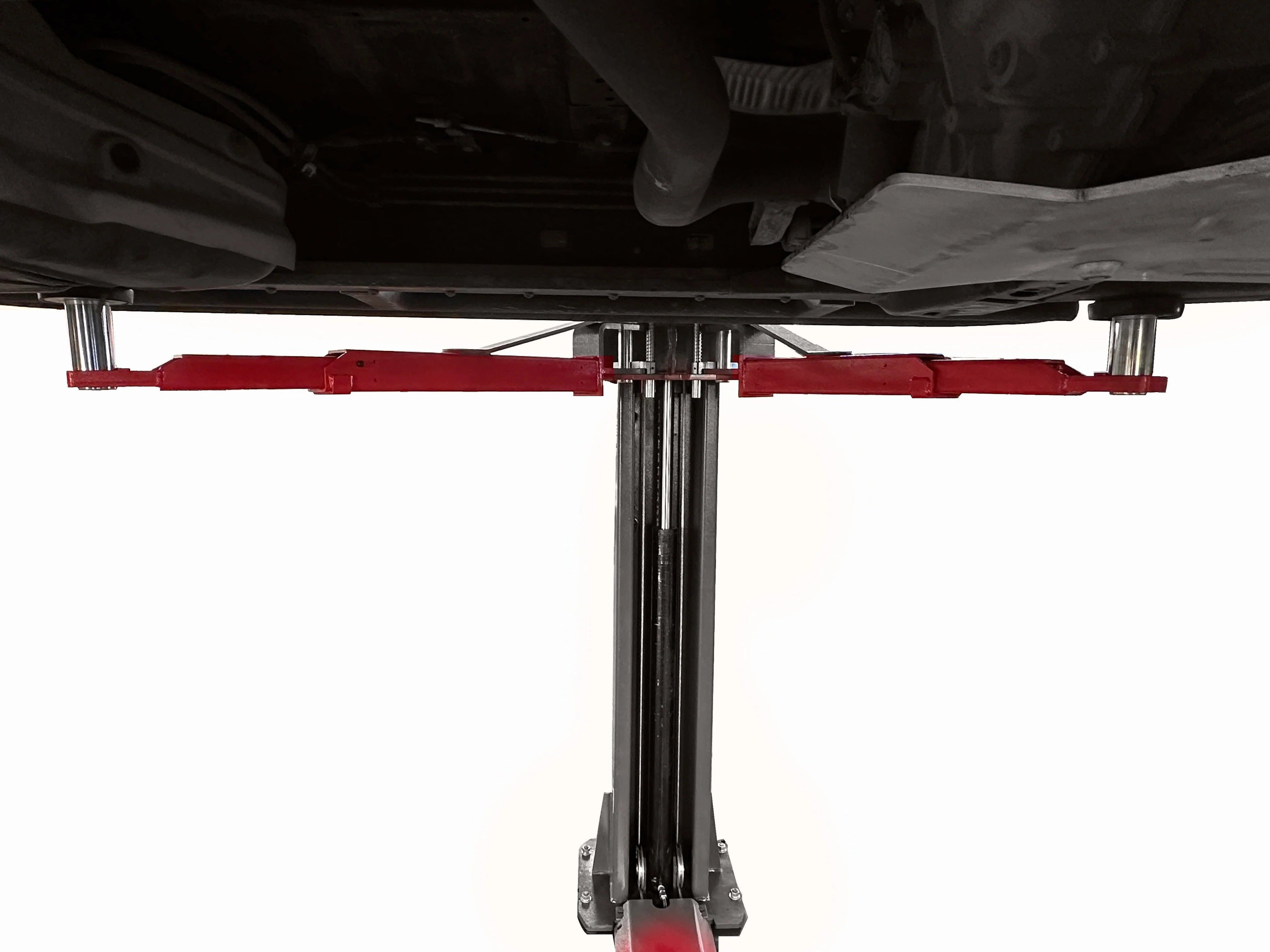

  • Two-post automotive lift frame with overhead crossbeam and guide rails

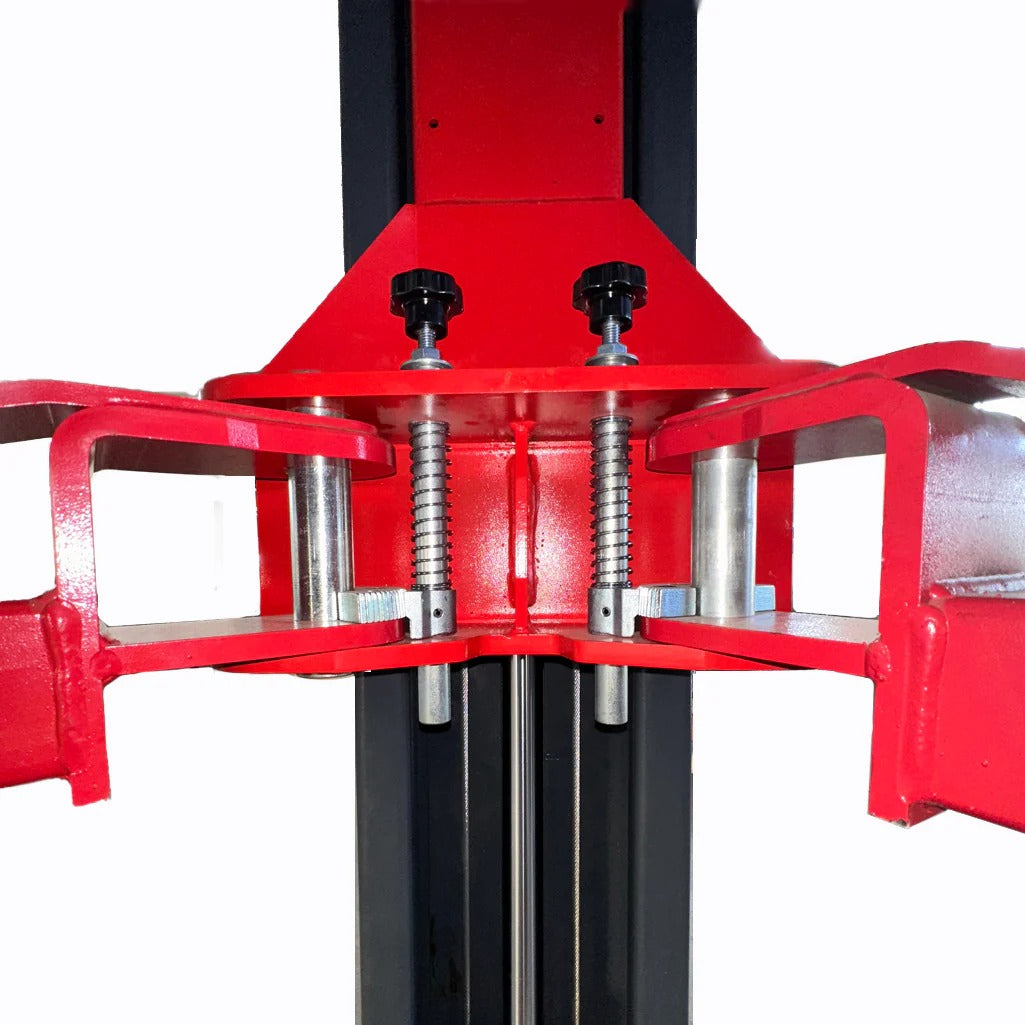

  • Red lift platform assembly with two threaded posts and roller supports

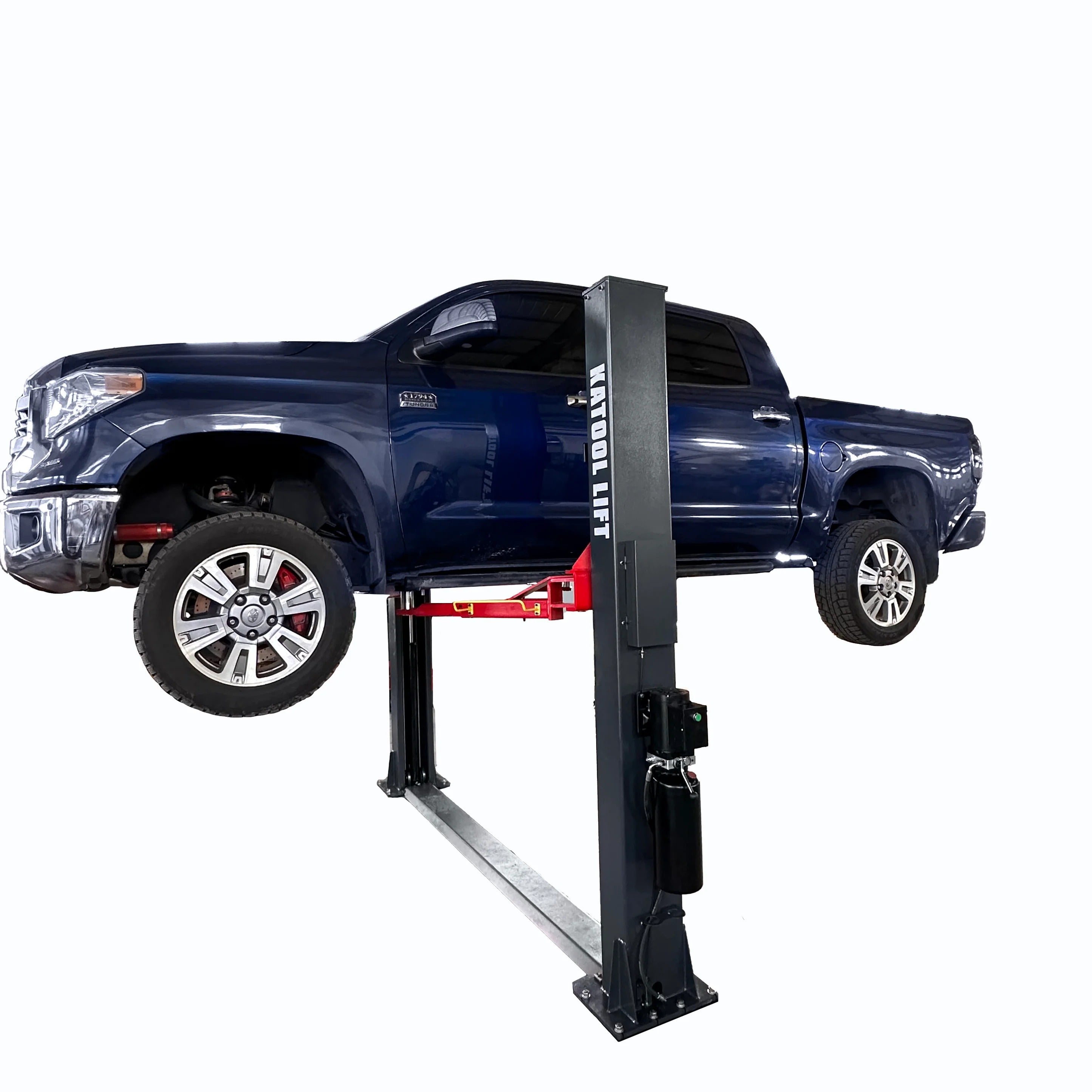

  • Two-post vehicle lift with a blue pickup truck positioned on the arms

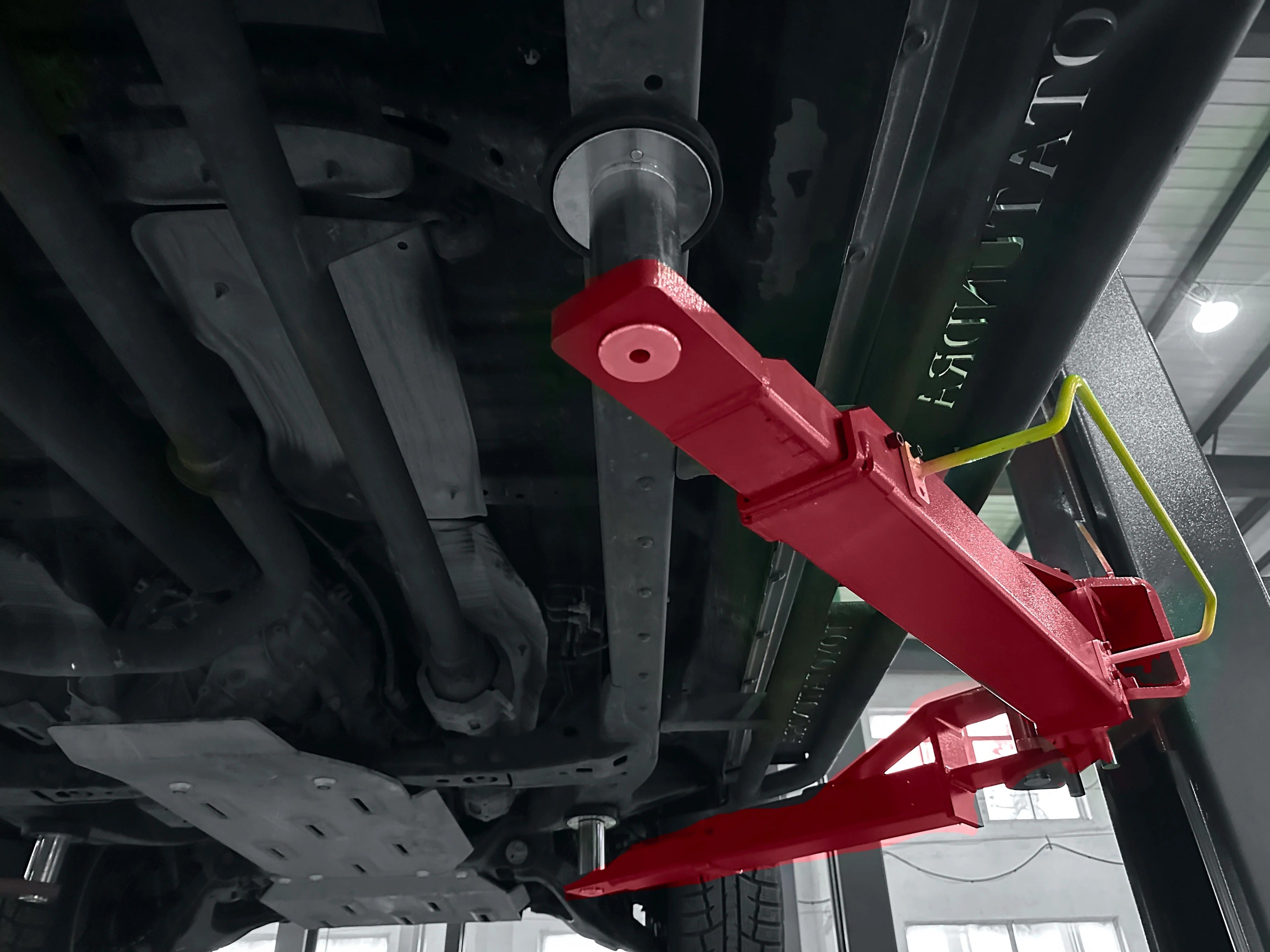

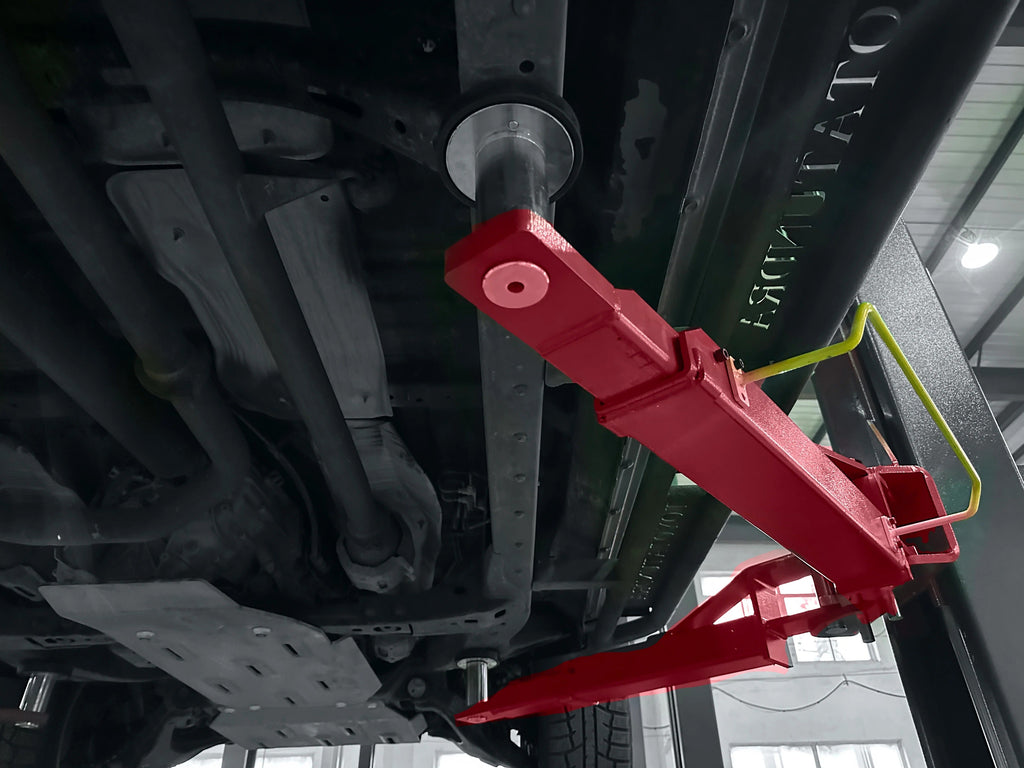

  • Red safety arm and linkage under a two-post vehicle lift

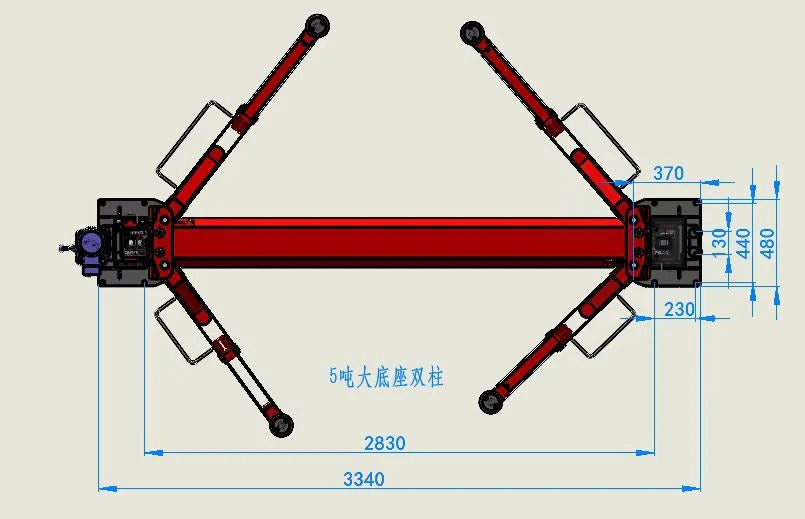

  • Red two-post lift dimension diagram with measurement lines and notes

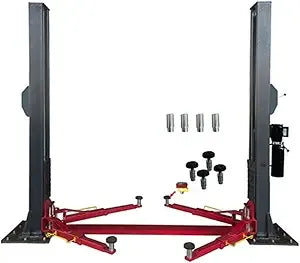

  • 11. 12,000 lb 2-post lift for commercial facilities
Katool H120D 12,000 lb Symmetrical 2-Post Lift - Single Point Lock Release

Katool H120D 12,000 lb Symmetrical 2-Post Lift - Single Point Lock Release

$2,697.00 $3,699.00

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Options

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰
Tax-Free Outside IL
🚚
Free Freight Lower 48 States
🛡️
1-Yr Warranty Full Parts Support
✅
CE Approved International Quality
📍
Local Pickup Nationwide Save up to $1,400 in freight costs
Learn More >
Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:

  • Cylinders, power units, motors, displays, electronics, etc.
  • Vehicle lifts: additional 36-month warranty on structural components

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included
  • Photos and/or videos of defects may be requested
  • Do not disassemble any equipment before the issue is determined

📄 Download Manual (PDF)
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →
How to Choose the Right Lift ▾

Not sure whether a 2-post or 4-post lift is right for your shop? Our guide breaks down the key differences in access, space, capacity, and use case.

View the 2-Post vs 4-Post Comparison Guide →

⚠️ Safety Warning

⚠️ IMPORTANT SAFETY WARNING: Concrete thickness must be at least 5.9 inches (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

⚠️ IMPORTANT SAFETY WARNING: Ceiling clearance must be at least 11 feet (3,353 mm). Failure to verify your garage or shop height before installation could result in serious injury or death! It is the customer's responsibility to verify ceiling height before purchase and installation.

The Katool H120D Symmetrical 2-Post Lift delivers 12,000 lbs of lifting capacity with a convenient single lock release for efficient operation. CE approved and certified, this lift features dual hydraulic chain-drive cylinders for smooth, reliable operation and a top-tier hydraulic system running 220V/60HZ single-phase. The base plate design ensures industrial-strength performance with operation-focused safety features including 110mm of adjustability, making it the professional choice for garages and service facilities that demand capacity and convenience.

  • 12,000 lbs lifting capacity
  • CE Approved - 115% dynamic and 150%static load tested
  • Single Lock Release for fast, convenient operation
  • Dual Hydraulic Chain-Drive Cylinders
  • Symmetrical arm design for versatile vehicle positioning
  • Base plate design for industrial-strength stability
  • 110mm arm adjustability
  • Top-tier hydraulic system — 220V/60HZ/1PH
  • Rubber pad door opening protection
H100 H105 M&E H1000
Capacity 10,000 lb 10,000 lb 10,000 lb
Max Lift Height 70.75 in 70.8 in 70.8 in
Overall Height 110.25 in 110.9 in 110.9 in
Overall Width 142.25 in 140.4 in 140.4 in
Outside Column 128 in 124.8 in 124.8 in
Inside Column 110.25 in 110.2 in 110.2 in
Drive-Thru Clearance 94.5 in 98.4 in 98.4 in
Arm Reach (Front) 30.75–50.5 in 29.5–46 in 29.5–46 in
Arm Reach (Rear) — 35.4–58.3 in 35.4–58.2 in
Motor 220V/60Hz/1PH/2.2KW 220VAC/60Hz/1PH/2.2KW 220VAC/60HZ/1PH/2.2KW
Net Weight 1,256 lbs 1,257 lbs 1,257 lbs
Arm Type Symmetrical Symmetrical Symmetrical

Lifting Capacity: 12,000lbs(5,500 kg)

Max. Lifting Height: 70.86 in / 1,900 mm

Min. Height: 4.3 in / 110 mm

Height Overall: 111 in / 2,820 mm

Width Overall: 140 in / 3,555 mm

Outside Column: 124.8 in / 3,170 mm

Inside Column: 110.25 in / 2,800 mm

Drive-Thru Clearance: 98.4 in / 2,500 mm

Front Arm Reach (Min): 28.75 in / 730 mm (2 stages)

Front Arm Reach (Max): 43 in / 1,095 mm (2 stages)

Rear Arm Reach (Min): 34.25 in / 870 mm (2 stages)

Rear Arm Reach (Max): 54.12 in / 1,375 mm (2 stages)

Motor: 220VAC/60HZ/1PH/2.2KW

Net Weight: 1,389 lbs / 630 kg

Minimum Ceiling Height Required: 11 ft / 3,353 mm

The Katool H120D Symmetrical 2-Post Lift is CE approved and certified heavy-duty equipment delivering 12,000 lbs of lifting capacity for trucks, large SUVs, and heavy vehicles. The single lock release enables fast, efficient operation while dual hydraulic chain-drive cylinders provide smooth, reliable lifting. Built with a base plate design for industrial-strength stability and 110mm of arm adjustability for versatile vehicle positioning. The top-tier hydraulic system running 220V/60HZ single-phase delivers consistent performance for professional auto shops, commercial facilities, and service centers that demand capacity and reliability every day.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:

  • Cylinders, power units, motors, displays, electronics, etc.
  • Vehicle lifts: additional 36-month warranty on structural components

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included
  • Photos and/or videos of defects may be requested
  • Do not disassemble any equipment before the issue is determined

📄 Download Manual (PDF)

  • High-Volume Auto Shops: Single lock release for fast, efficient operation
  • Trucks & Large SUVs: 12,000 lb capacity handles heavy vehicles with ease
  • Professional Auto Shops: Symmetrical design for versatile vehicle positioning
  • Commercial Facilities: Heavy-duty construction for daily professional use
  • Service Centers: Reliable performance for serious automotive service

All Katool equipment is manufactured to international quality standards.

  • CE Certified — Meets European safety and quality standards
  • Quality Control — Each unit undergoes pre-shipment inspection
  • US-Based Support — Technical support provided from the United States
  • Warranty — 1-year limited manufacturer warranty included

Freight shipping included to the lower 48 states. Four delivery options available:

  • Warehouse Pickup — No shipping cost, pickup at our warehouse
  • Terminal Pickup — Ship to nearest freight terminal, no forklift needed
  • Commercial Delivery — Delivery to business address, forklift required
  • Residential Delivery — Delivery to home address, forklift required

Due to the size and weight of this lift, please confirm your unloading capability before ordering.

Package Size

L x W x H (in) 112 x 18 x 36
Weight (lbs) 1389

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • Due to the size and weight of this lift, a forklift is required for unloading. We offer four options: Warehouse Pickup (no shipping cost), Terminal Pickup at a nearby freight terminal (no forklift needed, shipping included), Commercial Delivery with forklift required (shipping included), and Residential Delivery with forklift required (shipping included).
  • A symmetrical 2-post lift positions the vehicle centered between the two posts with equal arm length front and rear. This design is ideal for trucks, vans, and larger vehicles where balanced weight distribution is the priority.
  • Professional installation by a certified technician is strongly recommended. A concrete floor with minimum 4-inch (100mm) thickness is required. Anchor bolts and installation hardware are included. A detailed installation manual is provided with every lift.
  • The KT-H120D is not ALI certified. For customers requiring ALI-certified lifts, we recommend verifying your specific facility requirements before purchase.
  • Yes. We offer Shop Pay Installments, allowing you to split your purchase into 4 interest-free payments on orders from $5,000 and up.
  • We provide US-based technical support via email and phone. Our team assists with installation questions, troubleshooting, and parts replacement throughout your warranty period.
  • Returns are accepted within 30 days for unused equipment in original packaging. Please contact us before returning any equipment. Return freight costs are the responsibility of the buyer.
