1. Super 10,000 lb 2-post lift - H105 professional series CE certified

Katool H105 10,000 lb 2-Post Lift - CE Certified - Professional Series

Warehouse Pickup
$1,897.00 $2,899.00
Skip to product information
1. Super 10,000 lb 2-post lift - H105 professional series CE certified
1/9

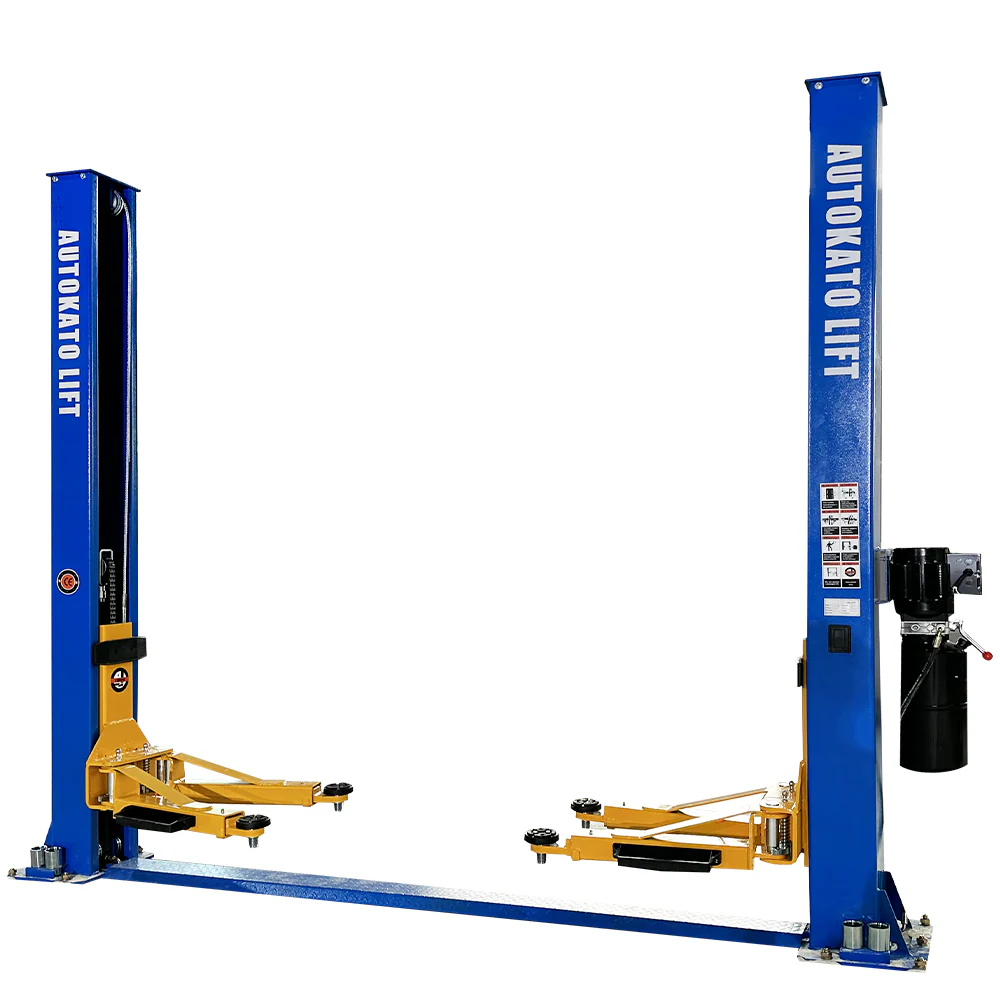

  • 1. Super 10,000 lb 2-post lift - H105 professional series CE certified
  • Budget-friendly 2-post vehicle lift with 10,000 lb capacity

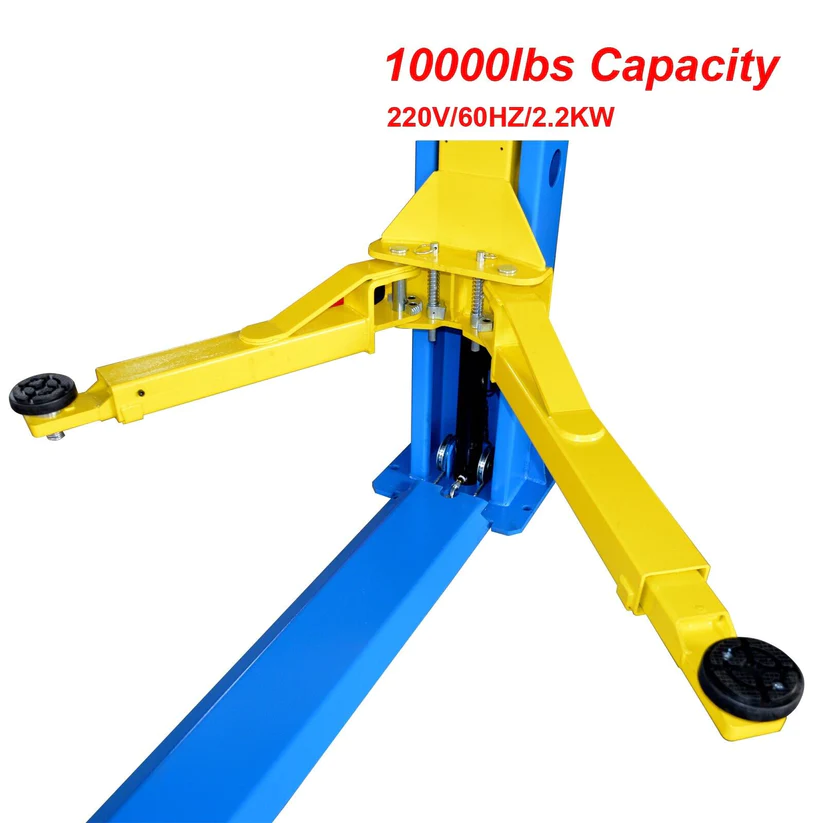

  • Two-post car lift base with yellow arms and blue columns, black rubber pads

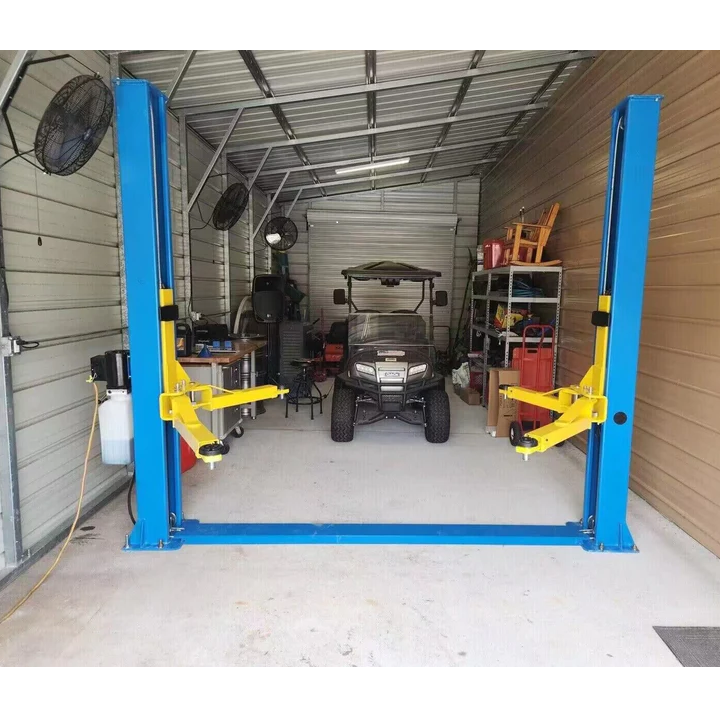

  • Two-post car lift with blue uprights and yellow drive arms, raised beam supports

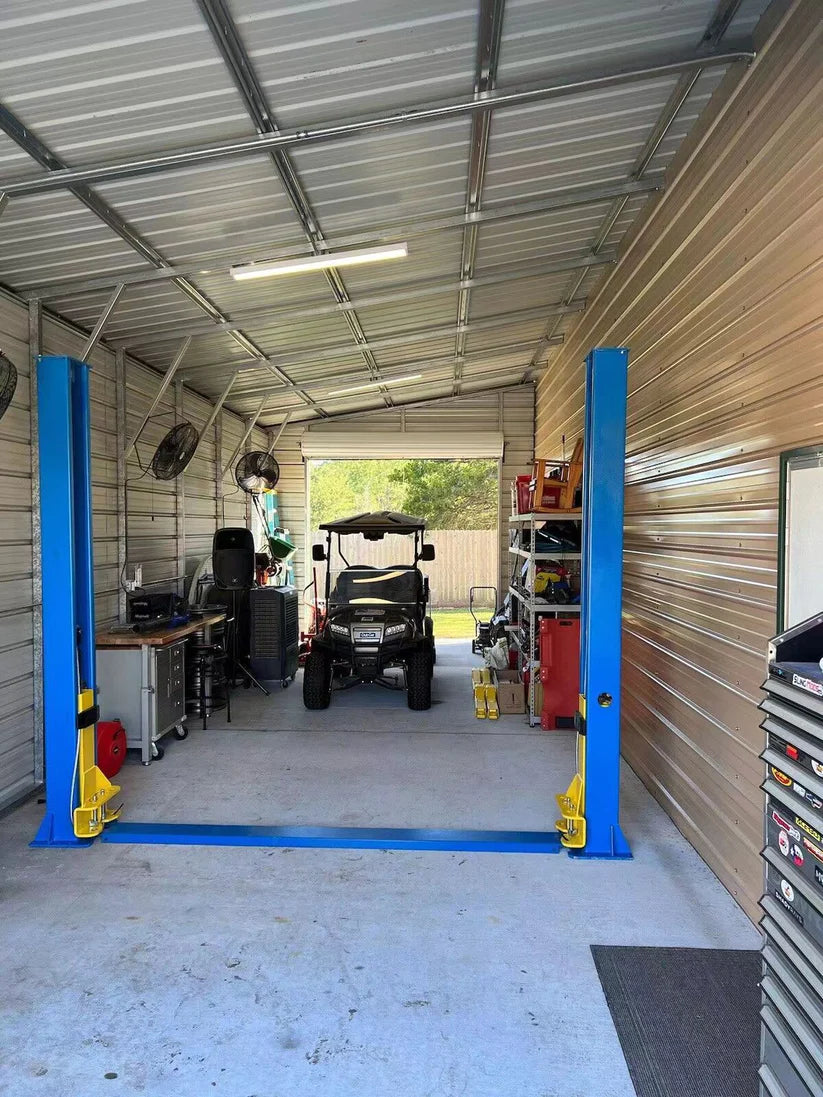

  • Two-post car lift with blue uprights and yellow lifting arms, overhead support frame

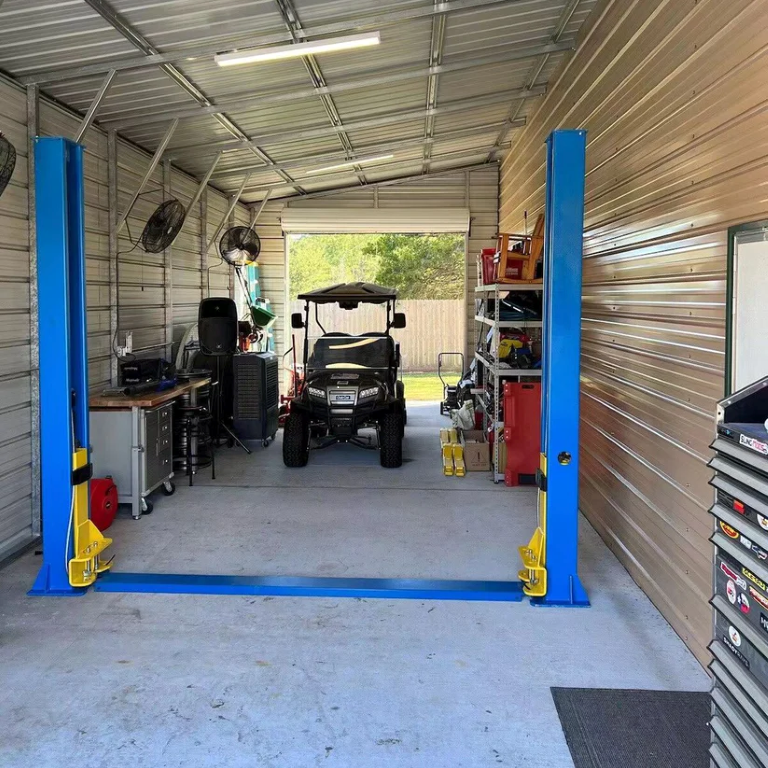

  • Two-post car lift with blue columns and yellow arm locks, ready for vehicle lift
  • 6. 10,000 lb 2-post hoist equipment with CE certification

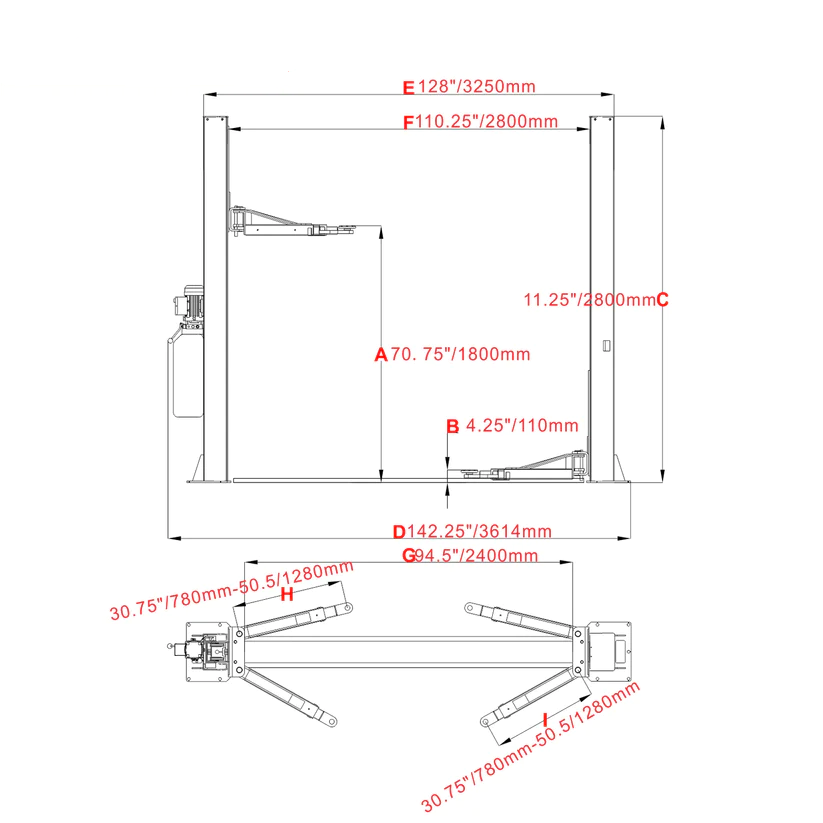

  • Two-post lift dimension diagram with measurement lines and frame layout

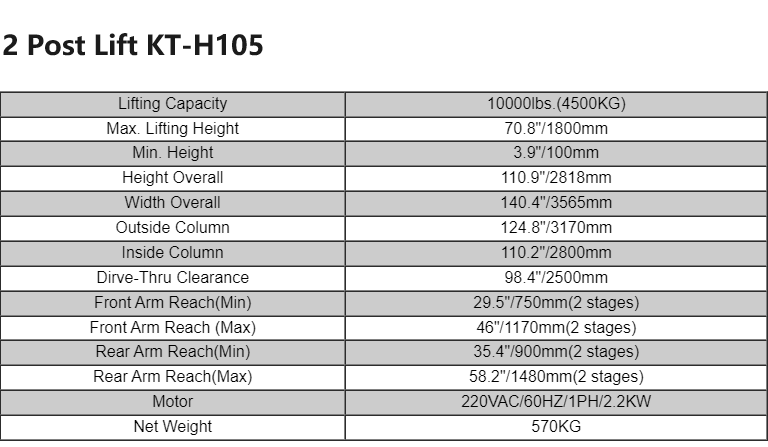

  • Two-post lift specifications chart listing capacity, heights, width, and motor
Katool H105 10,000 lb 2-Post Lift - CE Certified - Professional Series

Katool H105 10,000 lb 2-Post Lift - CE Certified - Professional Series

$1,897.00 $2,899.00

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Options

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰
Tax-Free Outside IL
🚚
Free Freight Lower 48 States
🛡️
1-Yr Warranty Full Parts Support
✅
CE Approved International Quality
📍
Local Pickup Nationwide Save up to $1,400 in freight costs
Learn More >
Warranty

Manufacturer stands behind its equipment with a limited one-year (12-month) warranty on all parts and defects. Additionally, vehicle lifts include an extended 36-month warranty on structural components.

Warranty Includes:

  • All parts and product defects — free of charge
  • Vehicle lifts: additional 36-month warranty on structural components
  • 2-year extended warranty plan available for any Katool or M&E equipment

Warranty Conditions:

  • Claims must fall within the warranty period
  • Warranty is non-transferable and requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included in the warranty

📄 Download Manual (PDF)
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →
How to Choose the Right Lift ▾

Not sure whether a 2-post or 4-post lift is right for your shop? Our guide breaks down the key differences in access, space, capacity, and use case.

View the 2-Post vs 4-Post Comparison Guide →

⚠️ Safety Warning

⚠️ IMPORTANT SAFETY WARNING: Concrete thickness must be at least 5.9" (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

⚠️ IMPORTANT SAFETY WARNING: Ceiling clearance must be at least 11 feet (3,353 mm). Failure to verify your garage or shop height before installation could result in serious injury or death! It is the customer's responsibility to verify ceiling height before purchase and installation.

The H105 delivers super quality and professional-grade performance at the most affordable price. With 10,000 lbs capacity and CE Approved and Certified, this lift is engineered for maximum safety and durability. Perfect for shops that need reliable, CE Approved and Certified equipment or enthusiasts who want professional quality without the premium price tag.

  • Dual Hydraulic Chain-Drive Cylinders: Ensures a smooth, consistent lifting motion even under maximum load
  • Dual Manual Safety Release: Redundant protection with safety releases accessible from both sides
  • Reinforced Base Plate: Expertly designed to distribute weight evenly for superior stability
  • Rubber Door Protectors: Specialized rubber pads safeguard customer vehicles against door dings
  • Versatile Adaptability: Includes screw-on pads and 100mm extension support adaptors

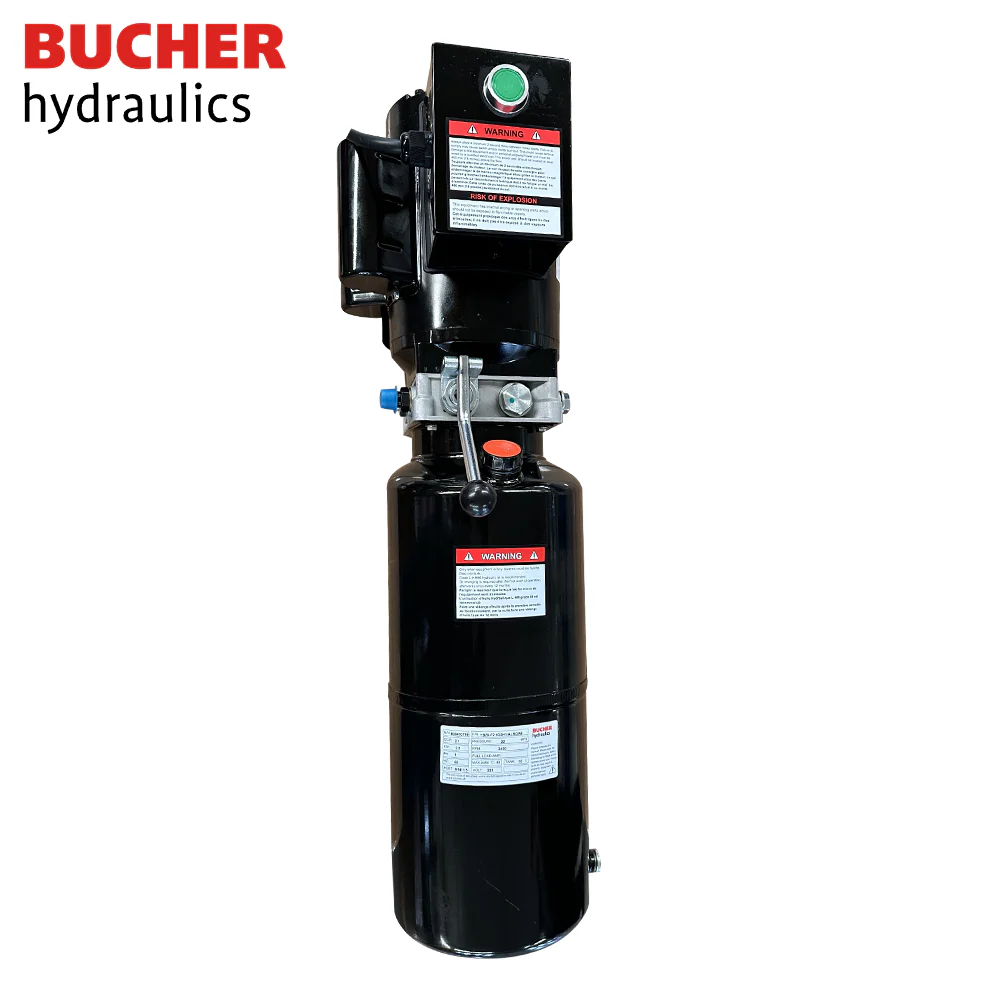

  • High-Performance Power: Equipped with a top-tier 220V/60Hz single-phase hydraulic system
H100 H105 M&E H1000
Capacity 10,000 lb 10,000 lb 10,000 lb
Max Lift Height 70.75 in 70.8 in 70.8 in
Overall Height 110.25 in 110.9 in 110.9 in
Overall Width 142.25 in 140.4 in 140.4 in
Outside Column 128 in 124.8 in 124.8 in
Inside Column 110.25 in 110.25 in 110.25 in
Drive-Thru Clearance 94.5 in 98.4 in 98.4 in
Arm Reach (Front) 30.75–50.5 in 29.5–46 in 29.5–46 in
Arm Reach (Rear) 30.75–50.5 in 35.4–58.2 in 35.4–58.2 in
Motor 220VAC/60HZ/1PH/2.2KW 220VAC/60HZ/1PH/2.2KW 220VAC/60HZ/1PH/2.2KW
Net Weight 1,246 lbs 1,246 lbs 1,246 lbs
Arm Type Symmetrical Symmetrical Symmetrical

Lifting Capacity: 10,000 lbs (4,500 kg)

Max Lifting Height: 70.8 in (1,800 mm)

Overall Height: 110.9 in (2,818 mm)

Overall Width: 140.4 in (3,565 mm)

Drive-Thru Clearance: 98.4 in (2,500 mm)

Arm Reach: Two-stage front and rear arms for flexible positioning

Motor: 220V/60Hz single-phase hydraulic system

Package Weight: 1,257 lbs

Package Size: 112 x 18 x 35.4 in

Minimum Ceiling Height Required: 11 ft / 3,353 mm

The H105 Professional Series 2-Post Lift combines CE Approved and Certified safety with professional-grade performance at an accessible price point. Engineered for maximum safety and durability, it features dual hydraulic chain-drive cylinders for smooth, consistent lifting and dual manual safety releases accessible from both sides. The reinforced base plate distributes weight evenly for superior stability, while rubber door protectors safeguard customer vehicles. Includes screw-on pads and 100mm extension support adaptors for versatile vehicle compatibility. Powered by a 220V/60Hz single-phase hydraulic system for reliable everyday use.

Manufacturer stands behind its equipment with a limited one-year (12-month) warranty on all parts and defects. Additionally, vehicle lifts include an extended 36-month warranty on structural components.

Warranty Includes:

  • All parts and product defects — free of charge
  • Vehicle lifts: additional 36-month warranty on structural components
  • 2-year extended warranty plan available for any Katool or M&E equipment

Warranty Conditions:

  • Claims must fall within the warranty period
  • Warranty is non-transferable and requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included in the warranty

📄 Download Manual (PDF)

  • Budget-Conscious Shops: Professional quality at the lowest price - only $1,897!
  • Startup Auto Repair Shops: CE certified professional series for new businesses
  • Home Garage Enthusiasts: Super quality 10,000 lb capacity for serious DIYers
  • Multi-Bay Expansion: Add capacity without breaking the budget
  • Mobile Mechanics: Professional-grade equipment at an affordable price

All Katool equipment is manufactured to international quality standards.

  • CE Certified — Meets European safety and quality standards
  • Quality Control — Each unit undergoes pre-shipment inspection
  • US-Based Support — Technical support provided from the United States
  • Warranty — 1-year limited manufacturer warranty included

Freight shipping included to the lower 48 states. Four delivery options available:

  • Warehouse Pickup — No shipping cost, pickup at our warehouse
  • Terminal Pickup — Ship to nearest freight terminal, no forklift needed
  • Commercial Delivery — Delivery to business address, forklift required
  • Residential Delivery — Delivery to home address, forklift required

Due to the size and weight of this lift, please confirm your unloading capability before ordering.

Package Size

L x W x H (in) 112 x 18 x 36
Weight (lbs) 1257

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • Due to the size and weight of this lift, a forklift is required for unloading. Four options: Warehouse Pickup (no shipping cost), Terminal Pickup at a nearby freight terminal (no forklift needed, shipping included), Commercial Delivery with forklift required (shipping included), and Residential Delivery with forklift required (shipping included).
  • Professional installation by a certified technician is strongly recommended. A concrete floor with minimum 5.9-inch (150mm) thickness is required. Anchor bolts and installation hardware are included. A detailed installation manual is provided with every lift.
  • The KT-H105 is not ALI certified. It is CE Approved and Certified, having passed rigorous 115% dynamic and 150% static load testing. For customers requiring ALI-certified lifts, we recommend verifying your specific facility requirements before purchase.
  • Yes. We offer Shop Pay Installments, allowing you to split your purchase into 4 interest-free payments on orders from $5,000 and up.
  • We provide US-based technical support via email and phone. Our team assists with installation questions, troubleshooting, and parts replacement throughout your warranty period.
  • Returns are accepted within 30 days for unused equipment in original packaging. Please contact us before returning any equipment. Return freight costs are the responsibility of the buyer.
