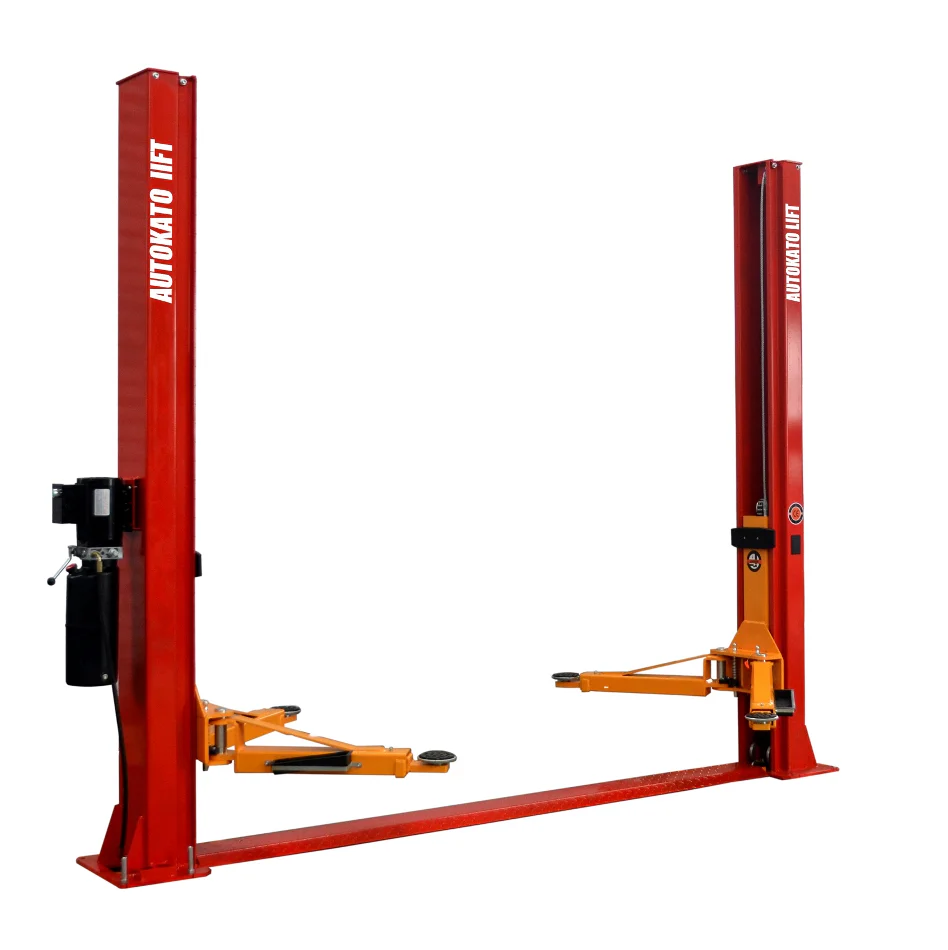

Katool KT-H100 10,000 lb 2-Post Vehicle Lift - Professional Auto Hoist

• 10,000 lbs lifting capacity
• Manual safety release from two sides
• Symmetric arm
• Base plate design
• Dual Hydraulic Chain-Drive Cylinders
• Rubber pad door opening protection
• Comes with extension support adaptor sets of +30mm and +120mm
• Feet-protection safety guardrails with tools box
• Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH (Optional)

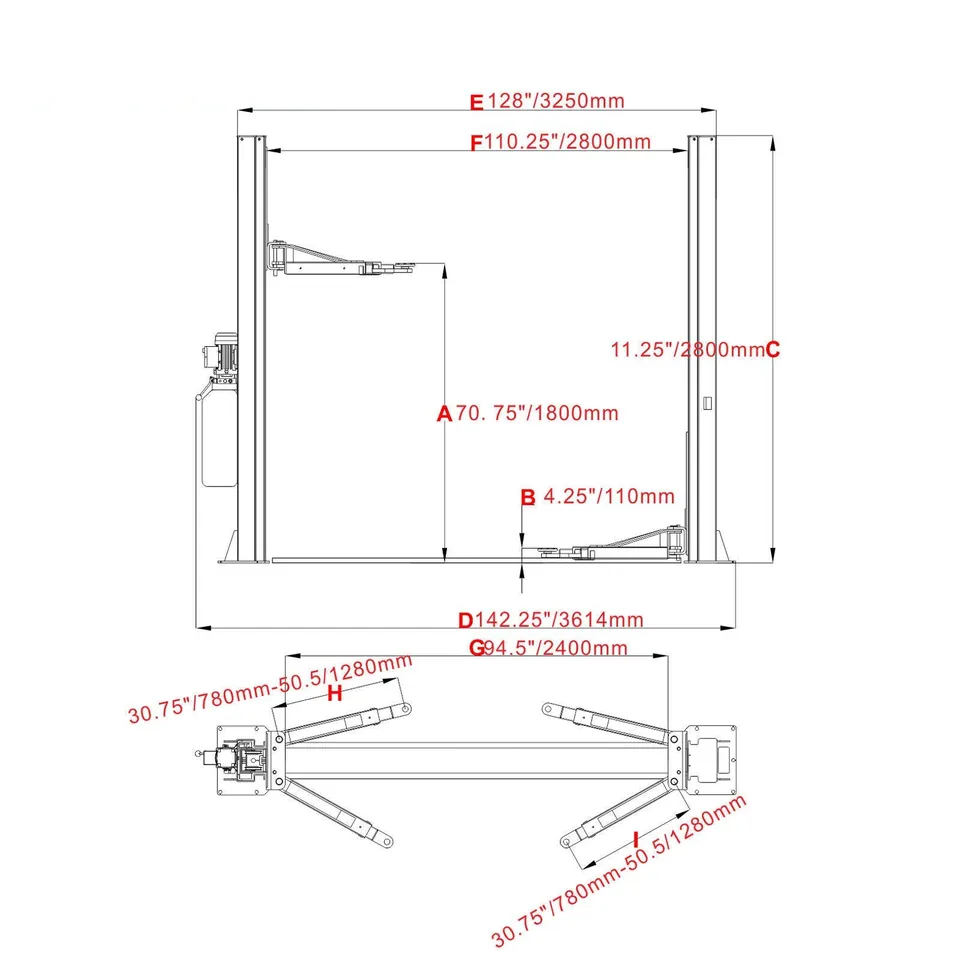

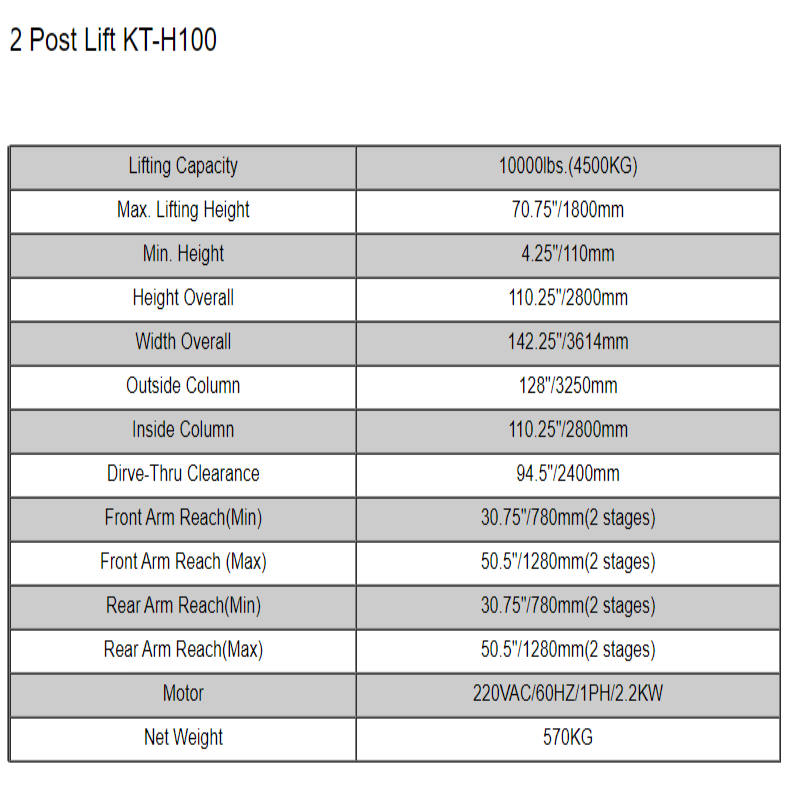

Lifting Capacity: 10,000 lbs / 4,500 kg

Max. Lifting Height: 70.75 in / 1,800 mm

Min. Height: 4.25 in / 110 mm

Height Overall: 110.25 in / 2,800 mm

Width Overall: 142.25 in / 3,614 mm

Outside Column: 128 in / 3,250 mm

Inside Column: 110.25 in / 2,800 mm

Drive-Thru Clearance: 94.5 in / 2,400 mm

Motor: 220VAC/60HZ/1PH/2.2KW

Net Weight: 1,256 lbs / 570 kg

Minimum Ceiling Height Required: 11 ft / 3,353 mm

Power options: 110V and 220V configurations are available at different prices. Confirm the selected voltage, final price, and electrical requirements with Allizoe before payment.

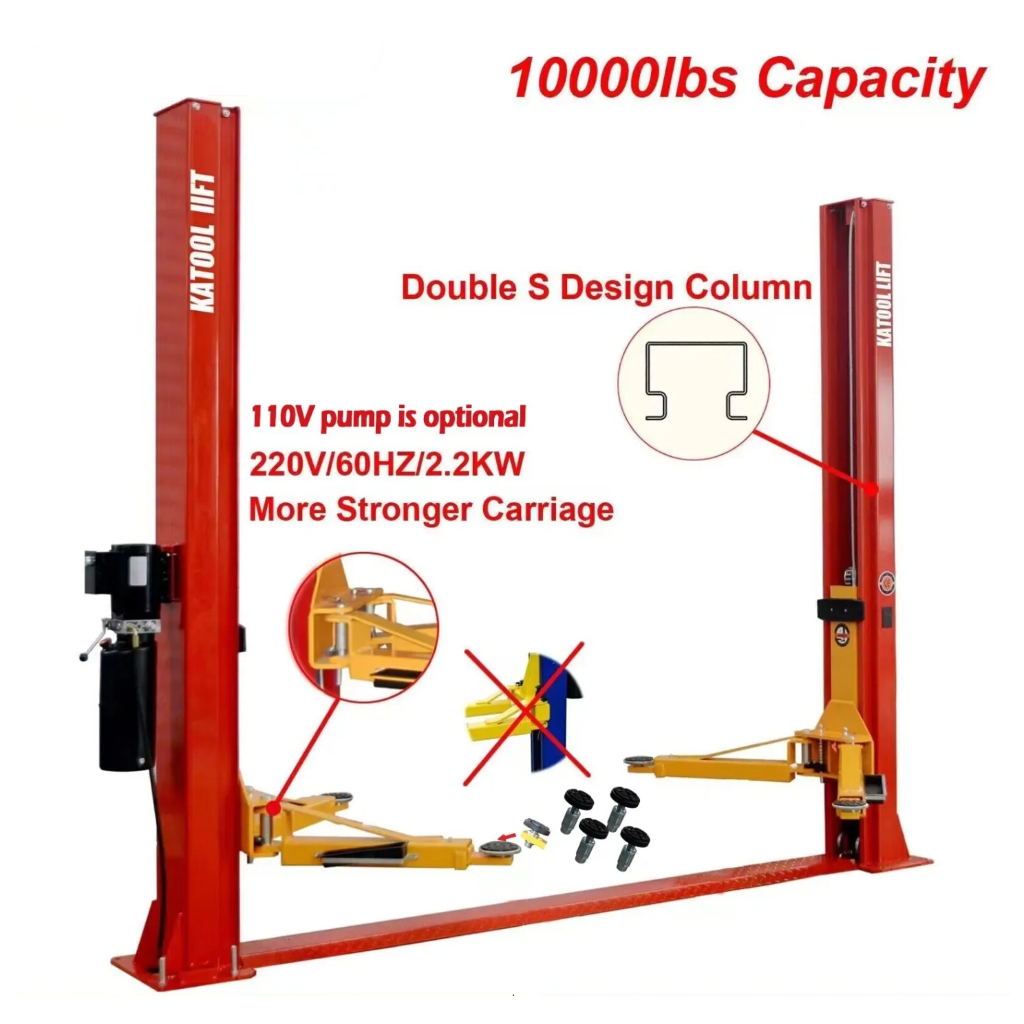

The KT-H100 is built for mechanics, performance garages, and serious DIYers who demand professional-grade reliability. At 10,000 lbs capacity with dual hydraulic chain-drive cylinders and a symmetric arm design, it delivers stable, balanced lifts every time. The Double S Design Column and reinforced carriage provide structural rigidity built for daily professional use. Standard power is 220V/60Hz/single-phase. The optional 110V configuration must be confirmed with ALLIZOE before ordering, including availability, lead time, electrical requirements, and any additional charge.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. Optional extended parts coverage is offered only when an enabled add-on is shown for this eligible main machine. If purchased, it adds 24 months after the standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended.

Warranty Includes:

• Cylinders, power units, motors, displays, electronics, etc.
• Standard manufacturer structural warranty: 3 years on structural components.

Warranty Conditions:

• Claims must fall within the warranty period.
• Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
• Replacement parts will be provided at no cost, including free shipping.

Note:

• All warranty claims are subject to approval by the warranty/service department.
• Photos and/or videos of defects may be requested.
• Do not disassemble any equipment before the issue is determined.
• Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
• Labor is not included in the warranty.

📄 Download Manual (PDF)

• Professional Mechanics: Heavy-duty two-post performance engineered for daily shop use
• Performance Garages: Balanced symmetric arm design handles cars, SUVs, and light trucks with precision
• Serious DIYers: Professional-grade safety and build quality for the dedicated home workshop
• Standard to Mid-Size Vehicles: Optimized for everyday passenger vehicles up to 10,000 lbs
• Shops Upgrading from Entry-Level: Double S Design Column and reinforced carriage outperform basic lifts

All Katool equipment is manufactured to international quality standards.

• Quality Control — Each unit undergoes pre-shipment inspection
• US-Based Support — Technical support provided from the United States
• Warranty — 1-year limited manufacturer warranty included

Price & Freight — Before Tax

For one lift in its listed standard configuration within the contiguous United States:

• Warehouse Pickup: $1,999 before tax; no freight or handling fee. Confirm supplier stock, warehouse and a pickup appointment with ALLIZOE before ordering.
• Pickup at Carrier Terminal: $1,999 product + $300 freight = $2,299 before tax.
• Commercial Delivery (Forklift Required): $1,999 product + $300 freight = $2,299 before tax.
• Residential Delivery (Forklift Required): $1,999 product + $400 freight = $2,399 before tax.

Tax, optional accessories or upgrades, and the optional $349 extended parts warranty are additional. Address delivery requires suitable forklift or loading-dock arrangements; standard liftgate service is not offered for this lift. For terminal pickup, bring a suitable vehicle or trailer and arrange unloading at your final destination. Confirm address eligibility and review the final total at checkout; orders containing other products may have different combined shipping charges.

Product price and freight charges are separate. Delivery charges vary by destination and selected service.

• Supplier warehouse pickup: No freight or handling fee. Allizoe confirms stock and the pickup warehouse before payment; warehouse address can be shared before payment.
• Scheduling: No same-day pickup. After confirmation, the supplier provides a pickup release form. Blind pickup may be arranged.
• Carrier terminal pickup: Freight to a carrier terminal is separate from free supplier warehouse pickup. Bring a suitable vehicle or trailer and arrange unloading at your final destination.
• Commercial or residential delivery: Select the service matching your address and unloading equipment.

Two-post lift delivery requires a suitable forklift or loading dock at the destination. Standard liftgate service is not available. Confirm unloading arrangements before ordering.
