Katool wheel balancer with red cabinet and control panel, plus wheel mounting arm

Katool KT-B700 Wheel Balancer - Professional Tire Balancing Machine - Precision Sensor

Commercial Delivery (Forklift Available)
$1,059.00 $1,499.00
Skip to product information
Katool wheel balancer with red cabinet and control panel, plus wheel mounting arm
1/14
  • Katool wheel balancer with red cabinet and control panel, plus wheel mounting arm
  • Katool wheel balancer with red body, metal tray, and spindle shaft for mounting
  • Katool wheel balancer front view with spindle and wheel mounting hub
  • Katool wheel balancer with 270 mm shaft length and 36 mm spindle diameter
  • Katool wheel balancer with extended support points and mounted wheel assembly
  • Katool wheel balancer spindle with 270 mm length and 36 mm diameter
  • Katool wheel balancer shaft assembly with black cones and mounting tool
  • Katool wheel balancer accessory kit with cones, caps, springs, and handle
  • Katool wheel balancer reverse fitting wheel hub with spacer and cone
  • Katool wheel balancer with control panel and accessories kit
  • Katool wheel balancer machine with red housing, control panel, and rim cup set
  • Wheel balancer specifications table with rim diameter, wheel width, speed, and power
  • KT-B700 professional wheel balancer features graphic with balancing modes and specs
  • Katool KT-B700 wheel balancer specs and balancing modes list with speeds and weights
Katool KT-B700 Wheel Balancer - Professional Tire Balancing Machine - Precision Sensor

Katool KT-B700 Wheel Balancer - Professional Tire Balancing Machine - Precision Sensor

$1,059.00 $1,499.00

Shop Pay Installments

Eligible customers can split their purchase into payments with Shop Pay. Available plans and terms are shown at checkout.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Review the payment schedule and any down payment at checkout
  • Pay the rest over time with automatic payments

Payment options are subject to eligibility. Interest may apply. Review your rate, payment schedule, and total cost before completing your purchase.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Delivery Options
Free warehouse pickup · Confirm first Ask us to confirm stock and the supplier pickup location before ordering. No same-day pickup or handling fee. Contact us to arrange pickup →
Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

Adds 24 months after the standard parts warranty ends. Parts only; labor is not included. One plan per machine.

View coverage and terms

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
Manufacturer WarrantySee Product Terms
🔬
Product SupportContact ALLIZOE
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. Optional extended parts coverage is offered only when an enabled add-on is shown for this eligible main machine. If purchased, it adds 24 months after the standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended.

Warranty Conditions:

  • Non-transferable — requires original order number
  • Replacement parts at no cost including free shipping
  • Labor not included
  • Do not disassemble before issue is determined
Shipping

Shipping availability, charges and estimated timing vary by product, delivery option and destination. Review the selected option and confirm any unloading equipment or delivery services required before ordering. Warehouse pickup requires stock and location confirmation, an appointment and written pickup authorization; no same-day pickup. Pickup has no shipping or handling fee. View full Shipping & Delivery details →

⚠️ Safety Warning

WARNING: Always disconnect power before maintenance. Do not exceed 143 lbs (65 kg) wheel weight capacity.

Price & Freight — Before Tax

For one machine in its listed standard configuration within the contiguous United States:

  • Warehouse Pickup: $1,059 before tax; no freight or handling fee. Confirm supplier stock, warehouse and pickup appointment with ALLIZOE before ordering. No same-day pickup.
  • Commercial Delivery (Forklift Available): $1,059 product + $150 shipping = $1,209 before tax.
  • Commercial Delivery (Liftgate Required): $1,059 product + $250 shipping = $1,309 before tax.
  • Residential Delivery (Forklift Available): $1,059 product + $250 shipping = $1,309 before tax.
  • Residential Delivery (Liftgate Required): $1,059 product + $350 shipping = $1,409 before tax.

Tax and optional accessories or upgrades are additional. The optional $349 extended parts warranty is also additional. Select the delivery service matching your address and unloading equipment. Where liftgate service is listed, confirm current package weight and dimensions, carrier limits and site access with ALLIZOE before ordering. For terminal pickup where offered, bring a suitable vehicle or trailer and arrange final unloading. Review the final total at checkout; orders containing other products may have different combined shipping charges.

The Katool B700 combines advanced sensor technology with pure copper motor windings and a hardened 36mm shaft for professional-grade precision tire balancing. Six balancing modes (STD, STA, ALU1, ALU2, ALU3, ALS) with no preset parameters required give operators complete control over any rim type. The 7-second cycle time, moisture-resistant dustproof housing, and 120V operation make it the ideal professional wheel balancer for high-volume shops.

• Advanced integrated pressure sensor for consistent accuracy
• Pure copper motor windings for superior power and longer life
• Hardened 36mm shaft for demanding use
• Moisture-resistant, dustproof, and anti-static housing
• 6 balancing modes: STD, STA, ALU1, ALU2, ALU3, ALS
• No preset parameters required — full operator control
• 7-second cycle time
• Robust 3mm steel body with reinforced welding
• Built-in fault diagnostics and dual-side self-calibration
• Unit selection: Ounce/Gram, MM/Inch

KT-B700 KT-B750 KT-B760 KT-B795L KT-710G
Wheel Weight Limit <65 kg (~143 lbs) <65 kg (~143 lbs) <65 kg (~143 lbs) 330 lbs Approx. 110 lbs; confirm rating
Rim Diameter <30 in <24 in <30 in 13–24 in 10–24 in
Wheel / Rim Width 3–12 in Up to 15 in 3–12 in 1.5–20 in 1.5–10 in
Balancing Speed 180 rpm 180 rpm 180 rpm 180 rpm 190 rpm
Measurement Time 7 seconds 7 seconds 7 seconds Approx. 8 seconds Confirm with Allizoe
Power 120V 1PH 110V 1PH 110V 1PH 220V 1PH 110V 1PH
Best For Passenger & light-truck service Automatic A/D input Passenger & light-truck service Truck & bus wheels Passenger wheel service

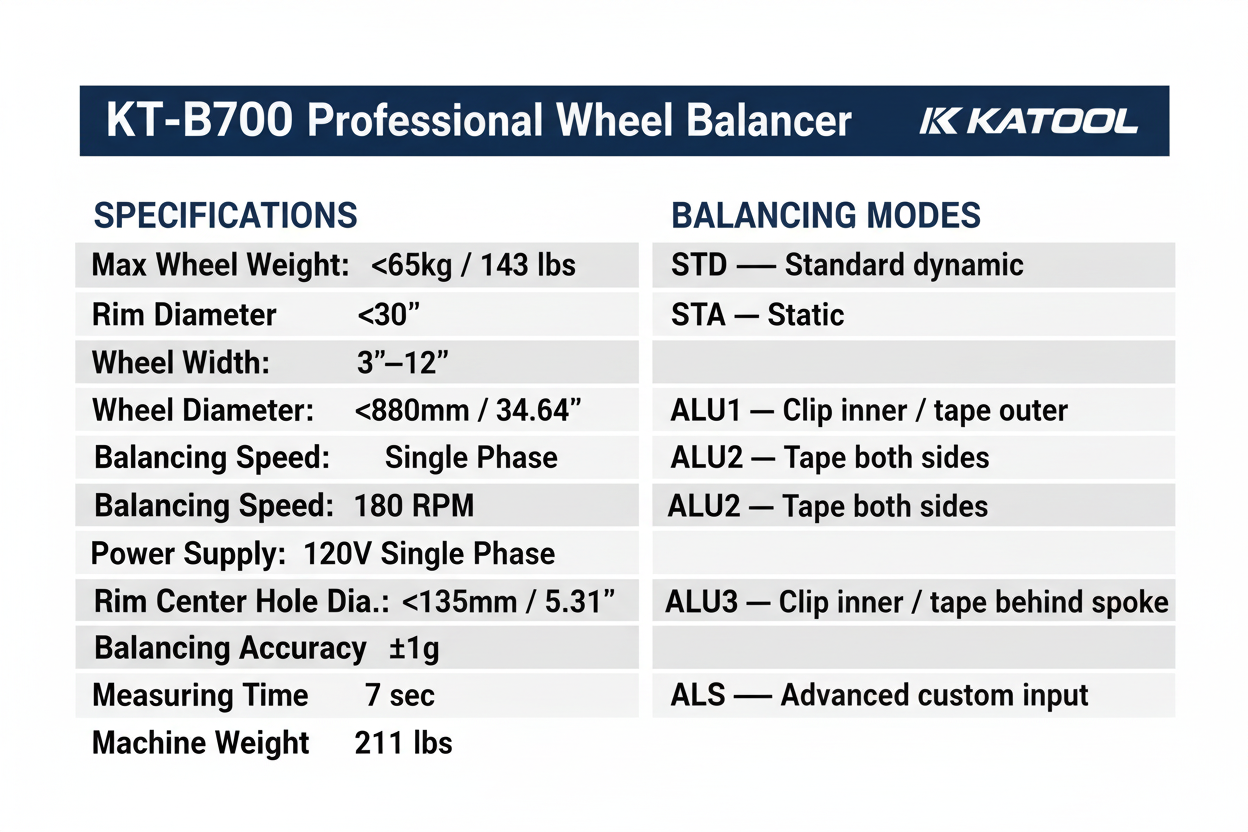

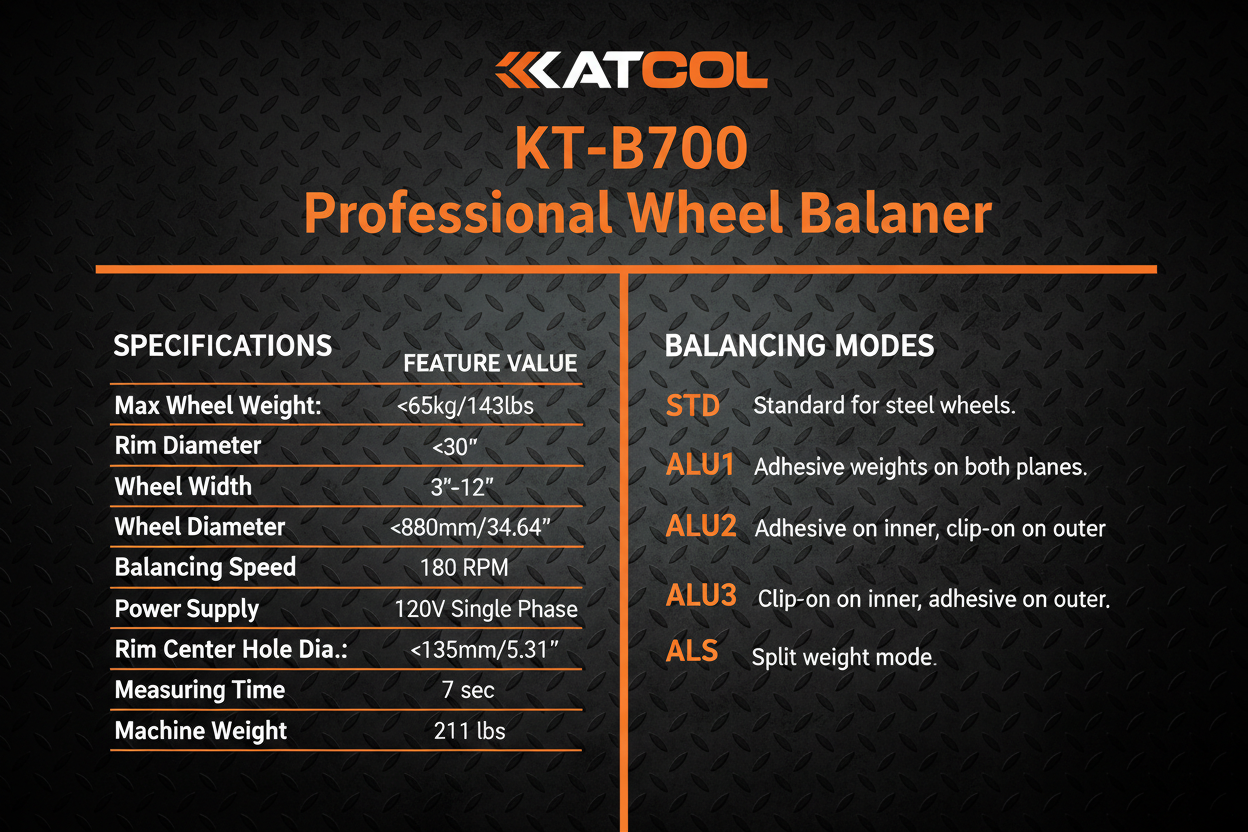

  • Rim Diameter: <30 in
  • Wheel / Rim Width: 3–12 in
  • Overall Wheel Diameter: <880 mm (approx. 34.64 in)
  • Wheel Weight Limit: <65 kg (approx. 143 lbs)
  • Balancing Speed: 180 rpm
  • Power Supply: 120V single-phase
  • Motor Power: 0.25 kW
  • Balancing Accuracy: ±1 g
  • Measurement Time: 7 seconds
  • Rim Center Hole Diameter: <135 mm (approx. 5.31 in)

The Katool B700 Professional Wheel Balancer delivers precision tire balancing with advanced sensor technology, pure copper motor windings, and a hardened 36mm shaft built for demanding shop use. Six balancing modes (STD, STA, ALU1, ALU2, ALU3, ALS) with no preset parameters required give operators complete control over any rim type. The 7-second cycle time, moisture-resistant dustproof housing, and 120V operation make the B700 the professional choice for high-volume auto shops and service centers.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. Optional extended parts coverage is offered only when an enabled add-on is shown for this eligible main machine. If purchased, it adds 24 months after the standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended.

Warranty Conditions:

  • Non-transferable — requires original order number
  • Replacement parts at no cost including free shipping
  • Labor not included
  • Do not disassemble before issue is determined
  • Professional Auto Shops: Advanced sensor technology for consistent accuracy
  • High-Volume Service Centers: 7-second cycle time maximizes throughput
  • Alloy Wheel Service: ALU1, ALU2, ALU3 mode protects alloy wheels during balancing
  • Demanding Environments: Moisture-resistant dust-proof housing built for shop conditions

All Katool equipment is manufactured to international quality standards.

  • Quality Control — Each unit undergoes pre-shipment inspection
  • US-Based Support — Technical support provided from the United States
  • Warranty — 1-year limited manufacturer warranty included

Price & Freight — Before Tax

For one machine in its listed standard configuration within the contiguous United States:

  • Warehouse Pickup: $1,059 before tax; no freight or handling fee. Confirm supplier stock, warehouse and pickup appointment with ALLIZOE before ordering. No same-day pickup.
  • Commercial Delivery (Forklift Available): $1,059 product + $150 shipping = $1,209 before tax.
  • Commercial Delivery (Liftgate Required): $1,059 product + $250 shipping = $1,309 before tax.
  • Residential Delivery (Forklift Available): $1,059 product + $250 shipping = $1,309 before tax.
  • Residential Delivery (Liftgate Required): $1,059 product + $350 shipping = $1,409 before tax.

Tax and optional accessories or upgrades are additional. The optional $349 extended parts warranty is also additional. Select the delivery service matching your address and unloading equipment. Where liftgate service is listed, confirm current package weight and dimensions, carrier limits and site access with ALLIZOE before ordering. For terminal pickup where offered, bring a suitable vehicle or trailer and arrange final unloading. Review the final total at checkout; orders containing other products may have different combined shipping charges.

Product prices and delivery charges are separate. Available delivery services and charges depend on the product and destination; review the options shown at checkout.

  • Supplier warehouse pickup: No freight or handling fee, subject to supplier stock and pickup warehouse confirmation through Allizoe before payment. Warehouse address may be shared before payment.
  • Pickup scheduling: Same-day pickup is unavailable. The supplier provides a pickup release form after confirmation; blind pickup may be arranged.
  • Carrier terminal or address delivery: Where offered, these are freight services separate from free supplier warehouse pickup. Select a service suitable for your destination and unloading equipment.

Contact Allizoe if you need help confirming available services or unloading arrangements.

Package Size

L x W x H (in) 40 x 30 x 35
Weight (lbs) 231

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Explore equipment for your shop
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • The KT-B700 supports rim diameters <30 inches, wheel/rim widths 3–12 inches, and wheel weight <65 kg (approx. 143 lbs). Overall wheel diameter must be <880 mm (approx. 34.64 in). Rim diameter and overall wheel diameter are separate limits; confirm mounting compatibility before ordering.
  • The B700 features 6 balancing modes: STD (standard dynamic), STA (static), ALU1, ALU2, ALU3 (alloy wheel modes), and ALS (advanced alloy mode). No preset parameters required.
  • Yes. Initial calibration is required before first use. A step-by-step calibration guide is included in the installation manual. Our technical support team can assist remotely if needed.
  • The KT-B700 requires 120V single-phase power. Confirm the supplied unit's voltage, electrical circuit, grounding, and any accessory utility requirements before ordering; have the electrical connection checked by a qualified electrician.
  • Delivery charges are separate from the product price. Available freight services depend on the product and destination. Free supplier warehouse pickup requires stock and warehouse confirmation through Allizoe before payment; pickup is by appointment, with no freight or handling fee and no same-day pickup. Confirm unloading arrangements; select liftgate service only when offered for this product and address.
  • If Shop Pay Installments is offered for your order at checkout, the available payment plans and terms will be shown there. Availability is subject to eligibility and approval. Review the terms before completing your purchase.
  • We provide US-based technical support via email and phone for calibration, troubleshooting, and parts replacement throughout your warranty period.
  • Contact Allizoe within 30 days of pickup or delivery to request return authorization. Eligible equipment must be unused, uninstalled, and in its original packaging with all accessories. Returns for reasons other than defect or warranty are subject to a 30% restocking fee and round-trip freight costs under our Refund Policy. Review the full policy at /policies/refund-policy before ordering.
