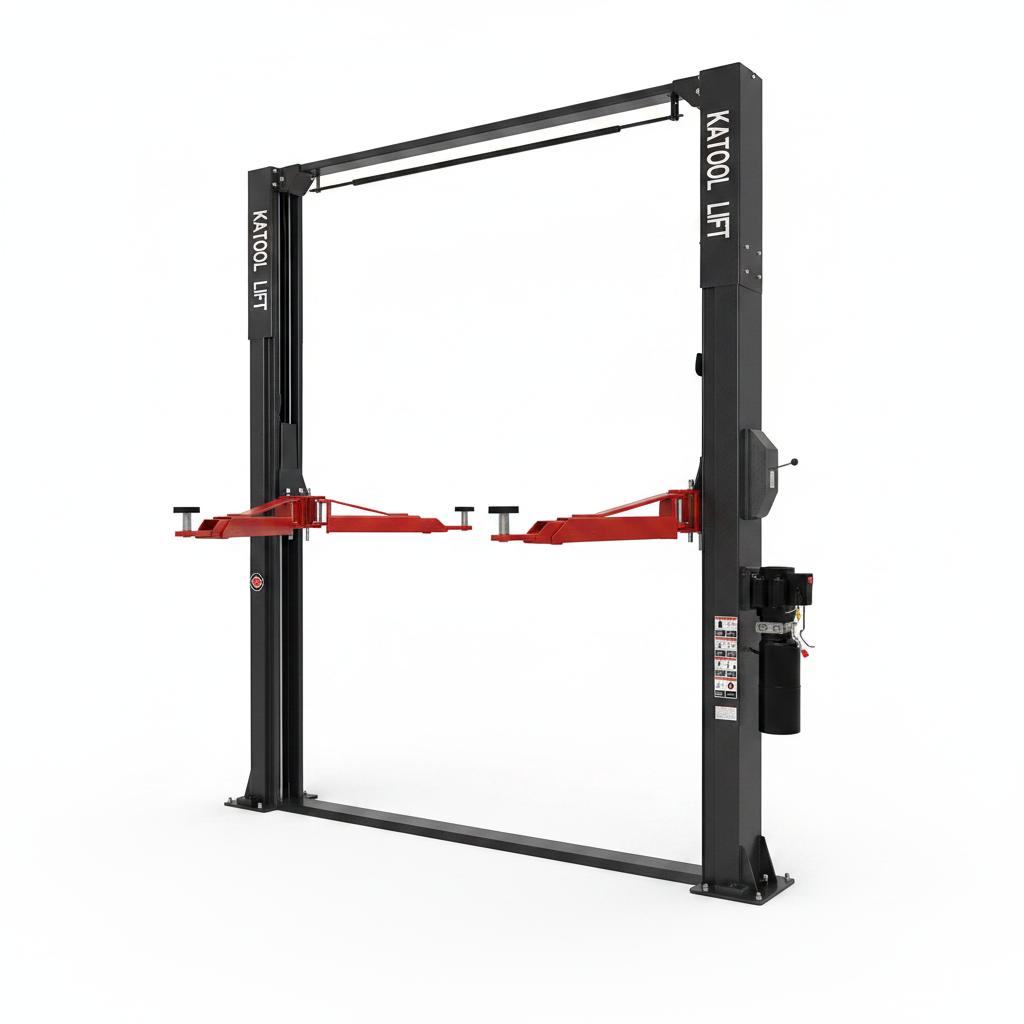

Katool AS110D White Background

Katool KT-AS110D 11,000 lb Asymmetrical 2-Post Lift - Single Point Lock Release

Pickup at Carrier Terminal
$2,599.00 $3,699.00
Skip to product information
Katool AS110D White Background
1/19
  • Katool AS110D White Background

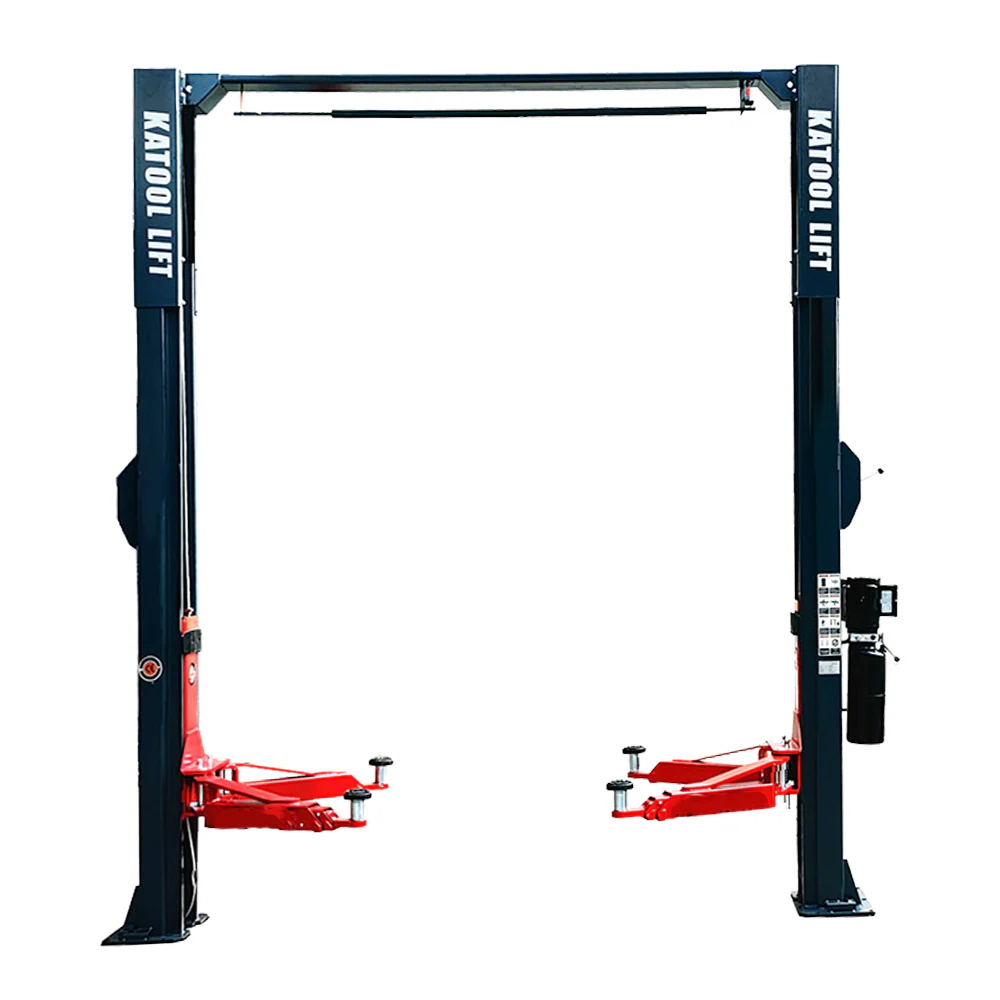

  • 1. 11,000 lb asymmetrical 2-post lift - AS110D with single point lock

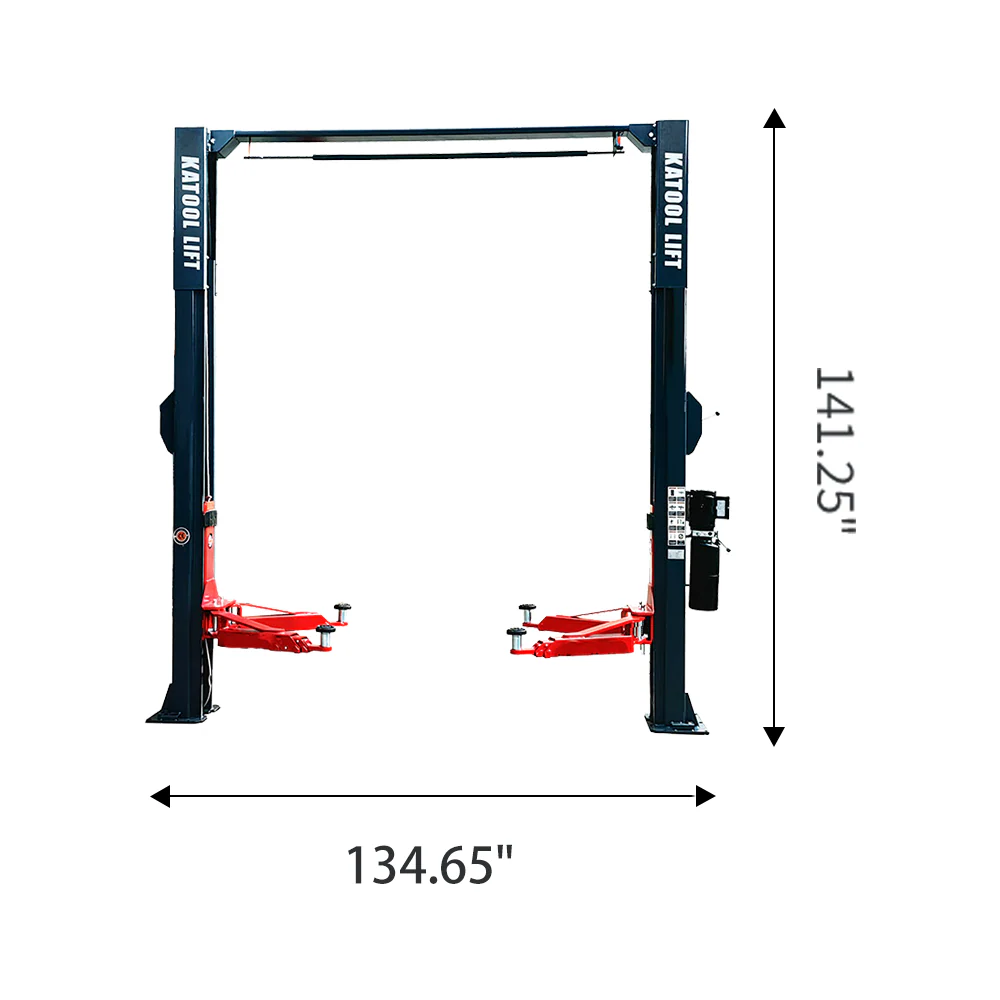

  • Asymmetrical two-post vehicle lift, black posts with red arms; height 141.25 in

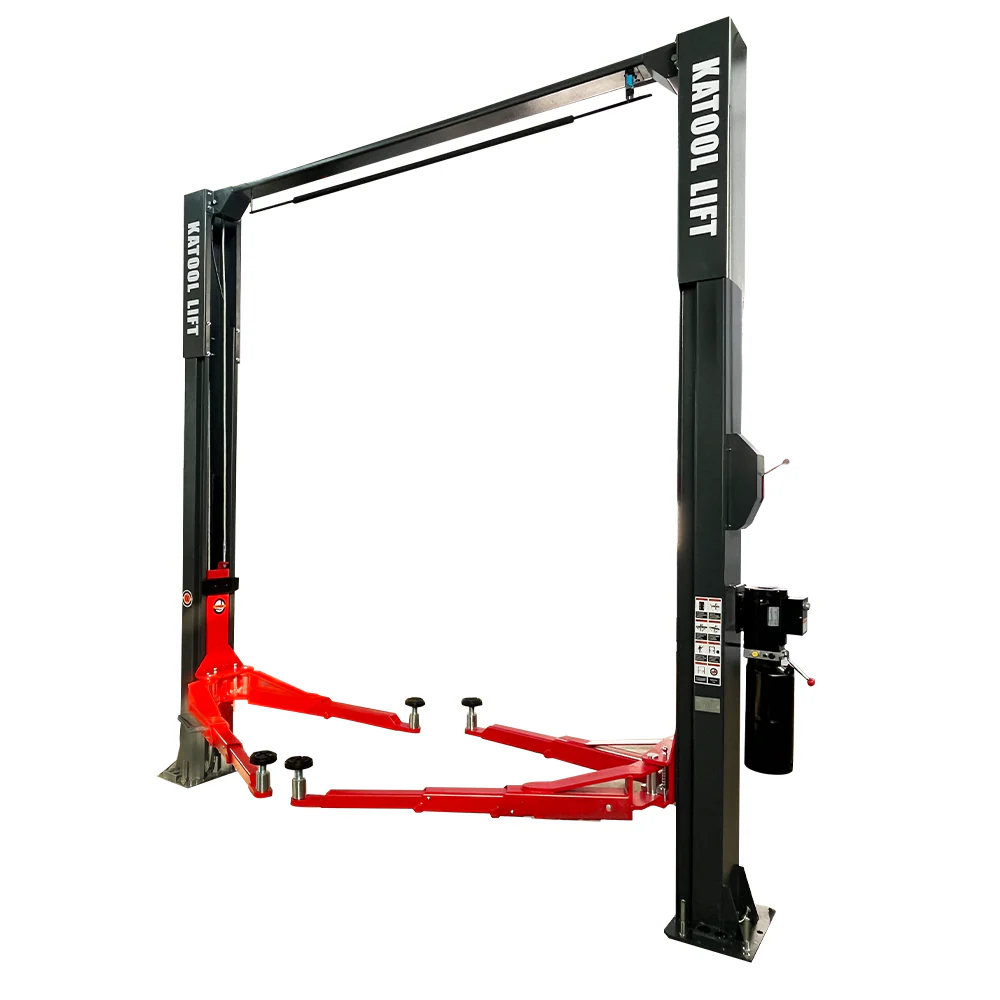

  • Asymmetrical two-post vehicle lift with black columns and red platform arms

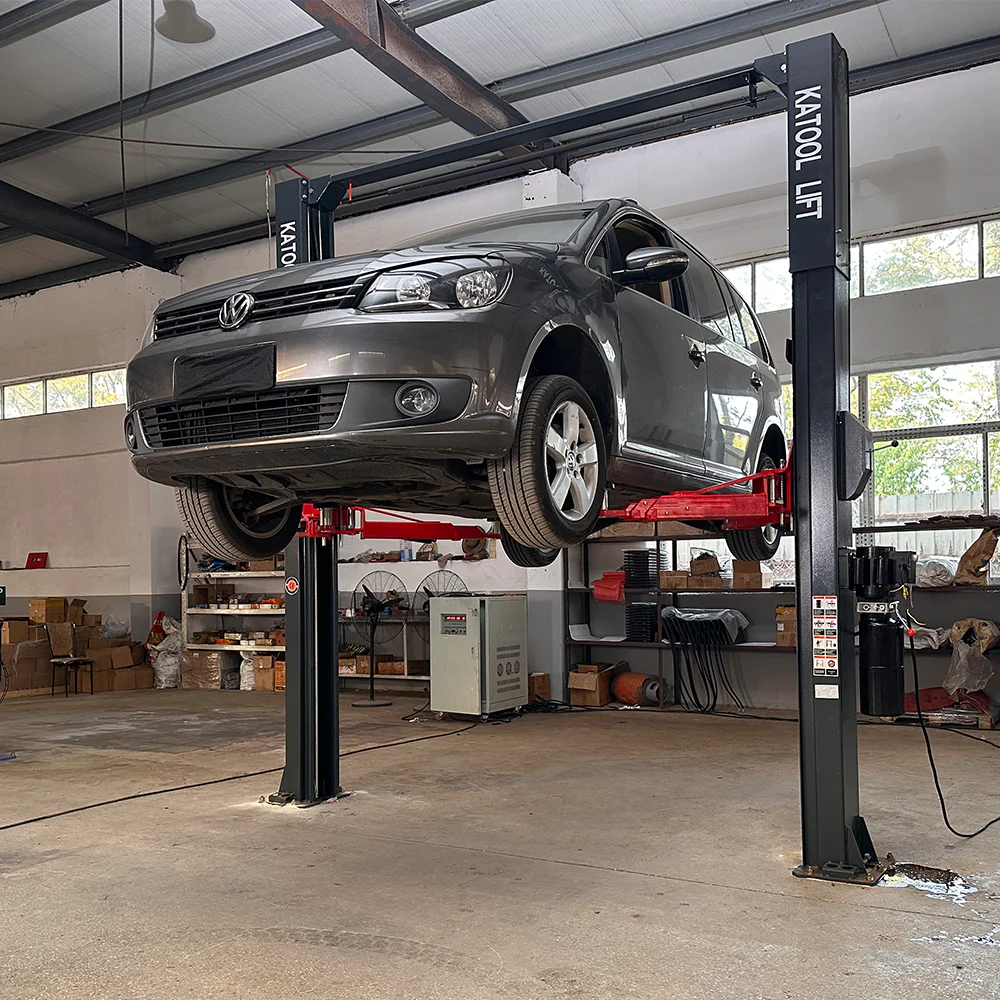

  • Two-post vehicle lift holding a dark gray car front end on red arms

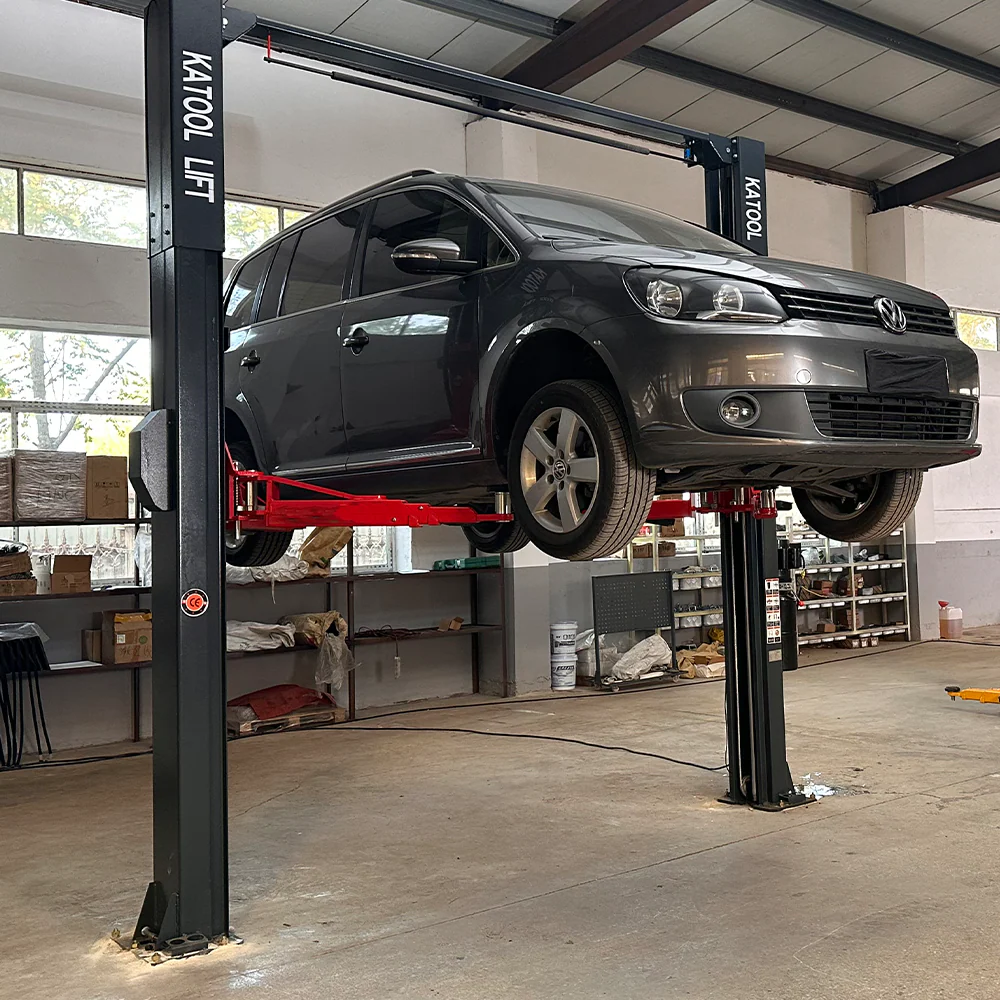

  • 5. 11,000 lb capacity asymmetrical lift for auto shops

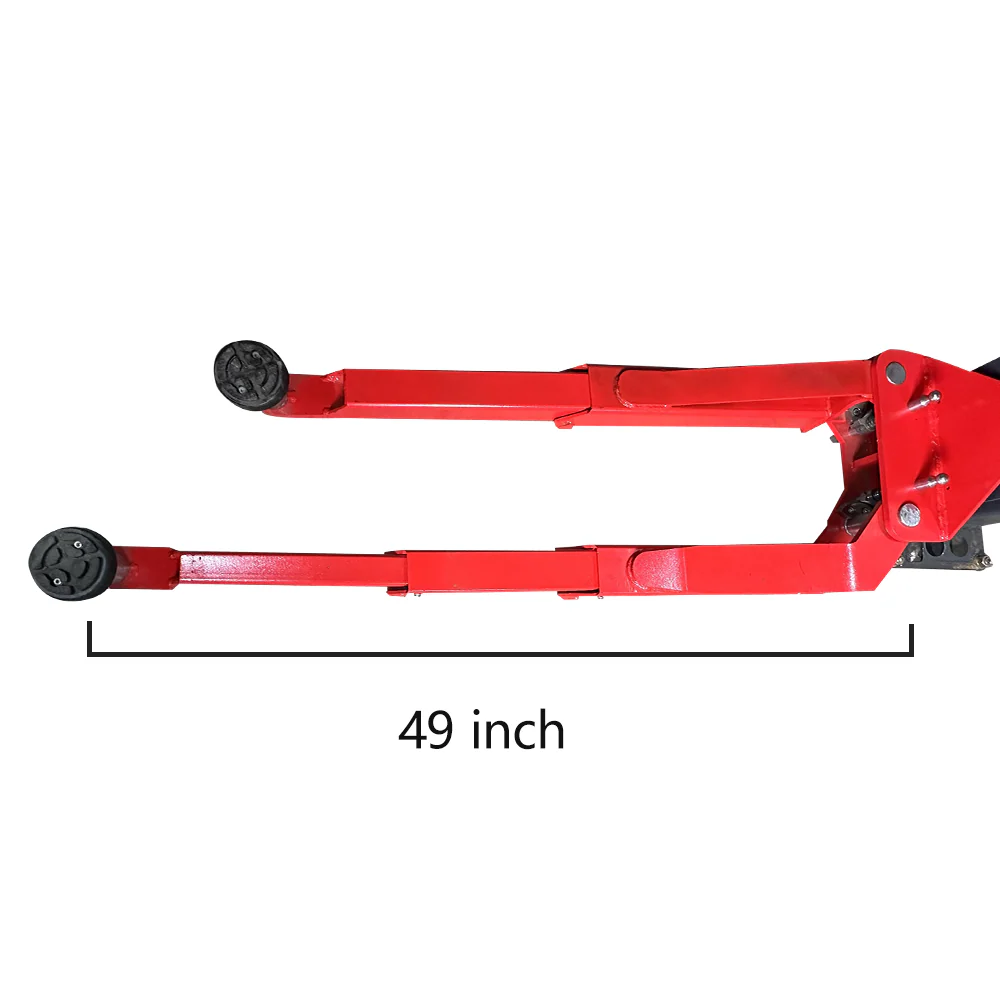

  • Red lift arm with roller pads, 49 inch length measurement

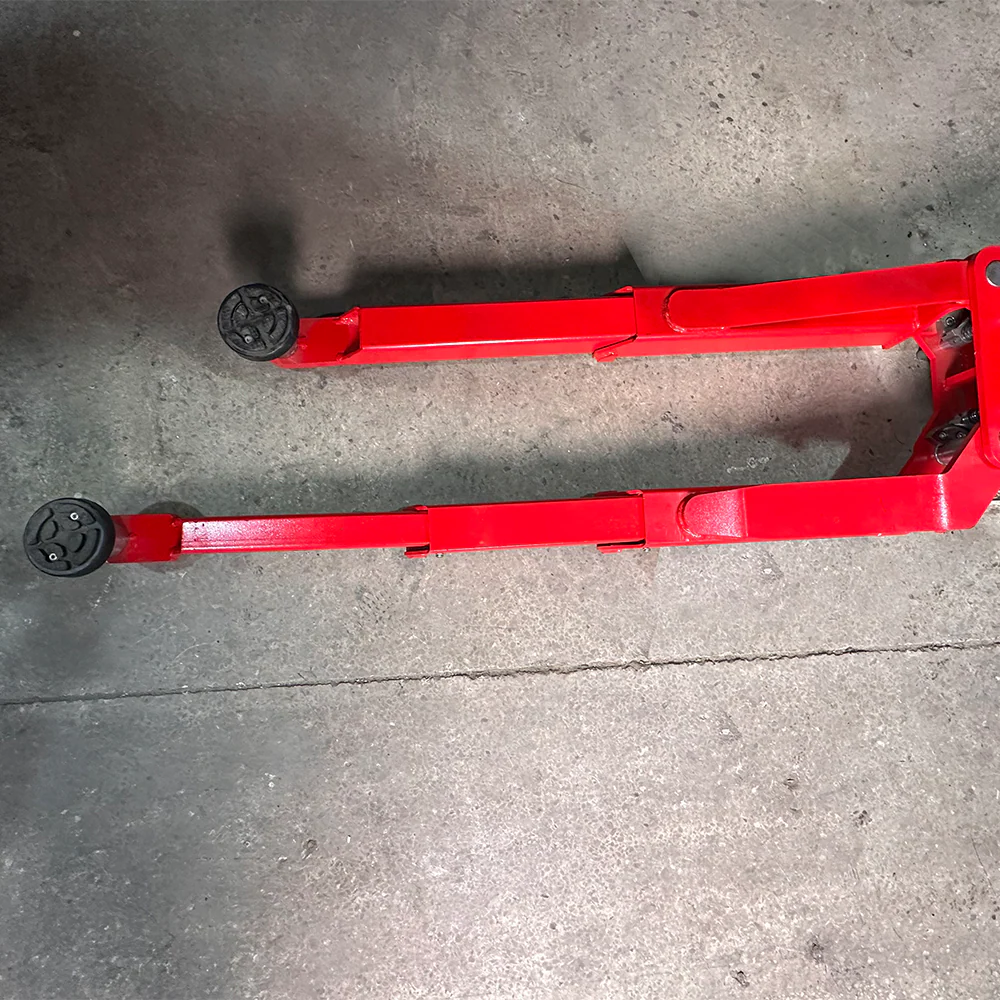

  • Red two-post lift arms with black roller pads on concrete floor

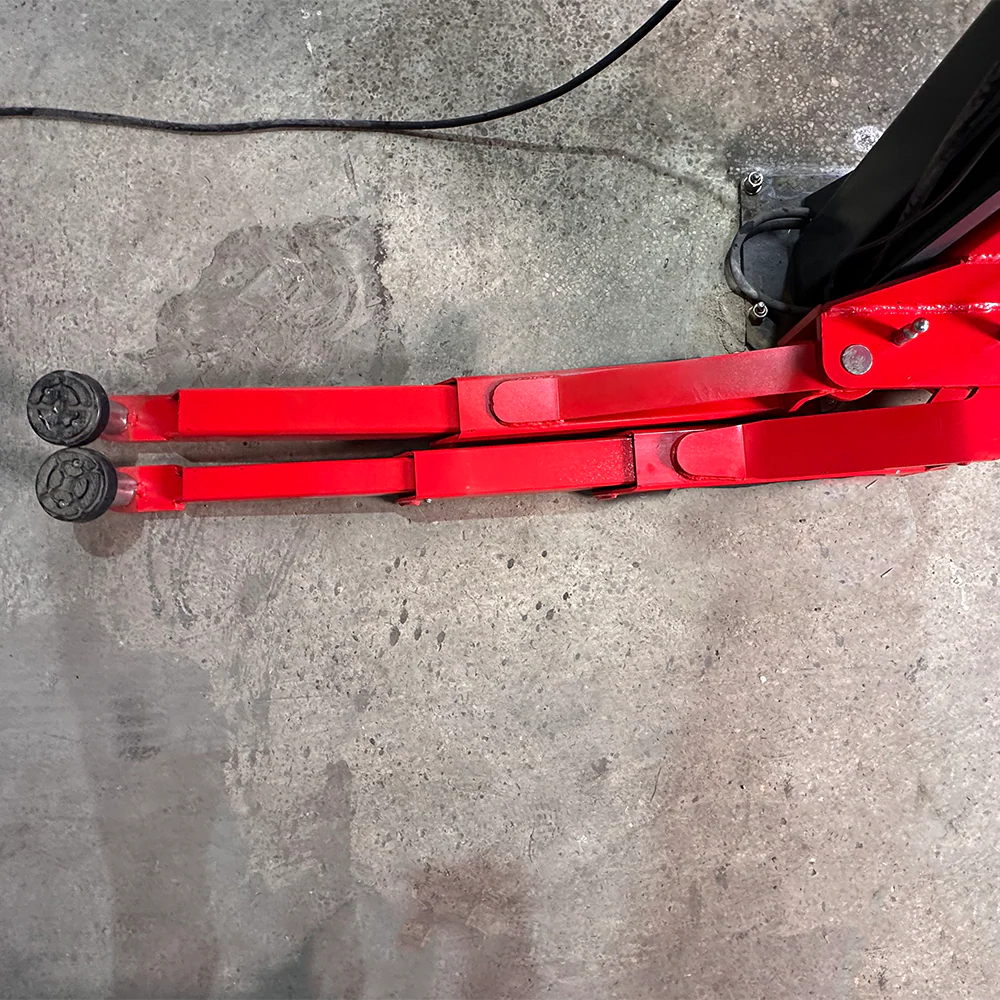

  • Red lift arm assembly with black roller pads and base joint

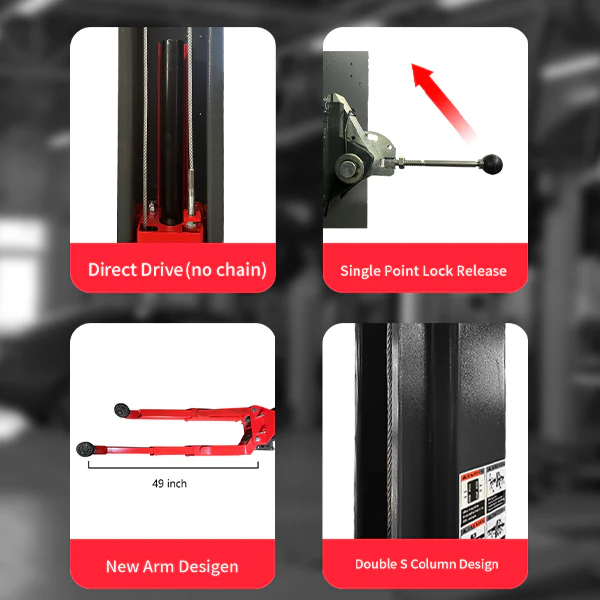

  • Vehicle lift feature graphic showing direct-drive and single-point lock release icons
  • Vehicle lift marketing graphic showing wide applicability across multiple locations

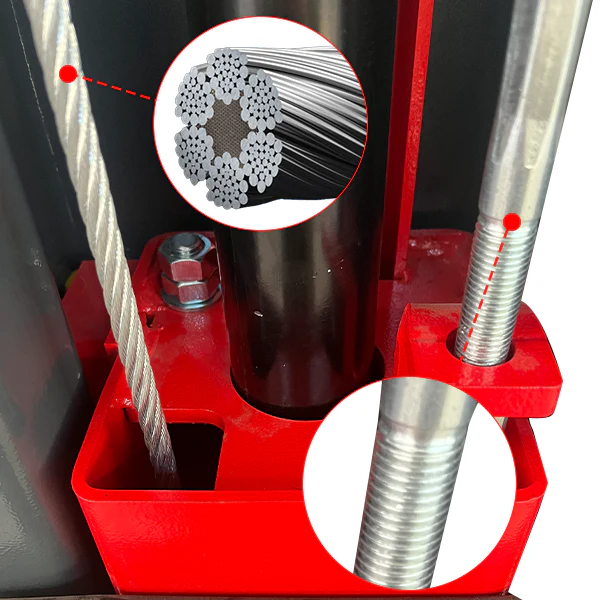

  • Red lift column with bundled steel cables and flexible hose guide

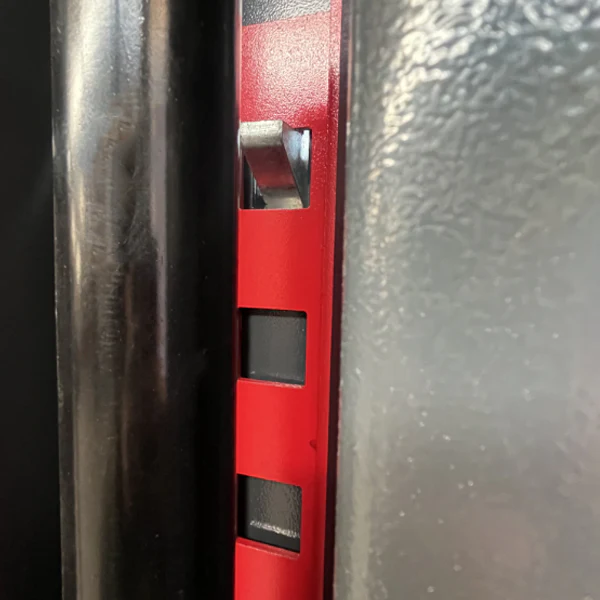

  • Red lift post latch area with metal pin inside guide slot
  • 13. 11,000 lb 2-post lift raising modern vehicle in shop

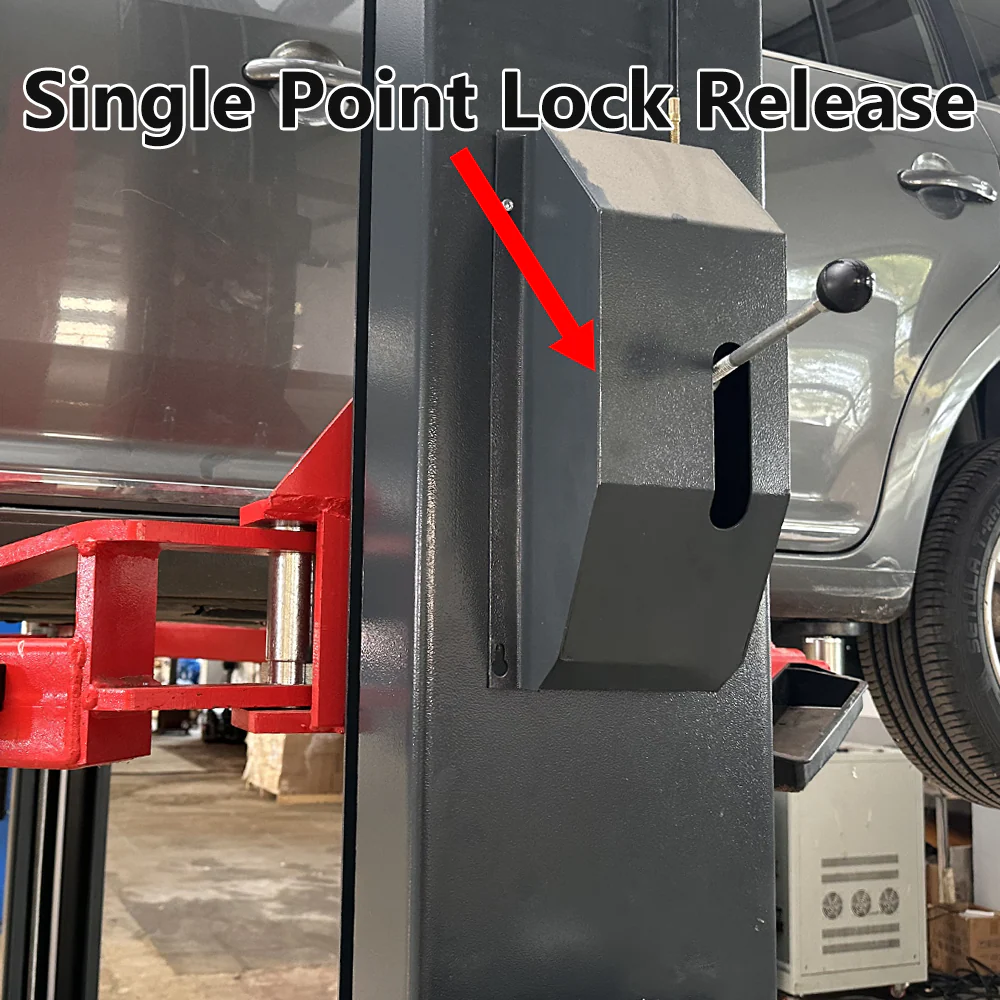

  • Asymmetrical 2-post lift lock release bracket, dark gray with black pin

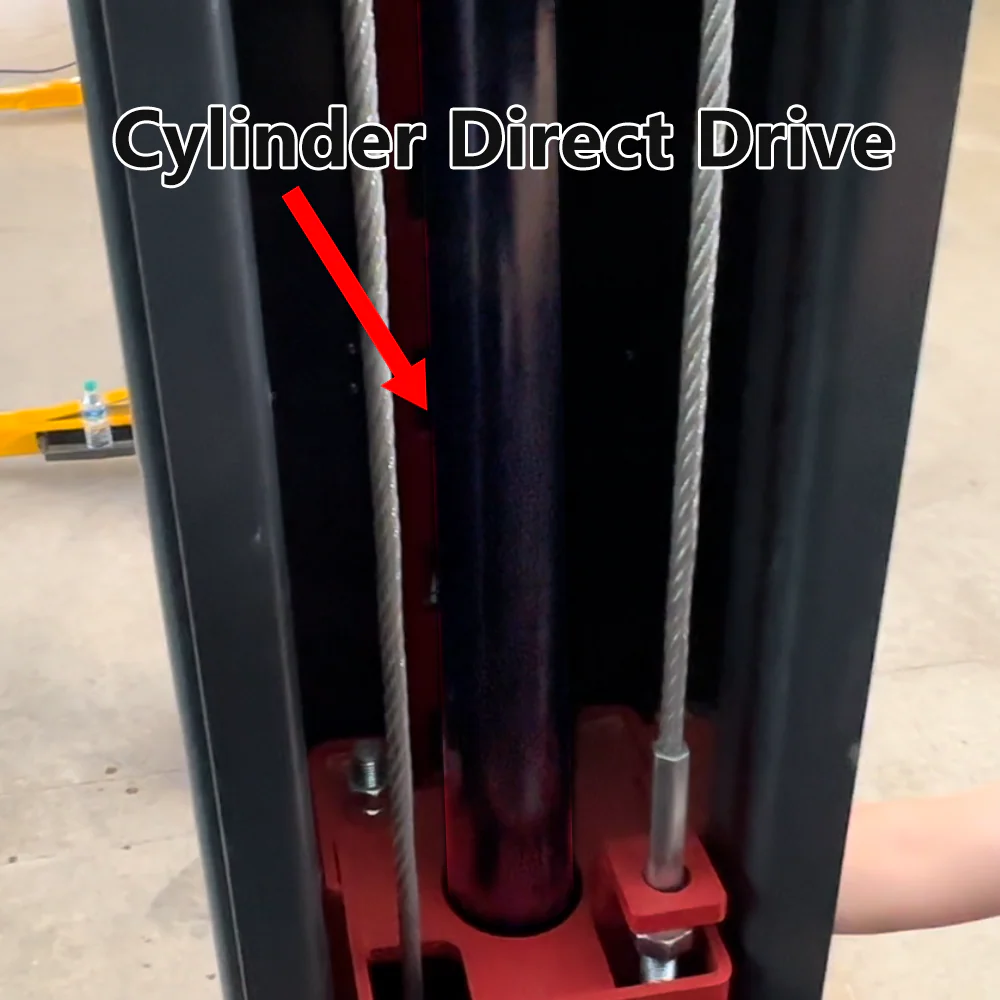

  • Hydraulic cylinder direct drive assembly between lift posts

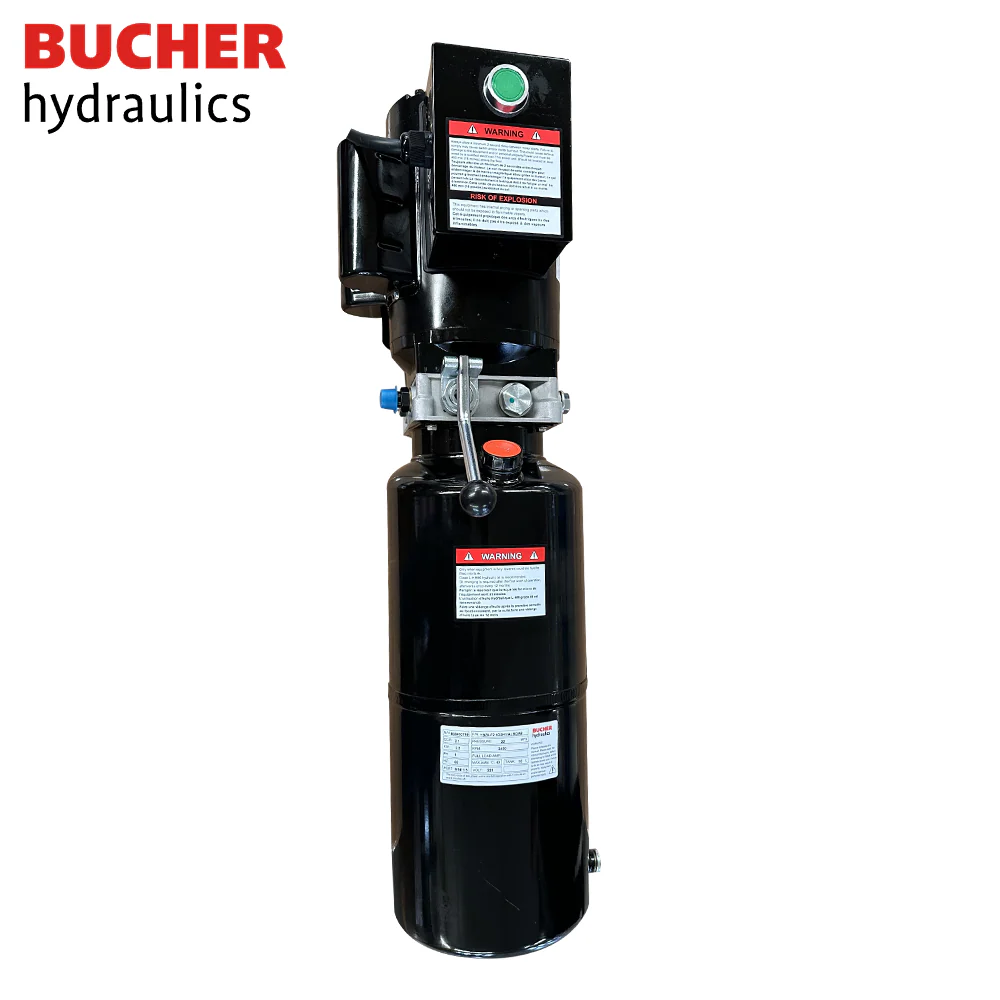

  • Hydraulic power unit with warning labels, black cylinder and metal fittings
  • ISO 9001 quality standards text banner
  • SQS certificate quality statement graphic with ISO 9001 logo
Katool KT-AS110D 11,000 lb Asymmetrical 2-Post Lift - Single Point Lock Release

Katool KT-AS110D 11,000 lb Asymmetrical 2-Post Lift - Single Point Lock Release

$2,599.00 $3,699.00

Shop Pay Installments

Eligible customers can split their purchase into payments with Shop Pay. Available plans and terms are shown at checkout.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Review the payment schedule and any down payment at checkout
  • Pay the rest over time with automatic payments

Payment options are subject to eligibility. Interest may apply. Review your rate, payment schedule, and total cost before completing your purchase.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Delivery Options
Free warehouse pickup · Confirm first Ask us to confirm stock and the supplier pickup location before ordering. No same-day pickup or handling fee. Contact us to arrange pickup →
Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

Adds 24 months after the standard parts warranty ends. Parts only; labor is not included. One plan per machine.

View coverage and terms

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
Manufacturer WarrantySee Product Terms
✅
Product SupportContact ALLIZOE
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

Standard manufacturer warranty: 3 years on structural components and 1 year on parts, subject to the manufacturer's terms and claim approval. Optional extended parts coverage is available for $349 per purchased lift. It adds 24 months after the standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended.

Warranty Includes:

  • Cylinders, power units, motors, displays, electronics, etc.
  • Structural components: 3-year standard manufacturer warranty

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included
  • Photos and/or videos of defects may be requested
  • Do not disassemble any equipment before the issue is determined

📄 Download Manual (PDF)
Shipping

Shipping availability, charges and estimated timing vary by product, delivery option and destination. Review the selected option and confirm any unloading equipment or delivery services required before ordering. Warehouse pickup requires stock and location confirmation, an appointment and written pickup authorization; no same-day pickup. Pickup has no shipping or handling fee. View full Shipping & Delivery details →
How to Choose the Right Lift ▾

Not sure whether a 2-post or 4-post lift is right for your shop? Our guide breaks down the key differences in access, space, capacity, and use case.

View the 2-Post vs 4-Post Comparison Guide →

⚠️ Safety Warning

⚠️ IMPORTANT SAFETY WARNING: Concrete thickness must be at least 5.9 inches (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

⚠️ IMPORTANT SAFETY WARNING: Ceiling clearance must be at least 13 feet (3,962 mm). Failure to verify your garage or shop height before installation could result in serious injury or death! It is the customer's responsibility to verify ceiling height before purchase and installation.

Price & Freight — Before Tax

For one purchased product or combo within the contiguous United States:

  • Warehouse Pickup: $2,599 before tax; no freight charge. Contact ALLIZOE to confirm stock and a pickup appointment before ordering.
  • Pickup at Carrier Terminal: $2,599 product + $400 freight = $2,999 before tax.
  • Commercial Delivery (Forklift Required): $2,599 product + $400 freight = $2,999 before tax.
  • Residential Delivery (Forklift Required): $2,599 product + $500 freight = $3,099 before tax.

Tax, optional accessories, upgrades, and the optional $349 extended parts warranty are additional. Confirm address eligibility and unloading arrangements, and review the final total at checkout. Standard liftgate service is not available for this lift.

For orders containing other products, review the combined shipping charge at checkout. The single-product freight totals above do not determine the shipping charge for a mixed order.

The Katool AS110D Asymmetric 2-Post Lift delivers 11,000 lbs of lifting capacity with asymmetric arms specifically designed for modern vehicles, providing better weight distribution and improved door access. It includes direct-drive cylinders, single-point lock release, and an overhead safety shaft. Available in 220V or optional 110V — built for professional shops that demand precision and reliability.

  • 11,000 lbs lifting capacity
  • Asymmetric arm design optimized for modern vehicles
  • Direct Drive Cylinders for smooth, consistent operation
  • Single-point lock release for fast, convenient operation
  • Overhead safety shaft for added protection
  • Rubber pad door opening protection
  • Adjustable support adapters for various vehicle heights
  • 220V/60HZ/1PH standard — 110V/60HZ/1PH optional

M110 AS110D KT-H115Z
Capacity 11,000 lb 11,000 lb 11,000 lb
Price (from) $2,099 $2,599 $1,999
Max Lift Height 70.75 in 70.75 in 70.8 in
Overall Width 142.25 in 134.65 in 140.4 in
Drive-Thru Clearance 94.5 in 99.61 in 98.4 in
Arm Reach Max 50.5 in 50.5 in 58.2 in (rear)
Motor 220V listed; confirm 110V availability and quote 220V standard; optional 110V — confirm configuration and quote 220V listed; confirm 110V availability and quote
Net Weight 1,367 lbs 1,323 lbs 1,257 lbs
Arm Type Symmetrical Asymmetrical Symmetrical
Single Point Lock — Yes —

Lifting Capacity: 11,000 lbs (4,990 kg)

Motor: 220VAC/60HZ/1PH

Outside Columns: 120.4 in / 3,058 mm

Inside Columns: 109.37 in / 2,778 mm

Arm Type: Asymmetric

Package Size: 124.85 x 34/20 x 95/84 in

Package Weight: 1,323 lbs

Max. Lifting Height: 70.75 in / 1,800 mm

Min. Height: 3.74 in / 95 mm

Height Overall: 141.25 in / 3,587 mm

Width Overall: 134.65 in / 3,420 mm

Drive-Thru Clearance: 99.61 in / 2,530 mm

Minimum Ceiling Height Required: 13 ft / 3,962 mm

Power options: 110V and 220V configurations are available at different prices. Confirm the selected voltage, final price, and electrical requirements with Allizoe before payment.

The Katool AS110D Asymmetric 2-Post Lift is engineered for professional automotive service with asymmetric arms that provide better weight distribution and improved door access for modern vehicles. It has 11,000 lb lifting capacity with direct-drive cylinders and single-point lock release. Direct drive cylinders deliver smooth, consistent operation while the single-point lock release enables fast, convenient service. Features include an overhead safety shaft, rubber pad door protection, adjustable support adapters for various vehicle heights, and compatibility with 220V or optional 110V power systems.

Standard manufacturer warranty: 3 years on structural components and 1 year on parts, subject to the manufacturer's terms and claim approval. Optional extended parts coverage is available for $349 per purchased lift. It adds 24 months after the standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended.

Warranty Includes:

  • Cylinders, power units, motors, displays, electronics, etc.
  • Structural components: 3-year standard manufacturer warranty

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included
  • Photos and/or videos of defects may be requested
  • Do not disassemble any equipment before the issue is determined

📄 Download Manual (PDF)

  • Professional Auto Shops: 11,000 lb capacity with asymmetric arms and single-point lock release
  • Modern Vehicle Service: Asymmetric arms optimized for rear-engine and modern vehicle access
  • High-Volume Shops: Single-point lock release for fast, convenient operation
  • Safety-Conscious Operations: Overhead safety shaft and direct drive cylinders for reliable performance
  • 110V Shops: Optional 110V power available

All Katool equipment is manufactured to international quality standards.

  • Quality Control — Each unit undergoes pre-shipment inspection
  • US-Based Support — Technical support provided from the United States
  • Warranty — 1-year limited manufacturer warranty included

Price & Freight — Before Tax

For one purchased product or combo within the contiguous United States:

  • Warehouse Pickup: $2,599 before tax; no freight charge. Contact ALLIZOE to confirm stock and a pickup appointment before ordering.
  • Pickup at Carrier Terminal: $2,599 product + $400 freight = $2,999 before tax.
  • Commercial Delivery (Forklift Required): $2,599 product + $400 freight = $2,999 before tax.
  • Residential Delivery (Forklift Required): $2,599 product + $500 freight = $3,099 before tax.

Tax, optional accessories, upgrades, and the optional $349 extended parts warranty are additional. Confirm address eligibility and unloading arrangements, and review the final total at checkout. Standard liftgate service is not available for this lift.

For orders containing other products, review the combined shipping charge at checkout. The single-product freight totals above do not determine the shipping charge for a mixed order.

  • Supplier warehouse pickup: No freight or handling fee. Allizoe confirms stock and the pickup warehouse before payment; warehouse address can be shared before payment.
  • Scheduling: No same-day pickup. After confirmation, the supplier provides a pickup release form. Blind pickup may be arranged.
  • Carrier terminal pickup: Freight to a carrier terminal is separate from free supplier warehouse pickup. Bring a suitable vehicle or trailer and arrange unloading at your final destination.
  • Commercial or residential delivery: Select the service matching your address and unloading equipment.

For these heavy lifts, confirm unloading arrangements before delivery.

Package Size

L x W x H (in) 112 x 18 x 36
Weight (lbs) 1323

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Explore equipment for your shop
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • Choose supplier Warehouse Pickup, Pickup at Carrier Terminal, Commercial Delivery (Forklift Required), or Residential Delivery (Forklift Required). See the Price & Freight section for current single-lift, before-tax totals within the contiguous United States. Tax and optional items are additional; mixed orders may have different combined shipping charges. Supplier warehouse pickup has no freight or handling fee, requires stock and location confirmation before payment and an appointment, and is not available the same day. Terminal staff load your suitable vehicle or trailer; you handle final unloading. Confirm suitable unloading equipment before ordering. Standard liftgate service is not available for this lift.
  • The KT-AS110D is listed with standard 220V/60Hz/single-phase power and an optional 110V configuration. Contact ALLIZOE before ordering to confirm the supplied power unit, availability, lead time, electrical requirements, and any additional charge. These are configuration choices; do not assume a supplied unit can switch between both voltages. Delivery Options select fulfillment, not voltage.
  • Asymmetrical lifts position the vehicle rearward of center, allowing full door access for easier entry and exit. They are ideal for modern vehicles and shops that prioritize technician convenience. Symmetrical lifts center the vehicle between the posts and are better suited for trucks and larger vehicles.
  • Professional installation by a qualified installer is strongly recommended. Allizoe lists a level concrete floor at least 5.9 inches (150 mm) thick with a 3,000 PSI rating. Have the installer verify the slab, ceiling clearance, electrical supply, anchoring, and model-specific installation instructions before installation.
  • If Shop Pay Installments is offered for your order at checkout, the available payment plans and terms will be shown there. Availability is subject to eligibility and approval. Review the terms before completing your purchase.
  • We provide US-based technical support via email and phone. Our team assists with installation questions, troubleshooting, and parts replacement throughout your warranty period.
  • Contact Allizoe within 30 days of pickup or delivery to request return authorization. Eligible equipment must be unused, uninstalled, and in its original packaging with all accessories. Returns for reasons other than defect or warranty are subject to a 30% restocking fee and round-trip freight costs under our Refund Policy. Review the full policy at /policies/refund-policy before ordering.
  • Check the vehicle's actual loaded weight and load distribution against the lift's rated capacity and any manufacturer-specified per-arm limits. Confirm that the arms and pads can reach the vehicle manufacturer's approved lifting points, and check minimum pad height, wheelbase, vehicle width, and actual drive-through clearance. Allow space for the raised vehicle, overhead beam, and ceiling using the supplied model-specific installation drawing and manual. Contact ALLIZOE with the vehicle year, make, model, modifications, and loaded weight if you need help checking compatibility before ordering.
